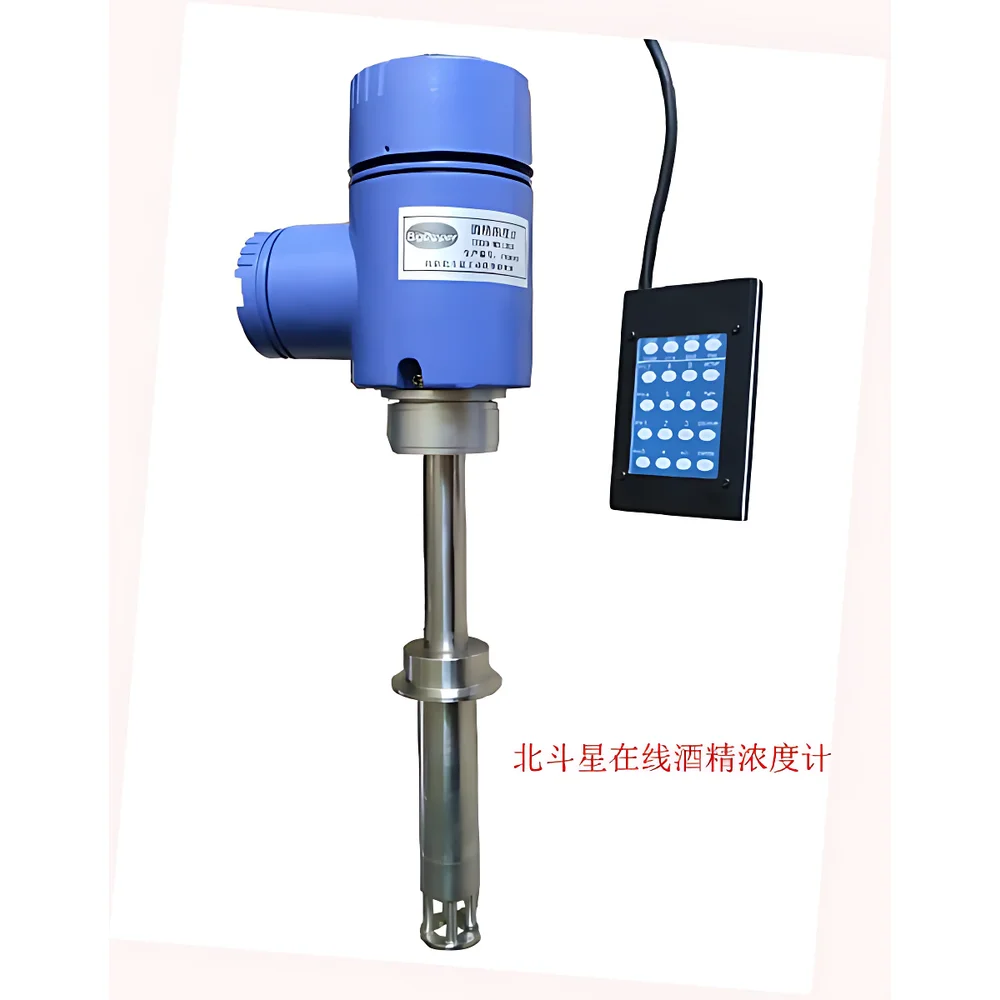

Bigdipper T-BD5 MS1204 In-Line Ethanol Concentration Analyzer

Overview

The Bigdipper T-BD5 MS1204 is an in-line process analyzer engineered for continuous, real-time measurement of ethanol concentration in liquid-phase industrial streams. It operates on the principle of near-infrared (NIR) absorption spectroscopy, leveraging characteristic absorption bands of the hydroxyl (–OH) group and C–O stretching vibrations to quantify ethanol mass or volume fraction with high specificity and minimal interference from water, methanol, or common organic solvents. Designed for integration into pharmaceutical, fine chemical, and biofuel production lines, the analyzer delivers stable, drift-free performance under dynamic flow conditions without requiring reagents, consumables, or optical windows subject to fouling. Its measurement range covers 0–100% v/v ethanol, with typical repeatability better than ±0.2% v/v under controlled temperature and flow conditions.

Key Features

• Zero-consumable operation: No reagents, membranes, electrodes, or calibration fluids required — eliminating recurring operational costs and disposal liabilities.
• Fast response dynamics: Optical signal acquisition and onboard processing complete within <15 seconds, enabling closed-loop control compatibility with PLC/DCS systems operating at sub-minute cycle times.
• Intrinsically safe and explosion-proof construction: Certified to Ex d ia IIC T5 per GB 3836.1–2010 / IEC 60079-0:2017, suitable for Zone 1 hazardous areas handling flammable alcohol vapors and mists.
• Modular mechanical interface: Supports multiple wet-end mounting configurations — NPT threaded (½”, ¾”, 1″), ANSI/EN/DIN flanged (DN25–DN50), and sanitary clamp (Tri-Clamp® 1.5″–3″) — ensuring adaptability across batch, semi-batch, and continuous manufacturing platforms.
• Chemically resistant sensor body options: Standard configurations feature PTFE-wetted surfaces; optional 304SS or 316SS housings available for elevated pressure (up to 10 bar g) and temperature (up to 120°C) applications.

Sample Compatibility & Compliance

The T-BD5 MS1204 is validated for use with aqueous ethanol solutions, fermentation broths, distillate fractions, and purified solvent streams containing ≤5% non-volatile solids. It exhibits robust immunity to suspended particulates <50 µm and tolerates transient air entrainment without signal loss. The analyzer complies with ISO 9001:2015 design and manufacturing protocols. While not pre-certified for FDA 21 CFR Part 11, its firmware architecture supports audit trail logging, user access control (three-tier role permissions), and electronic signature-ready data export — facilitating qualification under GMP/GLP environments when deployed with validated installation and operational protocols (IQ/OQ/PQ). Calibration traceability follows ISO/IEC 17025 principles via certified reference standards prepared per USP or ASTM E2875–13 guidelines.

Software & Data Management

The embedded intelligent transmitter runs firmware v3.2+ with dual communication interfaces: 4–20 mA analog output (HART 7.5 protocol enabled) and Modbus RTU/TCP over RS-485 or Ethernet. Configuration and diagnostics are performed via web-based HMI (HTTPS-secured) or dedicated PC utility (Windows 10/11 compatible). All measurement data — including raw spectra, temperature-compensated concentration values, diagnostic flags (e.g., low signal-to-noise, flow interruption), and calibration history — are timestamped and stored locally (16 GB internal flash) for ≥12 months at 1 Hz sampling. Export formats include CSV, PDF reports, and OPC UA-compatible structured JSON for MES/SCADA integration.

Applications

• Fermentation monitoring: Real-time tracking of ethanol yield during yeast or bacterial bioconversion processes (e.g., fuel ethanol, beverage alcohol, pharmaceutical intermediates).
• Distillation column optimization: Feed, sidestream, and bottoms analysis to support advanced process control (APC) and energy efficiency modeling.
• Pharmaceutical solvent recovery: Verification of ethanol purity in recycled IPA/ethanol blends used for API crystallization or cleaning validation.
• Regulatory compliance testing: Supporting batch release documentation per EP 2.2.23 or JP 6.07 for ethanol-containing preparations.
• Quality assurance in contract manufacturing: On-line verification of incoming solvent lots prior to formulation.

FAQ

Does the T-BD5 MS1204 require factory recalibration after installation?
No — each unit undergoes initial spectral calibration using NIST-traceable ethanol/water standards prior to shipment. However, field-specific recalibration using customer-prepared reference samples is recommended during commissioning to account for matrix effects and piping-induced flow profile deviations.
Can the analyzer operate in high-viscosity streams (e.g., >20 cP)?
Yes — provided minimum linear flow velocity exceeds 0.3 m/s to ensure laminar-to-turbulent transition at the optical path and prevent boundary layer stagnation. Optional flow conditioning inserts are available for viscous or particulate-laden applications.
Is remote firmware update supported?
Yes — secure OTA updates are enabled via TLS 1.2-encrypted HTTP POST to the device’s management interface, with rollback capability and SHA-256 integrity verification.
What is the warranty period and service support coverage?
Standard warranty is 24 months from date of commissioning. Extended service plans include annual optical path inspection, spectral stability verification, and on-site technical support — available globally through authorized Bigdipper regional partners.
