| Brand | SIGAS (Schütz Measuring & Control) |
|---|---|
| Origin | Germany |
| Model | PR-Station |
| Inlet Pressure Range | 0.1–1.6 MPa |
| Outlet Pressure Range | 0.1–0.8 MPa (adjustable per circuit) |
| Construction | De-greased Oxygen-Service Copper Tubing (Φ15×1 mm or Φ22×1.2 mm standard |
| Configuration | Dual independent pressure-regulated circuits with isolation valves, digital pressure gauges (0–1.6 MPa), optional explosion-proof enclosure, optional safety valves, optional emergency door release mechanism, optional medical-grade audible/visual alarm with remote telemetry module |
| Brand | Heyer Aerotech (SIGAS/Schütz Meßtechnik) |
|---|---|
| Origin | Germany |
| Product Type | Medical Gas Outlet Terminal |
| Compliance | DIN EN ISO 7396-1 |
| Mounting Options | Wall-mounted (load-bearing & non-load-bearing), equipment rail, ICU headwall, ceiling-suspended pendants, gas supply boxes from multiple OEMs |
| Gas Interface | Dual-seal, keyed coupling system preventing cross-gas misconnection |
| Certification | CE-marked per EU MDR 2017/745 |
| Brand | SIGAS (Schütz Measurement & Control) |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Ambulance Mobile Oxygen System |
| Pricing | Available Upon Request |
| Brand | SIGAS (Schütz Mess- und Regeltechnik) |
|---|---|
| Origin | Germany |
| Model | AGS 35-50 |
| Supply Configuration | Dual-bank cylinder auto-switching with priority liquid oxygen inlet (AGS 80P compatible) |
| Pressure Monitoring | Continuous real-time differential pressure sensing |
| Control Logic | Automatic switchover triggered by user-defined high/low pressure thresholds |
| Compliance | Designed to meet ISO 8573-1 (compressed air quality), EN ISO 7396-1 (medical gas pipeline systems), and IEC 60601-1 (medical electrical equipment safety) |

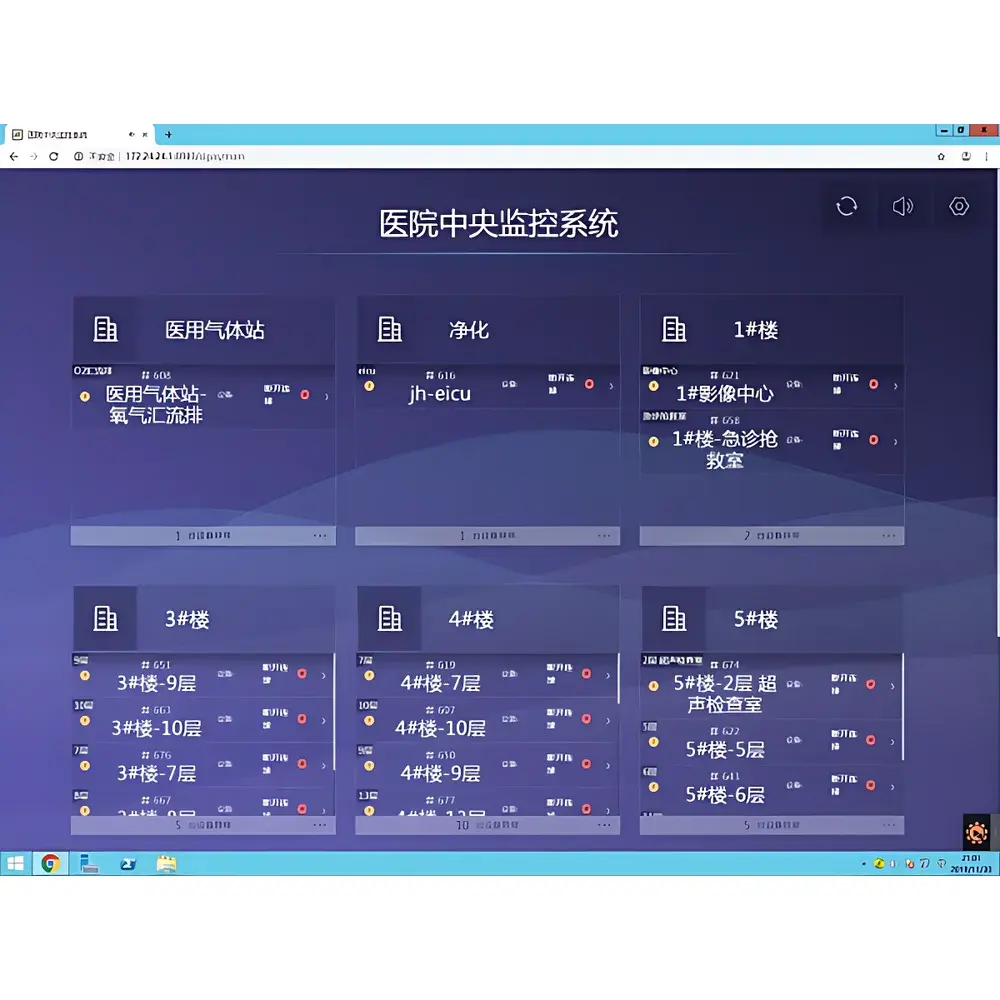

| Brand | SIGAS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | CMGS-2000 Series |
| Pricing | Available Upon Request |
| Brand | SIGAS |
|---|---|
| Origin | Germany |
| Product Type | Medical humidification and suction system |
| Model | SIGAS Humidification & Suction Device |
| Compliance | CE-marked per MDR 2017/745 |
| Vacuum Range | 0–80 kPa (0–0.8 bar) |
| Operating Pressure | 400–600 kPa compressed air supply |
| Humidification Principle | Bubble-through immersion tube with multi-orifice diffusion |
| Brand | SIGAS |
|---|---|
| Origin | Germany |
| Model | SIGAS-MAD Series |
| Type | Twin-Tower Desiccant Air Dryer |
| Inlet Pressure Range | 6–10 bar(g) |
| Dew Point | ≤ −40 °C (at pressure) |
| Flow Capacity | 10–2000 Nm³/h |
| Filtration Stages | Pre-filter (ISO 8573-1 Class 2, 2, 2), Coalescing + Activated Carbon Post-filter (Class 1, 1, 1) |
| Regeneration Method | Purge-air (heatless) or Blower-assisted (optional) |
| Compliance | ISO 8573-1:2010, ISO 7396-1:2016, EN 13544-1:2021, DIN SPEC 5000-2, VDI 2083 Part 10 |

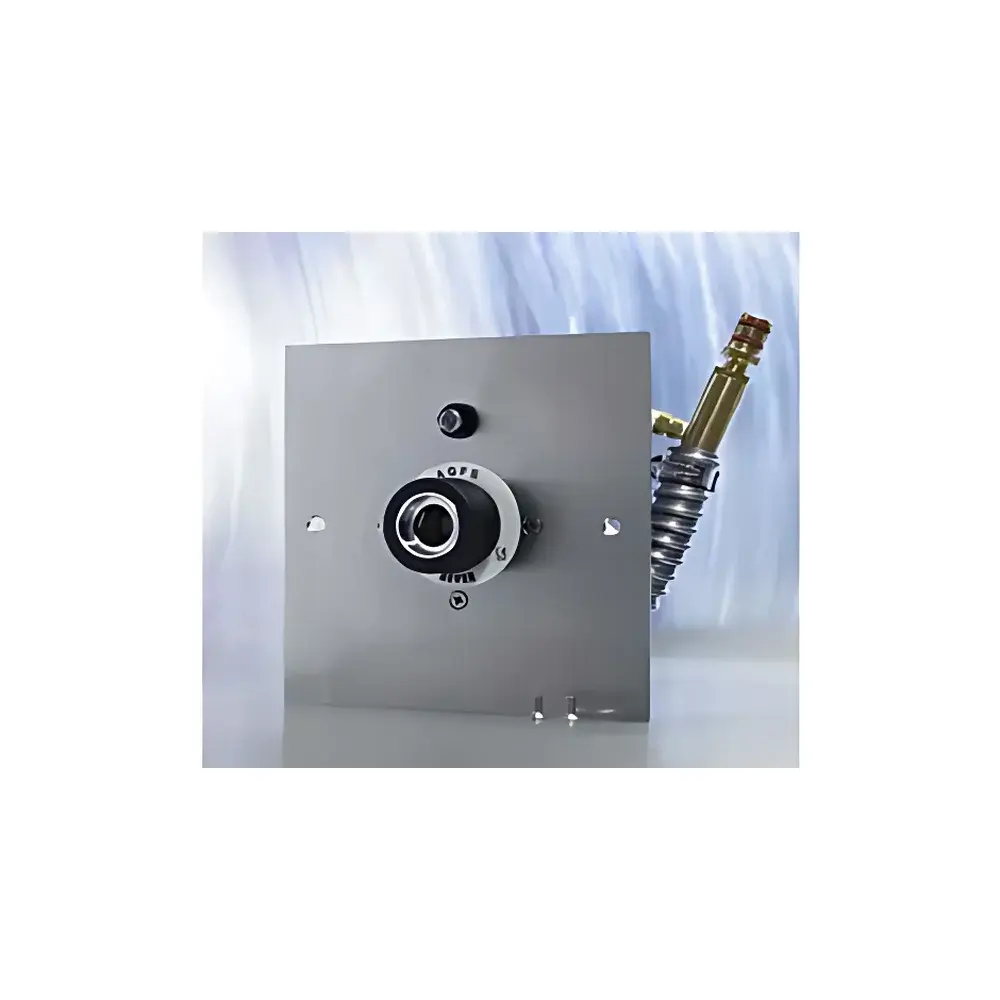

| Brand | SIGAS (Schütz Mess- und Regeltechnik) |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | AGSS |
| Pricing | Available Upon Request |

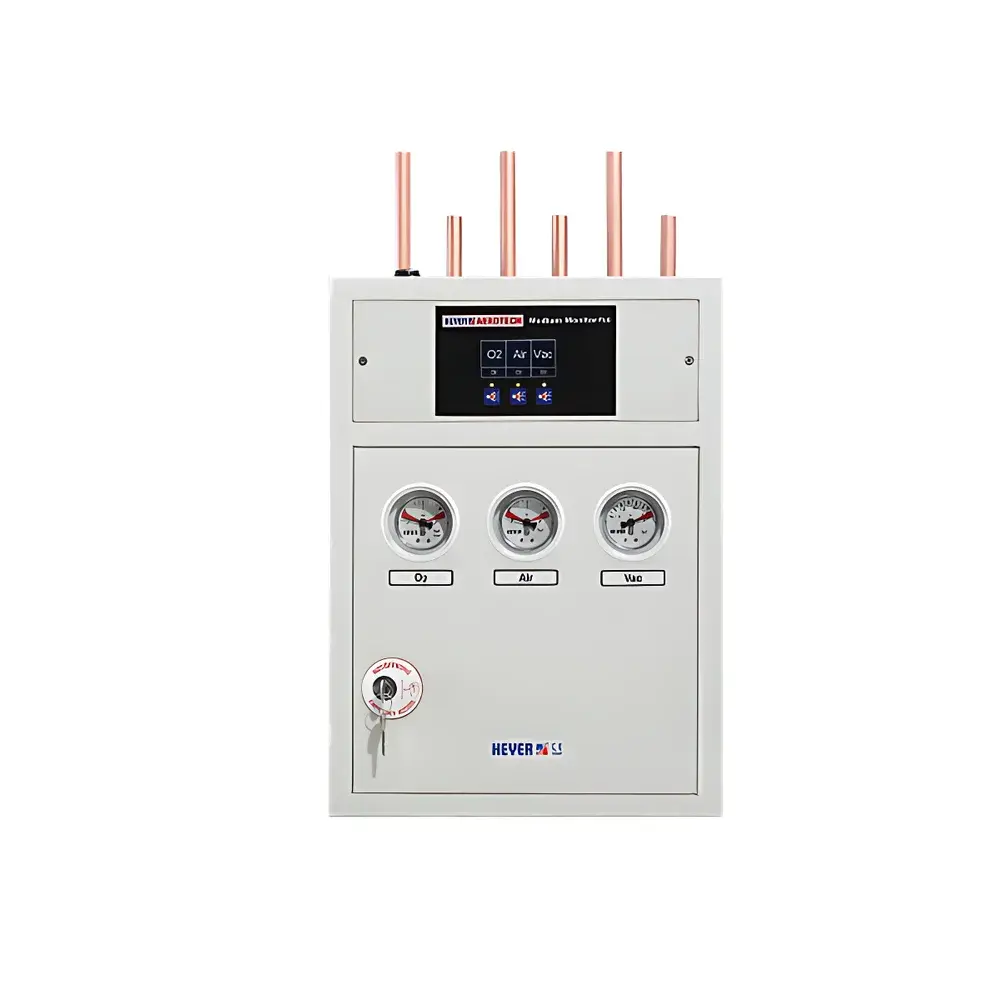

| Brand | SIGAS (Schütz Measuring & Control) |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Medical Area Alarm Valve Box System |
| Pricing | Upon Request |
| Gas Integration Capacity | 1–6 medical gases per unit |
| Alarm Threshold | ±20% of setpoint pressure |
| Audible Alarm Level | ≥60 dBA at 1 m |
| Flow Rate | >20 m³/h |
| Inlet/Outlet Pressure | 0.5 MPa |
| Pipe Diameter Options | Φ15 mm or Φ22 mm |
| Tubing Material | Oxygen-cleaned, de-greased copper |
| Enclosure Door | Emergency quick-release mechanism |
| Display Panel | Concealed parameter configuration interface |
| Pressure Monitoring | Real-time comparison against user-defined high/low limits |
| Alarm Output | Local audible/visual + remote dry-contact signal |
| Internal Relay Module | For circuit protection, automatic switching, and control logic execution |
| Compliance | Designed in accordance with ISO 8573-1 (compressed air purity), ISO 7396-1 (medical gas pipeline systems), and EN ISO 7396-1:2016 |
