COM-3600 Air Negative Ion Detector

Overview

The COM-3600 Air Negative Ion Detector is a precision-engineered environmental monitoring instrument designed for quantitative measurement of negative air ion concentration (ions/cm³) in ambient indoor and outdoor environments. It operates on the principle of Gerdien tube-based aspiration electrometry—a standardized physical method defined in the Japanese Industrial Standard (JIS) draft guidelines for airborne ion density measurement. Unlike conventional planar plate-type ion sensors, the COM-3600 employs a coaxial double-cylinder detector geometry, which minimizes electrostatic interference, enhances charge collection efficiency, and ensures high reproducibility across varying airflow conditions. This architecture enables stable baseline performance under low-concentration (<100 ions/cm³) and high-dynamic-range scenarios (up to ±2 × 10⁶ ions/cm³), making it suitable for scientific validation of ion-generating devices, indoor air quality assessments, forest-atmosphere studies, and controlled environment evaluations in wellness architecture or cleanroom-adjacent applications.

Key Features

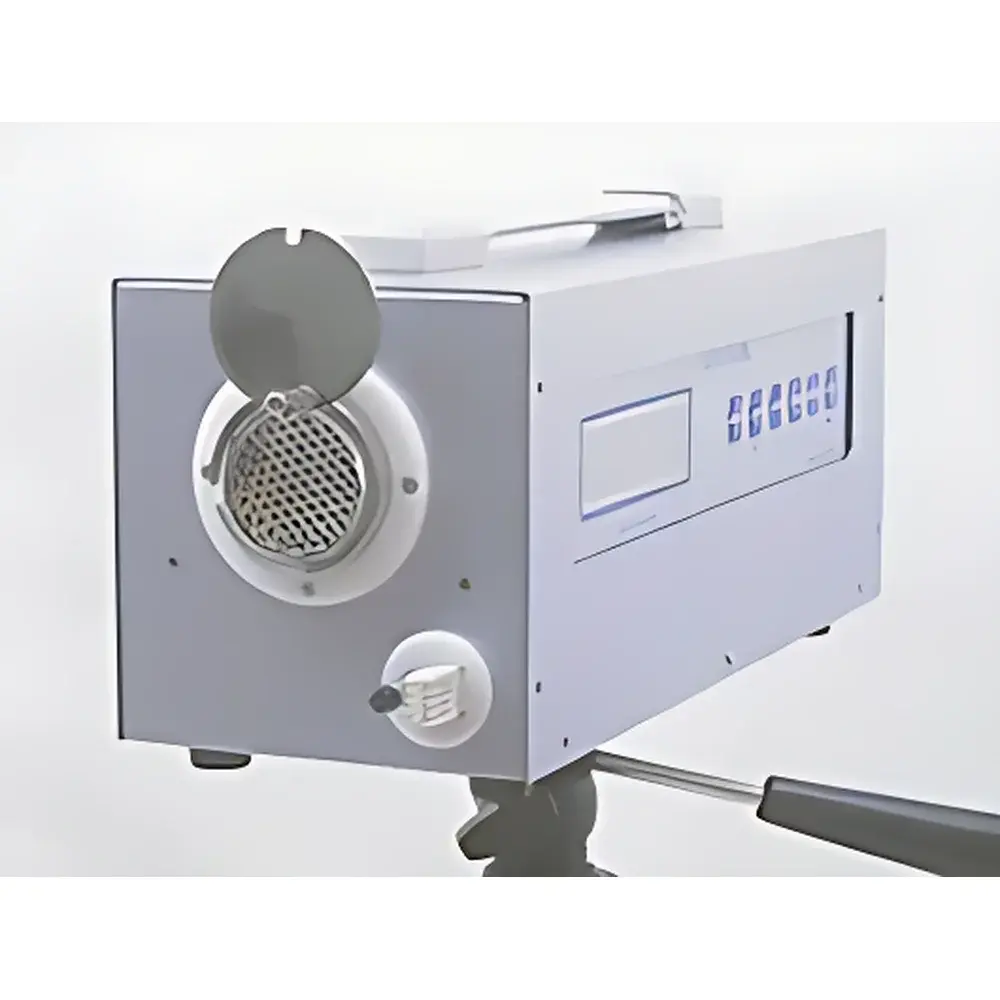

• Coaxial double-cylinder ion collector compliant with JIS draft methodology for airborne ion density determination
• Four-range auto-scaling measurement capability: R1 (±3.2 × 10³), R2 (±2 × 10⁴), R3 (±2 × 10⁵), R4 (±2 × 10⁶ ions/cm³)
• Integrated environmental sensors: temperature (0–50.0 °C, ±1.0 °C accuracy) and relative humidity (5–95% RH, ±5% RH accuracy)
• Real-time RS-232 serial interface for continuous data streaming to host PC; supports time-stamped logging with full timestamp resolution (YYYY-MM-DD hh:mm:ss)
• Dual-power operation: AC adapter (100–240 V AC) and rechargeable internal battery (4-hour charge → ~6 hours continuous runtime)
• Backlit 16-character × 2-line LCD display with intuitive menu navigation for manual/automatic mode selection
• Onboard real-time clock with calendar function for synchronized temporal correlation of ion concentration trends

Sample Compatibility & Compliance

The COM-3600 is optimized for gaseous-phase sampling of small air ions (mobility range: 0.8 cm²/V·s) in unfiltered ambient air. It requires no consumables or calibration gases and is insensitive to non-ionized particulates below 0.1 µm. While not certified to ISO 16000-30 or ASTM D7912 (which pertain to ozone and VOC co-monitoring), its detection geometry and signal processing align with metrological best practices referenced in JIS B 7950 (draft) for ion counter validation. The instrument meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage safety (EN 61010-1). Data acquisition workflows support GLP-compliant documentation when paired with validated third-party software.

Software & Data Management

The COM-3600 interfaces with proprietary Windows-compatible analysis software (sold separately), enabling real-time visualization, multi-parameter trend plotting (ion count vs. temperature/humidity/time), statistical summary (mean, SD, min/max), and export to CSV or PDF formats. The software includes audit-trail functionality—recording operator ID, session start/end timestamps, and configuration changes—to facilitate traceability in regulated settings. Raw serial output adheres to ASCII-based protocol with fixed-field delimiter structure, permitting integration into custom LabVIEW, Python (pySerial), or MATLAB acquisition environments. No cloud dependency or mandatory online activation is required.

Applications

• Performance verification of commercial ionizers, HVAC-integrated ion generation modules, and electrostatic precipitators

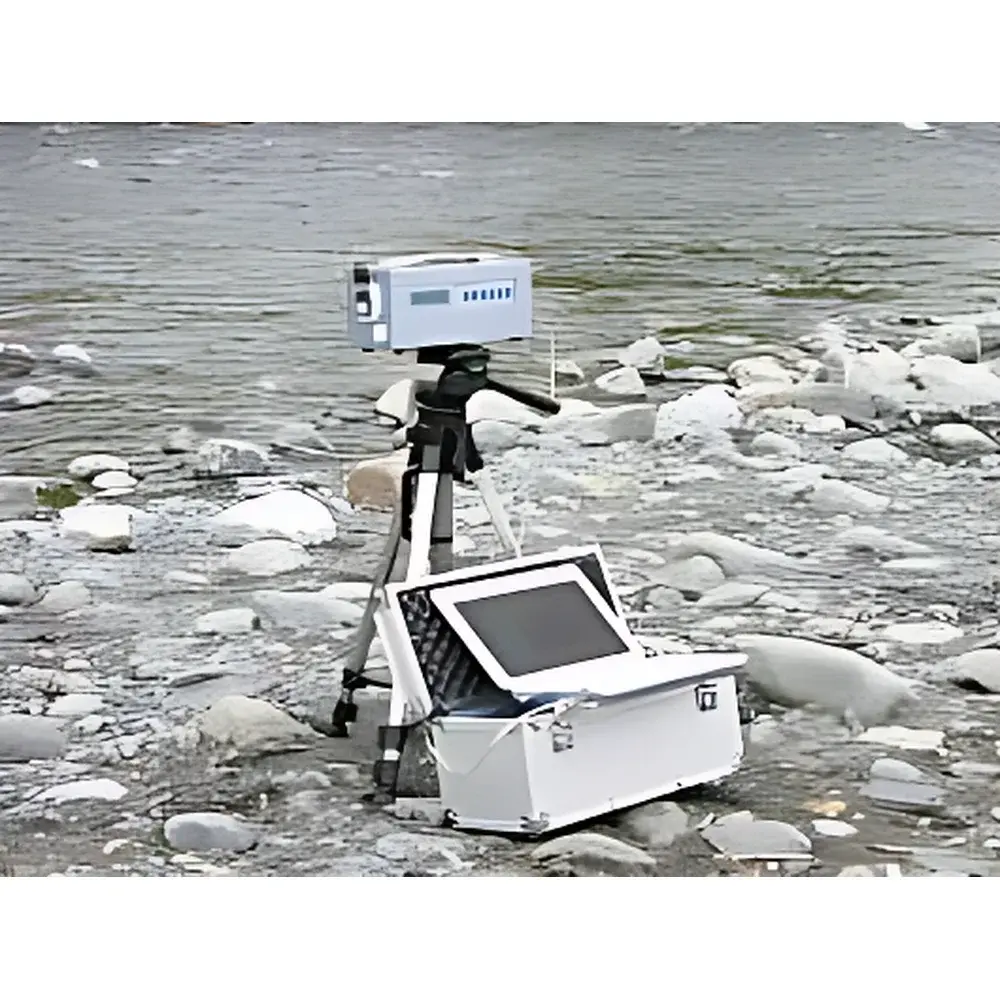

• Field assessment of natural ion concentrations in forests, waterfalls, mountain zones, and coastal regions
• Indoor environmental quality (IEQ) benchmarking in offices, hospitals, schools, and residential buildings
• Research-grade longitudinal monitoring in biometeorology, atmospheric electricity, and human exposure studies
• Comparative testing of materials claimed to emit negative ions (e.g., tourmaline ceramics, mineral coatings)

FAQ

Does the COM-3600 require annual recalibration?
No scheduled factory recalibration is mandated; however, users are advised to perform zero-point verification using a certified Faraday cage or nitrogen-purged enclosure at least quarterly.
Can the instrument measure positive ions?
Yes—the bipolar design measures both positive and negative ion concentrations independently within the same range; polarity is indicated by sign (+/−) on the display.
Is the mobility value (0.8 cm²/V·s) adjustable?
No—the detector geometry fixes the effective ion mobility response; this value corresponds to the standard small-ion mobility class used in atmospheric physics.
What is the minimum detectable airflow velocity for reliable sampling?
Optimal aspiration is achieved at ≥0.1 m/s; built-in fan-assisted intake ensures consistent volumetric flow even in stagnant air.
Are firmware updates available?
Firmware revisions are distributed via authorized distributors upon technical bulletin release; update procedure requires RS-232 connection and dedicated utility software.
