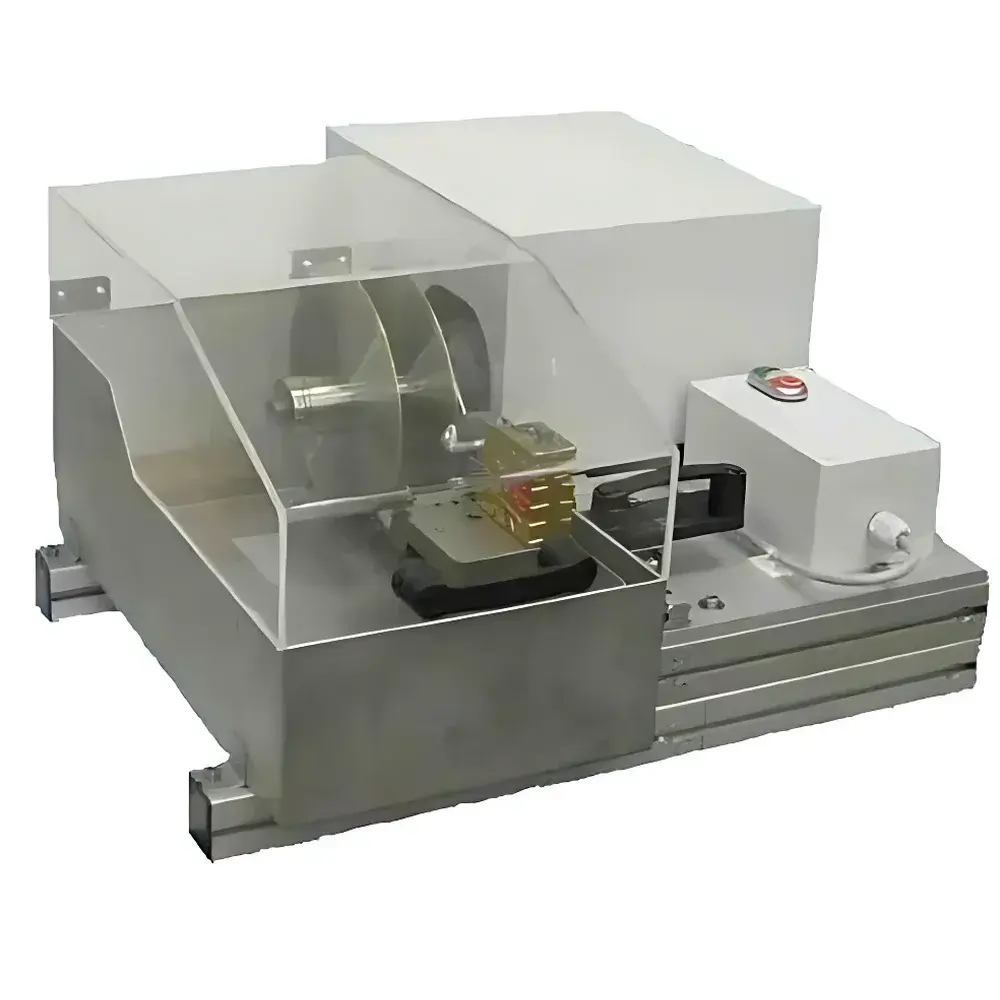

Flo克斯 SPECIMEN TRIM SAW Dual-Blade Precision Specimen Cutting System

Overview

The FLOXLAB SPECIMEN TRIM SAW is a dual-blade precision cutting system engineered for high-reproducibility specimen preparation in materials science laboratories, quality control environments, and accredited testing facilities. Unlike conventional single-blade saws, this instrument employs two synchronized, independently driven circular blades operating in parallel—enabling simultaneous trimming of both ends of cylindrical or prismatic specimens to achieve matched, co-planar surfaces within tight geometric tolerances. Its operation is grounded in controlled mechanical translation and rigid kinematic coupling, ensuring minimal runout and thermal drift during extended cutting cycles. Designed for use with metals, polymers, ceramics, composites, and geological core samples, the system delivers metrologically traceable flatness and perpendicularity essential for subsequent mechanical testing—including tensile, compression, hardness, and microstructural analysis (e.g., SEM/EBSD sample mounting). The unit complies with fundamental mechanical safety principles outlined in EN ISO 12100 and incorporates integrated emergency stop circuitry and interlocked blade guards meeting Category 3 PLd requirements per EN ISO 13857.

Key Features

• Dual-synchronous blade architecture with independent motor control ensures consistent material removal rate across both cutting planes, reducing cumulative angular deviation.
• High-rigidity cast-iron base and linear-motion guide rails minimize vibration-induced surface waviness, supporting surface flatness ≤ 0.05 mm over full cut span.
• Adjustable specimen clamping vise with T-slot bed accommodates round, square, and rectangular cross-sections; quick-release mechanism enables sub-60-second setup between specimens.
• Integrated coolant delivery system with flow-regulated nozzle directs water-based coolant precisely at blade–workpiece interface, suppressing thermal cracking and extending blade life.
• Motor-driven feed advancement (manual override available) allows programmable feed rates from 0.05 to 0.5 mm/s, optimized for brittle vs. ductile material response.
• IP54-rated electrical enclosure and sealed bearing housings ensure operational reliability in humid or particulate-rich lab environments.

Sample Compatibility & Compliance

The SPECIMEN TRIM SAW accepts specimens up to 54.7 mm in diameter and 109.4 mm in length—covering standard ASTM E8/E8M, ISO 6892-1, and EN 10002-1 tensile test coupon dimensions. It supports common metallurgical standards including ASTM E3, ASTM E384 (for Knoop/Vickers microhardness preps), and ISO 148-1 (Charpy impact specimens). All cutting parameters—including blade speed, feed rate, and coolant pressure—are documented in the operator logbook, supporting GLP-compliant record retention. While the system itself does not carry CE marking as a standalone medical device, its mechanical design conforms to EU Machinery Directive 2006/42/EC when installed per manufacturer-specified anchoring and grounding protocols.

Software & Data Management

This model operates via an embedded industrial PLC with tactile HMI panel—no external PC required. All operational parameters (cut count, total runtime, coolant flow status, motor temperature) are logged internally with timestamped entries retained for ≥12 months. Audit trail functionality meets basic FDA 21 CFR Part 11 readiness criteria: user login authentication (3-tier access: Operator/Supervisor/Admin), electronic signature capture for calibration verification, and exportable CSV logs via USB 2.0 port. Optional RS-485 Modbus RTU interface enables integration into centralized laboratory information management systems (LIMS) for automated job dispatch and QC data aggregation.

Applications

• Precision end-trimming of metal tensile bars prior to extensometer attachment or grip alignment.
• Preparation of parallel-faced polymer compression specimens compliant with ISO 604 and ASTM D695.
• Sectioning of ceramic tiles and refractory bricks for flexural strength testing (ASTM C1161, ISO 14704).
• Dimensional conditioning of geological core segments for triaxial cell loading or thin-section microscopy.
• Batch-wise trimming of additive-manufactured (AM) metal parts to remove support structures while preserving critical surface finish specifications.

FAQ

What types of blades are compatible with the SPECIMEN TRIM SAW?
Standard configuration uses diamond-impregnated segmented blades (200 mm OD, 2 mm kerf); optional tungsten-carbide-tipped blades are available for non-ferrous alloys and composites.
Is coolant filtration integrated into the system?
No—external filtration is recommended for continuous operation; the unit includes a 5-L reservoir with level sensor and overflow protection.
Can the machine be used for dry cutting?
Dry operation is strictly prohibited; absence of coolant risks rapid blade degradation, specimen thermal distortion, and non-compliance with EN 1539 dust emission limits.
Does FLOXLAB provide NIST-traceable calibration documentation?
Yes—initial factory calibration certificate (including blade parallelism, table flatness, and positional repeatability) is supplied; annual recalibration service is available under FLOXLAB Service Agreement Level 2.
What maintenance intervals are recommended?
Lubrication of linear guides every 200 operating hours; blade tension verification before each shift; coolant system flush every 3 months or after 500 cuts—whichever occurs first.
