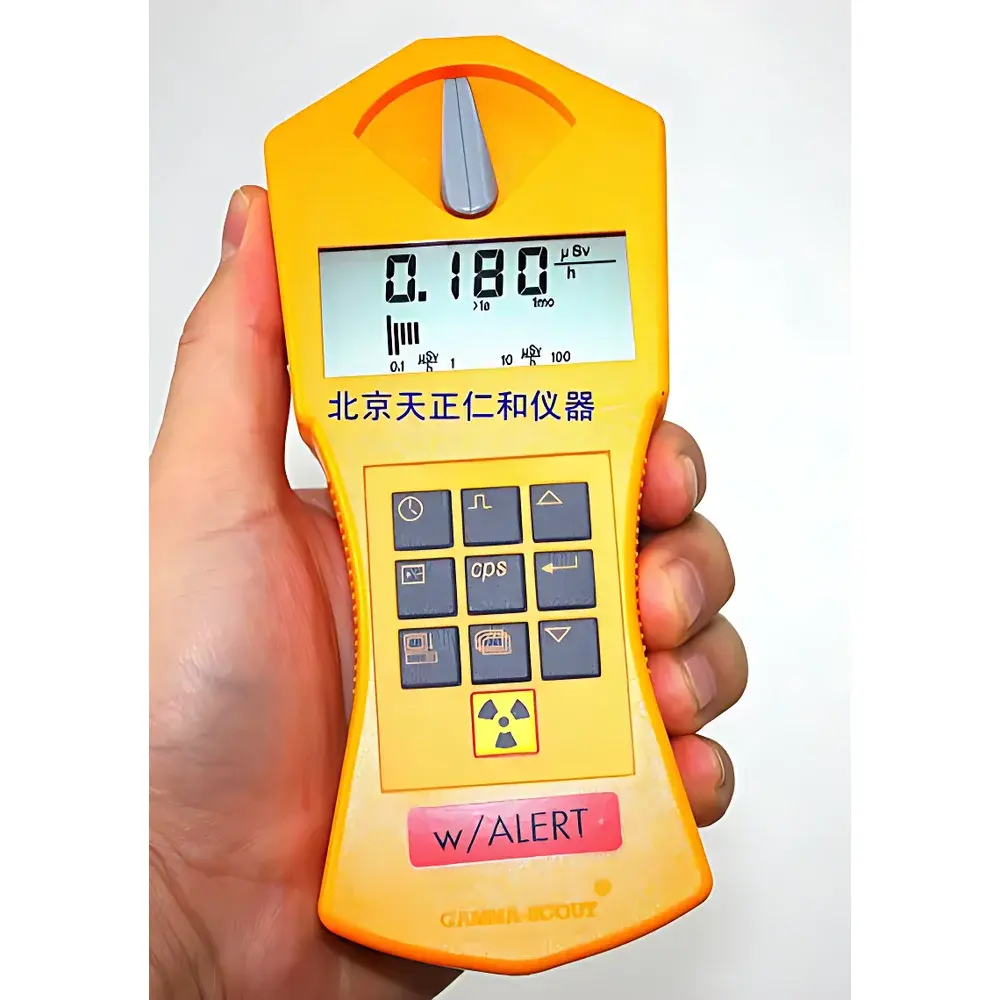

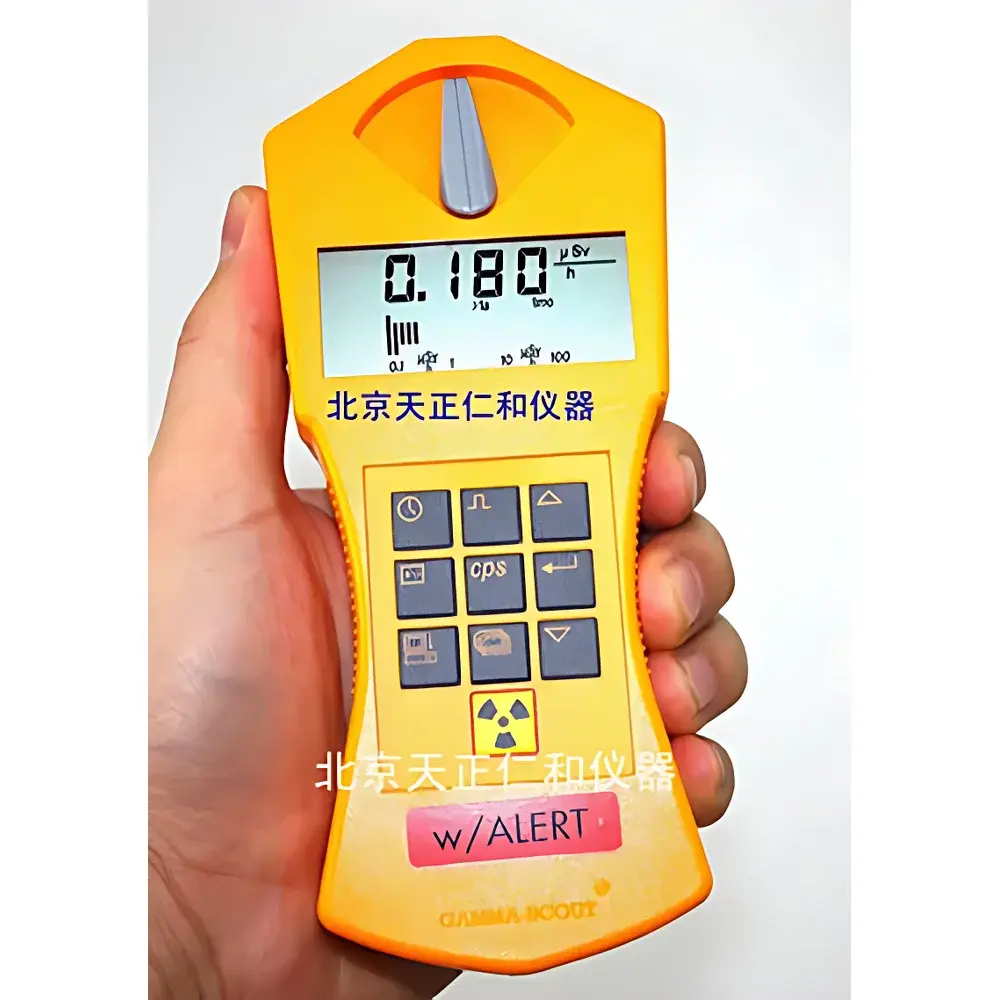

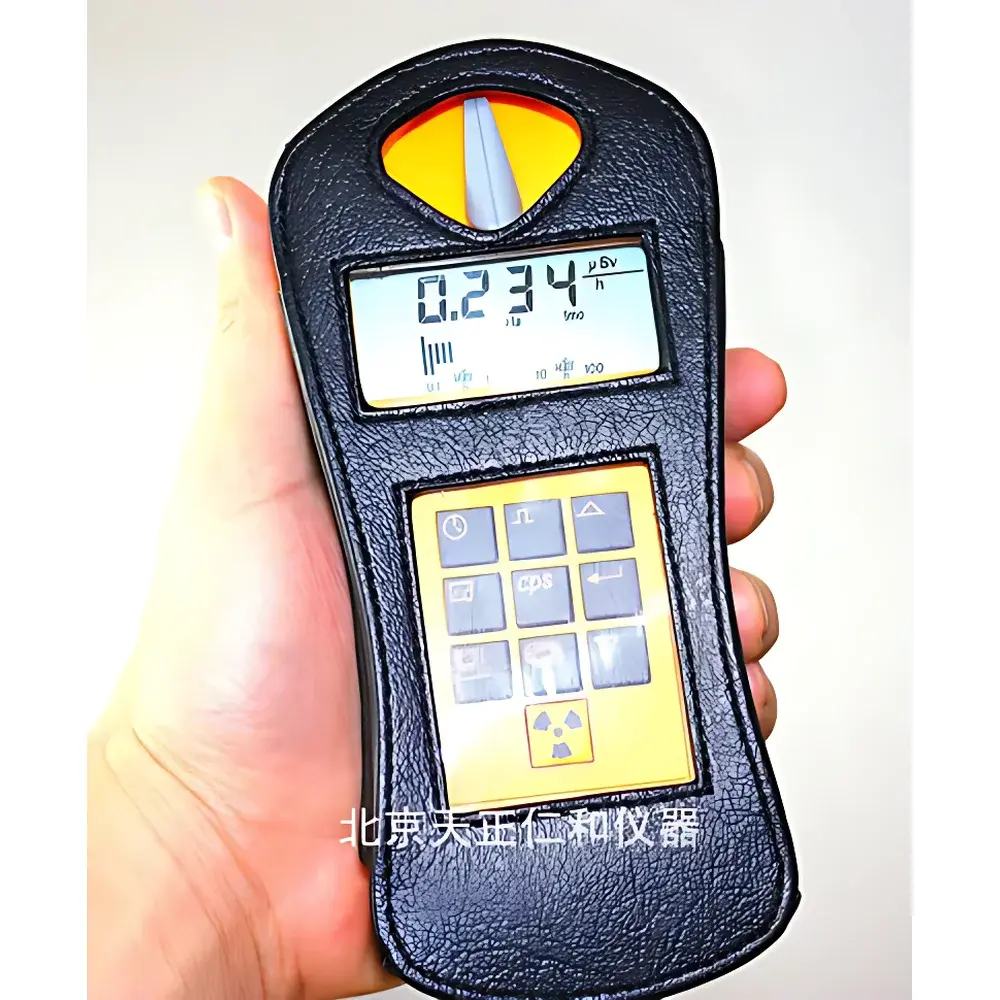

Gamma-Scout GS-15 Multi-Function Digital Radiation Survey Meter

Overview

The Gamma-Scout GS-15 is a field-deployable, multi-radiation-type digital survey meter engineered for precision environmental and occupational radiation monitoring. Based on proven Geiger-Müller (GM) detection technology, the GS-15 employs a high-sensitivity, energy-compensated GM tube (38 mm × 9 mm active volume) manufactured to U.S. National Institute of Standards and Technology (NIST)-traceable specifications. It measures ambient dose equivalent rate H*(10) in real time across four ionizing radiation types—alpha (α), beta (β), gamma (γ), and X-ray—within an extended energy response range (γ ≥ 20 keV; β ≥ 0.2 MeV; α ≥ 4 MeV). Designed for rugged daily use in variable climatic conditions (−40 °C to +75 °C), the instrument delivers traceable, reproducible readings compliant with IEC 60846-1:2014 requirements for portable dose rate meters. Its compact, ergonomic housing—certified to European CE and U.S. FCC Part 15 standards—enables reliable operation in both laboratory and uncontrolled field environments without external power dependency.

Key Features

• Triple-mode radiation discrimination via physical selector switch: γ-only, β+γ, and α+β+γ—enabling targeted assessment of surface contamination versus penetrating radiation fields
• High-resolution backlit LCD display showing simultaneous numeric dose rate (µSv/h), real-time bar graph, elapsed time, date stamp, and battery voltage indicator
• Onboard data logging with 2 KB non-volatile memory; supports programmable sampling intervals (1 s to 24 h) and automatic timestamped storage
• USB 2.0 interface for bidirectional communication with Windows-based Gamma-Scout Analysis Software (v6.05), enabling spectral trend analysis, report generation, and GLP-compliant audit trails
• Long-service lithium primary battery rated for 10 years under typical intermittent usage (no recharging required); low-battery warning integrated into display logic
• IP54-rated enclosure (dust-protected, water-splash resistant); impact-resistant polycarbonate housing tested to MIL-STD-810G shock criteria
• Factory-calibrated against ⁶⁰Co reference sources; each unit carries a unique NRC (U.S. Nuclear Regulatory Commission)-recognized calibration certificate valid for five years

Sample Compatibility & Compliance

The GS-15 is validated for direct measurement of radioactive nuclides commonly encountered in environmental, industrial, and regulatory contexts—including natural series isotopes (²²⁶Ra, ²²²Rn progeny), medical isotopes (⁹⁹mTc, ¹³¹I), and industrial emitters (¹³⁷Cs, ⁶⁰Co). Its alpha sensitivity permits qualitative screening of uranium/thorium-bearing materials (e.g., granite, ceramic glazes, phosphate fertilizers), while its low-energy gamma threshold enables detection of ²⁴¹Am (59.5 keV) and ²³⁴Th (63 keV). The device satisfies functional requirements outlined in ISO 7503-1 (radiation protection instrumentation — contamination monitors), ASTM D3648 (standard test methods for radioactivity in water), and EPA Method 901.1 (radon-in-water screening). Though not designed for spectroscopic identification, its energy-compensated response ensures dose-rate linearity across mixed-field scenarios typical in nuclear medicine facilities, NORM/TENORM handling sites, and post-incident reconnaissance.

Software & Data Management

Gamma-Scout Analysis Software (v6.05) provides full firmware control, data export (CSV, XML), time-series visualization, and statistical summary (min/max/mean/std dev). Raw pulse count logs are preserved with microsecond-level timestamp resolution, supporting retrospective dose reconstruction. Audit functionality complies with FDA 21 CFR Part 11 principles: electronic signatures, user access levels, and immutable change logs are enforced during data import/export. Exported datasets integrate natively with LIMS platforms and meet reporting requirements for ISO/IEC 17025-accredited laboratories performing environmental radioactivity testing. All software updates are digitally signed and distributed exclusively through Gamma-Scout GmbH’s authorized channel partners.

Applications

• Environmental baseline surveys for radon gas progeny in residential basements and geological formations
• Screening of construction materials (granite countertops, ceramic tiles, recycled concrete aggregate) per EU Council Directive 2013/59/Euratom
• Routine monitoring around decommissioned oilfield equipment contaminated with ²²⁶Ra scale
• Verification of shielding integrity in radiography bays and X-ray diffraction laboratories
• Emergency response triage for orphan source localization using directional sensitivity and audible alarm thresholds
• Regulatory compliance checks at landfills accepting TENORM waste streams
• Quality assurance audits of antique glassware, fiestaware, and uranium-doped optical lenses
• Field validation of groundwater remediation efforts targeting dissolved radium-226

FAQ

Does the GS-15 require annual recalibration?
No. Per manufacturer specification and IEC 60846-1 guidance, recalibration is required only every five years when operated within specified environmental and usage conditions.
Can the GS-15 distinguish between radionuclides?
No. It is a dose-rate integrator—not a spectrometer—and does not provide energy-resolved identification. Nuclide-specific interpretation requires correlation with known source geometry, shielding, and decay scheme data.
Is the USB interface compatible with macOS or Linux?
The official Gamma-Scout Analysis Software is Windows-only (Windows 7–11, 64-bit). Raw binary logs may be parsed via third-party Python scripts, but no vendor-supported cross-platform GUI is provided.
What is the minimum detectable activity for alpha emitters on surfaces?
Under ideal conditions (2π geometry, 10 cm distance, 100 s counting), the GS-15 detects ≥ 0.5 Bq/cm² of ²⁴¹Am (α) with >95% confidence; performance degrades significantly with dust, moisture, or non-planar substrates.
Does the device meet GLP or GMP requirements for regulated labs?
Yes—when used with documented procedures, calibrated accessories, and the audit-trail-enabled software, it fulfills instrument qualification (IQ/OQ) elements per FDA and EMA guidance for environmental monitoring systems.
