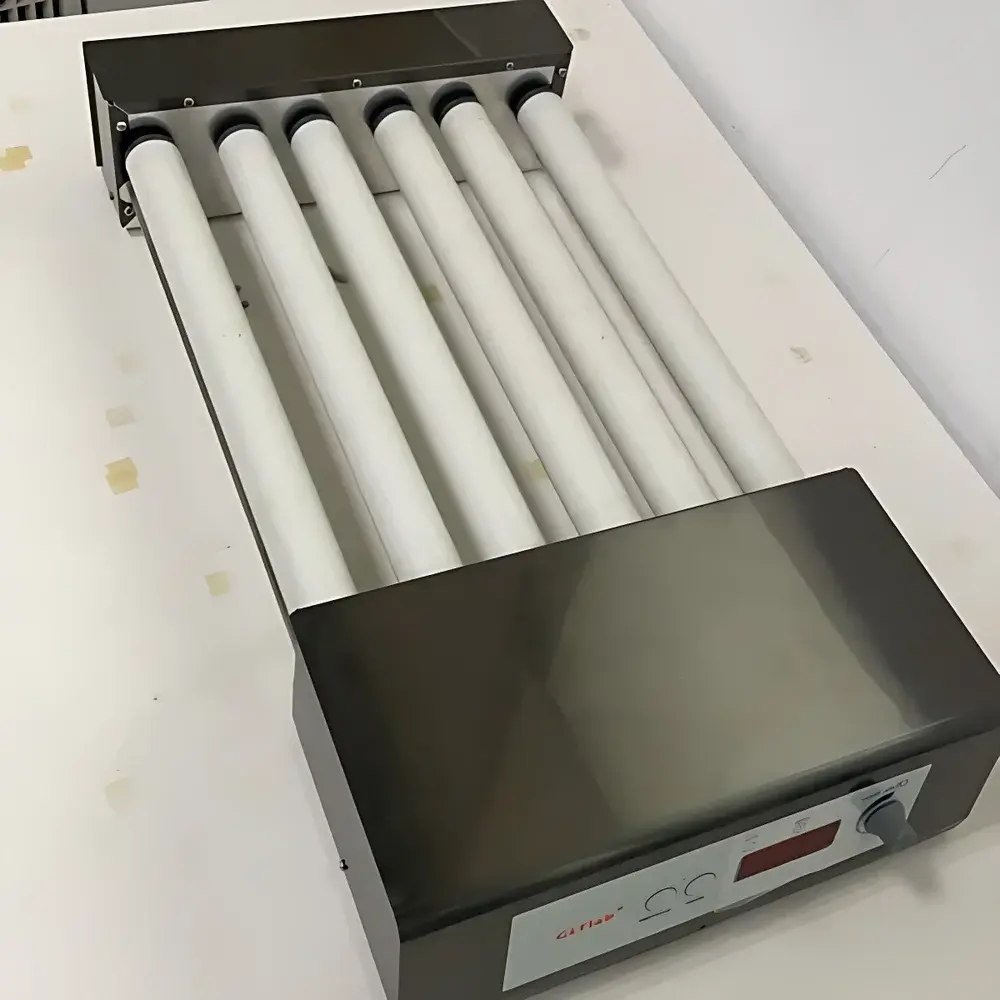

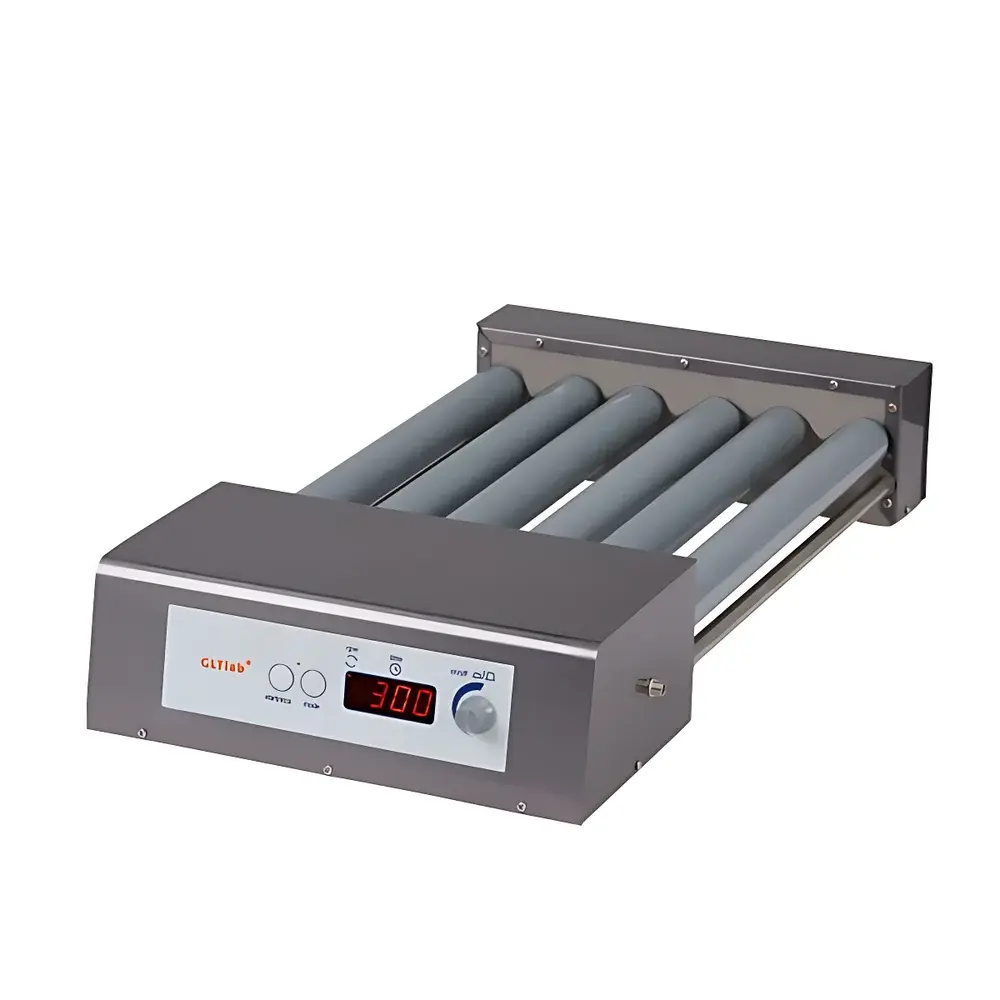

GLTlab TR-6A Stainless Steel Roller Mixer & Homogenizer

Overview

The GLTlab TR-6A Stainless Steel Roller Mixer & Homogenizer is an industrial-grade, digitally controlled rolling mixer engineered for high-reproducibility blending of viscous, heterogeneous, and abrasive samples under demanding laboratory and pilot-scale production conditions. Unlike orbital shakers or vortex mixers, the TR-6A operates on a true rotational rolling principle—where sample containers rotate end-over-end along a fixed horizontal axis—generating gentle yet thorough laminar shear without foaming, splashing, or air entrapment. This mechanism ensures uniform dispersion of high-viscosity pastes, slurries, and suspensions commonly encountered in battery electrode slurry preparation, polymer compounding, pharmaceutical suspension formulation, and catalyst synthesis. Its fully enclosed 304 stainless steel chassis eliminates galvanic corrosion pathways, making it uniquely suited for long-term operation in humid, acidic, or alkaline environments typical of electrochemical R&D labs and fine chemical manufacturing facilities.

Key Features

• Full 304 stainless steel construction—including frame, roller shafts, housing, and fasteners—for exceptional resistance to chemical corrosion, oxidation, and mechanical wear
• Digital microprocessor control with precise speed regulation (5–300 rpm) and programmable timer (1 min to 540 min) with auto-stop functionality

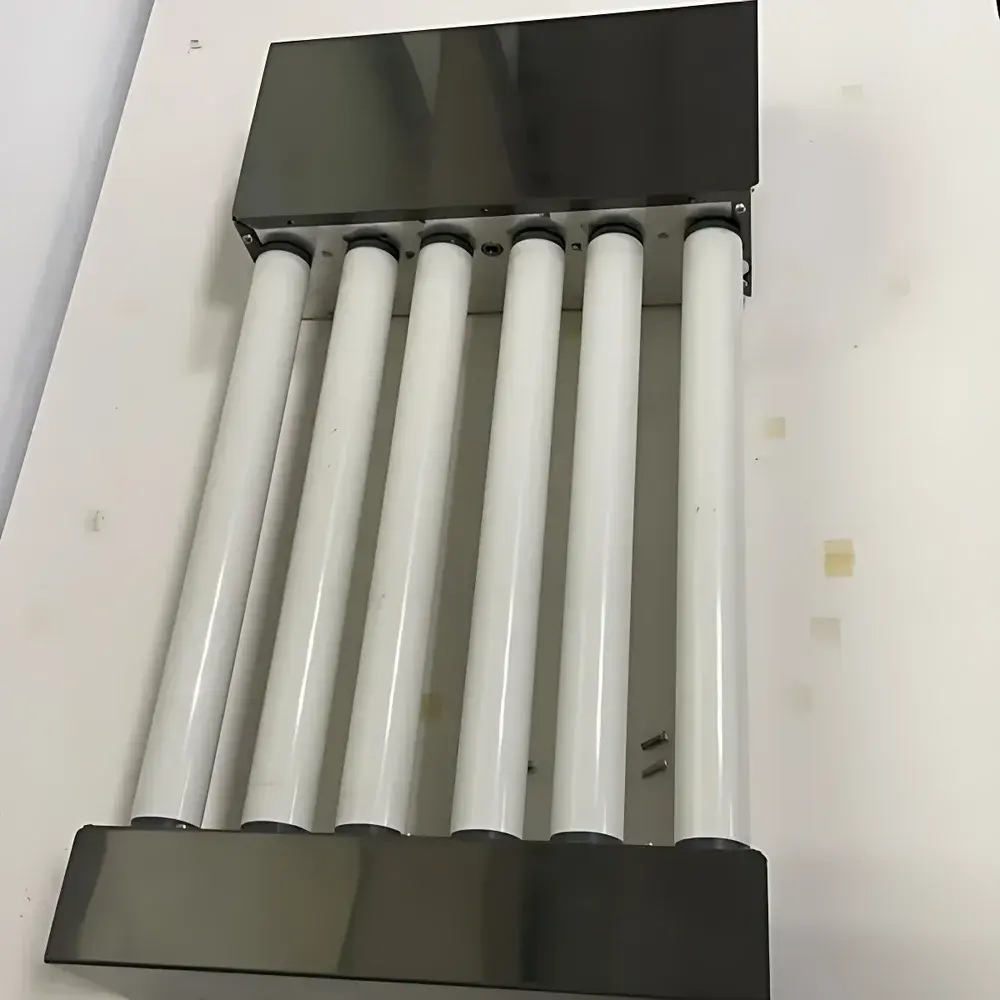

• Six independently mounted, precision-machined rollers (340 × 30 mm each), optimized for balanced load distribution and minimal vibration at high speeds
• 10 kg maximum load capacity per unit—validated for continuous operation with multiple heavy-walled glass or stainless steel bottles (e.g., 500 mL–2 L)
• Low-noise DC motor drive with thermal overload protection and electromagnetic braking for rapid, repeatable stopping
• Ergonomic low-profile design (height: 98 mm) enabling integration into fume hoods, glove boxes, or stacked benchtop configurations
• Non-slip silicone roller sleeves (standard fit) provide secure grip on cylindrical vessels while minimizing abrasion-induced particle shedding

Sample Compatibility & Compliance

The TR-6A accommodates standard laboratory containers including borosilicate glass bottles (up to 2 L), stainless steel mixing jars, and polypropylene or PTFE-lined vessels. It supports solid–solid, solid–liquid, and high-viscosity liquid–liquid mixing protocols compliant with ASTM D1895 (bulk density of plastics), ISO 8130-12 (powder coating homogeneity), and USP (uniformity of dosage units). The absence of moving belts, gears, or exposed electronics ensures compatibility with cleanroom Class 10,000 environments and simplifies decontamination between batches. While not certified to IEC 61326-1 (EMC) or FDA 21 CFR Part 11 out-of-the-box, its digital interface architecture supports audit-trail-ready firmware upgrades and optional RS-232/USB data logging modules for GMP/GLP-aligned documentation workflows.

Software & Data Management

The TR-6A features a local digital interface with LED display and tactile membrane keypad—designed for intuitive parameter entry and real-time status feedback (speed, elapsed time, remaining time). No proprietary software is required for basic operation. For traceability-critical applications, optional communication modules enable serial output of operational logs (start/stop timestamps, speed setpoints, total runtime) compatible with LabArchives, ELN platforms, or custom SCADA systems. All firmware updates are delivered via encrypted USB stick, preserving configuration integrity during version migration. Audit trails comply with ALCOA+ principles when paired with validated timestamping and user-access controls at the host system level.

Applications

• Battery R&D: Homogeneous dispersion of NMC/LFP cathode slurries, graphite/Si-anode pastes, and solid-state electrolyte composites
• Materials Science: Blending of ceramic precursors, metal-organic frameworks (MOFs), and conductive polymer composites
• Pharmaceutical Development: Wet granulation support, suspension stabilization studies, and excipient–API dry blending validation
• Chemical Engineering: Catalyst slurry conditioning prior to coating, pigment dispersion in coatings, and rheological modifier incorporation
• Environmental Testing: Soil–water slurry homogenization for leaching assays (e.g., TCLP extraction prep)

FAQ

Is the TR-6A suitable for use inside nitrogen-filled gloveboxes?
Yes—the sealed stainless steel enclosure and brushless DC motor eliminate outgassing risks and meet O₂ <1 ppm compatibility requirements when installed with appropriate feedthroughs.
Can the roller rotation direction be reversed programmatically?
No—the TR-6A operates exclusively in unidirectional rolling mode to maximize mechanical stability and minimize bearing stress during high-load operation.
What maintenance intervals are recommended for continuous 24/7 operation?
Roller sleeve replacement every 12 months; motor lubrication inspection every 24 months; no scheduled PCB servicing required due to conformal-coated circuitry and passive cooling design.
Does the unit include CE or UL certification?
It carries CE marking per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU; UL listing is available upon request for OEM integration projects.
How is calibration verified for speed accuracy?
Speed linearity is factory-validated using NIST-traceable optical tachometry across the full 5–300 rpm range; certificate of conformance is supplied with each unit.
