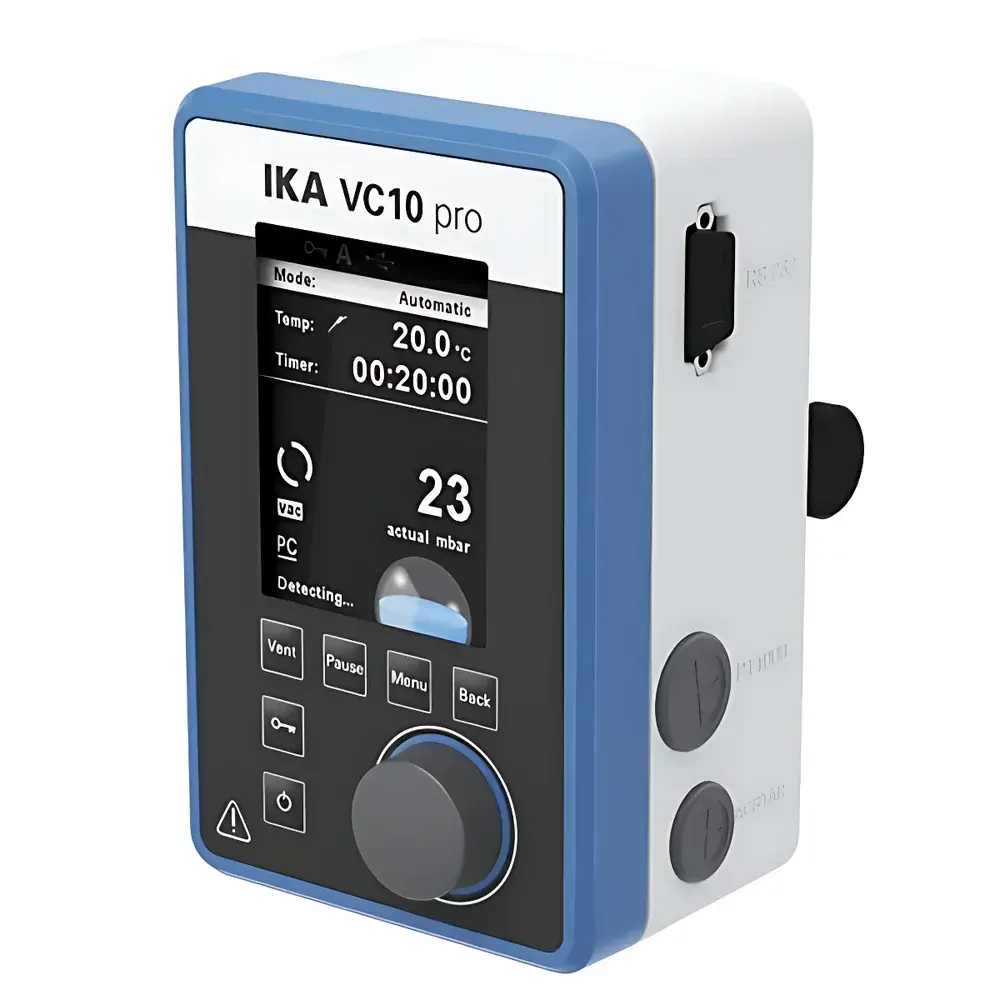

IKA VC10 pro Digital Vacuum Controller

Overview

The IKA VC10 pro Digital Vacuum Controller is an engineered precision instrument designed for reproducible, programmable vacuum management in laboratory-scale separation, rotary evaporation, freeze-drying, and filtration workflows. It operates on a capacitive ceramic pressure sensor platform—providing long-term stability, chemical resistance to common organic solvents and acidic vapors, and high-resolution digital readout across its full 1–1050 mbar operating range. Unlike analog or mechanical vacuum regulators, the VC10 pro delivers closed-loop digital control with real-time feedback, enabling precise pressure ramping, hold steps, and dynamic response to process conditions such as solvent boiling point shifts during distillation. Its compact, integrated design eliminates external controllers and reduces benchtop footprint while maintaining compatibility with standard vacuum sources—including diaphragm, scroll, and oil-sealed rotary vane pumps—as well as optional secondary condensers (e.g., VSE 1) for enhanced solvent recovery and emissions control.

Key Features

• Digital ceramic pressure sensor with ±1 mbar accuracy and immunity to corrosion from chlorinated, polar, and volatile organic solvents
• Intuitive TFT LCD interface with graphical vacuum curve visualization and real-time pressure/time trend display
• 10 fully customizable vacuum programs, each supporting up to 10 sequential pressure/time segments for gradient-controlled evaporation
• Auto-boiling-point recognition algorithm coupled with an embedded solvent database (including ethanol, acetone, ethyl acetate, toluene, and DCM) to recommend optimal pressure setpoints
• Dedicated VENT key for immediate atmospheric release—critical for preventing bumping or foaming during sensitive distillations
• Integrated inert gas purge valve for controlled backfilling with nitrogen or argon, supporting air-sensitive chemistry and sample protection
• Self-cleaning function that periodically actuates internal valves to prevent condensate buildup and maintain long-term calibration integrity
• Electronic variable-speed pump control via relay output, synchronizing vacuum generation with process demand to improve energy efficiency and solvent recovery yield
• Password-protected lockout mode (ABCD operational modes) and configurable startup security to prevent unauthorized parameter changes
• USB and RS232 interfaces compliant with IKA’s labworldsoft® software suite for automated method execution, audit-trail-enabled data export, and remote monitoring

Sample Compatibility & Compliance

The VC10 pro is compatible with glassware systems using standard 8 mm vacuum ports (e.g., IKA RV 10 rotary evaporators, Büchi R-2xx series, and modular vacuum manifolds). Its ceramic sensor ensures reliable operation under repeated exposure to aggressive media including HCl(g), acetic anhydride, THF, and concentrated HNO₃ vapors—validated per ISO 8573-1 for compressed air quality class 4 contamination tolerance. The device meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage safety (EN 61010-1). When used with labworldsoft®, it supports ALCOA+ data integrity principles and can be configured for 21 CFR Part 11–compliant electronic records—including user authentication, change history, and immutable timestamps—making it suitable for regulated QC/QA laboratories operating under GMP or GLP frameworks.

Software & Data Management

The VC10 pro integrates natively with IKA’s labworldsoft® software (v4.0+), enabling full method automation, multi-device synchronization, and centralized data archiving. All vacuum profiles, setpoint logs, and real-time sensor outputs are timestamped and stored in CSV or XML format with metadata (operator ID, instrument serial number, ambient temperature via optional external probe). Audit trails record every parameter modification, program start/stop event, and firmware update. Data exports support LIMS ingestion and comply with ISO/IEC 17025 documentation requirements for measurement traceability. Optional OPC UA gateway modules allow integration into larger MES or SCADA platforms for enterprise-level process oversight.

Applications

• Programmed gradient vacuum control in fractional rotary evaporation of multicomponent mixtures
• Pressure-regulated lyophilization cycle development with endpoint detection via pressure rise test (PRT)
• Controlled vacuum filtration of heat-labile biologics under inert atmosphere
• Distillation optimization for pharmaceutical intermediates requiring strict residual solvent limits (ICH Q3C)
• Automated drying protocols for nanomaterials and MOFs where pore collapse must be avoided via slow pressure ramping
• Reaction monitoring in Schlenk-line setups with simultaneous vacuum/inert gas switching

FAQ

Does the VC10 pro support connection to external cooling circulators?
Yes—it features a dedicated dry-contact output to trigger start/stop signals on compatible IKA cooling circulators (e.g., RC basic, C series), enabling coordinated thermal-vacuum process control.
Can the built-in solvent database be updated or expanded?
The database is factory-programmed with 25+ common solvents; custom entries cannot be added directly but may be emulated via manual pressure/temperature setpoint mapping in labworldsoft®.
Is the ceramic pressure sensor replaceable in-field?
No—the sensor is hermetically sealed within the housing and not user-serviceable; replacement requires return-to-factory calibration and re-certification.
What is the maximum allowable ambient humidity for continuous operation?
The unit is rated for operation at ≤80% relative humidity (non-condensing), consistent with ISO 14644-1 Class 8 cleanroom environmental specifications.
Does the VC10 pro meet explosion-proof certification standards?
It is not ATEX or IECEx certified; use in potentially explosive atmospheres requires integration within a certified enclosure or zone-rated system architecture.
