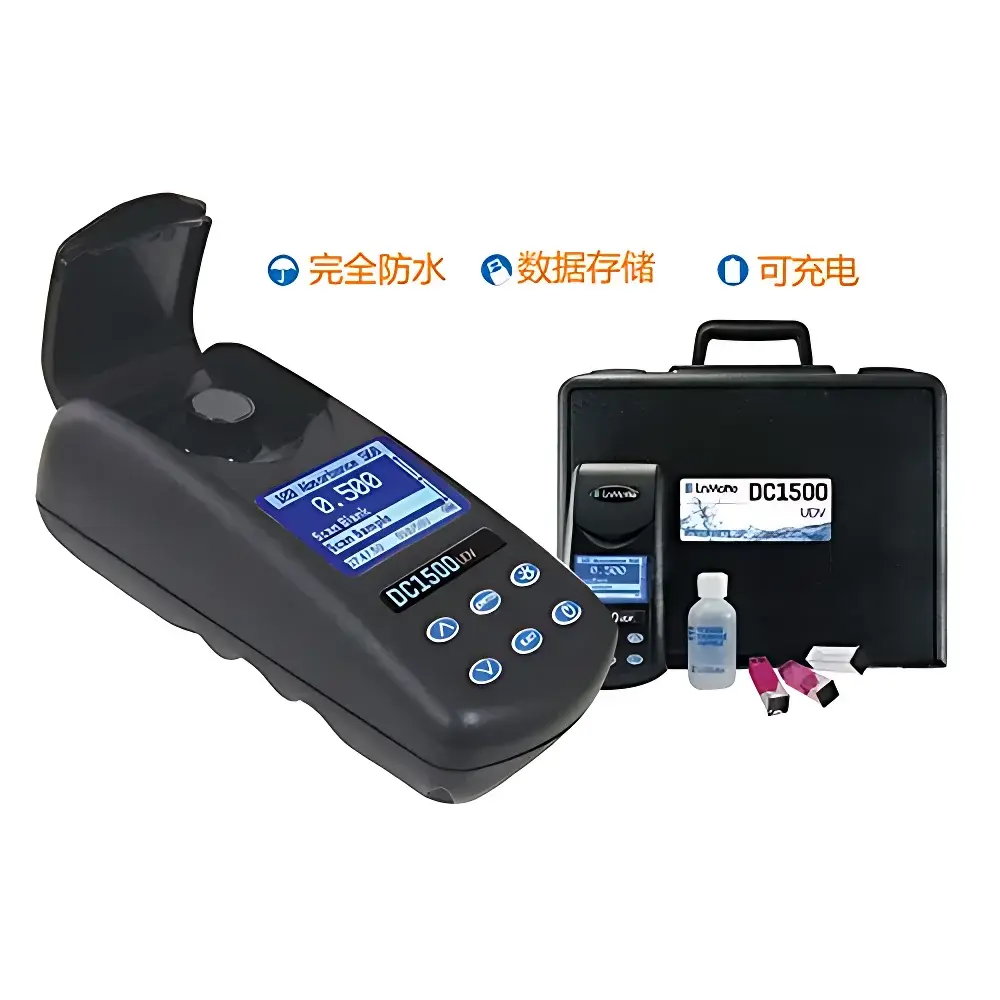

LaMotte DC1500-UDV High-Precision Release Agent Concentration Colorimeter

Overview

The LaMotte DC1500-UDV is a dedicated photometric colorimeter engineered for rapid, traceable quantification of release agent concentration in industrial mold maintenance workflows. Unlike generic spectrophotometers, this instrument employs fixed-wavelength photometry at 568 nm — optimized for the characteristic absorbance peak of common silicone- and hydrocarbon-based release agents in aqueous or solvent-diluted working solutions. Its optical architecture follows Beer–Lambert law principles, utilizing a high-stability LED light source coupled with a narrow-bandwidth (10 nm FWHM) interference filter and silicon photodiode detector to ensure repeatability under variable ambient lighting or shop-floor conditions. Designed specifically for foundry, composite manufacturing, and precision casting environments, the DC1500-UDV delivers calibrated absorbance readings (–2.0 to +2.0 AU) with ±0.001 AU precision at 1.0 AU — enabling users to maintain release agent dilution ratios within tight process windows critical for surface integrity and dimensional fidelity of molded parts.

Key Features

• Fixed-wavelength photometry at 568 nm with ±2% full-scale wavelength accuracy and 10 nm optical bandwidth for optimal selectivity toward release agent chromophores
• IP67-rated ruggedized enclosure — fully sealed against dust ingress and submersion up to 1 m for 30 minutes — validated per IEC 60529
• Backlit 160 × 100 pixel graphical LCD with 20-character × 6-line alphanumeric display; supports 7 languages including English, German, French, Spanish, Italian, Portuguese, and Chinese
• Integrated UDV (Universal Dilution Vial) adapter enabling consistent 10 mm pathlength measurement across square cuvettes; eliminates alignment error and minimizes meniscus-related variance
• Rechargeable 3.7 V Li-ion battery (≥12 hours continuous operation); USB Mini-B interface for firmware updates, data export, and optional AC adapter charging
• Onboard memory stores ≥500 absorbance measurements with timestamp and user ID; auto-power-off configurable at 5, 10, or 30 minutes of inactivity
• Six-button intuitive interface — no menu navigation required for routine calibration and sample measurement — reducing operator training time and minimizing procedural deviation

Sample Compatibility & Compliance

The DC1500-UDV accepts standard 10 mm square glass or UV-transparent plastic cuvettes (supplied as part of the kit). Its sealed sample chamber prevents aerosol or splatter contamination of the optical train — essential when measuring viscous or volatile release agent formulations. The instrument complies with CE Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and its photometric performance aligns with ASTM D1209 (Standard Test Method for Color of Clear Liquids) for transparent, low-turbidity samples. While not classified as a medical device or GLP-grade analytical instrument, its documented calibration traceability (via NIST-traceable neutral density filters), audit-ready data logging, and password-protected configuration settings support ISO 9001:2015 and IATF 16949 quality system requirements in automotive and aerospace casting supply chains.

Software & Data Management

Data export is supported via USB Mini-B connection to Windows-based PCs running LaMotte’s optional DC Manager software (v3.2+). This application enables batch export to CSV or Excel formats, generation of calibration curves (A vs. concentration), statistical analysis (mean, SD, CV%), and report generation compliant with internal QA documentation standards. Audit trail functionality records all calibration events, user logins, and parameter changes — satisfying basic FDA 21 CFR Part 11 read-only data integrity expectations when used in non-GMP production monitoring contexts. No cloud connectivity or remote access is implemented; all data remains on-premise unless explicitly exported by the user.

Applications

• Real-time verification of release agent dilution ratios prior to spray application in aluminum die-casting and investment casting lines
• Preventive maintenance checks during shift handovers to detect formulation drift caused by evaporation, contamination, or incorrect replenishment
• Root cause analysis of surface defects (e.g., sticking, blistering, discoloration) correlated with out-of-spec absorbance values
• Validation of cleaning efficacy between mold cycles using residual release agent quantification
• Supporting APQP Stage 3 (Process Validation) and PPAP submissions through documented measurement consistency and instrument calibration history

FAQ

What release agent chemistries is the DC1500-UDV calibrated for?
The instrument is optimized for water-dilutable silicone emulsions and hydrocarbon-based release agents exhibiting primary absorbance near 568 nm. Users must establish their own calibration curve using reference standards traceable to their specific formulation.
Can the DC1500-UDV measure undiluted concentrate?
No — it is designed exclusively for diluted working solutions. Undiluted concentrates exceed the photometric linear range and may damage cuvettes or contaminate the sample chamber.
Is NIST-traceable calibration included?
The unit ships with factory calibration verified using NIST-traceable neutral density filters. Certificate of Conformance is provided; full NIST calibration certificate is available as an optional add-on.
Does the device support custom wavelength selection?
No — it operates exclusively at 568 nm. This fixed-wavelength design ensures long-term stability and eliminates spectral misalignment risks inherent in tunable systems.
How often does the instrument require recalibration?
Annual verification against reference filters is recommended. Field recalibration using supplied blank and standard vials is performed before each use session per ASTM D1209 practice.
