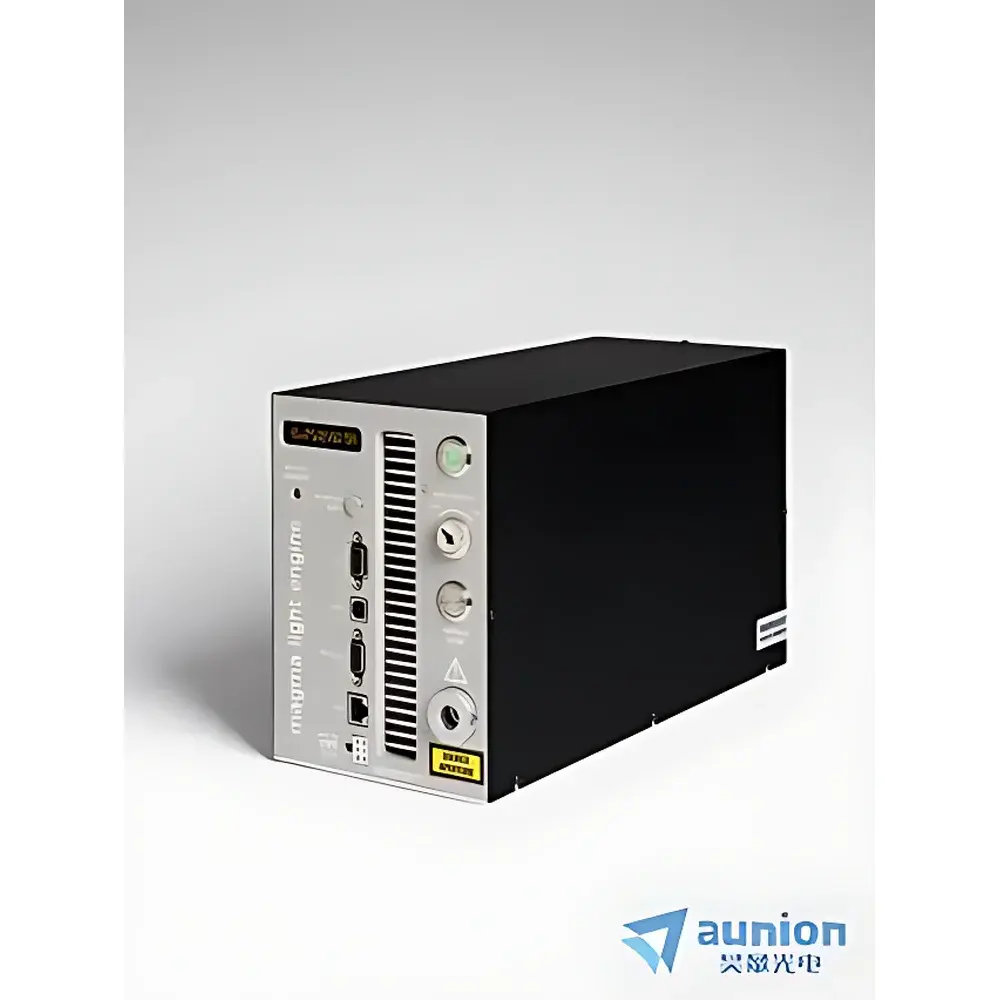

Lumencor SPECTRA X Multi-Channel Microscope Light Source
| Brand | Lumencor |
|---|---|
| Model | SPECTRA X |
| Light Source Type | Solid-State LED-Based Multi-Band Excitation Source |
| Channels | 5 Independently Controllable |
| Output Power per Channel | 200–1000 mW |
| Spectral Range | 365–770 nm (with enhanced green/yellow output via proprietary LightPipe™ technology, 500–600 nm) |
| Power Stability | Active Feedback-Controlled |
| Control Interface | USB/RS-232/Ethernet |
| Output Coupling | Fiber or Light Guide Adapter Included |
| Compliance | CE, RoHS, FDA 21 CFR Part 11 Ready (via optional software audit trail) |
Ask about pricing, availability and specifications.
Overview
The Lumencor SPECTRA X Multi-Channel Microscope Light Source is a high-performance, solid-state illumination platform engineered for quantitative fluorescence microscopy and advanced optical life science applications. Unlike conventional arc lamps (e.g., mercury or xenon) — which suffer from spectral instability, short lifetimes, thermal drift, and hazardous operation — the SPECTRA X leverages discrete, thermally managed LED emitters combined with proprietary LightPipe™ broadband phosphor conversion technology. This architecture delivers stable, narrow-band excitation across five independently addressable channels spanning 365 nm to 770 nm, with particular emphasis on high-power, spectrally uniform output in the 500–600 nm range — a region historically limited by semiconductor efficiency (“green gap”). The system operates on the principle of digitally gated, intensity-modulated LED excitation, enabling precise spatiotemporal control essential for live-cell imaging, optogenetics, FISH, and high-content screening.
Key Features
- Five fully independent optical channels, each with programmable on/off switching and analog intensity control (0–100% in 0.1% increments)
- Integrated bandpass filters co-located with emitters, eliminating external filter wheels and reducing optical path variability
- Active power stabilization via real-time photodiode feedback, ensuring <±1.5% intensity drift over 8 hours (23°C ambient)
- Onboard microprocessor supporting command-line and script-based control (TTL, USB, RS-232, Ethernet), compatible with major microscope control ecosystems (e.g., MetaMorph, Micro-Manager, NIS-Elements)
- LightPipe™ technology enables >450 mW broadband output in the 500–600 nm window — surpassing conventional LED efficacy while maintaining <15 nm spectral FWHM where filtered
- Factory-aligned fiber-optic or liquid light guide coupling interface (SMA 905 or FC/PC options), minimizing alignment time and coupling loss
- No consumables, no warm-up time, and >20,000-hour rated emitter lifetime under nominal operating conditions
Sample Compatibility & Compliance
The SPECTRA X is designed for integration into upright, inverted, and confocal microscope platforms used in regulated and non-regulated research environments. Its spectral flexibility supports common fluorophores including DAPI, FITC, TRITC, Cy3, Cy5, Alexa Fluor dyes, GFP/RFP variants, and far-red/near-IR probes (e.g., Cy7, IRDye 800CW). All optical components comply with ISO 10110 surface quality standards; electronic subsystems meet IEC 61000-6-3 (EMC) and IEC 61010-1 (safety) requirements. When paired with validated acquisition software featuring electronic logbooks and user authentication, the system supports GLP/GMP workflows and satisfies audit readiness criteria under FDA 21 CFR Part 11 for electronic records and signatures.
Software & Data Management
Lumencor provides the SpectraView™ control suite (Windows/macOS/Linux), offering both GUI-driven setup and Python/C++/MATLAB SDKs for custom automation. The onboard firmware implements a deterministic instruction set (e.g., “SET CH2 POWER=750”, “TRIG CH3 PULSE=5ms”) with sub-millisecond timing resolution. All intensity settings, exposure logs, and hardware status events are timestamped and exportable in CSV/JSON format. Optional enterprise deployment includes centralized configuration management, remote diagnostics, and integration with LIMS systems via RESTful API endpoints.
Applications
- Quantitative multicolor fluorescence imaging requiring channel-to-channel intensity reproducibility
- Optogenetic stimulation with millisecond-scale light gating synchronized to electrophysiology recordings
- Fluorescence in situ hybridization (FISH) with simultaneous multi-target excitation and minimal crosstalk
- High-content screening (HCS) platforms demanding long-term photometric stability across 96-/384-well plates
- Endomicroscopy and microendoscopy systems utilizing flexible light guides for in vivo tissue interrogation
- Microfluidic cell analysis where precise, localized illumination minimizes phototoxicity during time-lapse assays
FAQ
What distinguishes the SPECTRA X from single-channel LED illuminators?
The SPECTRA X integrates five spectrally distinct, electrically isolated channels within a single compact chassis — eliminating cross-talk, mechanical filter wheel latency, and alignment complexity inherent in sequential illumination systems.
Can the SPECTRA X replace a mercury arc lamp in an existing microscope?
Yes — it interfaces directly with standard microscope shutter and TTL trigger inputs; retrofit kits include mechanical adapters and spectral calibration reports for seamless transition.
Is spectral recalibration required after installation?
No — factory spectral characterization is embedded in firmware; users receive NIST-traceable calibration certificates covering intensity, bandwidth, and center wavelength for each channel.
How is thermal management handled during extended imaging sessions?
A closed-loop thermoelectric cooler (TEC) maintains emitter junction temperature within ±0.2°C, preventing wavelength shift and output decay even at maximum power across all channels.
Does the system support synchronization with camera frame rates?
Yes — hardware-level genlock input accepts external sync signals (e.g., camera pixel clock or TTL frame trigger) with jitter <50 ns, enabling pixel-perfect temporal registration.
