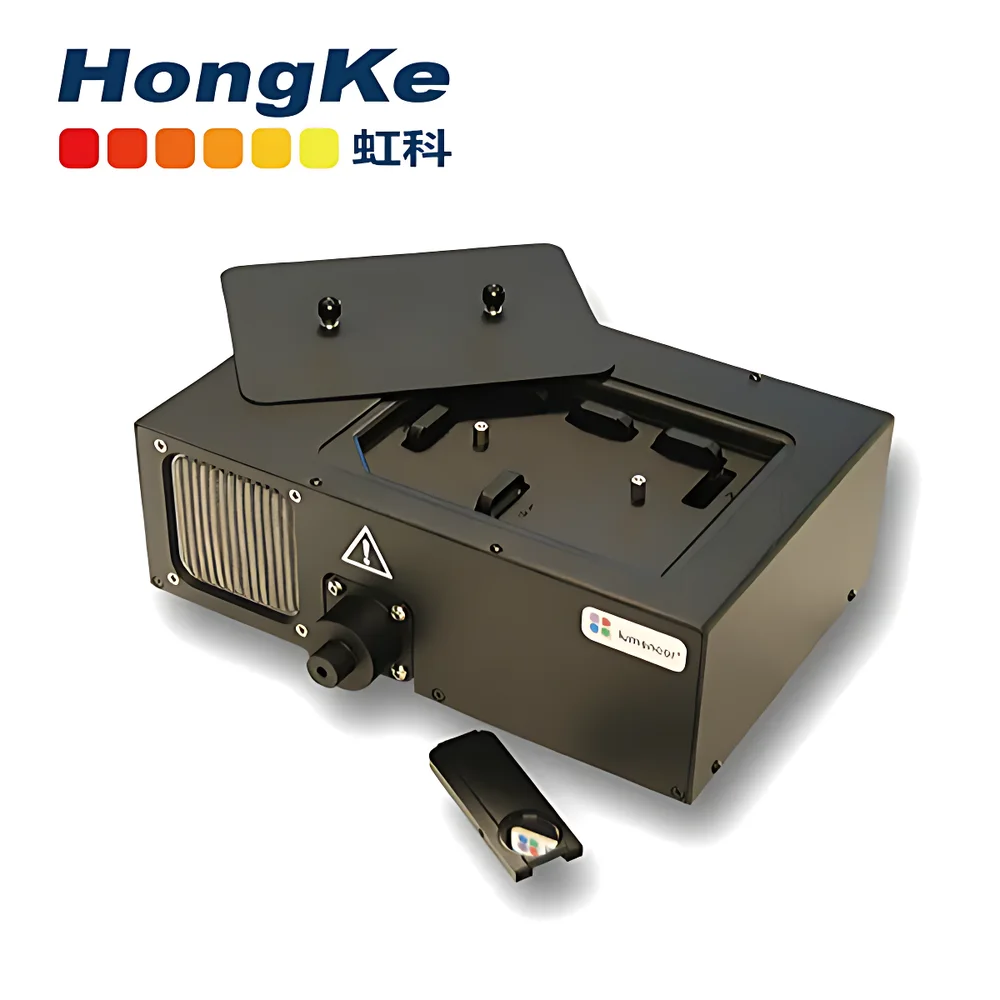

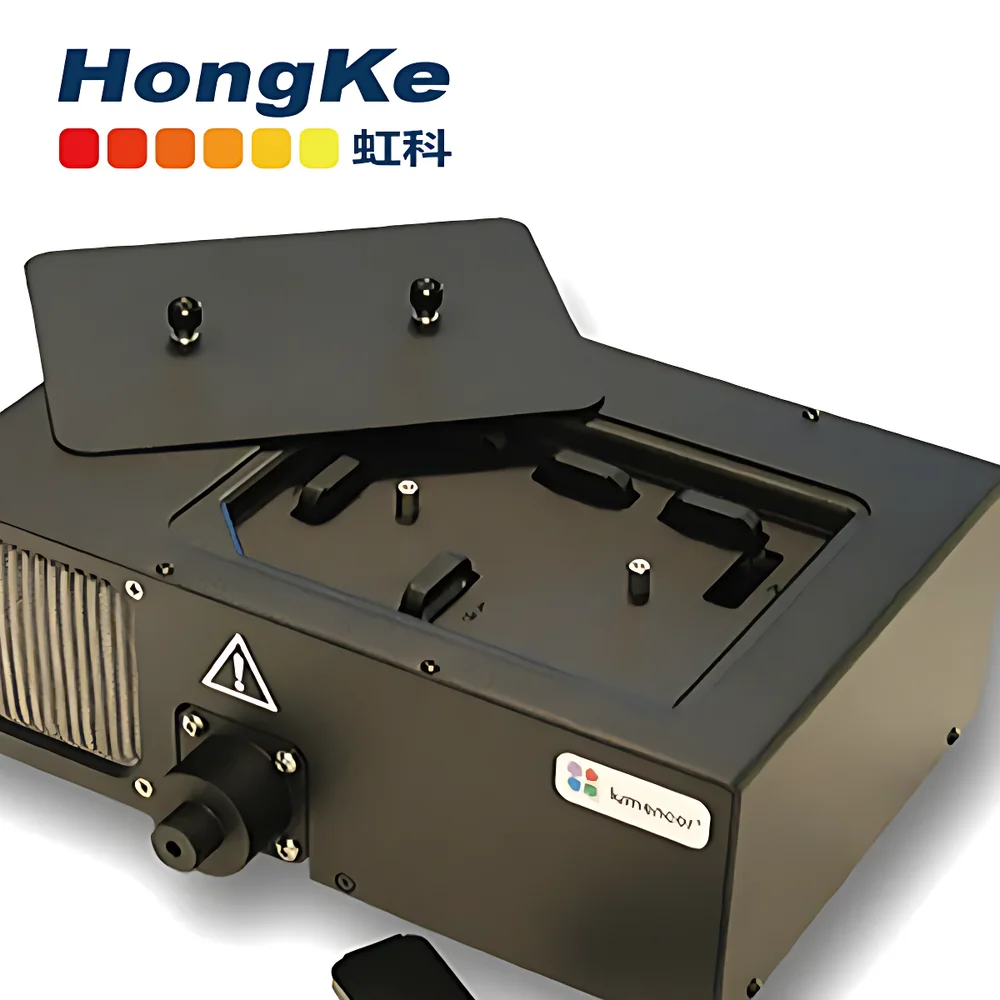

Lumencor Spectra X Solid-State Microscope Light Source

Overview

The Lumencor Spectra X is a high-performance, multi-channel solid-state microscope light source engineered for precision fluorescence excitation in advanced life science imaging applications. Unlike traditional arc-lamp-based systems (e.g., mercury or xenon), the Spectra X employs a patented hybrid architecture integrating discrete LEDs, laser-pumped luminescent light guides (LLGs), and spectrally optimized broadband emitters. This design eliminates the “green gap” limitation common to conventional LEDs by delivering stable, high-power output across 500–600 nm via proprietary luminescent waveguide technology—enabling uniform excitation intensity without spectral discontinuities. The system provides seven independently controllable excitation bands (violet, blue, cyan, teal, green, yellow, red) spanning 380–680 nm (with optional 780 nm NIR extension), each with user-replaceable bandpass filters mounted directly in the optical path—offering filter-wheel-level spectral flexibility without mechanical rotation or alignment drift. Designed for integration into both research-grade and OEM microscopy platforms, the Spectra X operates at ambient temperature with near-zero warm-up time (<1 s stabilization), delivering long-term photometric stability (<±0.5% RMS over 8 h) and an operational lifetime exceeding 15,000 hours.

Key Features

• Seven-Channel Spectral Coverage: Independently addressable excitation bands from 380 nm (violet) to 680 nm (red); optional NIR extension to 780 nm available for Cy7/IR-Dye applications.
• User-Replaceable Bandpass Filters: Filter cartridges mount directly in the light engine’s optical train—no motorized filter wheels, no alignment recalibration, no moving parts.
• Patented Luminescent Light Guide (LLG) Technology: Delivers high-intensity, spectrally smooth broadband emission in the 500–600 nm range—overcoming LED efficiency limitations in the “green gap” region.
• Adjustable Power per Channel: Digital control of output intensity (20–500 mW per channel, calibrated at fiber output) via USB-connected GUI software; supports TTL/Analog modulation for synchronization with camera acquisition.
• Mercury-Free & Eco-Compliant Design: Fully solid-state construction eliminates hazardous materials; meets RoHS 3 and WEEE directives; zero UV ozone generation or thermal IR load on objectives.
• OEM-Ready Integration: Compact footprint (190 × 140 × 75 mm), standard 3 mm liquid light guide (LLG) interface, USB 2.0 control, and 24 V DC power input facilitate seamless incorporation into custom or commercial microscope platforms.

Sample Compatibility & Compliance

The Spectra X is compatible with all major widefield, confocal, TIRF, and light-sheet fluorescence microscopes—including systems from Nikon, Olympus, Zeiss, Leica, and Thorlabs—via standard liquid light guide coupling or direct objective-side illumination adapters. Its spectral purity (FWHM < 25 nm for narrowband channels; < 60 nm for LLG-derived green/yellow bands) ensures minimal crosstalk in multicolor experiments such as FISH, immunofluorescence, and multiplexed live-cell imaging. The system conforms to ISO 13485 quality management standards for medical device component suppliers and supports GLP/GMP workflows through audit-trail-capable software logging (timestamped power settings, channel activation history). While not a medical device itself, it complies with IEC 61000-6-3 (EMC emissions) and IEC 62471 (photobiological safety) Class 1 requirements for laboratory lighting equipment.

Software & Data Management

Lumencor’s Spectra X is operated via the vendor-provided SpectraView™ GUI application (Windows/macOS), which enables real-time intensity adjustment, channel sequencing, TTL-triggered pulse mode (1 µs–10 s duration), and programmable ramping profiles. All parameter changes are logged with UTC timestamps and user ID fields—supporting 21 CFR Part 11 compliance when deployed in regulated environments (e.g., clinical assay development or biomanufacturing QC labs). Export options include CSV-formatted intensity logs and XML-based protocol files for cross-platform reproducibility. Remote control via Python API (PySpectra) is available for automated high-content screening (HCS) integration with platforms like MetaXpress or Harmony.

Applications

• Multi-color fluorescence microscopy (e.g., DAPI/FITC/TRITC/Cy5 sequential imaging)
• Fluorescence in situ hybridization (FISH) and chromosomal karyotyping
• Optogenetics stimulation with precise temporal-spectral control (e.g., ChR2 activation at 470 nm + inhibitory opsin silencing at 590 nm)
• High-content screening (HCS) and phenotypic profiling in adherent and suspension cell assays
• Microfluidic chip illumination for real-time cellular response monitoring
• Endomicroscopy and miniaturized probe-based imaging systems requiring low-heat, compact excitation sources

FAQ

Does the Spectra X require lamp replacement or routine maintenance?
No. As a fully solid-state system with no consumables, it requires no lamp replacements, mirror alignments, or cooling fluid servicing. Expected operational lifetime exceeds 15,000 hours under continuous use.
Can I upgrade spectral bands after purchase?
Yes. Individual bandpass filter cartridges and corresponding emitter modules (e.g., adding a 750 nm NIR channel) are field-upgradable using standard tools and factory calibration protocols.
Is the output power calibrated and traceable?
Each unit ships with NIST-traceable optical power calibration data per channel at the 3 mm LLG output port, documented in the Certificate of Conformance included with shipment.
How does the Spectra X compare to LED-only light engines?
Unlike single-technology LED arrays, the Spectra X integrates luminescent light guides to deliver >10× higher irradiance in the 520–580 nm range—critical for GFP/YFP/mCherry excitation—while maintaining narrow spectral fidelity comparable to filtered arc lamps.
What safety certifications does the Spectra X hold?
It is certified to IEC 62471 (Photobiological Safety – Exempt Group), IEC 61000-6-3 (EMC Emissions), and UL 61010-1 (Laboratory Equipment Safety) with CE, UKCA, and FCC marks affixed.
