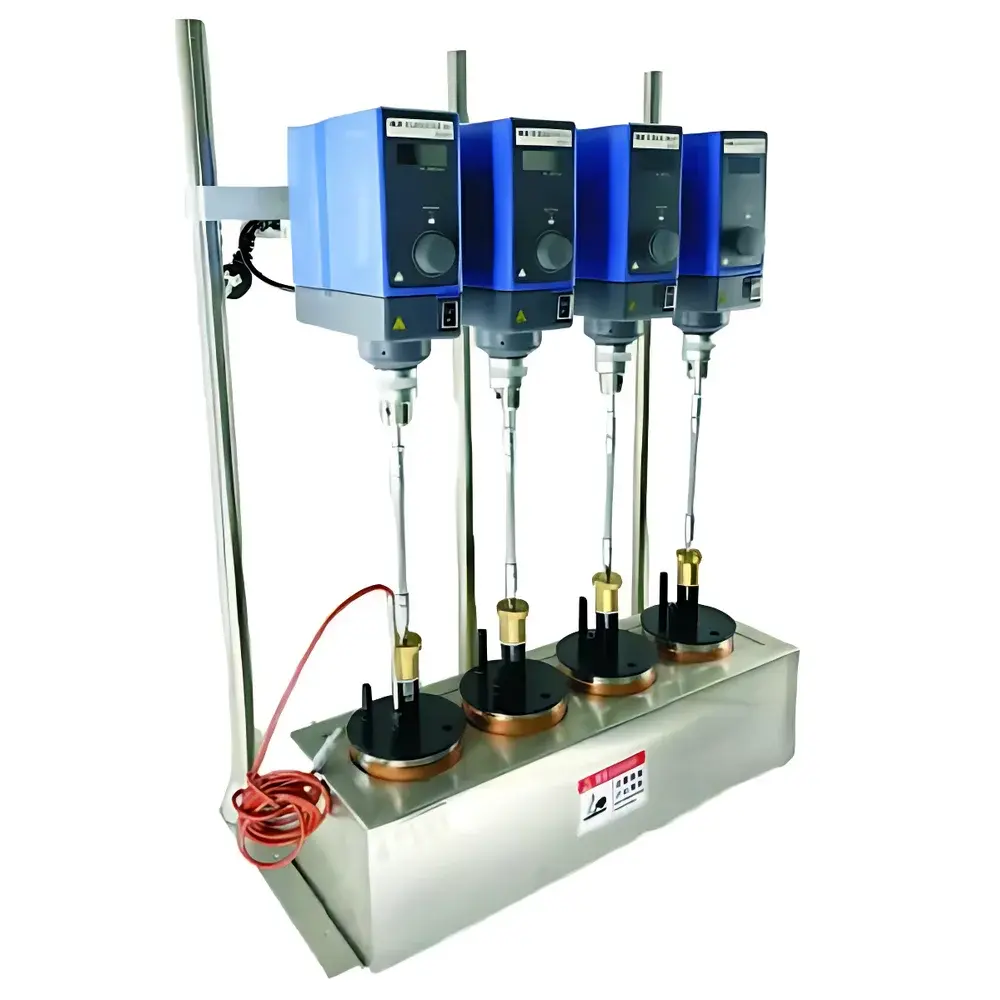

LynSys P05 Adhesive Reaction System

Overview

The LynSys P05 Adhesive Reaction System is an engineered benchtop reaction platform designed for controlled synthesis, formulation development, and process optimization of high-viscosity adhesive systems under elevated temperature and reduced pressure conditions. It operates on the principle of mechanically driven shear mixing combined with precise conductive heating and vacuum-assisted degassing—enabling reproducible thermal processing of thermosetting resins, polyurethanes, hot-melt adhesives, reactive coatings, and elastomeric precursors. Unlike conventional stirred reactors, the P05 integrates high-torque rotational agitation with robust thermal management and vacuum integrity, supporting reaction kinetics studies, solvent removal, moisture scavenging, and viscosity evolution monitoring across R&D laboratories in polymer science, industrial coatings, and functional material development.

Key Features

• High-torque DC motor capable of sustained operation at up to 2000 rpm while maintaining stable torque output above 50,000 mPa·s — suitable for non-Newtonian, shear-thinning, and thixotropic adhesive melts.

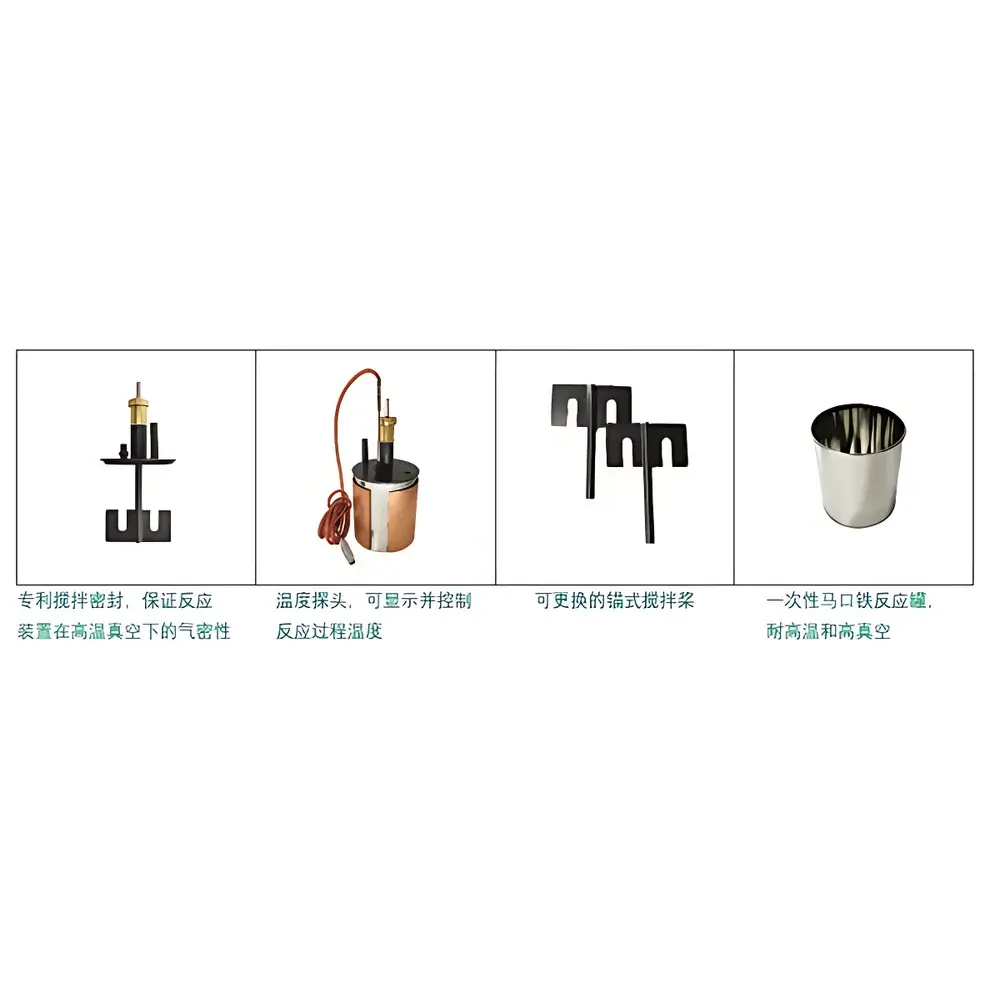

• Modular reactor configuration: Standardized tinplate vessels with optional PFA coating for corrosion resistance against acidic or halogenated monomers and catalysts.
• Dual-seal architecture options — conical-face metal-to-metal sealing for high-vacuum applications (≤30 mbar), or roller-bearing mechanical seals for extended service life under cyclic thermal loading.
• Programmable temperature control with ±0.01 °C stability over the full 20–200 °C range; compatible with external circulators for sub-ambient or super-heated operation (e.g., −20 to 300 °C with optional Proline P5C or ECO RE420G units).
• Intuitive touch-screen interface for multi-step temperature ramping, dwell timing, and real-time RPM/temperature logging — supports GLP-compliant experimental documentation when paired with optional Pt100 probe and data export modules.
• Compact footprint (340 × 280 × 800 mm) optimized for fume hood integration; tool-free disassembly enables rapid cleaning and cross-contamination mitigation between formulations.

Sample Compatibility & Compliance

The P05 system accommodates a broad spectrum of adhesive chemistries including but not limited to: aliphatic and aromatic polyurethane prepolymers, ethylene-vinyl acetate (EVA) hot-melts, acrylic pressure-sensitive adhesives (PSAs), epoxy resin blends, silicone-based RTVs, and waterborne dispersion systems. Its PFA-coated vessel option meets ISO 17025 traceability requirements for chemical compatibility testing and satisfies ASTM D1084 (viscosity of adhesives) and ASTM D1544 (color of transparent liquids) sample preparation protocols. Vacuum performance aligns with ISO 2719 (flash point determination) and ASTM D2879 (vapor pressure of viscous materials) prerequisites. All electrical components conform to IEC 61010-1 safety standards for laboratory equipment.

Software & Data Management

The embedded controller supports sequential temperature programming with up to 10 user-defined segments per run, each configurable for ramp rate (°C/min), hold duration (min), and target setpoint. Optional data acquisition modules enable timestamped recording of RPM, vessel temperature, and vacuum level at 1 Hz resolution. Export formats include CSV and Excel-compatible .xlsx files, facilitating post-run analysis in MATLAB, Python (Pandas), or JMP. Audit trail functionality — including operator ID, parameter changes, and system events — complies with FDA 21 CFR Part 11 requirements when deployed with networked authentication and electronic signature modules.

Applications

• Kinetic profiling of urethane chain extension reactions under inert atmosphere and controlled moisture exclusion.
• Formulation screening of tackifiers, plasticizers, and fillers in PSA development with in-situ viscosity tracking.
• Thermal aging studies of structural adhesives per ASTM D3433 and ISO 11337.
• Solvent-free polymerization of acrylate monomers using vacuum-assisted monomer stripping.
• Batch-scale synthesis of hybrid organic-inorganic binders for battery electrode slurries.
• Process validation of curing profiles prior to scale-up in twin-screw extrusion or roll-coating lines.

FAQ

What types of adhesive chemistries are validated for use with the P05 system?
The P05 has been routinely employed with polyurethane dispersions, epoxy-amine adducts, EVA-based hot-melts, cyanoacrylates, and silicone elastomer precursors. Compatibility with aggressive reagents (e.g., isocyanates, anhydrides) requires the PFA-coated vessel option.
Can the system operate under inert gas purging in addition to vacuum?
Yes — the conical-seal configuration includes dual-port inlet/outlet ports compatible with nitrogen or argon sparging using standard Swagelok fittings.
Is remote monitoring supported via Ethernet or USB?
Standard models support USB data export; Ethernet connectivity and Modbus TCP protocol are available via optional communication interface kits.
What maintenance intervals are recommended for the vacuum pump and stirring mechanism?
The MZ2CNT diaphragm pump is oil-free and requires no scheduled lubrication; annual membrane inspection is advised. The gearmotor and shaft seal assembly are rated for >10,000 hours of continuous operation under nominal load.
Does the system support GMP documentation workflows?
When equipped with the Pt100 probe module, audit trail firmware, and user access controls, the P05 meets core elements of Annex 11 and ALCOA+ data integrity principles for regulated environments.
