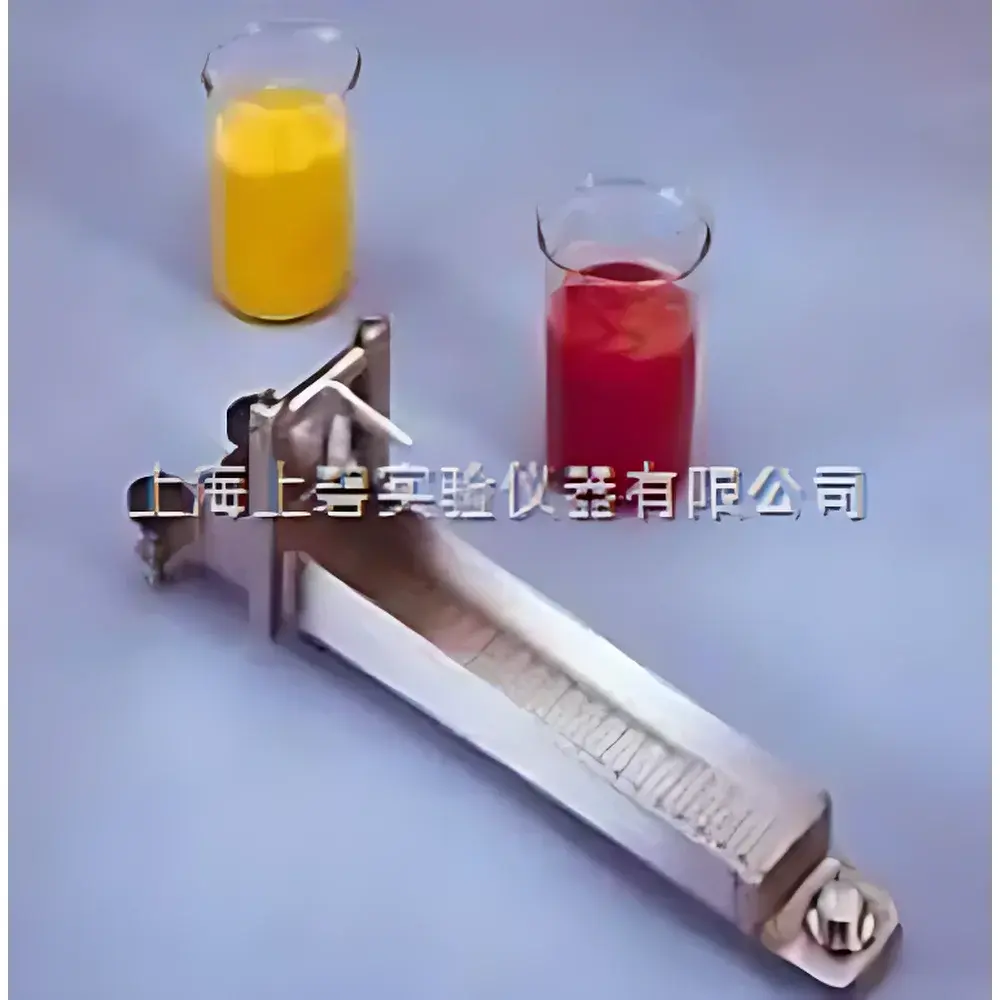

Masterflex L/S Multi-Channel Peristaltic Pump Head (2-, 4-, 6-, 8-, 12-, 24-, 28-, and 32-Channel Configurations)

Overview

The Masterflex® L/S Multi-Channel Peristaltic Pump Head series represents a modular, precision-engineered solution for parallel fluid handling in analytical, bioprocessing, and laboratory automation applications. Designed for integration with Masterflex L/S-series peristaltic pump drives (e.g., 7523-00, 7524-00), these pump heads operate on the fundamental principle of positive displacement via roller compression of elastomeric tubing — eliminating fluid contact with mechanical components and ensuring contamination-free transfer. Each configuration (2-, 4-, 6-, 8-, 12-, 24-, 28-, or 32-channel) is constructed with corrosion-resistant stainless steel rotors, precision-ground bearings, and hardened steel rollers to ensure long-term dimensional stability and torque consistency under continuous operation. The L/S platform adheres to ISO 8536-4 and ASTM D3923 standards for peristaltic pump performance verification and is widely deployed in GLP-compliant environments where traceability, repeatability, and tubing integrity are critical.

Key Features

• Modular architecture supporting scalable channel counts: 2, 4, 6, 8, 12, 24, 28, or 32 independent fluid paths per pump head assembly
• Stainless steel rotor, shaft, and roller train engineered for high-cycle durability and minimal thermal drift
• Three distinct roller configurations: 3-roller (07536 series) for low-torque, high-pulse tolerance; 6-roller (07534/07535 series) for reduced pulsation and enhanced flow linearity
• Y-branch outlet design available on select models to further dampen flow pulsation without external dampeners
• Interchangeable mounting interface compatible with all L/S-series pump drives (including variable-speed and programmable controllers)
• No-tool tube loading mechanism enabling rapid tubing replacement and minimizing operator-induced variability
• Compliance with RoHS Directive 2011/65/EU and REACH Regulation (EC) No. 1907/2006 for material safety

Sample Compatibility & Compliance

These pump heads accommodate a broad spectrum of certified pharmaceutical- and bioprocess-grade tubing materials, including platinum-cured silicone (USP Class VI), PharMed® BPT (EP/USP compliant), Tygon® 3603 (FDA-listed), Viton® fluoroelastomer (ASTM D1418), and PVC formulations. Tube inner diameters range from 0.19 mm to 3.2 mm (corresponding to standard USP/ISO tubing sizes 13–35), with maximum recommended operating pressures up to 30 psi (2.1 bar) depending on tubing wall thickness and drive torque. All configurations support multi-head cascading — enabling synchronized operation of up to 32 channels when paired with appropriately rated L/S drives — subject to mechanical load limits defined in Cole-Parmer Technical Bulletin TB-002. Tubing selection must conform to ICH Q5A guidelines for extractables and leachables in biopharmaceutical manufacturing.

Software & Data Management

While the pump heads themselves are mechanical components, their integration into automated workflows is fully supported through Masterflex’s L/S-compatible control ecosystem. When used with programmable drives such as the Masterflex I/P Digital Controller or third-party PLCs via 0–10 V analog or RS-485 Modbus RTU interfaces, users can implement precise speed ramping, timed dispensing cycles, and audit-trail-enabled operation logs. Firmware versions ≥v3.2 support FDA 21 CFR Part 11-compliant electronic signatures and user-level access control when deployed with validated software platforms. Calibration records, tubing change logs, and maintenance history may be exported in CSV or XML format for inclusion in quality management systems (QMS) aligned with ISO 13485 or Annex 11 requirements.

Applications

• High-throughput reagent dispensing in clinical diagnostics and ELISA assay preparation
• Parallel media feeding and pH-controlled perfusion in mammalian cell culture bioreactors
• Multi-stream solvent delivery in preparative HPLC and fraction collection systems
• Continuous sampling and dilution in online process analytical technology (PAT) monitoring loops
• Automated calibration standard delivery for ICP-MS, AA, and ion chromatography instruments
• Waste stream segregation and neutralization dosing in environmental lab wastewater treatment

FAQ

Can multiple pump heads be operated simultaneously on a single drive?
Yes — up to four L/S pump heads may be mechanically coupled to one Masterflex L/S drive, provided total torque demand remains within the drive’s rated capacity (e.g., ≤1.2 N·m for 7524-00 at full load). Cascaded configurations require identical roller count and tubing size across all heads.
What is the maximum recommended rotational speed for sustained operation?
Maximum continuous speed depends on tubing type and diameter: 600 rpm for ID ≤1.42 mm; 300 rpm for ID ≥2.06 mm. Exceeding these limits accelerates tubing fatigue and compromises volumetric accuracy per ISO 8536-4 Annex B.
Are these pump heads suitable for sterile processing applications?
Yes — when used with gamma-sterilizable tubing (e.g., platinum-cured silicone or PharMed® BPT) and installed in ISO Class 5–7 environments, they meet core requirements for aseptic fluid transfer under EU GMP Annex 1 and USP .
How is flow rate accuracy verified and maintained?
Flow calibration must be performed per ASTM D3923 using gravimetric measurement at three speeds (10%, 50%, and 90% of max rpm) and two tubing lots. Drift exceeding ±2% over 8 hours requires tubing replacement or drive recalibration.
Do these pump heads comply with electrical safety standards for laboratory use?
The pump heads themselves contain no electrical components. When integrated into a complete system, compliance with IEC 61010-1:2010 (Ed. 3) is achieved via the host drive unit, which carries UL/CSA/CE certification.
