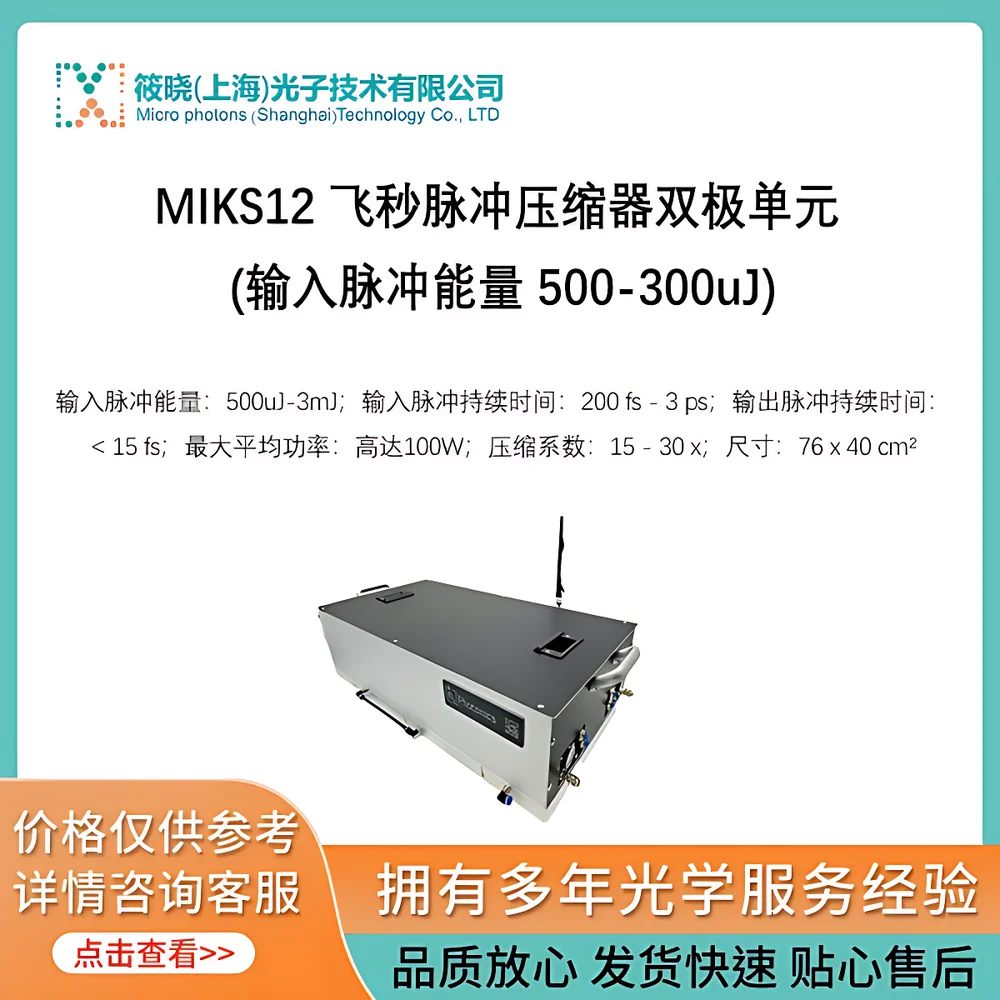

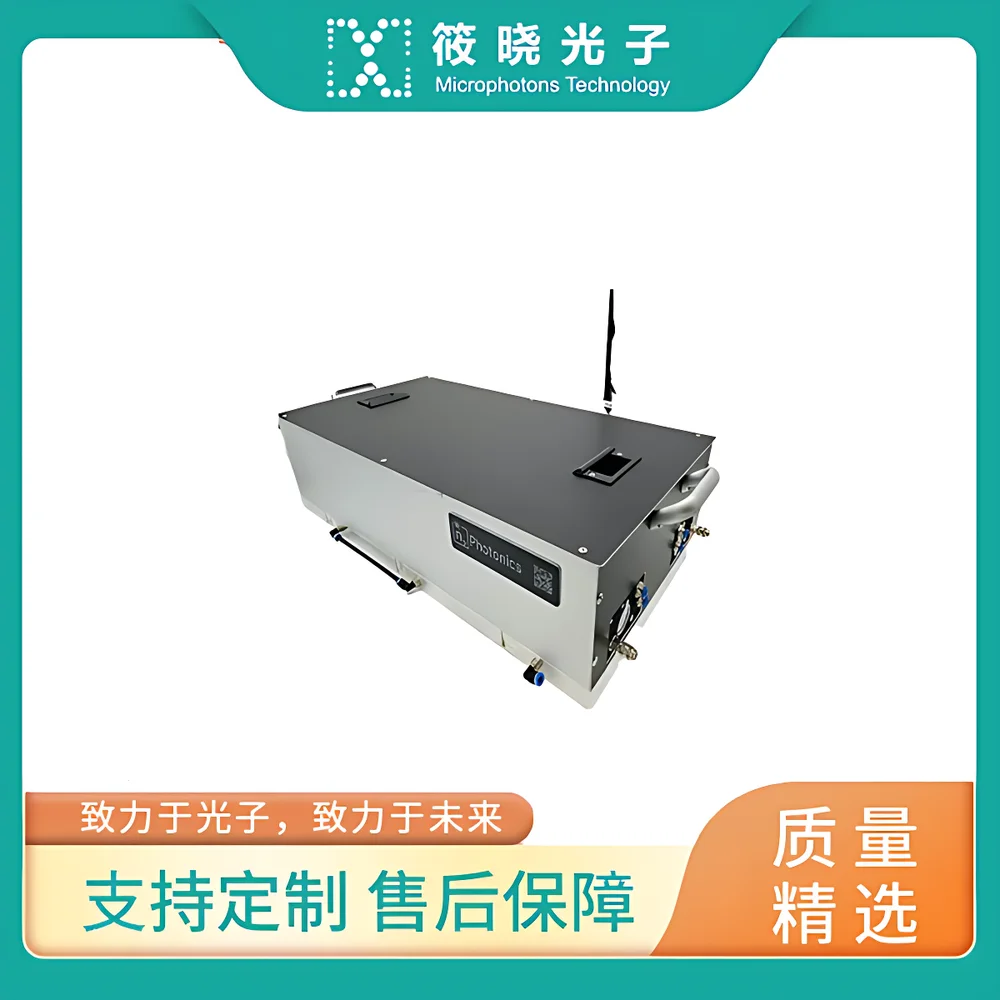

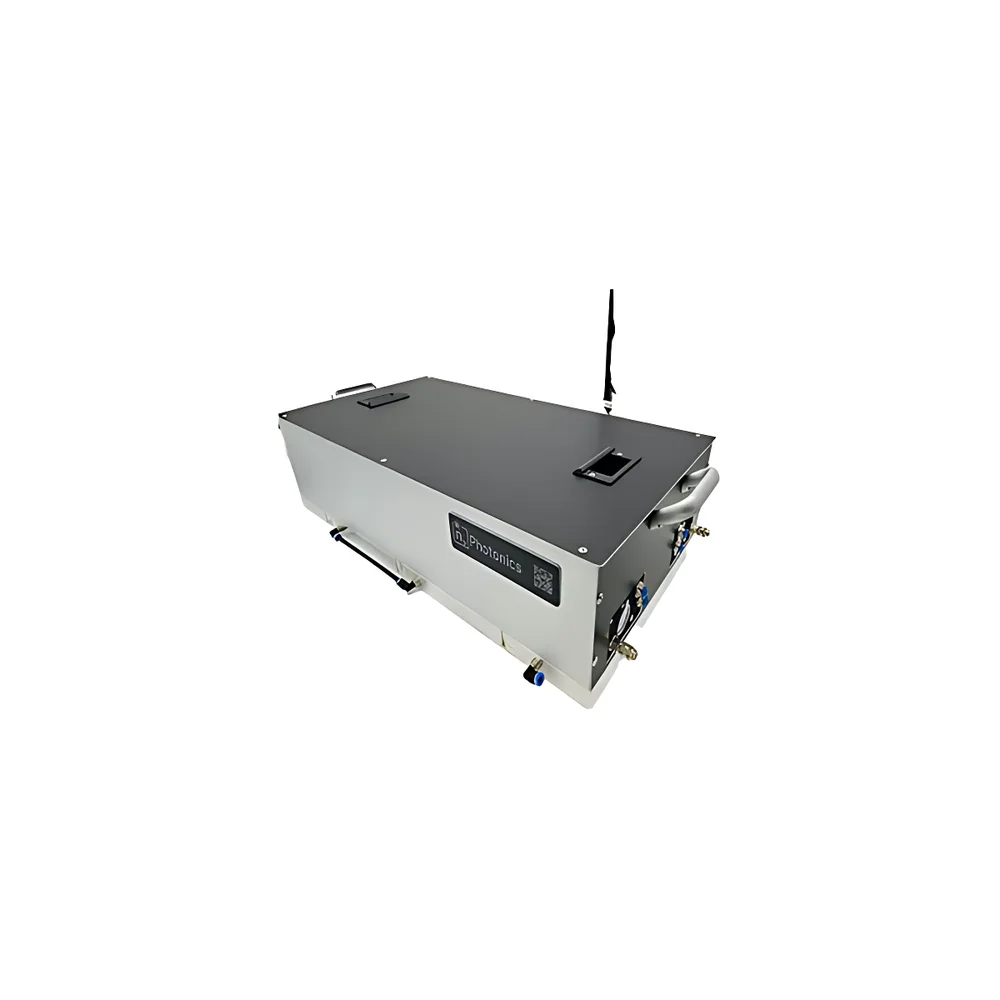

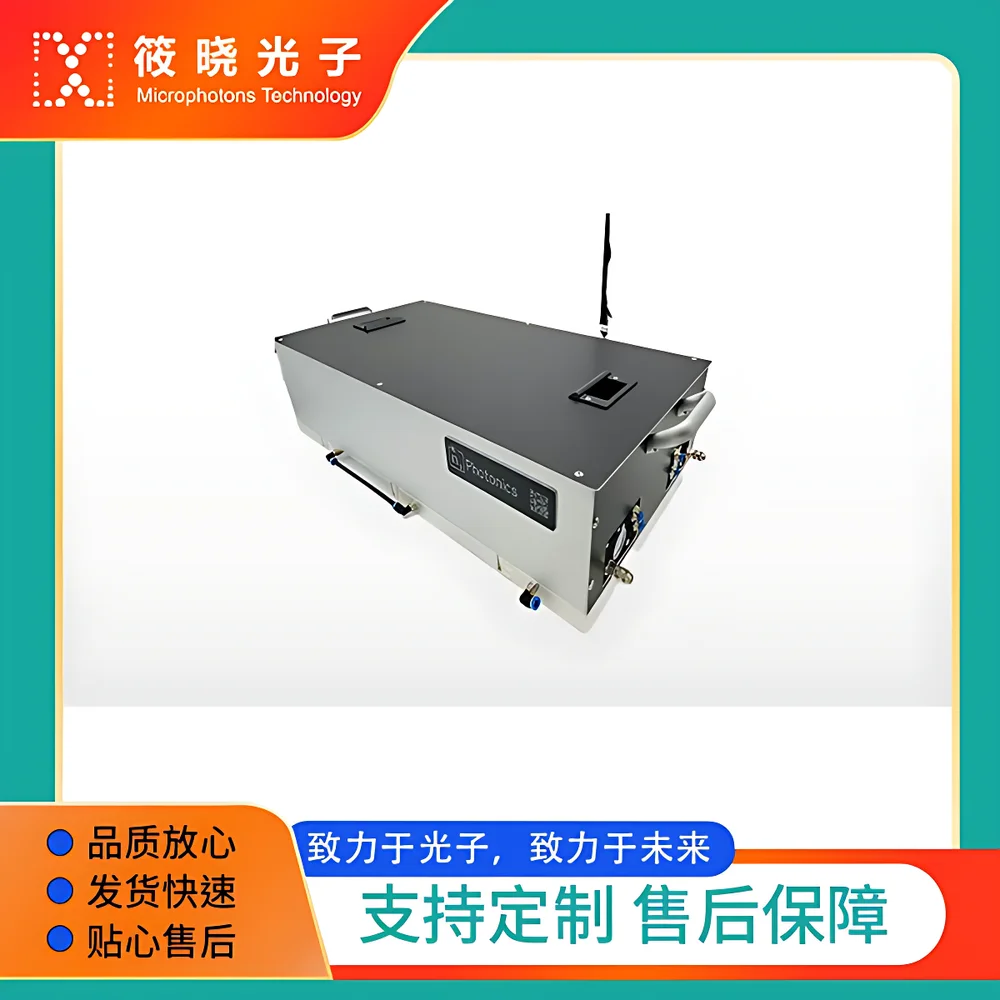

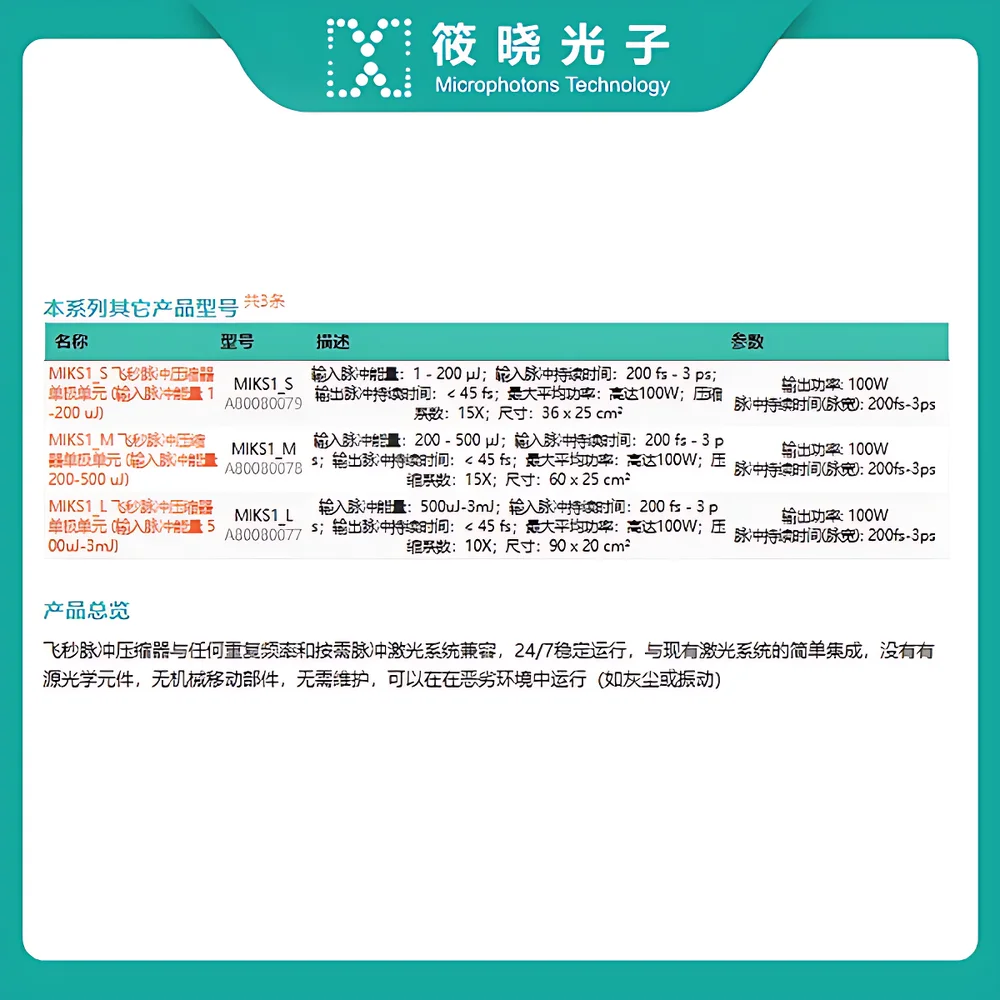

MIKS12 Dual-Stage Femtosecond Pulse Compressor

Overview

The MIKS12 Dual-Stage Femtosecond Pulse Compressor is an engineered optical compression system designed for precise temporal reshaping of ultrashort laser pulses in advanced ultrafast laboratories. Based on the principle of chirped pulse amplification (CPA) and dispersion compensation, the MIKS12 employs two cascaded, independently adjustable reflective grating stages to introduce controlled negative group delay dispersion (GDD) and higher-order phase correction. This dual-stage architecture enables high-fidelity recompression of stretched femtosecond pulses—typically generated by Ti:sapphire or Yb-based amplifier systems—back to near-transform-limited durations. The unit accepts input pulse energies in the range of 300–500 µJ at central wavelengths spanning 750–850 nm (customizable for 1030 nm variants), making it compatible with high-energy regenerative and multipass amplifier outputs. Its all-reflective design minimizes nonlinear effects and thermal lensing, ensuring long-term stability and beam quality preservation under repetitive operation.

Key Features

• Dual-stage reflective grating compressor architecture for independent control of second- and third-order dispersion
• Optimized for input pulse energies from 300 µJ to 500 µJ, supporting high-dynamic-range CPA systems
• Grating substrates fabricated from zero-expansion ULE® glass with high-efficiency gold or dielectric coatings (R > 99.5% per surface)
• Precision kinematic mounts with micrometer-driven angular adjustment (±0.5 arcsec resolution) for fine-tuning spectral phase
• Integrated vacuum-compatible flange options (CF40/CF63) for integration into ultra-high-vacuum laser chambers
• Passive thermal stabilization via low-CTE aluminum alloy housing; no active cooling required
• Alignment-free pre-aligned configuration available upon request (reduces setup time by >70% in OEM integration)

Sample Compatibility & Compliance

The MIKS12 is compatible with collimated Gaussian beams having diameters between 12 mm and 25 mm (1/e²), M² < 1.2, and divergence < 0.3 mrad. It supports standard ultrafast laser wavelengths including 780 nm, 800 nm, and 1030 nm—with optional custom coating sets for extended bandwidth (e.g., 700–900 nm or 980–1100 nm). The device complies with ISO 10110-7 (surface imperfections), ISO 14644-1 Class 5 cleanroom handling protocols during assembly, and meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and safety (EN 60825-1:2014 for Class 4 laser product integration). While not a standalone laser product, its mechanical and optical specifications align with ANSI Z136.1–2022 guidelines for safe integration into Class 4 laser systems.

Software & Data Management

As a passive optical component, the MIKS12 does not incorporate embedded firmware or digital interfaces. However, its mechanical adjustability is fully compatible with third-party motion control ecosystems—including Thorlabs Kinesis®, Newport ESP300, and PI C-887—enabling automated dispersion scanning via LabVIEW, MATLAB, or Python APIs. Users may log grating angles, incident beam position, and measured pulse duration (via autocorrelator or FROG) into traceable experiment records. For GLP/GMP-regulated environments, full mechanical calibration reports—including angular repeatability (< ±2 arcsec over 1000 cycles) and GDD calibration curves—are provided with each unit and archived per ISO/IEC 17025 documentation standards.

Applications

• Recompression of stretched pulses in Ti:sapphire and Yb-doped fiber CPA systems
• Generation of sub-30-fs pulses for high-harmonic generation (HHG) and attosecond science
• Dispersion pre-compensation in multi-stage optical parametric amplifiers (OPAs)
• Temporal pulse shaping in pump-probe spectroscopy setups requiring < 50 fs timing jitter
• OEM integration into commercial ultrafast laser platforms requiring compact, field-replaceable compressors
• Phase-resolved nonlinear microscopy where pulse fidelity directly impacts signal-to-noise ratio

FAQ

What is the maximum input beam diameter supported by the MIKS12?
The standard configuration accepts beams up to 25 mm (1/e²), with optional larger-aperture versions available for custom orders.
Can the MIKS12 be used with 1030 nm Yb-based amplifiers?
Yes—standard units are optimized for 750–850 nm, but dielectric-coated grating variants for 1030 nm operation are offered with identical mechanical specifications.
Is vacuum compatibility standard or optional?
Vacuum-rated CF40 and CF63 flange interfaces are optional configurations; standard units use atmospheric-grade stainless steel housings.
Does the MIKS12 require real-time feedback or electronic control to operate?
No—it is a fully passive, manually or motorized-stage-adjustable optical compressor with no electrical connections or power requirements.
What documentation is included for regulatory compliance in academic or industrial labs?
Each shipment includes a Certificate of Conformance, grating coating spectral reflectance data, mechanical calibration report, and ISO 10110 surface quality certification.
