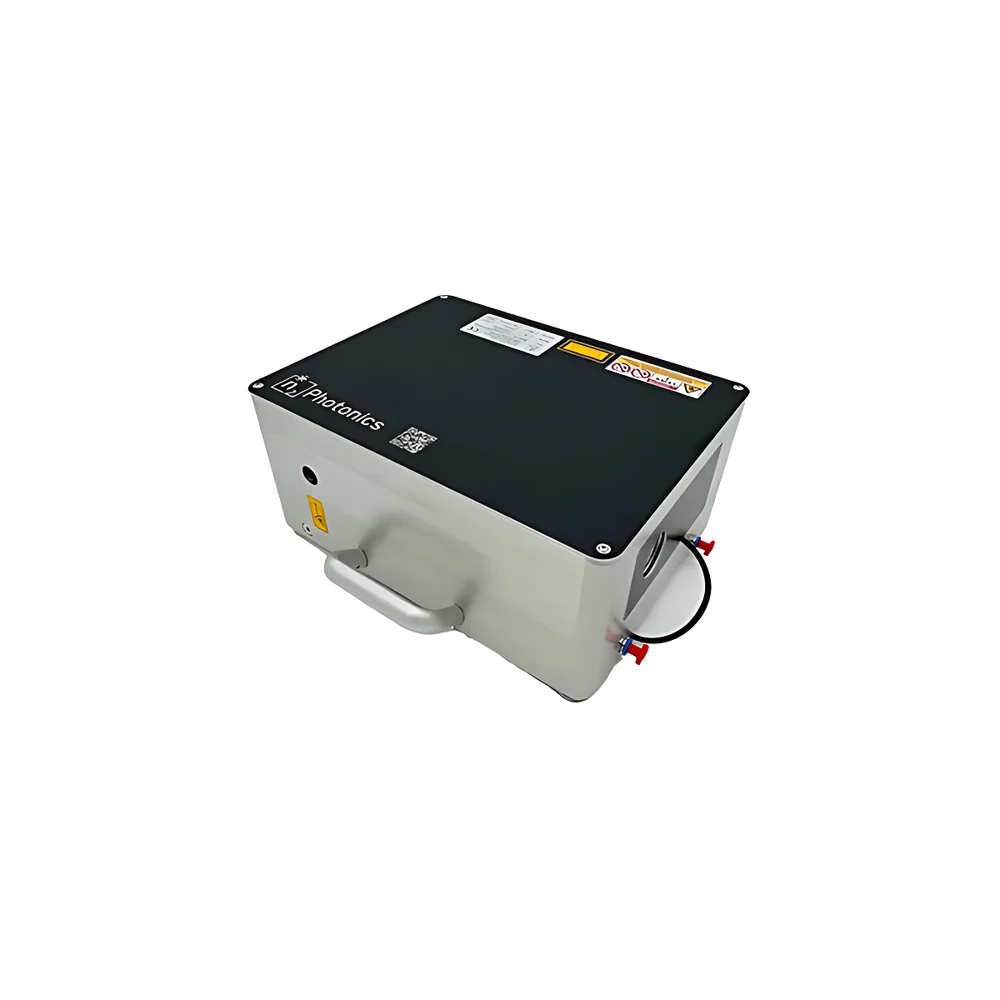

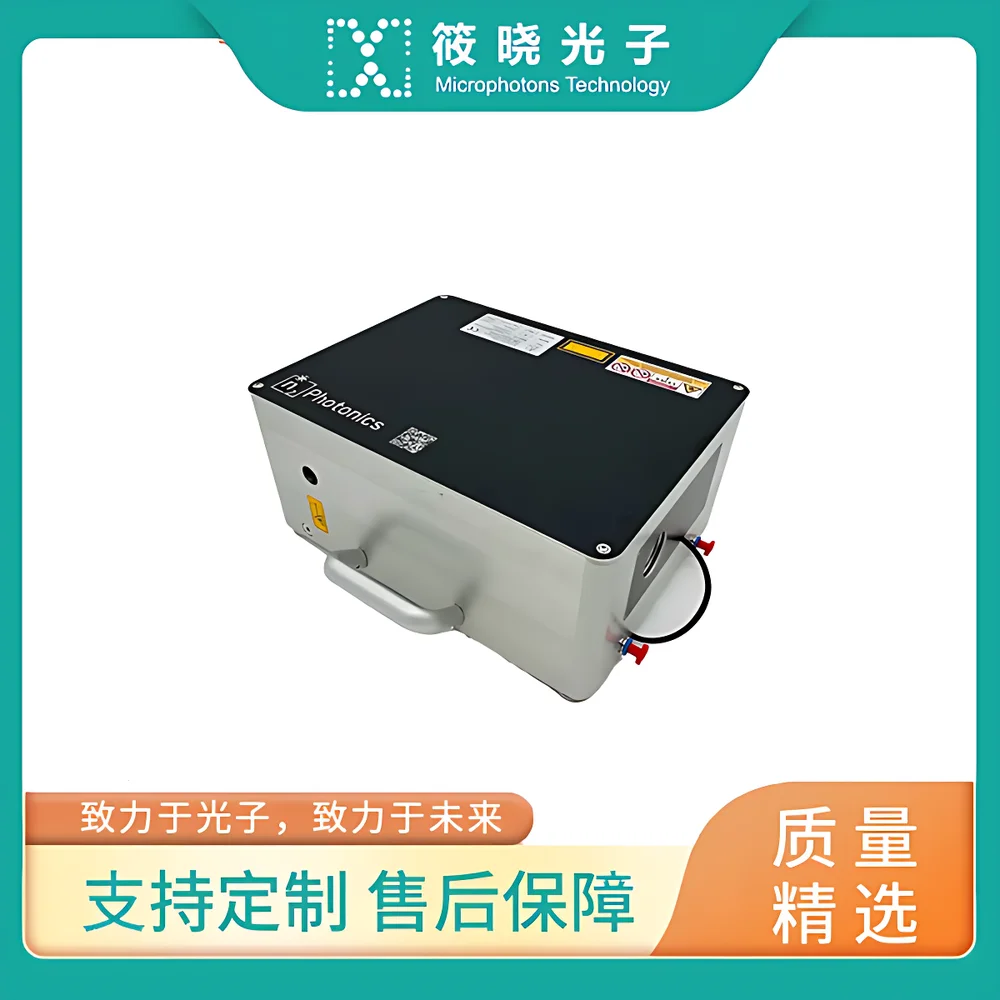

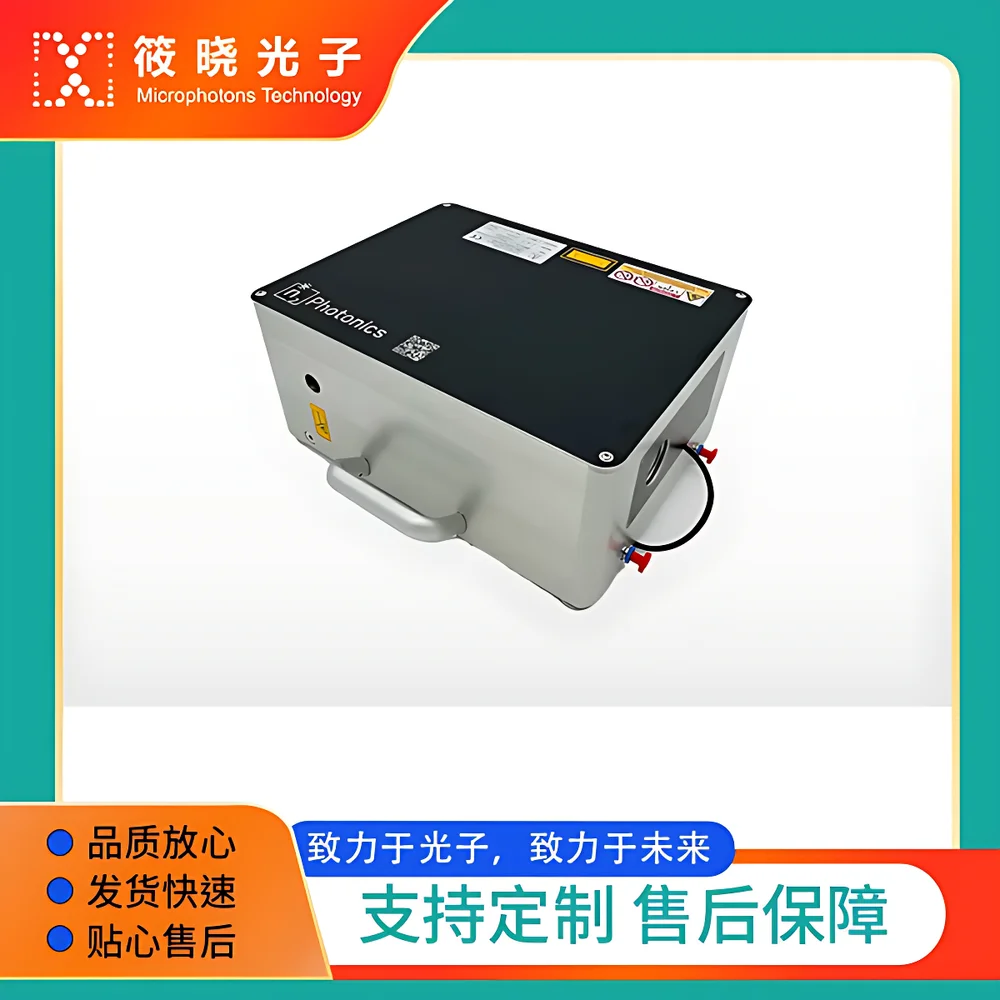

MIKS1_S Femtosecond Pulse Compressor Single-Stage Unit (Input Pulse Energy: 1–200 µJ)

Overview

The MIKS1_S Femtosecond Pulse Compressor Single-Stage Unit is an engineered optical compression module designed for precise temporal reshaping of ultrashort laser pulses in ultrafast laser laboratories and advanced photonics research facilities. Based on the principle of chirped pulse compression—utilizing controlled group delay dispersion (GDD) compensation—the MIKS1_S enables recovery of transform-limited pulse durations from positively chirped femtosecond outputs generated by regenerative amplifiers, fiber-based CPA systems, or oscillator-amplifier chains. Its single-stage architecture integrates a pair of high-damage-threshold, broadband dielectric mirrors mounted on precision kinematic mounts, optimized for spectral coverage spanning 700–950 nm (customizable upon request). The unit accepts input pulse energies between 1 µJ and 200 µJ, supporting Ti:sapphire, Yb-doped fiber, and other common ultrafast gain media without requiring active alignment or real-time feedback control. Designed for integration into turnkey ultrafast systems or as a modular upgrade path, the MIKS1_S delivers high reproducibility in pulse duration restoration and minimal spatial beam distortion under vacuum or ambient conditions.

Key Features

• Single-stage, mirror-based compressor architecture with pre-aligned GDD tuning capability
• Broadband high-reflectivity dielectric coatings (R > 99.8% across 700–950 nm)
• Optimized for input pulse energies from 1 µJ to 200 µJ; compatible with kHz–MHz repetition rate sources
• High laser-induced damage threshold (LIDT > 0.5 J/cm² at 800 nm, 35 fs, 1 kHz)
• Kinematic mirror mounts with micrometer-driven angular adjustment for fine dispersion tuning
• Compact, rigid aluminum housing with integrated mounting interfaces (standard SM1 and kinematic baseplate compatibility)
• No moving parts or electronics—passive, maintenance-free operation

Sample Compatibility & Compliance

The MIKS1_S is compatible with standard ultrafast laser beam diameters (6–12 mm, 1/e²), and supports both collimated and slightly focused input beams. It meets mechanical and optical safety requirements per IEC 60825-1:2014 (Class 4 laser product handling guidelines) when integrated into a fully enclosed beam path. While the unit itself does not carry CE or FDA certification as a standalone component, it is manufactured in accordance with ISO 9001-certified production processes in Germany and conforms to RoHS 2011/65/EU material restrictions. When deployed within a complete laser system, the MIKS1_S supports compliance with GLP and GMP documentation workflows where traceable optical performance validation is required—particularly in applications involving ultrafast spectroscopy, attosecond science, and nonlinear microscopy development.

Software & Data Management

As a passive optical component, the MIKS1_S does not incorporate embedded firmware, drivers, or digital interfaces. Its operational parameters—including dispersion profile, spectral phase response, and throughput—are characterized during factory calibration and supplied in tabulated form (CSV and MATLAB-compatible .mat files) covering wavelength-dependent GDD, TOD, and reflectivity. Users may import these datasets into commercial pulse characterization software (e.g., GRENOUILLE, FROG, or commercial versions of d-scan analysis tools) to model residual phase errors and optimize downstream pulse measurement setups. Calibration reports include uncertainty budgets aligned with ISO/IEC 17025 principles, enabling traceable metrology integration in accredited laboratory environments.

Applications

• Restoration of sub-30-fs pulses in Ti:sapphire amplifier systems
• Dispersion management in Yb-fiber CPA architectures operating near 1030 nm (with optional coating variants)
• Pre-compensation of material dispersion in multiphoton excitation microscopy beam paths
• Integration into ultrafast pump-probe spectrometers requiring stable, low-jitter pulse delivery
• Phase-sensitive nonlinear optics experiments including high-harmonic generation (HHG) seeding
• Development and testing of adaptive pulse shapers and acousto-optic programmable dispersive filters (AOPDF)

FAQ

Is the MIKS1_S suitable for use with amplified laser systems operating above 200 µJ?
No—pulse energies exceeding 200 µJ risk exceeding the LIDT of the coated optics and may induce thermal lensing or permanent coating damage. For higher-energy applications, multi-stage compressor configurations (e.g., MIKS2 series) are recommended.
Can the MIKS1_S be customized for wavelengths outside 700–950 nm?
Yes—custom mirror coatings are available for 515 nm, 1030 nm, and 1550 nm spectral bands; lead time and minimum order quantities apply.
Does the unit require periodic recalibration?
No—being a passive, all-reflective device with no drift-prone elements, the MIKS1_S maintains its dispersion characteristics over time. Factory calibration data remains valid unless subjected to mechanical shock or contamination.
What mounting options are supported?
Standard SM1-threaded (1.035″-40) kinematic mounts are included; ANSI/ISO 30-mm and 50-mm cage system adapters are available as accessories.
Is vacuum-compatible operation supported?
Yes—the aluminum housing and mirror substrates are compatible with UHV environments (<10⁻⁶ mbar); outgassing rates comply with ASTM E595 specifications for space-qualified optics.
