PKSAIR C510 Air Negative and Positive Ion Detector

Overview

The PKSAIR C510 Air Negative and Positive Ion Detector is a portable, dual-polarity environmental monitoring instrument engineered for high-fidelity measurement of airborne small air ions—both positive and negative—in real time. It employs a Gerdien-type condenser tube principle, where ions are drawn into a cylindrical collector under a controlled electric field; the resulting ion current is converted to concentration values (ions/cm³) via calibrated electrometer circuitry. This physics-based methodology ensures traceable, reproducible measurements aligned with established atmospheric electricity protocols. Designed for field deployment in ecological research, indoor air quality assessment, forest therapy studies, and wellness environment validation, the C510 delivers reliable ion quantification across two dynamic ranges—optimized for both ambient background levels and high-ion environments such as waterfalls, coastal zones, or ionizer-equipped facilities.

Key Features

• Dual-polarity simultaneous detection: Real-time alternating display of positive and negative ion concentrations (cycle interval: 7.5 seconds), with selectable single-polarity modes for focused analysis.
• Two-tier concentration range: 10–2×10⁶ ions/cm³ (low range) and 1×10³–2×10⁸ ions/cm³ (high range), enabling adaptability from urban baseline to high-emission natural settings.
• Integrated environmental sensors: Onboard temperature and relative humidity measurement (±2% RH accuracy), supporting contextual correction and multi-parameter correlation studies.
• Autonomous operation capability: Configurable auto-zero function (3/6/12/24 h intervals) and programmable auto-power-off (5/15/30/60 min), facilitating unattended long-term monitoring.
• Robust data acquisition: MicroSD card logging (up to 32 GB) in standard CSV format, including timestamped ion counts, temperature, humidity, and operational metadata—compatible with MATLAB, Python pandas, Excel, and LabVIEW.

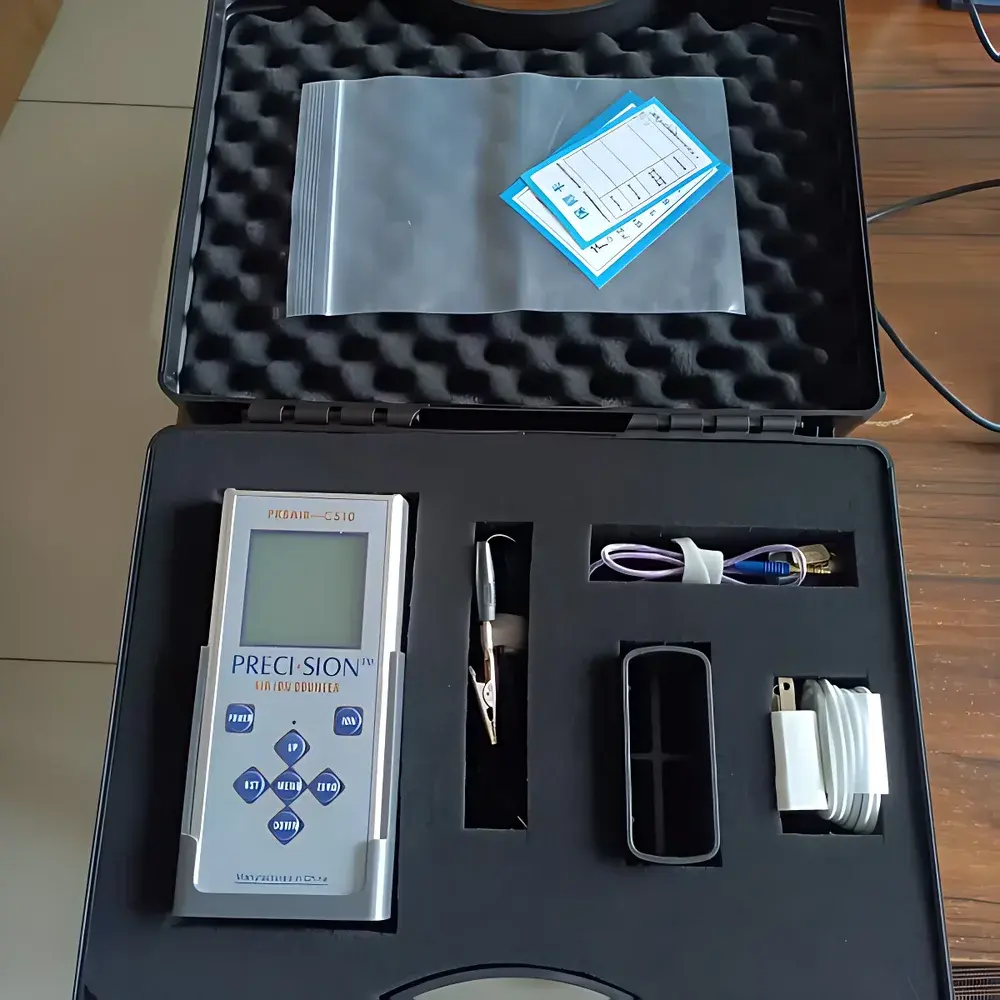

• Ergonomic and modular design: Compact dimensions (168 × 76 × 38 mm), weight ≤375 g, with tripod mount thread (¼”-20), wall-mount bracket, and rugged carry case—suitable for handheld, fixed-point, or mobile platform integration.

Sample Compatibility & Compliance

The PKSAIR C510 is optimized for sampling clean, low-turbulence ambient air (wind speed 100 nm), ensuring selectivity for mobility-classified small ions (typically <1.6 nm diameter). While not certified to ISO 16000-30 or ASTM D8192 as a standalone compliance device, its measurement methodology aligns with the physical principles referenced in those standards for air ion characterization. The instrument supports GLP-aligned workflows through timestamped, immutable CSV logging and optional audit-trail-enabled software configuration—facilitating traceability in academic, regulatory, or commercial validation studies.

Software & Data Management

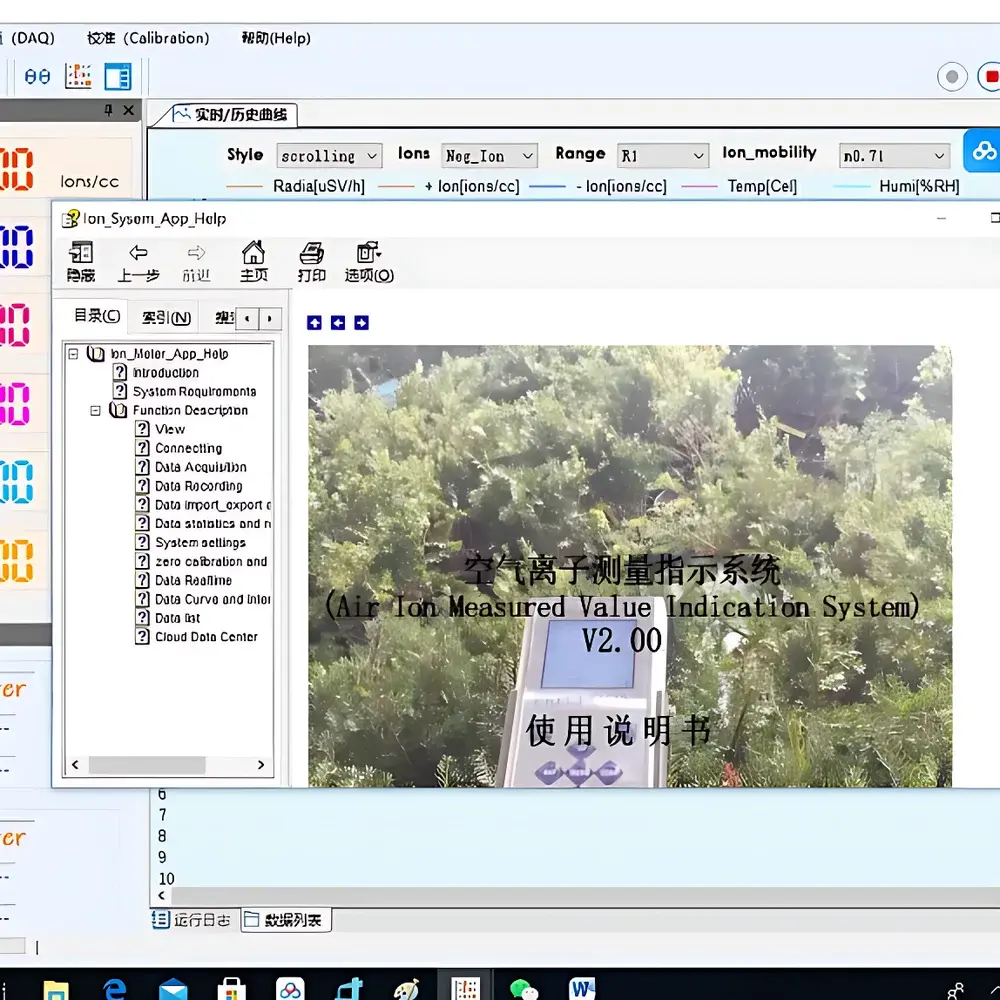

The proprietary PKSAIR PC software provides secure USB-to-RS232 communication for real-time data streaming, firmware updates, and configuration management. It enables synchronized visualization of ion dynamics alongside concurrent temperature/humidity trends, statistical summary (peak, mean over user-defined 1–15 s windows), and export-ready graphing (PNG, SVG, PDF). All logged files retain native CSV structure with ISO 8601 timestamps, enabling direct ingestion into LIMS or statistical analysis pipelines. No cloud dependency or mandatory online activation is required—ensuring full data sovereignty and offline usability in remote or regulated environments.

Applications

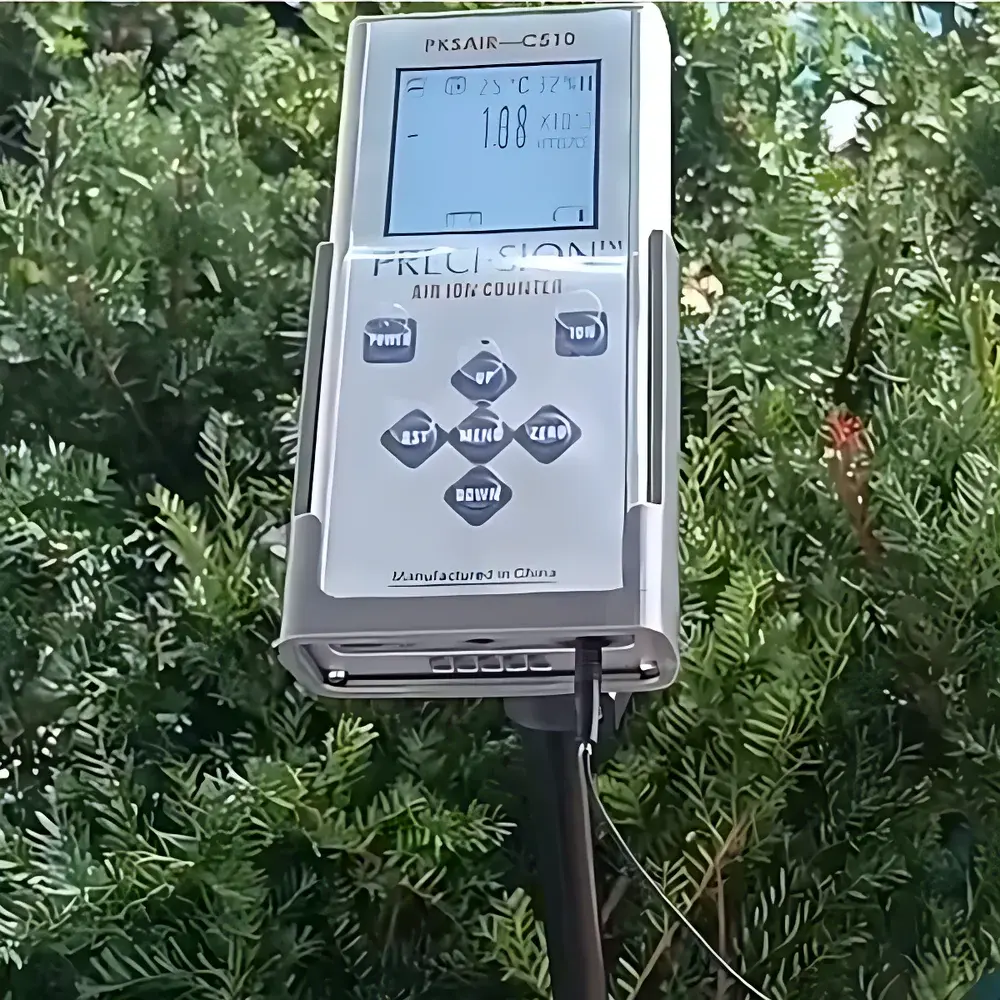

• Forest-atmosphere interaction studies: Quantifying ion generation mechanisms near vegetation, water bodies, and geological features.
• Indoor air quality benchmarking: Evaluating ion output stability and decay kinetics of commercial ionizers, HVAC-integrated emitters, and electrostatic precipitators.
• Wellness environment validation: Supporting evidence-based design of therapeutic spaces (e.g., spa facilities, rehabilitation centers) per WHO-recommended ion exposure frameworks.
• Educational fieldwork: Enabling undergraduate and graduate-level atmospheric physics labs to collect primary ion data under variable meteorological conditions.
• Environmental impact assessments: Monitoring ion profile shifts pre- and post-construction near high-voltage infrastructure or industrial sites.

FAQ

What ion mobility range does the C510 measure?
The C510 detects small air ions with mobilities corresponding to diameters <1.6 nm—consistent with the classical definition of “light” or “small” ions used in atmospheric electricity literature.
Is calibration traceable to national standards?
The instrument includes factory calibration against reference ion generators; users may perform field verification using the built-in zero-reference mode and grounding cable—full NIST-traceable recalibration services are available through PKSAIR’s authorized service centers.
Can the C510 operate continuously for >24 hours?
Yes—when powered externally via the included 5 VDC adapter (110–240 V AC input), the C510 supports indefinite continuous logging; internal battery enables ~6–7 hours of portable operation.
Does the software comply with FDA 21 CFR Part 11 requirements?
The base software does not include electronic signature or audit trail modules; however, raw CSV logs meet ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate), and custom validation packages can be deployed upon request for regulated environments.
How is contamination mitigated during extended deployment?
The condenser tube features a removable, cleanable stainless-steel electrode assembly; routine cleaning with isopropyl alcohol and compressed air is recommended every 72 hours in high-dust environments—maintenance procedures are documented in the English-language user manual.
