ProMinent Gamma/X Electromagnetic Diaphragm Metering Pump

Overview

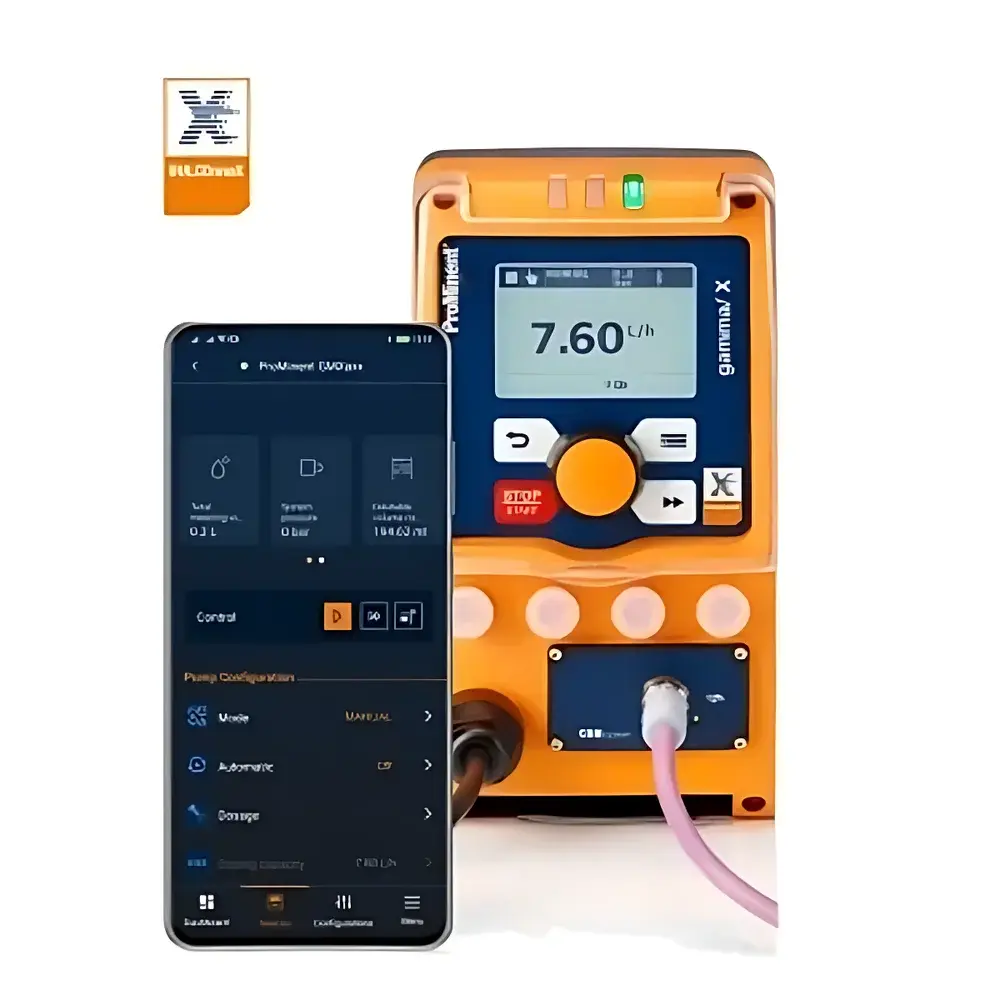

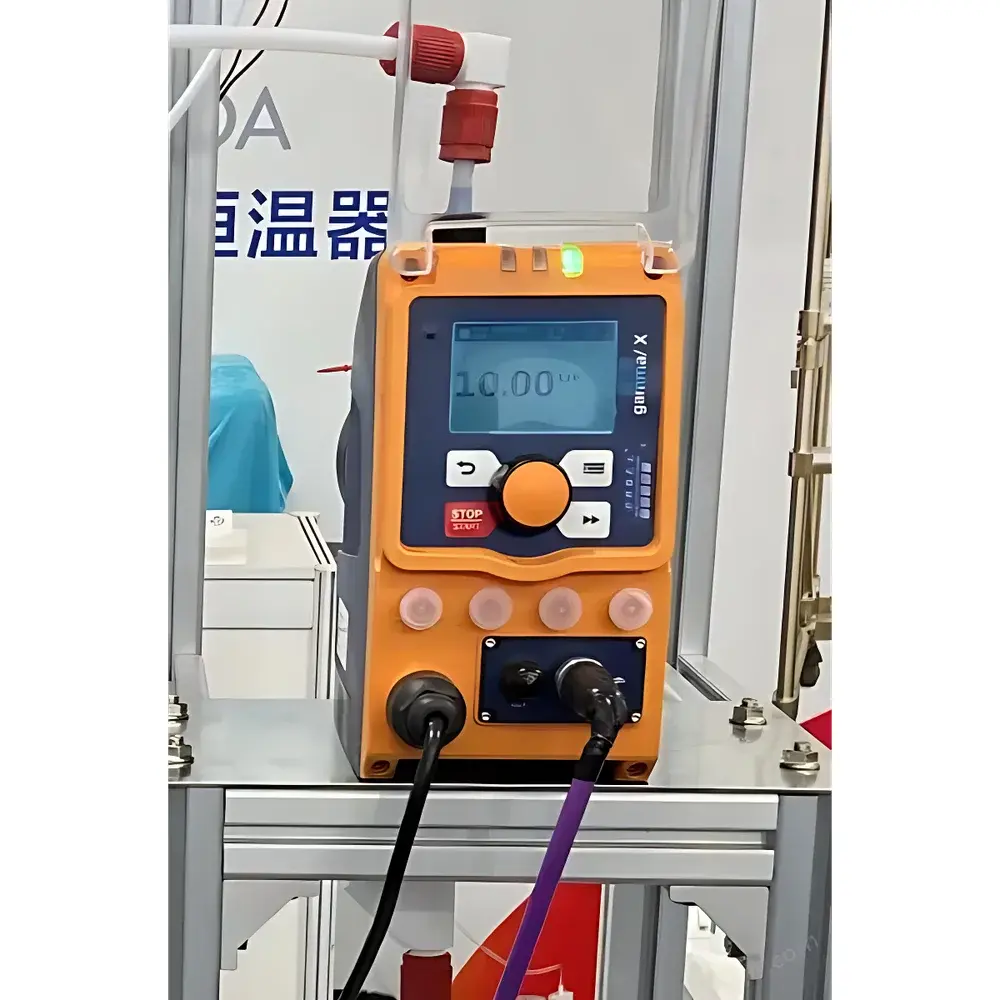

The ProMinent Gamma/X electromagnetic diaphragm metering pump is an engineered solution for precise, low-maintenance chemical dosing in laboratory, pilot-scale, and industrial process environments. Unlike mechanically actuated or solenoid-driven pumps, the Gamma/X employs a contactless electromagnetic drive principle: a precisely controlled coil generates a magnetic field that actuates a titanium-reinforced PTFE diaphragm without physical linkage or rotating seals. This eliminates wear-prone components such as crankshafts, ball valves, or O-rings exposed to aggressive media—ensuring long-term metrological stability and minimizing calibration drift. The pump operates on the principle of positive displacement with fixed stroke volume and variable stroke frequency, enabling linear flow control across its full 1:40,000 turndown ratio. Its integrated backpressure detection mechanism relies on real-time monitoring of magnetic reluctance changes during diaphragm deflection—providing instantaneous overload response without pressure transducers, wetted electronics, or secondary sealing interfaces. This architecture meets fundamental safety requirements for handling corrosive, volatile, or high-purity reagents under ISO/IEC 17025-conducive lab infrastructure.

Key Features

• Contactless electromagnetic drive with titanium-reinforced PTFE diaphragm—zero mechanical wear, no lubrication required, and immunity to particulate-induced valve clogging.
• Integrated magnetic backpressure sensing: detects hydraulic resistance anomalies in real time and halts operation before overpressure conditions compromise seal integrity or diaphragm fatigue life.
• Direct volumetric flow setting in liters per hour (l/h), or concentration-based proportional dosing mode—enabling seamless integration into feed-forward control loops for pH adjustment, coagulant dosing, or catalyst injection.
• Service module with predictive maintenance alerts: monitors cumulative stroke cycles, thermal load history, and actuation consistency to schedule interventions before performance deviation exceeds ±1.5% of setpoint (per EN 17124:2021 verification guidelines).
• IP65-rated housing with chemical-resistant polymer casing—suitable for installation in fume hoods, wet laboratories, and semi-controlled industrial zones.
• Universal power input (100–240 V AC, 50/60 Hz) with internal EMI filtering compliant with IEC 61000-6-3 emission standards.

Sample Compatibility & Compliance

The Gamma/X series accommodates a broad spectrum of metering media—including aqueous acids (e.g., HCl, HNO₃ up to 37%), alkalis (NaOH ≤ 50%), oxidizers (H₂O₂ ≤ 35%), organic solvents (acetone, methanol, THF), and high-viscosity additives (up to 500 mPa·s at 20 °C). Wetted materials conform to FDA 21 CFR §177.1550 (PTFE) and DIN 30670 (titanium Grade 2). While the pump itself is not certified to ATEX or IECEx, it may be deployed in Zone 2/22 environments when installed with appropriate barrier systems and documented risk assessment per IEC 60079-10-1. For regulated pharmaceutical or biotech applications, audit trails generated via optional RS485 Modbus RTU interface support 21 CFR Part 11-compliant data integrity when paired with validated SCADA platforms.

Software & Data Management

The Gamma/X operates autonomously but supports digital integration via standard analog (4–20 mA) or serial (Modbus RTU over RS485) outputs. Optional firmware upgrades enable time-scheduled dosing profiles—critical for batch-wise cooling water conditioning or periodic biocide injection. All operational parameters (flow rate, stroke count, fault codes, thermal status) are accessible through a local LED display or remotely via ASCII command protocol. When connected to laboratory information management systems (LIMS) or distributed control systems (DCS), event logs—including start/stop timestamps, overpressure events, and service warnings—are timestamped with UTC synchronization and stored with SHA-256 checksums to satisfy ALCOA+ data governance principles.

Applications

• Automated reagent dosing in analytical chemistry workflows (e.g., titrant delivery for potentiometric titration, buffer preparation for HPLC mobile phase blending).
• Precise additive injection in polymer synthesis reactors—maintaining stoichiometric ratios under variable temperature and viscosity conditions.
• pH stabilization in bioreactor feed streams via acid/base metering with sub-milliliter accuracy per cycle.
• Calibration standard delivery in environmental testing labs—compliant with EPA Method 300.0 and ISO 5667-3 sampling protocols.
• Continuous inhibitor dosing in closed-loop cooling circuits to prevent scale formation without compromising metallurgical compatibility.

FAQ

Does the Gamma/X require external pressure sensors for safe operation?

No. Its magnetic reluctance-based backpressure detection operates independently of wetted transducers, eliminating potential failure points and chemical compatibility constraints.
Can the pump dose viscous fluids above 1,000 mPa·s?

It is rated for continuous operation up to 500 mPa·s at 20 °C. Higher viscosities require reduced stroke frequency and pre-heating to maintain volumetric repeatability within ±2% (per ISO 5167-1 Annex C validation methodology).
Is firmware update capability available via USB or Ethernet?

Firmware updates are performed exclusively via RS485 using ProMinent’s proprietary PC software (GammaSoft v4.2+); no USB or Ethernet interface is embedded in the base unit.
What documentation is provided for IQ/OQ validation support?

Factory test reports (including flow linearity, repeatability, and pressure hold tests), material compliance certificates (EN 10204 3.1), and a configurable URS template are included in the delivery package.
How is diaphragm lifetime verified during routine maintenance?

Diaphragm integrity is assessed via visual inspection for microcracks and functional verification using a calibrated flow test at 10%, 50%, and 90% of maximum stroke frequency—per ProMinent Service Bulletin SB-GX-2023-07.
