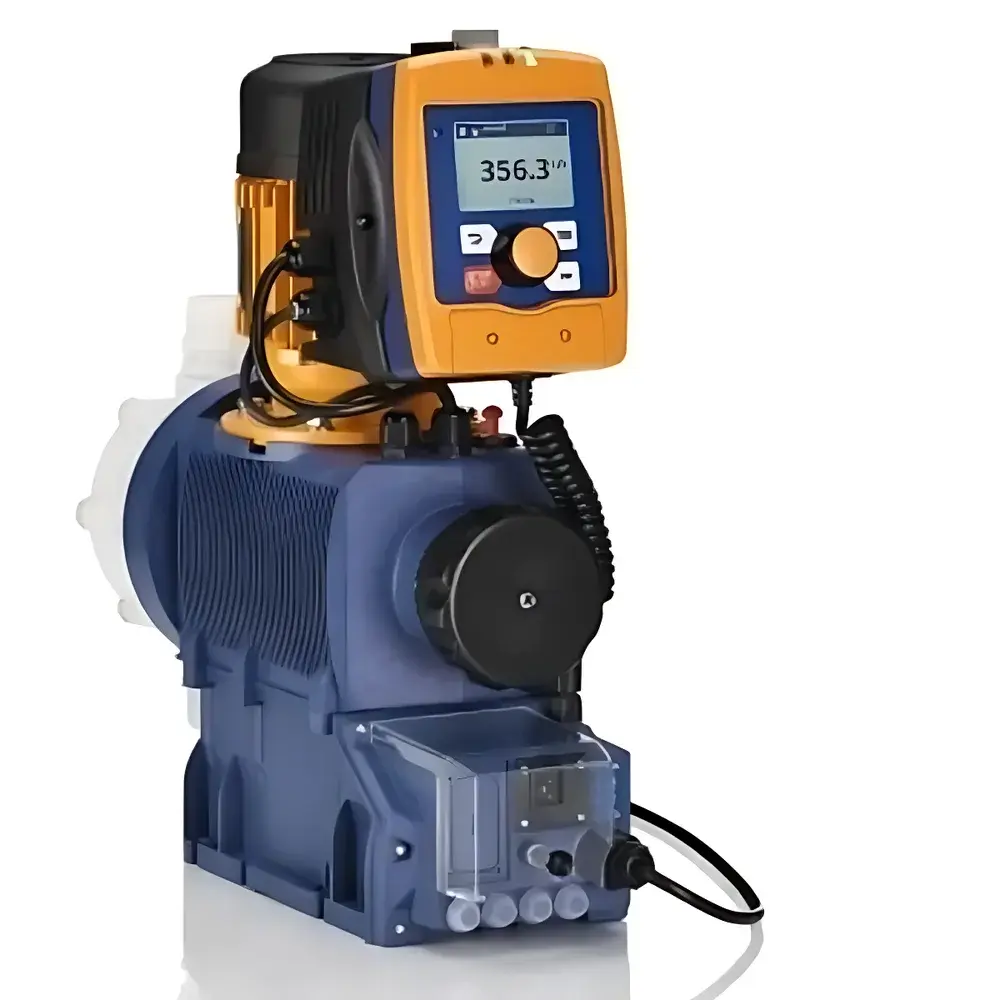

ProMinent Sigma X Electric Motor-Driven Diaphragm Metering Pump

Overview

The ProMinent Sigma X Electric Motor-Driven Diaphragm Metering Pump is an industrial-grade precision dosing solution engineered for continuous, repeatable, and fail-safe chemical delivery in laboratory, pilot-scale, and process-critical environments. Operating on the positive displacement principle, the pump utilizes a motor-driven eccentric mechanism to actuate a reinforced multi-layer PTFE-reinforced diaphragm, ensuring leak-tight separation between the drive train and process fluid. Its design conforms to ISO 8502-1 for metering pump performance verification and integrates mechanical and electronic safeguards aligned with IEC 61508 functional safety requirements for SIL 2-capable operation. The Sigma X is not a generic utility pump—it is a calibrated, traceable, and audit-ready dosing system designed for applications where dosage accuracy, media compatibility, and operational continuity directly impact experimental validity or regulatory compliance.

Key Features

• Multi-layer safety diaphragm with integrated optical (optional electrical) fault detection—provides immediate visual/remote indication upon primary diaphragm breach, preventing cross-contamination between process fluid and drive components.
• Microprocessor-controlled variable-frequency drive (VFD) with adaptive torque limiting—dynamically prevents motor stalling during line blockage or high-viscosity start-up, minimizing hydraulic shock and extending component service life.
• Wide turndown ratio achieved via synchronized adjustment of stroke length and motor frequency—enables stable dosing from 2% to 100% of maximum capacity without compromising repeatability (±0.5% of setpoint under steady-state conditions).
• Backlit LCD interface with full-angle readability and tri-color LED status indicators—displays real-time flow rate, pressure, stroke position, error codes, and maintenance prompts; supports multilingual menu navigation (English, German, French, Spanish).
• Modular communication architecture—standard PROFIBUS® DP-V1 and CANopen interfaces allow seamless integration into DCS, SCADA, or PLC-based control systems; optional HART or Modbus RTU modules available for legacy infrastructure compatibility.
• Built-in event logger storing up to 300 timestamped entries—including start/stop cycles, alarm triggers, parameter changes, and safety interlock activations—supports GLP-compliant process documentation and root-cause analysis.

Sample Compatibility & Compliance

The Sigma X accommodates a broad spectrum of chemically aggressive, viscous, shear-sensitive, and gas-containing liquids—including acids, alkalis, solvents, polymer emulsions, and suspended slurries (up to 100 µm particle size). Wetted materials include PTFE-coated diaphragms, ceramic or Hastelloy C-276 check valves, and EPDM or Viton® seals—selected per EN 1591-1 flange rating standards and compatible with USP Class VI and FDA 21 CFR 177.2400 compliant formulations. All configurations meet ATEX II 2G Ex d IIB T4 certification for use in Zone 1 hazardous areas and comply with EU Machinery Directive 2006/42/EC and PED 2014/68/EU for pressure equipment. Calibration certificates traceable to DKD/DAkkS-accredited laboratories are available upon request.

Software & Data Management

No proprietary desktop software is required for basic operation—the pump’s embedded firmware enables full local configuration via front-panel controls. For centralized monitoring and data aggregation, ProMinent’s ProLink II engineering software (Windows-based, USB/RS485 interface) provides remote parameterization, real-time diagnostics, and export of logged events in CSV or XML format. Audit trail functionality satisfies FDA 21 CFR Part 11 requirements when used with user access control and electronic signature modules. Logged data includes operator ID, timestamp, action type, and pre/post-change values—ensuring full accountability for all configuration modifications during GMP or ISO 17025 audits.

Applications

• Chemical feed in analytical sample preparation systems (e.g., pH adjustment, reagent dosing for ICP-MS or HPLC mobile phase blending)
• Controlled catalyst injection in lab-scale polymerization reactors and hydrogenation studies
• Accurate dosing of corrosion inhibitors or biocides in closed-loop cooling water test rigs
• Continuous nutrient addition in bioreactor inoculation and fermentation optimization trials
• Calibration fluid delivery in gravimetric or volumetric standardization workflows
• Interface with automated titration platforms requiring programmable, time-synchronized reagent pulses

FAQ

What certifications does the Sigma X hold for use in regulated laboratory environments?

It complies with ISO/IEC 17025:2017 Annex A.2 for measurement traceability, carries CE marking per PED and EMC directives, and supports validation protocols aligned with ASTM D1141 and USP <1058> Analytical Instrument Qualification.
Can the pump handle abrasive slurries without premature wear?

Yes—when equipped with ceramic ball-and-seat valves and hardened stainless-steel pump heads, it maintains ±1% volumetric accuracy over 10,000 operating hours with particles ≤100 µm at concentrations up to 5 wt%.
Is remote monitoring possible without additional hardware?

Standard PROFIBUS® and CANopen ports enable direct connection to existing control networks; no external gateway is needed for basic status polling or setpoint updates.
How is calibration verified and maintained?

Factory calibration uses NIST-traceable gravimetric standards; field verification follows ISO 5167 principles using calibrated flow meters or timed collection methods—documentation templates are included in the ProLink II suite.
Does the integrated timer support complex dosing sequences?

The built-in timer supports up to 8 programmable on/off intervals per 24-hour cycle, with adjustable ramp profiles for gradual flow ramp-up/down to minimize system pressure transients.
