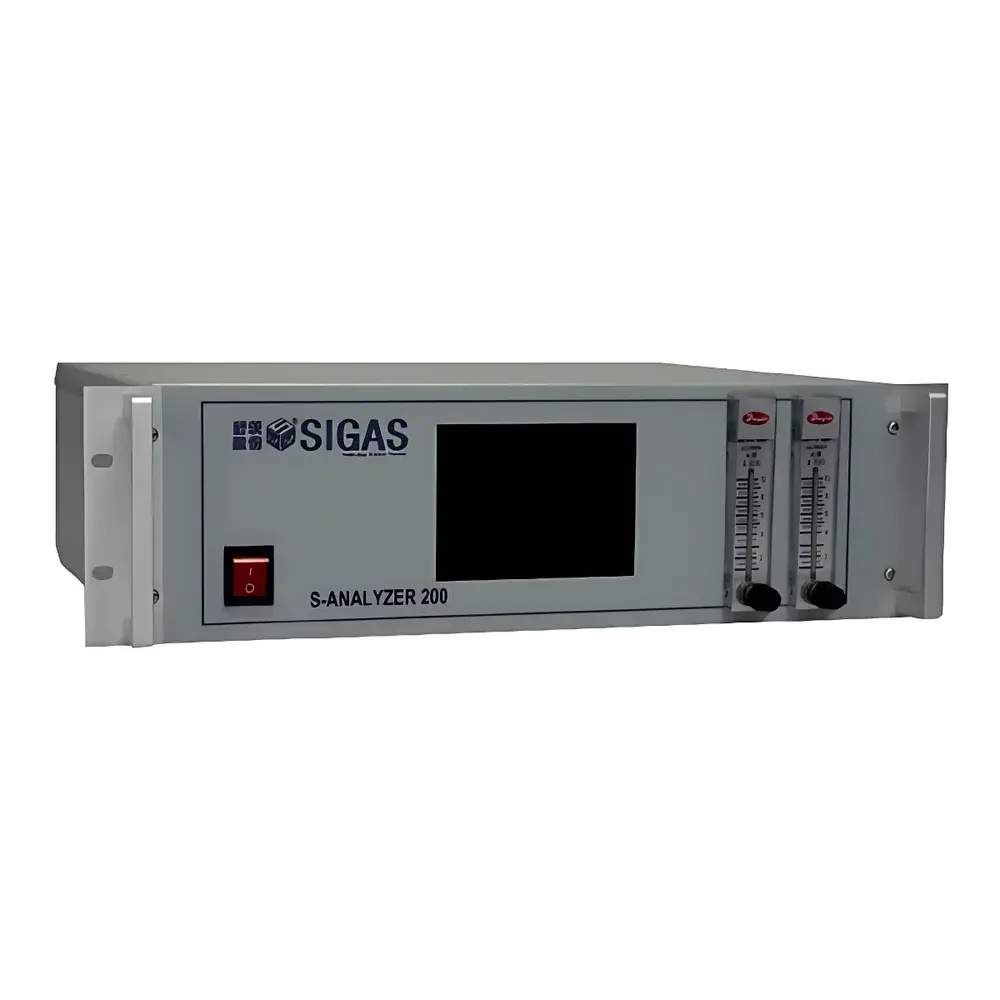

Schütz S-ANALYZER 200 BMBT Paramagnetic Oxygen Analyzer

Overview

The Schütz S-ANALYZER 200 BMBT is a dual-channel, rack-mountable paramagnetic oxygen analyzer engineered for continuous, high-stability measurement of O₂ concentration in industrial process streams. Its core detection principle relies on the strong magnetic susceptibility of molecular oxygen—a physical property uniquely exploited by paramagnetic sensors to deliver inherently linear, drift-resistant response without consumables or catalytic surfaces. Unlike electrochemical or zirconia-based alternatives, the BMBT (Broadband Magnetic Balance Transducer) sensor eliminates cross-sensitivity to background gas composition, temperature-induced zero shifts, and aging-related signal decay. Complementing the O₂ channel, the system integrates infrared (IR) non-dispersive gas sensors for simultaneous quantification of CO, CO₂, and CH₄—enabling multi-component analysis within a single 19-inch chassis. Designed for integration into distributed control systems (DCS) and programmable logic controllers (PLC), the analyzer meets the functional safety and long-term reliability requirements of semiconductor fab utilities, power plant flue gas monitoring, chemical reactor off-gas control, and metallurgical inerting processes.

Key Features

• Paramagnetic O₂ sensing with 0.001% resolution and <25 s T₉₀ response at 60 L/h sample flow
• Dual independent measurement channels: one BMBT O₂ channel + one IR-based multi-gas channel (CO/CO₂/CH₄)
• 5.6″ capacitive touchscreen interface with tri-screen navigation: real-time numeric display (3 gases), detailed parameter view (T, P, units), and time-resolved concentration trend plots
• Three-point calibration protocol supported: zero (99.999% N₂), mid-point (37.5–62.5% FS), and span (75–125% FS) — ensuring traceable linearity across full operating range
• Configurable relay outputs (6 total): assignable to device fault, auto-zero valve control, span gas valve control, and upper/lower concentration alarm thresholds per channel
• Full audit trail capability: password-protected calibration menus, alarm setpoint editing, and factory reset function — supporting GLP/GMP documentation workflows
• Bilingual UI (English/Chinese) with user-selectable language and customizable analog output scaling (4–20 mA mapping)
• IP41-rated enclosure compliant with IEC 60529; 19-inch form factor supports both rack-mounted and benchtop deployment

Sample Compatibility & Compliance

The S-ANALYZER 200 BMBT accepts sample gas streams meeting strict conditioning specifications: non-condensing moisture content (dew point ≤5.0 ±0.1 °C), particulate load ≤100 µg/m³ (≤1 µm), and pressure ≤116 kPa (abs). It is certified for use with inert carrier gases (N₂, Ar) and reactive process streams containing CO, CO₂, CH₄, SO₂, and NO—provided dew point control is implemented where sulfur or nitrogen oxides are present. While not intrinsically safe, the analyzer complies with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions) for industrial environments. Its analog and digital interfaces support integration into systems governed by ISA-84 (SIL), IEC 61511, and FDA 21 CFR Part 11 when deployed with external audit logging infrastructure.

Software & Data Management

No proprietary PC software is required for basic operation—the embedded firmware provides complete local control via the touchscreen interface. All calibration events, alarm triggers, and relay state changes are timestamped and retained in non-volatile memory. RS232 and RS485 (Modbus RTU) ports enable bidirectional communication with SCADA or historian systems for remote configuration, real-time data polling (O₂ %, CO ppm, CO₂ %, CH₄ %, T, P), and event log export. The Modbus register map includes dedicated addresses for sensor status flags, calibration due warnings, and relay assignment tables—facilitating automated maintenance scheduling and predictive diagnostics.

Applications

• Semiconductor manufacturing: monitoring N₂ purge lines and annealing atmospheres for O₂ contamination <10 ppm
• Thermal power generation: continuous flue gas O₂ feedback for boiler combustion optimization (ASTM D6216 compliance)
• Chemical synthesis reactors: real-time O₂ and combustible gas (CH₄, CO) tracking during exothermic batch processes
• Steel reheat furnaces: atmosphere control in controlled-atmosphere heat treatment lines
• Building materials testing: oxygen depletion rate analysis during ASTM E1354 cone calorimeter experiments
• Biogas upgrading: CH₄/CO₂/O₂ co-monitoring in membrane separation and PSA skids

FAQ

What is the minimum detectable O₂ concentration using the BMBT sensor?
The BMBT channel achieves 0.001% (10 ppm) resolution across its standard 0–25% O₂ range. Detection limit is governed by electronic noise floor and thermal stability—not chemical sensitivity.
Can the analyzer operate with wet gas samples?
No. Condensable moisture must be removed upstream. The specified dew point of ≤5.0 ±0.1 °C ensures no water condensation occurs inside the optical path or sensor chamber.
Is third-party calibration certification available?
Yes. Traceable calibration certificates (ISO/IEC 17025 accredited labs) can be provided upon request, covering O₂ channel linearity, zero stability, and IR channel cross-interference verification.
How is sensor drift compensated over time?
The BMBT sensor exhibits negligible long-term drift due to its physical measurement principle. Routine zero and span checks—performed using certified gases—are sufficient to maintain accuracy; no periodic sensor replacement is required.
Does the unit support HART protocol?
No. Analog output is fixed 4–20 mA with optional voltage output (0–10 V) via internal jumper; digital communication is limited to RS232 and RS485 Modbus RTU.
