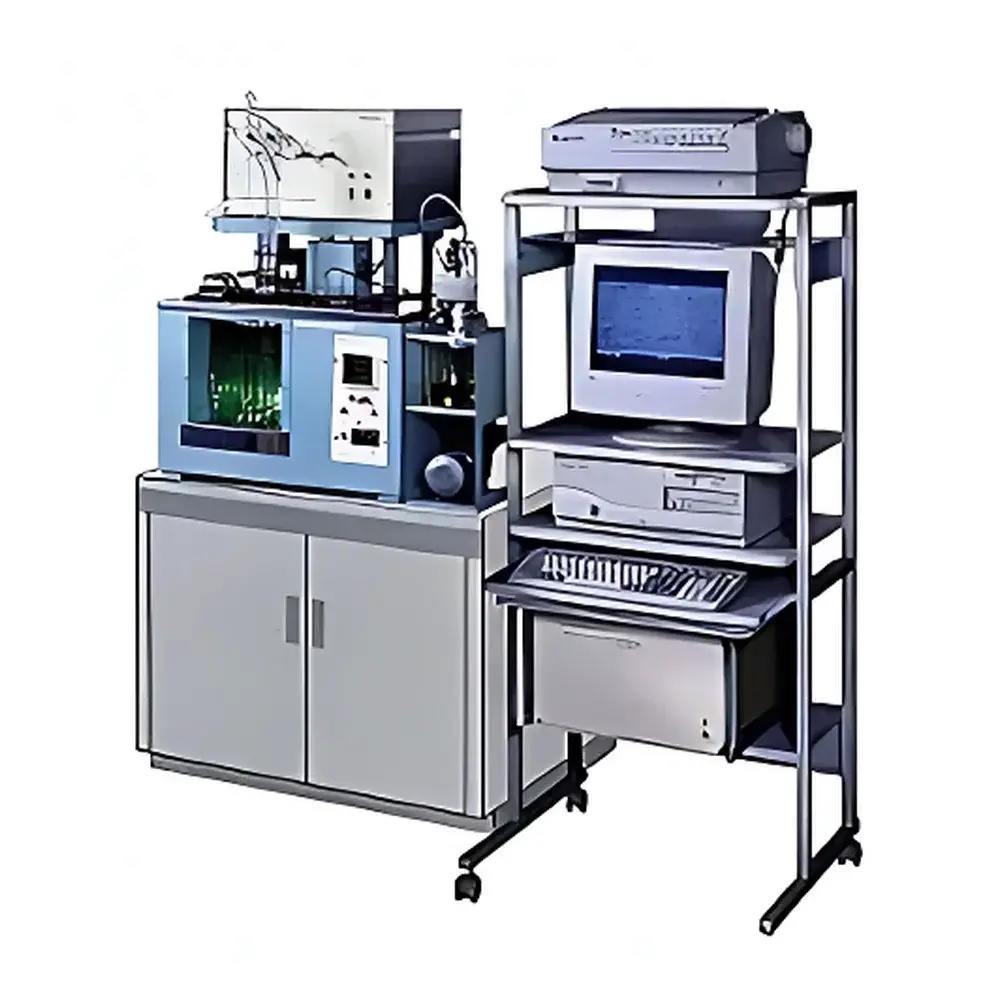

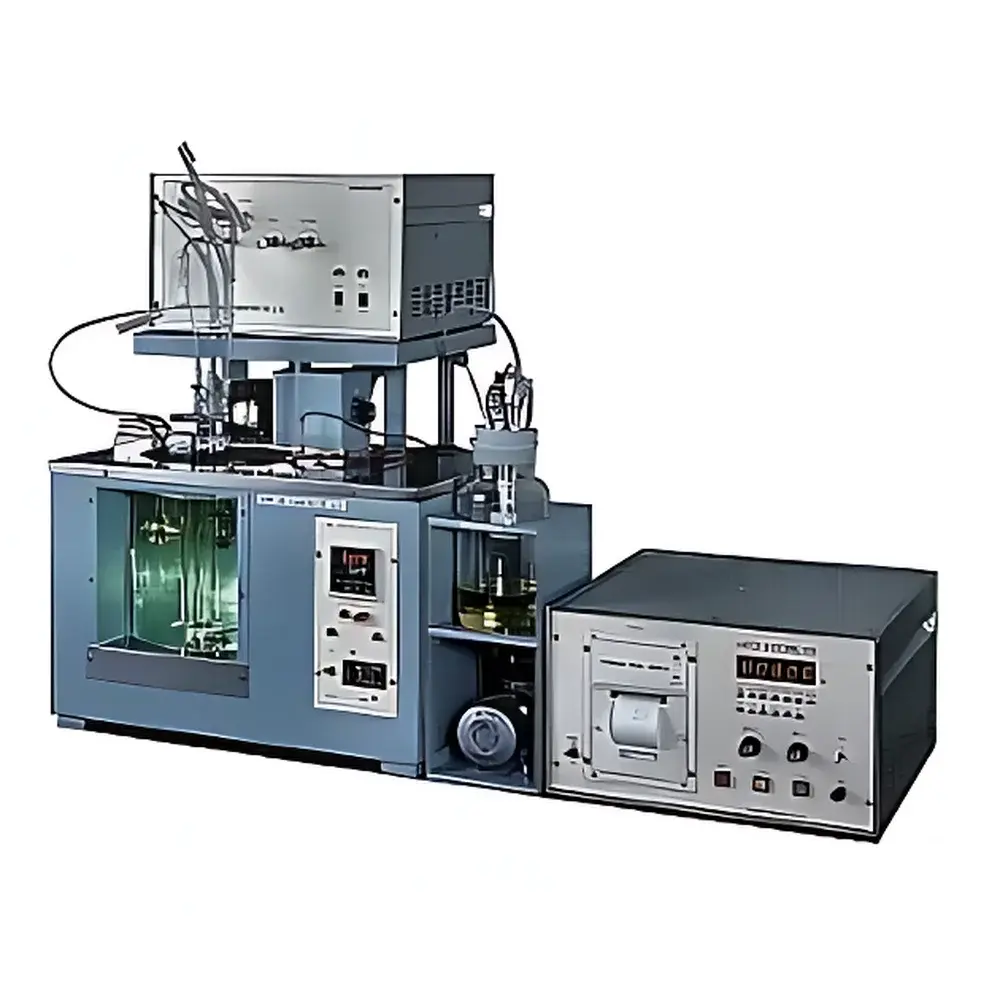

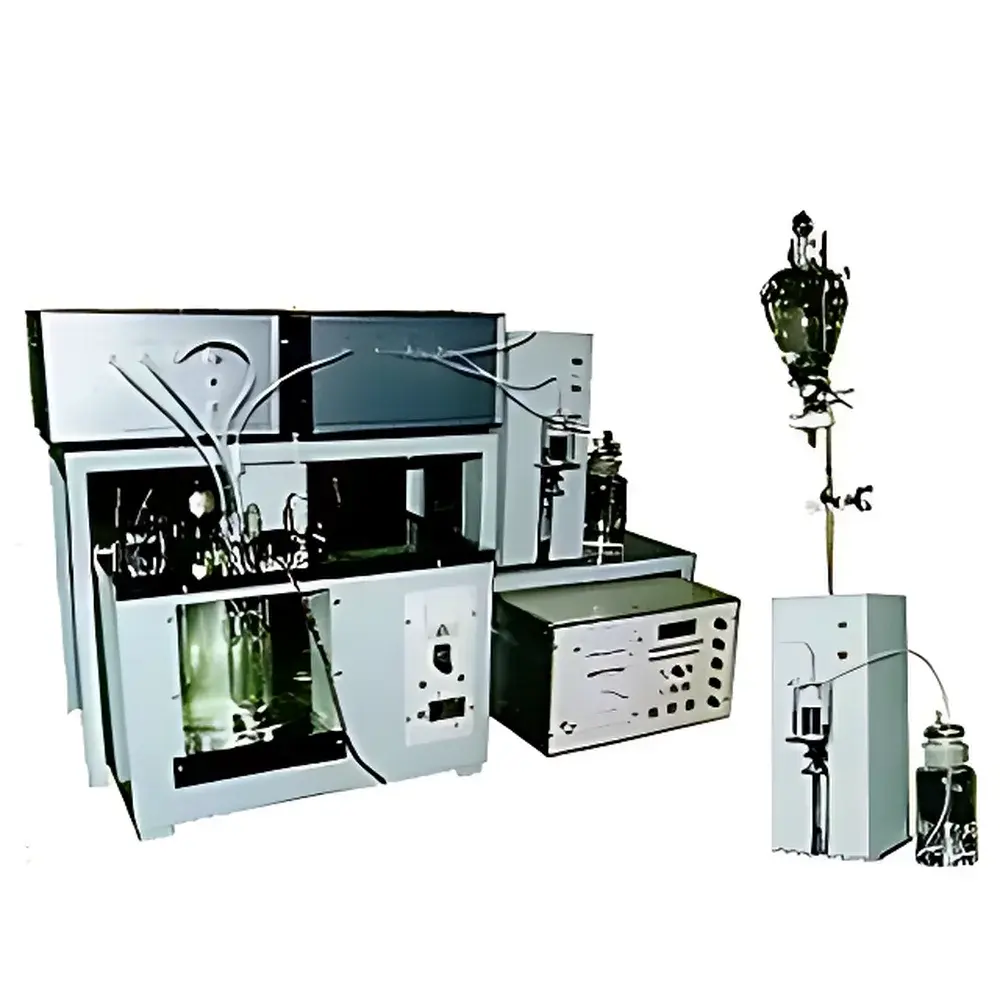

Shibayama SS-600-L1 Advanced Computer-Controlled Capillary Viscometer

Overview

The Shibayama SS-600-L1 is a dual-channel, computer-controlled capillary viscometer engineered for high-reproducibility kinematic viscosity measurements in quality control laboratories, petrochemical R&D facilities, and polymer formulation centers. It operates on the fundamental principle of capillary flow viscometry—measuring the efflux time of a fixed volume of liquid under gravity through a calibrated glass capillary tube, then calculating kinematic viscosity (ν, mm²/s or cSt) using the instrument’s certified calibration constant. Unlike rotational rheometers, the SS-600-L1 delivers traceable, primary-standard-level accuracy for Newtonian and near-Newtonian fluids—including base oils, lubricants, solvents, resins, and pharmaceutical excipients—without requiring shear-rate sweeps or complex fluid modeling. Its architecture integrates microprocessor-driven temperature stabilization, precision timing electronics (1 MHz crystal reference, 10 ms resolution), and real-time PC synchronization to ensure metrological integrity across extended unattended runs.

Key Features

• Dual independent measurement channels enable parallel or sequential analysis—reducing turnaround time without cross-contamination risk.
• Automated 20-sample carousel with programmable individual test parameters per vial (temperature setpoint, dwell time, replicate count, dilution factor if interfaced).
• Real-time PC-based supervision: full system status monitoring (capillary valve position, bath temperature, sensor readiness, syringe actuation), remote diagnostics, and live efflux-time visualization.
• GLP-ready data handling: all measurements are timestamped, user-logged, and stored with full metadata (method name, calibration ID, ambient conditions, operator ID) in encrypted binary + CSV export formats.
• High-stability timing core: 1 MHz temperature-compensated crystal oscillator ensures <±0.02% drift over 8-hour operation, critical for ASTM D445 compliance where timing uncertainty dominates total error budget.
• Thermal management: compatible with external thermostatic baths (up to 135 °C); integrated PT100 sensors provide ±0.05 °C bath temperature feedback to the host PC.

Sample Compatibility & Compliance

The SS-600-L1 accepts standard Ubbelohde or Cannon-Fenske capillaries (grades A or B per ISO 3105) and accommodates sample volumes from 10–25 mL depending on capillary geometry. It supports transparent, low-volatility Newtonian liquids with kinematic viscosities ranging from 0.5 to 100,000 mm²/s (cSt), provided appropriate capillary selection and thermal equilibration protocols are followed. The system is designed to meet the procedural rigor of ASTM D445 (Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids), ISO 3104 (Petroleum Products — Determination of Kinematic Viscosity), and JIS K 2283. When operated with validated methods and calibrated capillaries, it satisfies audit requirements under FDA 21 CFR Part 11 (electronic records/signatures) and EU Annex 11 (computerized systems), particularly when paired with Shibayama’s optional validation package (IQ/OQ documentation, traceable calibration certificates).

Software & Data Management

The proprietary SS-ViscoControl Suite (v4.x) runs on Windows 10/11 and provides a modular interface for method creation, instrument configuration, real-time monitoring, and post-acquisition analysis. Each measurement session generates a structured dataset containing raw efflux times, calculated kinematic viscosities, statistical summaries (mean, SD, CV%), pass/fail flags against user-defined tolerance limits, and digital signatures. All data reside in a local SQLite database with built-in versioning; backups are automated daily. Audit trails record every parameter change, report generation event, and user login/logout. Export options include PDF reports (customizable per client SOP), Excel-compatible .csv, and LIMS-ready XML schemas compliant with ASTM E1467 and ISO/IEC 17025 reporting clauses.

Applications

• Refinery QC: batch release testing of crude fractions, diesel fuels, and transformer oils per ASTM D445 and IP 71.
• Pharmaceutical manufacturing: viscosity verification of parenteral vehicles, ophthalmic solutions, and polymer-based sustained-release matrices per USP and Ph. Eur. 2.2.33.
• Coatings & inks: monitoring solvent evaporation effects on resin solution viscosity during formulation development.
• Academic rheology labs: generating reference data for validating rotational instrument calibrations or studying temperature-dependent flow behavior.
• Contract testing labs: supporting ISO/IEC 17025 accreditation with documented traceability, uncertainty budgets, and inter-laboratory comparison logs.

FAQ

Does the SS-600-L1 require manual sample loading?

No—it features an automated 20-position sample carousel with programmable aspiration and dispensing logic. Each vial can be assigned unique thermal equilibration time, measurement repetitions, and cleaning cycles.
Can it measure non-Newtonian fluids?

It is optimized for Newtonian liquids per ASTM D445. For shear-thinning/thickening behavior, a rotational rheometer (e.g., Brookfield DVNext or Anton Paar MCR series) is recommended.
Is the system compliant with 21 CFR Part 11?

Yes—when deployed with enabled electronic signature modules, audit trail logging, and role-based access control as configured in SS-ViscoControl Suite.
What capillary types are supported?

Ubbelohde, Cannon-Fenske, and Ostwald capillaries conforming to ISO 3105 dimensional tolerances; capillary constants are entered manually or imported from NIST-traceable calibration certificates.
How is calibration verified?

Using certified reference standards (e.g., Cannon SRM 2000 series) at two or more temperatures; software calculates deviation from certified values and flags out-of-spec results with configurable alerts.
