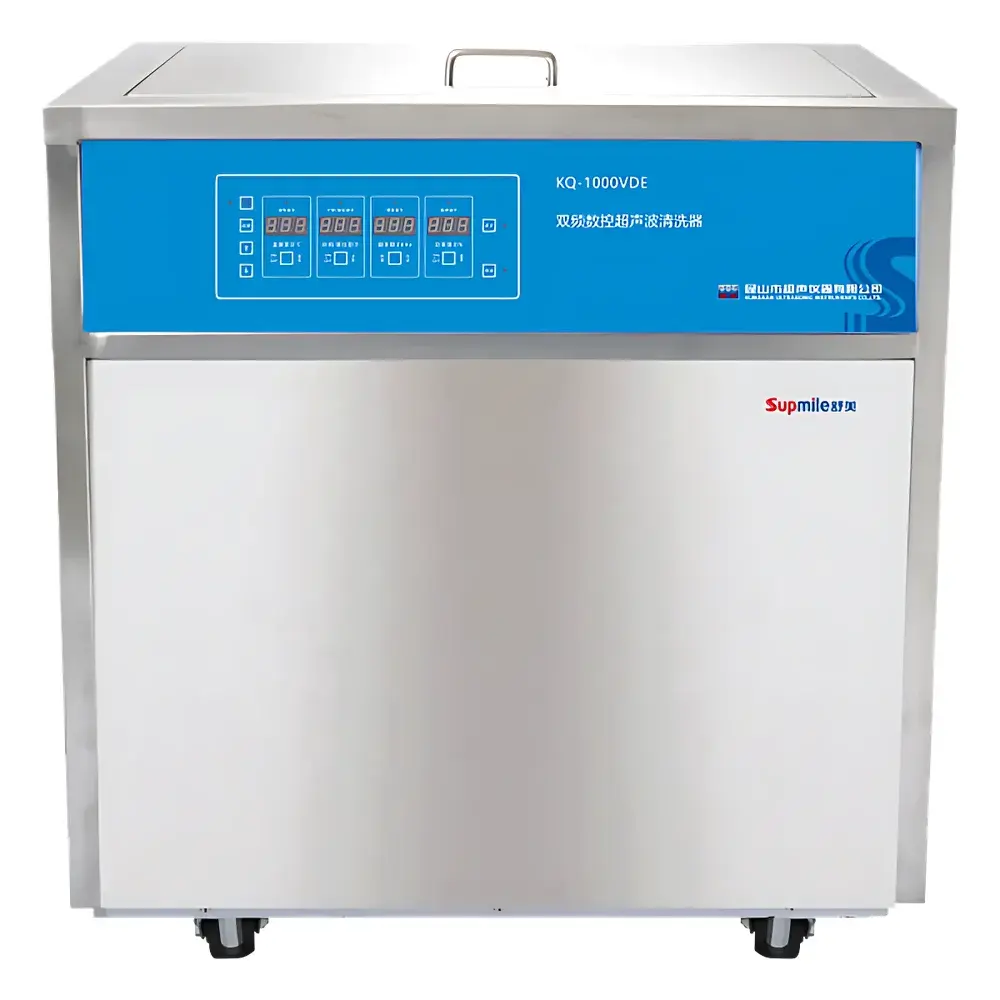

Shumei KQ-1000VDE Dual-Frequency Digital Ultrasonic Cleaner

Overview

The Shumei KQ-1000VDE Dual-Frequency Digital Ultrasonic Cleaner is an industrial-grade laboratory cleaning system engineered for precision, repeatability, and operational flexibility in demanding analytical and preparatory workflows. It operates on the principle of acoustic cavitation—generating controlled micro-bubbles in liquid media via high-frequency mechanical vibrations transmitted through piezoelectric transducers bonded to the tank bottom and sidewalls. The dual-frequency capability (45 kHz and 80 kHz) enables selective optimization: lower frequency delivers higher energy cavitation suited for robust particulate removal from machined parts, glassware, or metal components; higher frequency provides finer, more uniform energy distribution ideal for delicate optics, semiconductor wafers, MEMS devices, and biological sample carriers where surface integrity must be preserved. Its 72 L stainless-steel tank (304 grade) supports batch processing of large or multiple items—including beakers, flasks, filtration assemblies, chromatography columns, and custom fixtures—while maintaining structural rigidity, corrosion resistance, and compliance with ISO 13485-informed cleanroom handling practices.

Key Features

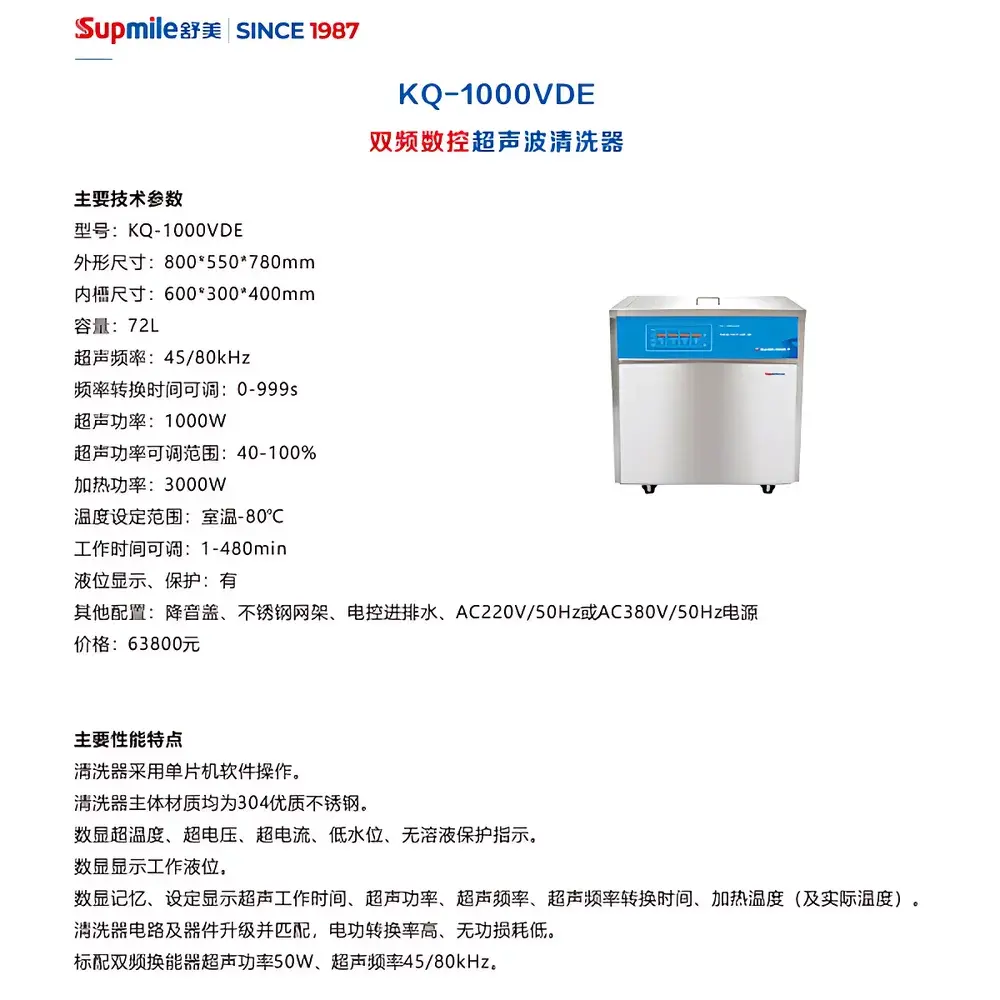

• Dual-frequency ultrasonic generation (45 kHz / 80 kHz), with programmable frequency switching interval (0–999 s) for adaptive cleaning protocols
• Full digital control via embedded microcontroller: real-time display and independent adjustment of ultrasonic power (40–100%), heating temperature (ambient to 80 °C), timer (1–480 min), and frequency mode
• Integrated safety monitoring: automatic shutdown triggered by low liquid level, overtemperature, overvoltage, or overcurrent conditions; visual LED indicators for all fault states
• Electrically actuated fill-and-drain system with solenoid valves, enabling hands-free fluid management and repeatable process cycles
• Sound-dampening lid with ergonomic latch mechanism reduces ambient noise to ≤65 dB(A) at 1 m distance, meeting OSHA-recommended exposure thresholds for continuous lab operation
• 304 stainless-steel construction throughout wetted and structural components ensures long-term chemical compatibility with aqueous, alkaline, acidic, and mild organic solvent-based cleaning solutions
• High-efficiency power conversion architecture minimizes reactive power draw and thermal load on internal electronics, supporting stable 24/7 operation under GLP-compliant environmental monitoring

Sample Compatibility & Compliance

The KQ-1000VDE accommodates a broad spectrum of laboratory and manufacturing substrates without risk of surface degradation when operated within validated parameters. Compatible materials include borosilicate glass, fused silica, titanium alloys, aluminum 6061, stainless steel 316L, silicon wafers, ceramic filters, and PTFE-coated fixtures. Its design aligns with core requirements of ASTM D2603 (Standard Test Method for Sonic Shear Stability of Lubricants), ISO 13850 (Safety of Machinery – Emergency Stop Function), and IEC 61000-6-3 (EMC Emission Standards). While not certified to UL/CSA standards out-of-the-box, its electrical architecture complies with EN 61010-1:2010 for laboratory equipment safety—making it suitable for integration into FDA-regulated environments when deployed with documented SOPs, calibration records, and preventive maintenance logs.

Software & Data Management

The unit features a non-volatile memory system that retains up to 10 user-defined cleaning programs—including frequency selection, power setpoint, ramped heating profile, dwell time, and drain sequence. All parameter changes are timestamped and logged internally (non-exportable but visible on display), satisfying basic audit-trail requirements under GLP and internal QA frameworks. Though it lacks Ethernet or USB connectivity for remote data export, its deterministic digital interface ensures consistent execution across shifts and operators—critical for method transfer between R&D, QC, and production labs. Optional external data loggers (e.g., Omega OM-DAQPRO-5300) may be interfaced via analog voltage outputs for temperature and power status monitoring.

Applications

• Pre-analytical sample preparation: removal of residual proteins, lipids, or precipitates from HPLC vials, autosampler needles, and syringe filters
• Pharmaceutical device cleaning validation: cleaning of stainless-steel contact parts per USP and Annex 1 guidance
• Electronics manufacturing: flux residue removal from PCB assemblies prior to AOI inspection
• Materials science: dispersion of nanomaterials (e.g., graphene oxide, TiO₂ nanoparticles) in aqueous suspensions for rheological or spectroscopic characterization
• Maintenance of metrology tools: cleaning of interferometer reference mirrors, AFM cantilevers, and optical alignment jigs
• Medical device reprocessing support: adjunctive cleaning of reusable surgical instruments before steam sterilization (used in conjunction with validated detergent chemistries)

FAQ

Is the KQ-1000VDE compatible with flammable solvents?
No. This unit is designed exclusively for aqueous and water-miscible cleaning solutions. Use of flammable or low-flashpoint solvents (e.g., acetone, ethanol above 20% v/v, IPA) is prohibited due to lack of explosion-proof enclosure and intrinsic safety certification.
Can the unit operate continuously for extended durations?
Yes—provided ambient temperature remains below 35 °C and cooling airflow around the rear ventilation grilles is unobstructed. Duty cycle limitations do not apply under nominal load (≤80% power, ≤70 °C bath temperature).
What calibration documentation is provided?
Factory calibration certificates for temperature sensor (±0.5 °C accuracy) and timer function (±0.5% deviation) are included. Users must perform periodic verification using NIST-traceable references per internal SOP.
Does the system support external trigger input for synchronized operation?
No. The KQ-1000VDE has no digital I/O ports or TTL trigger capability. Process synchronization must be managed externally via PLC or relay-based interlock.
Is the stainless-steel tank electropolished?
No. The interior surface finish is standard 2B mill finish (Ra ≈ 0.4–0.6 µm), sufficient for routine cleaning validation but not specified for ultra-high-purity applications requiring Ra < 0.2 µm.
