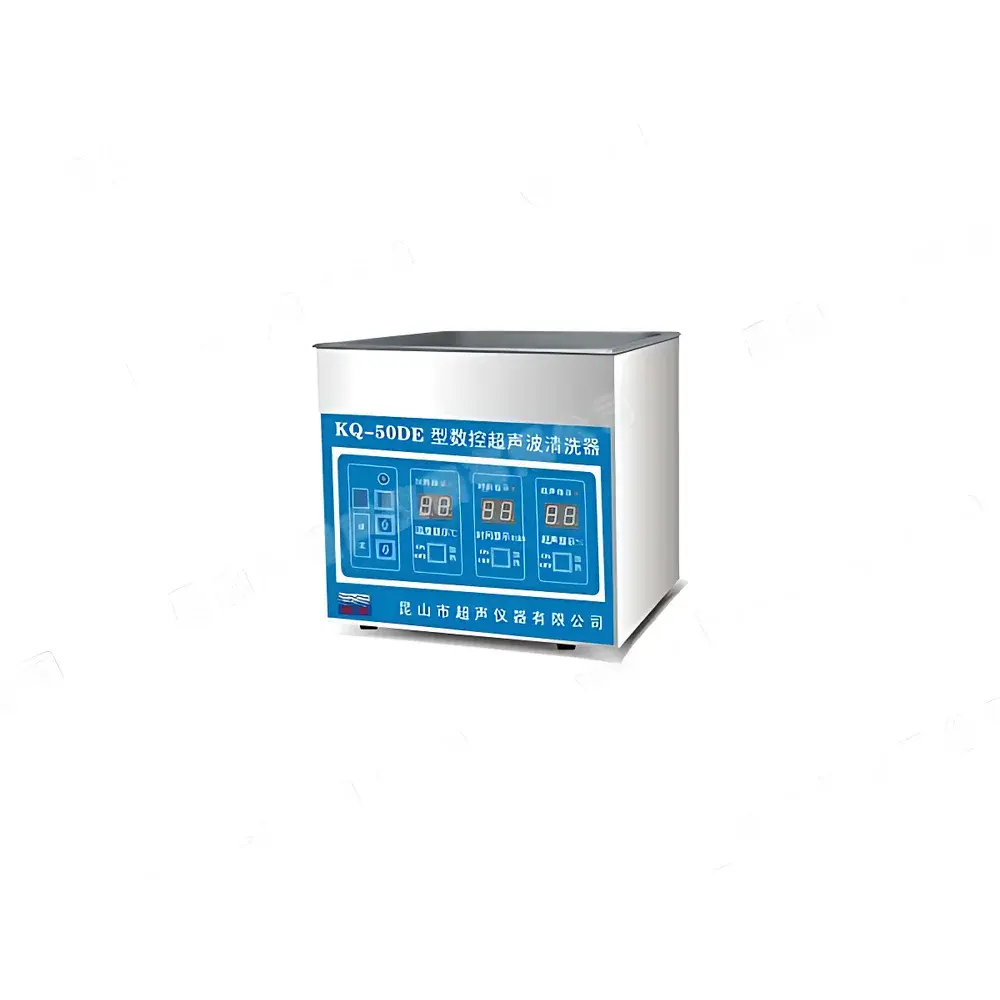

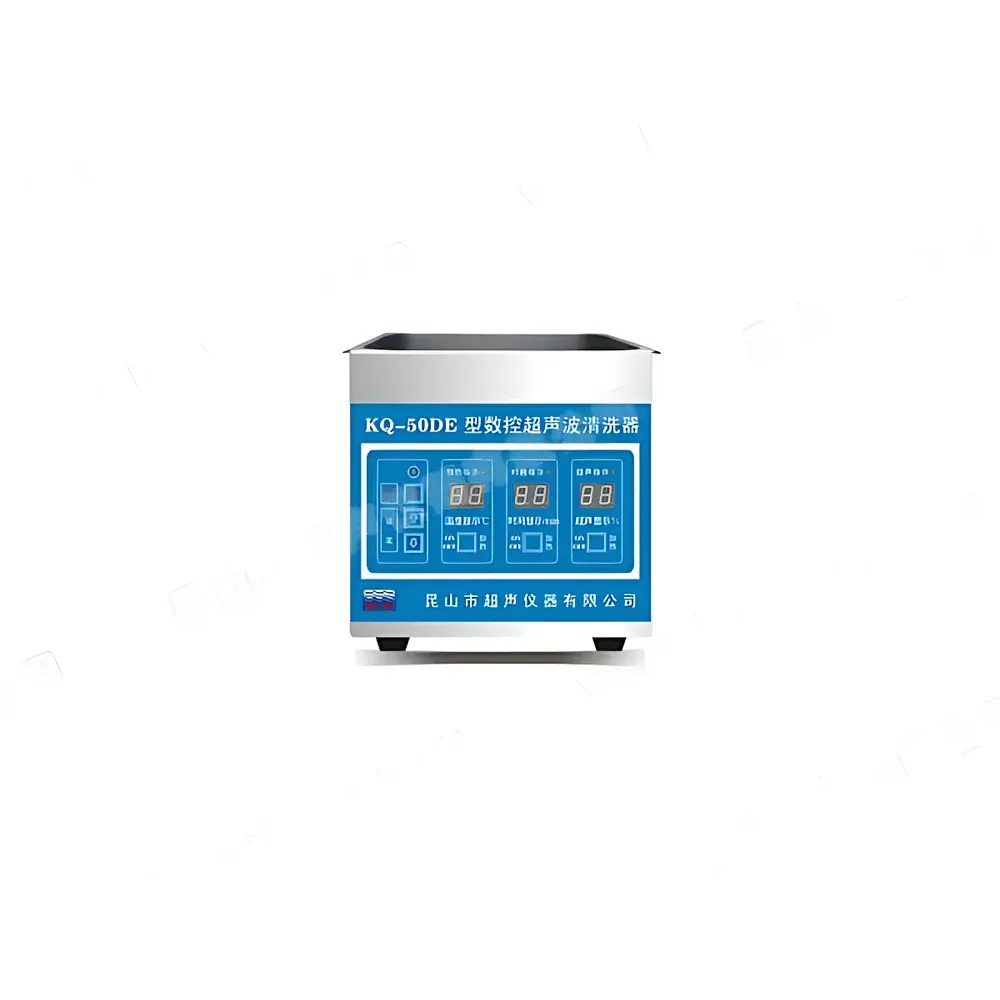

Shumei KQ-50DE Benchtop Digital Ultrasonic Cleaner

Overview

The Shumei KQ-50DE is a compact, benchtop digital ultrasonic cleaner engineered for precision cleaning of delicate laboratory components, optical elements, microfluidic devices, electronic assemblies, and small-volume sample preparation vessels. It operates on the principle of cavitation—generated by high-frequency mechanical vibrations transmitted through a liquid medium via piezoelectric transducers—producing microscopic implosions that dislodge particulate contaminants, organic residues, and loosely adhered biofilms from surfaces without mechanical abrasion. With a nominal frequency of 40 kHz and adjustable output power (40–99%), the unit delivers consistent energy distribution across its 2 L stainless steel tank (150 × 140 × 100 mm internal dimensions), optimized for reproducible cleaning performance in routine QC, R&D, and teaching lab environments. Its integrated PTC surface-mount heater enables precise temperature control between 10 and 80 °C—critical for enhancing detergent efficacy and accelerating solvent-based cleaning cycles—while digital microcontroller logic ensures stable operation under variable load conditions.

Key Features

• Microprocessor-controlled digital interface with real-time display of time, power percentage, and bath temperature
• Memory function retains previously set parameters—including timer duration, power level, and temperature—for repeatable protocol execution
• Comprehensive safety system: automatic shutdown triggered by over-temperature, over-voltage, over-current, or low-water-level detection
• PTC ceramic heating element provides rapid, uniform thermal response and inherent current-limiting characteristics for enhanced reliability
• Auto-sweep frequency modulation minimizes standing wave formation and improves cleaning uniformity across complex geometries
• 304 stainless steel tank construction ensures corrosion resistance, long-term dimensional stability, and compatibility with aqueous and mild solvent-based cleaning solutions
• Included accessories: perforated polypropylene mesh basket (for part isolation and protection) and hinged acoustic-dampening lid (reduces airborne noise and solvent evaporation)

Sample Compatibility & Compliance

The KQ-50DE accommodates standard laboratory items including glassware (vials, cuvettes, pipette tips), metal tools (tweezers, forceps), ceramic substrates, silicon wafers, and polymer-based microdevices. Its 2 L capacity supports batch cleaning of up to 12 standard 15 mL centrifuge tubes or 6 × 50 mL conical tubes simultaneously. While not certified for sterile processing per ISO 13485 or EN 13060, the unit complies with general electrical safety requirements per GB 4793.1 (equivalent to IEC 61010-1) for laboratory equipment. Its programmable parameters support method documentation required under GLP-aligned workflows, and the digital log retention capability (via manual timestamp recording) facilitates traceability in regulated environments where full audit trails are not mandated.

Software & Data Management

The KQ-50DE employs embedded firmware—not PC-connected software—designed for deterministic, real-time control of all operational parameters. All user inputs are stored in non-volatile memory and recalled at power-on. No external drivers, USB interfaces, or cloud connectivity are implemented; this architecture prioritizes electromagnetic compatibility (EMC), operational simplicity, and immunity to IT infrastructure dependencies. For laboratories requiring formal validation, the device supports IQ/OQ documentation through parameter verification (e.g., thermocouple-verified bath temperature accuracy ±2 °C, timer deviation < ±0.5%, power output linearity confirmed via calorimetric measurement). The absence of network interfaces aligns with cybersecurity best practices for standalone instrumentation in secure lab networks.

Applications

• Cleaning of HPLC and GC sample vials, syringe filters, and injection port components prior to analysis
• Removal of polishing compounds and organic residues from optical lenses, mirrors, and spectroscopic cells
• Preparation of TEM/SEM specimens by eliminating dust and hydrocarbon films from grids and stubs
• Routine decontamination of reusable pipette tips, microcentrifuge tubes, and electrophoresis combs
• Supporting ASTM D2621 and ISO 15027 protocols for evaluating cleaning agent performance on standardized test coupons
• Assisting in semiconductor wafer handling workflows where particle counts must remain below Class 100 cleanroom thresholds

FAQ

Is the KQ-50DE suitable for cleaning delicate MEMS devices or microfluidic chips?
Yes—its 40 kHz frequency and adjustable power (down to 40%) enable gentle yet effective removal of sub-micron particles without damaging fragile microstructures. Use low-temperature aqueous surfactants and avoid chlorinated solvents.
Does the unit support continuous operation beyond 99 minutes?
No—the maximum timer setting is 99 minutes. For extended cycles, users may manually restart the unit after completion; no auto-restart function is provided.
Can the tank be filled with organic solvents such as acetone or isopropanol?
Only if the solvent is compatible with 304 stainless steel and does not exceed 80 °C. Flammable solvents require external ventilation and explosion-proof certification—this model is not rated for such use.
Is calibration documentation available from the manufacturer?
Shumei provides factory calibration records for temperature and timer functionality. Full metrological calibration (e.g., traceable to NIST standards) requires third-party service.
What maintenance is required to ensure long-term transducer performance?
Routine inspection of the tank base for delamination or pitting, periodic descaling with diluted citric acid (if hard water is used), and avoidance of dry operation are essential. Transducer lifetime exceeds 5,000 hours under normal load conditions.
