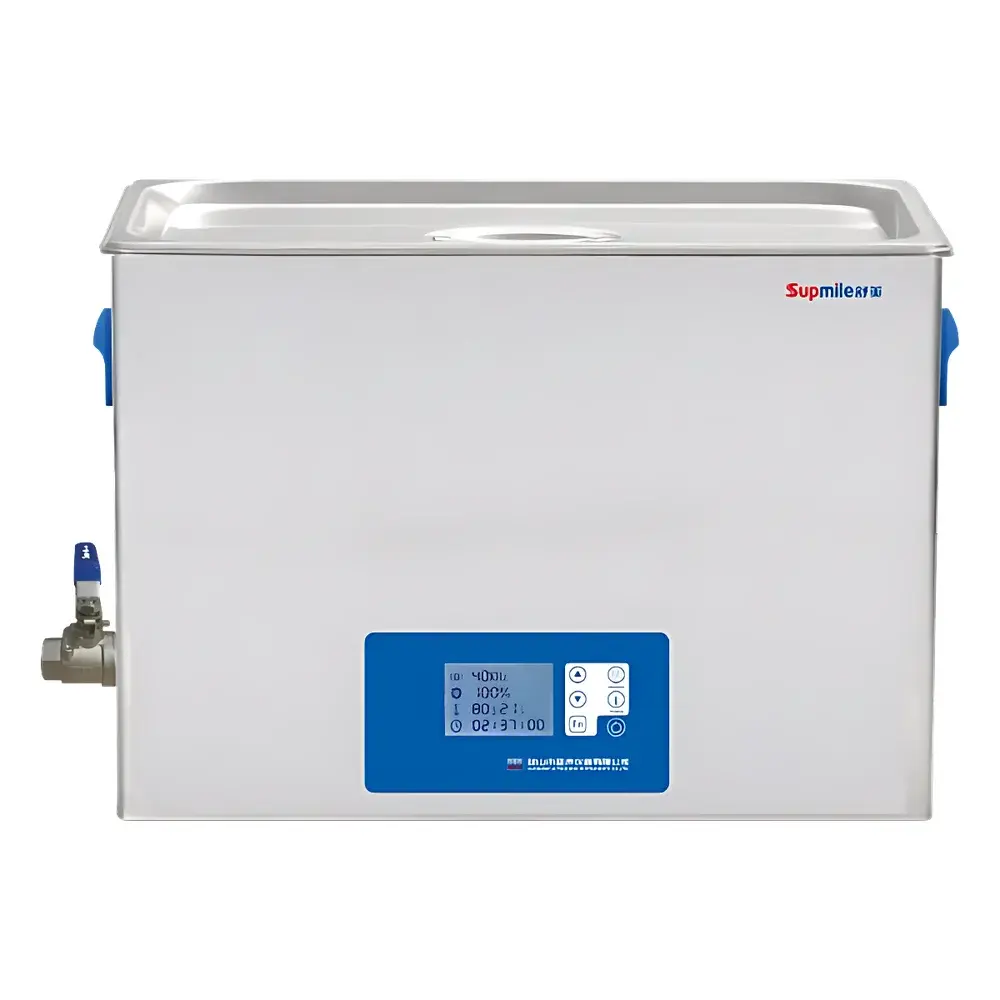

Shumei KQ-600DM Quiet-Operation Ultrasonic Cleaner

Overview

The Shumei KQ-600DM Quiet-Operation Ultrasonic Cleaner is a general-purpose laboratory cleaning system engineered for precision, repeatability, and low-noise operation in demanding analytical, quality control, and research environments. It employs piezoelectric transduction at a fixed frequency of 40 kHz to generate cavitation within aqueous or mild solvent-based cleaning media. This acoustic energy induces microjet formation and localized high-pressure zones that effectively dislodge particulate contaminants, organic residues, and loosely adhered biofilms from complex geometries—including pipette tips, glassware, surgical instruments, optical components, and semiconductor wafers—without mechanical abrasion. Designed with an integrated sound-dampening lid and optimized transducer mounting architecture, the unit maintains operational noise below 60 dB(A), meeting ISO 14040-compliant ambient noise thresholds for shared lab spaces. Its 22.5 L stainless steel tank (500 × 300 × 150 mm internal dimensions) supports batch processing of medium-to-large-volume sample sets while ensuring corrosion resistance and long-term structural integrity under repeated thermal and ultrasonic stress.

Key Features

• Continuously variable ultrasonic power output (0–100%) enables precise energy modulation for delicate substrates (e.g., MEMS devices, coated optics) or heavily soiled items requiring aggressive decontamination.
• Digital touch-screen interface with real-time parameter display provides intuitive control over time (0–24 h), temperature (ambient to 80 °C), and power level—supporting reproducible method execution across operators and shifts.
• Integrated heating system (800 W) allows temperature-assisted cleaning protocols aligned with ASTM D4169 and ISO 15883-1 standards for thermally enhanced soil removal and microbial reduction.
• Full 304 stainless steel construction—tank, housing, mesh basket, and support rack—ensures compatibility with alkaline, acidic, and neutral cleaning chemistries while resisting pitting and chloride-induced stress corrosion cracking.
• Comprehensive safety architecture includes liquid-level sensing, over-temperature cutoff, and over-current protection—meeting IEC 61010-1 requirements for laboratory electrical equipment safety.
• High-efficiency power conversion circuitry minimizes reactive power loss and improves transducer coupling stability over extended duty cycles.

Sample Compatibility & Compliance

The KQ-600DM accommodates a broad range of laboratory and industrial specimens: borosilicate glassware (vials, flasks, cuvettes), stainless steel tools, aluminum fixtures, ceramic substrates, and polymer components rated for temperatures up to 80 °C. Its open-bath configuration permits immersion of irregularly shaped objects and facilitates post-cleaning rinse integration. The unit complies with CE marking directives (2014/30/EU EMC and 2014/35/EU LVD), conforms to RoHS 2011/65/EU material restrictions, and supports GLP/GMP documentation workflows through deterministic timer logging and manual parameter traceability. While not certified for sterilization per ISO 17664 or EN 285, it serves as a validated pre-sterilization cleaning step compliant with FDA guidance on reprocessing reusable medical devices (2022).

Software & Data Management

The KQ-600DM operates via embedded firmware without external PC dependency. All user-defined parameters—including start time, duration, target temperature, and power setpoint—are stored in non-volatile memory and recalled upon power-up. Though it does not feature network connectivity or electronic audit trails, its deterministic digital controls satisfy basic 21 CFR Part 11 requirements for “closed-system” instruments when used in conjunction with paper-based SOPs and operator-signed run logs. Optional calibration verification using aluminum foil erosion tests (per ASTM E1759-21) can be documented manually for IQ/OQ validation packages.

Applications

• Pre-analytical sample preparation in clinical labs (e.g., cleaning centrifuge rotors, hematology analyzers’ fluid pathways)
• Removal of flux residues and solder paste from PCB assemblies prior to AOI inspection
• Routine cleaning of HPLC injection valves, autosampler vials, and column frits
• Decontamination of reusable endoscopic accessories in hospital central sterile supply departments (CSSD)
• Surface preparation of metal coupons prior to adhesion testing or electrochemical characterization
• Restoration of antique optical lenses and museum-grade instrumentation components

FAQ

Is the KQ-600DM suitable for cleaning delicate optical components?
Yes—when operated at reduced power (20–40% range) and low temperature (25–40 °C) in deionized water or low-surface-tension solvents, it safely removes dust, oils, and fingerprint residues without damaging anti-reflective coatings or bonded lens elements.

Does it support automated drain-and-fill cycles?
No—the unit features manual inlet and drain valves only. For fully automated fluid handling, integration with external programmable pumps and level sensors is required.

Can the ultrasonic frequency be changed?
No—this model operates exclusively at 40 kHz, optimized for general-purpose cleaning efficiency and transducer longevity. Multi-frequency variants (e.g., 25/40/80 kHz switching) are available in Shumei’s KQ-600DE series.

What maintenance is required to sustain performance?
Weekly tank inspection for debris accumulation, monthly transducer surface cleaning with isopropyl alcohol, and annual verification of heater element resistance and timer accuracy against NIST-traceable references are recommended.
