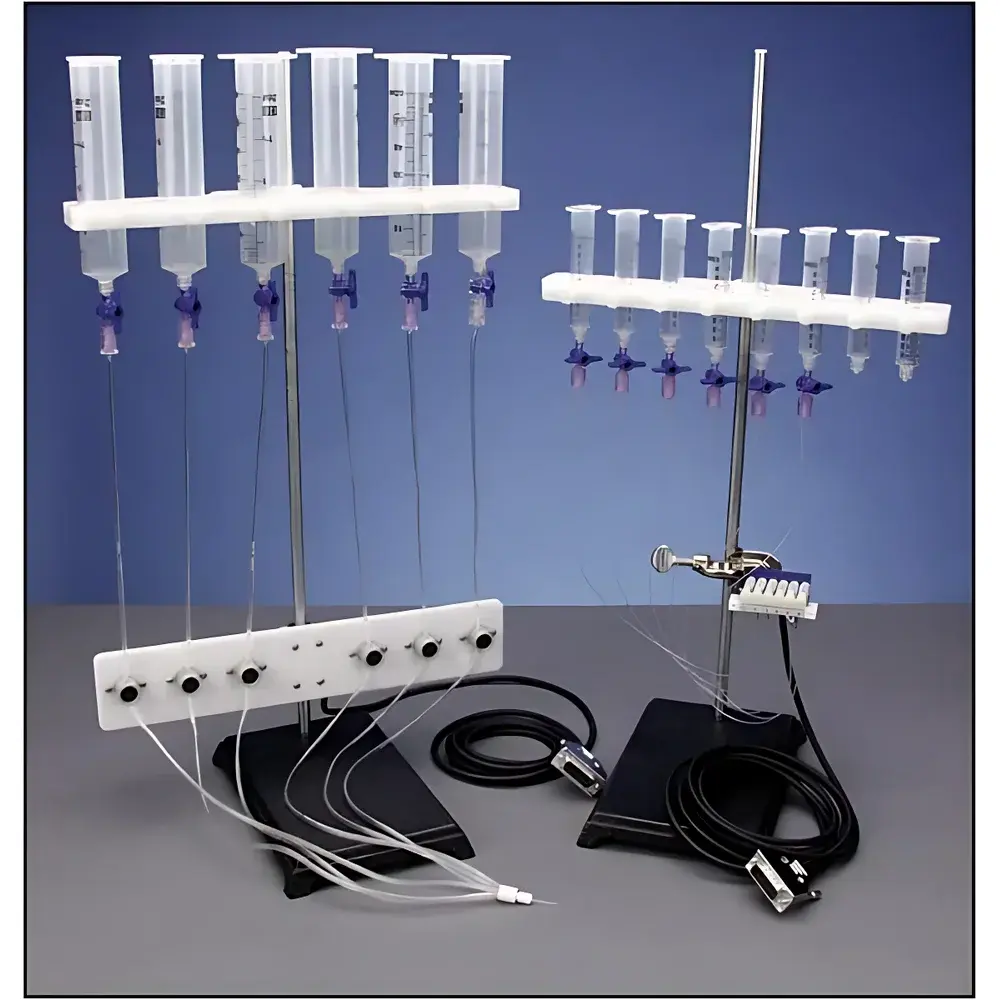

Warner Instruments VC-6 Six-Channel Perfusion and Drug Delivery System
| Brand | Warner Instruments |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | VC-6 |
| Pricing | Available Upon Request |
Overview
The Warner Instruments VC-6 Six-Channel Perfusion and Drug Delivery System is an engineered platform designed for precise, independent control of up to six parallel fluid streams in electrophysiological, patch-clamp, and live-cell imaging experiments. Built upon a modular valve manifold architecture, the system operates on gravity-driven or syringe-pump-assisted perfusion principles, enabling rapid solution exchange (sub-second temporal resolution) with minimal mechanical disturbance to delicate preparations such as brain slices, cultured neurons, or isolated cardiomyocytes. Its core functionality centers on reproducible, low-dead-volume delivery of pharmacological agents, ionic solutions, or metabolic modulators—critical for dose-response characterization, receptor kinetics studies, and dynamic physiological challenge paradigms.
Key Features
- Six independently addressable solenoid valves, each configurable for TTL-triggered or manual actuation via front-panel toggle switches
- Three valve technology options available: pinch valves (for low-pressure, biocompatible tubing), PTFE diaphragm valves (for chemically inert, low-leakage operation), and high-precision solenoid valves (optimized for flow rates down to 1 mL/min with ±2% volumetric repeatability)
- Maximum aggregate perfusion capacity: 10 mL/min across all channels (with appropriate pressure head or pump integration)
- Central control unit supports external TTL input (5 V logic level) for synchronization with data acquisition systems (e.g., Axon Digidata, HEKA EPC, or National Instruments DAQ)
- Modular design allows seamless integration with Warner’s TC-344B temperature controller, RC-26GL recording chamber, or DAD-12 differential amplifier interface
- Valve actuation latency < 15 ms; full channel switching time < 100 ms under standard buffer viscosity conditions (PBS, 20°C)
Sample Compatibility & Compliance
The VC-6 system is validated for use with standard electrophysiology-grade tubing (Tygon®, Pharmed® BPT, or fluorinated ethylene propylene [FEP] lines) and compatible with aqueous-based physiological solutions, ethanol-diluted compounds, and buffered drug stocks (pH 2–12). All wetted components comply with USP Class VI and ISO 10993-5 biocompatibility standards. The system supports GLP- and GMP-aligned experimental workflows through deterministic valve sequencing and audit-ready TTL logging when paired with compliant data acquisition software. While not FDA-cleared for clinical diagnostics, it meets ASTM F2149-01 (Standard Guide for Electrophysiology Instrumentation) and adheres to IEC 61000-6-3 EMC emission requirements for laboratory environments.
Software & Data Management
The VC-6 operates in both hardware-triggered and software-coordinated modes. Warner Instruments provides optional LabVIEW-compatible drivers and MATLAB instrument control toolboxes for custom protocol scripting. Valve state history—including timestamps, TTL pulse duration, and channel activation sequence—is exportable as CSV or HDF5 for traceability. When integrated with pCLAMP or PatchMaster acquisition suites, the system supports automated stimulus-response alignment via digital trigger lines, enabling closed-loop pharmacological interrogation. All firmware updates are delivered via USB-C interface and include version-locked configuration backups compliant with 21 CFR Part 11 requirements for electronic records and signatures.
Applications
- Rapid solution exchange during whole-cell and perforated-patch clamp recordings to assess ligand-gated ion channel desensitization kinetics (e.g., nAChR, GABAA, AMPA receptors)
- Multi-concentration agonist/antagonist profiling in single-cell assays without manual pipette intervention
- Dynamic pH or ion substitution experiments in hippocampal slice preparations for studying synaptic plasticity mechanisms
- Sequential application of metabolic inhibitors (e.g., FCCP, oligomycin) and substrates in mitochondrial respiration studies using Seahorse-style assay formats
- Co-perfusion of optogenetic actuators (e.g., ChR2-expressing neurons) with pharmacological modulators to dissect neuromodulatory circuit interactions
FAQ
Can the VC-6 be used with pressurized perfusion systems?
Yes—the system is compatible with regulated air pressure manifolds (up to 10 psi) and syringe pumps (e.g., Harvard Apparatus PHD Ultra) when configured with appropriate backpressure regulators and flow sensors.
Is tubing priming automated?
No; priming is performed manually prior to experiment initiation, though the system includes dedicated purge ports and visual flow indicators to verify line integrity.
What is the minimum dead volume per channel?
Approximately 12 µL from valve outlet to chamber inlet using 1/16″ OD × 0.020″ ID FEP tubing and standard Luer fittings.
Does Warner provide validation documentation for ISO 13485 compliance?
While the VC-6 itself is not a medical device, Warner Instruments supplies IQ/OQ documentation packages and material traceability reports upon request for laboratory quality system implementation.
Can valve timing be synchronized with camera frame acquisition?
Yes—via TTL output coupling to high-speed cameras (e.g., Hamamatsu ORCA-Fusion BT) using programmable delay generators or FPGA-based timing controllers.
