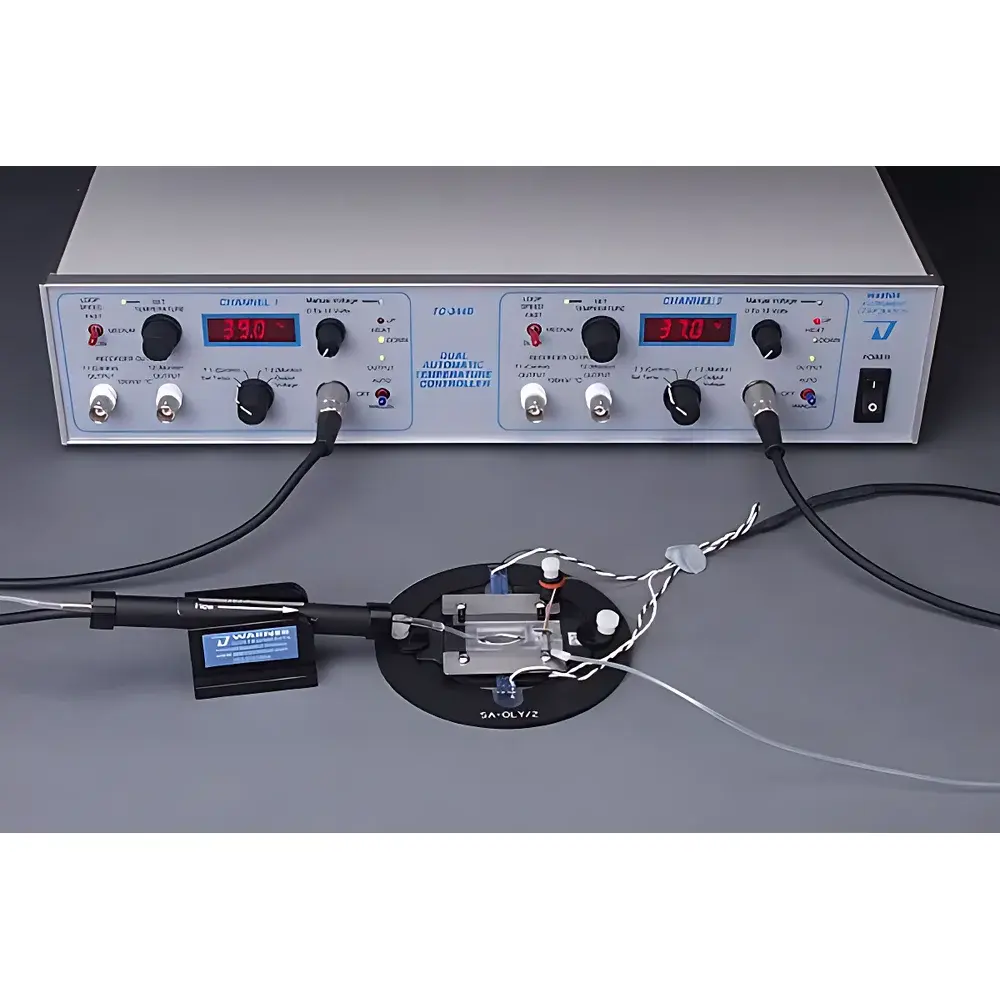

Warner TC-324B/344B Temperature Controller

Overview

The Warner TC-324B and TC-344B Temperature Controllers are precision-engineered thermal regulation systems designed specifically for electrophysiological experimentation, particularly patch-clamp recordings on isolated cells, acute brain slices, and other delicate biological preparations. These controllers operate on a closed-loop feedback principle, utilizing high-stability thermistor or RTD-based temperature sensing integrated directly into the recording chamber (e.g., RC-series bath chambers) to deliver real-time, low-noise thermal control. Unlike generic heating platforms, the TC-324B (single-channel) and TC-344B (dual-channel) are purpose-built to interface seamlessly with Warner Instruments’ family of perfusion-enabled recording chambers, ensuring minimal thermal drift (< ±0.1 °C under steady-state conditions) and negligible electrical interference—critical for high-fidelity voltage-clamp and current-clamp measurements.

Key Features

• Two operational modes: fully automated PID-controlled regulation and manual DC voltage output mode for custom thermal actuation
• Thermal feedback loop based on chamber-integrated temperature sensor (compatible with standard 10 kΩ thermistors or optional RTD probes)
• LCD display providing real-time readout of actual chamber temperature with 0.1 °C resolution
• Temperature control range: ambient to 50 °C in automatic mode; manual mode offers continuous 0–12 V DC output (max 1.5 A, 18 W) for external heater drivers or Peltier modules
• Low-noise analog circuitry incorporating passive filtering and slow-slope analog switching to suppress electromagnetic interference (EMI) and prevent signal contamination in sensitive microelectrode recordings
• Dual-channel configuration (TC-344B) enables independent temperature control of two separate recording chambers or simultaneous control of bath and perfusate pre-heating paths
• Rear-panel BNC and screw-terminal interfaces support external trigger input, analog temperature output (0–5 V), and computer-based control via TTL or analog voltage command signals

Sample Compatibility & Compliance

The TC-324B/344B is validated for use with Warner’s RC-22, RC-26, RC-30, and RC-40 series recording chambers, as well as third-party chambers equipped with compatible thermistor wells and 12 V heater inputs. It meets essential safety requirements per UL 61010-1 and IEC 61010-1 for laboratory electrical equipment. While not a medical device per FDA 21 CFR Part 820, the controller supports GLP-compliant experimental workflows when paired with audit-trail-capable data acquisition software (e.g., pCLAMP, Axograph, or custom LabVIEW applications). Its stable thermal output contributes to reproducible pharmacological response profiling in accordance with ICH and OECD guidelines for in vitro neurophysiological assays.

Software & Data Management

The controller does not include embedded firmware-based software but provides robust analog and digital I/O for integration into established electrophysiology acquisition ecosystems. Analog voltage output (0–5 V = 0–50 °C) allows synchronized logging of temperature alongside membrane potential or current traces in platforms such as HEKA PatchMaster, Molecular Devices Clampex, or open-source tools like Python-based PyABF. TTL-compatible remote enable/disable lines permit experiment-triggered thermal ramping protocols. For full traceability, users may log temperature setpoints and actuals via external DAQ systems compliant with FDA 21 CFR Part 11 when configured with electronic signatures and audit trails.

Applications

• Maintaining physiological temperature (32–37 °C) during whole-cell and perforated-patch clamp experiments on primary neurons, cardiomyocytes, and HEK293 expression systems
• Stabilizing acute hippocampal, cortical, or spinal cord slice preparations during field potential or single-unit recordings
• Controlling temperature gradients across dual-chamber setups for studying thermosensitive ion channels (e.g., TRPV1, TREK-1)
• Enabling temperature-jump protocols in kinetic studies of ligand-gated receptor desensitization
• Supporting long-duration (>2 hr) recordings requiring thermal stability within ±0.2 °C over time

FAQ

Can the TC-344B independently control two different temperatures simultaneously?
Yes—the TC-344B features two fully isolated control channels, each with independent setpoint, sensor input, and heater output, enabling concurrent yet distinct thermal regulation of two chambers or subsystems.
Is the TC-324B compatible with non-Warner recording chambers?
It can be used with third-party chambers provided they accept 12 V DC heater input and incorporate a standard 10 kΩ thermistor (or equivalent RTD) with known calibration curve; user-configurable gain/offset may be required.
Does the controller support programmable temperature ramps?
Not natively—but external waveform generators or DAQ devices can drive the analog setpoint input (0–5 V) to implement linear, stepwise, or custom thermal profiles synchronized with electrophysiological stimulation.
What is the typical thermal stabilization time for a standard RC-26 chamber at 37 °C?
From room temperature (22 °C), stabilization to ±0.1 °C at 37 °C typically occurs within 4–6 minutes under standard perfusion flow rates (2–3 mL/min) and chamber fill volume (~1.2 mL).
Are replacement thermistors and heater cartridges available as spare parts?
Yes—Warner Instruments supplies OEM-matched thermistor probes (P/N 64-0014) and ceramic heater cartridges (P/N 64-0015) certified for use with TC-series controllers and RC chambers.
