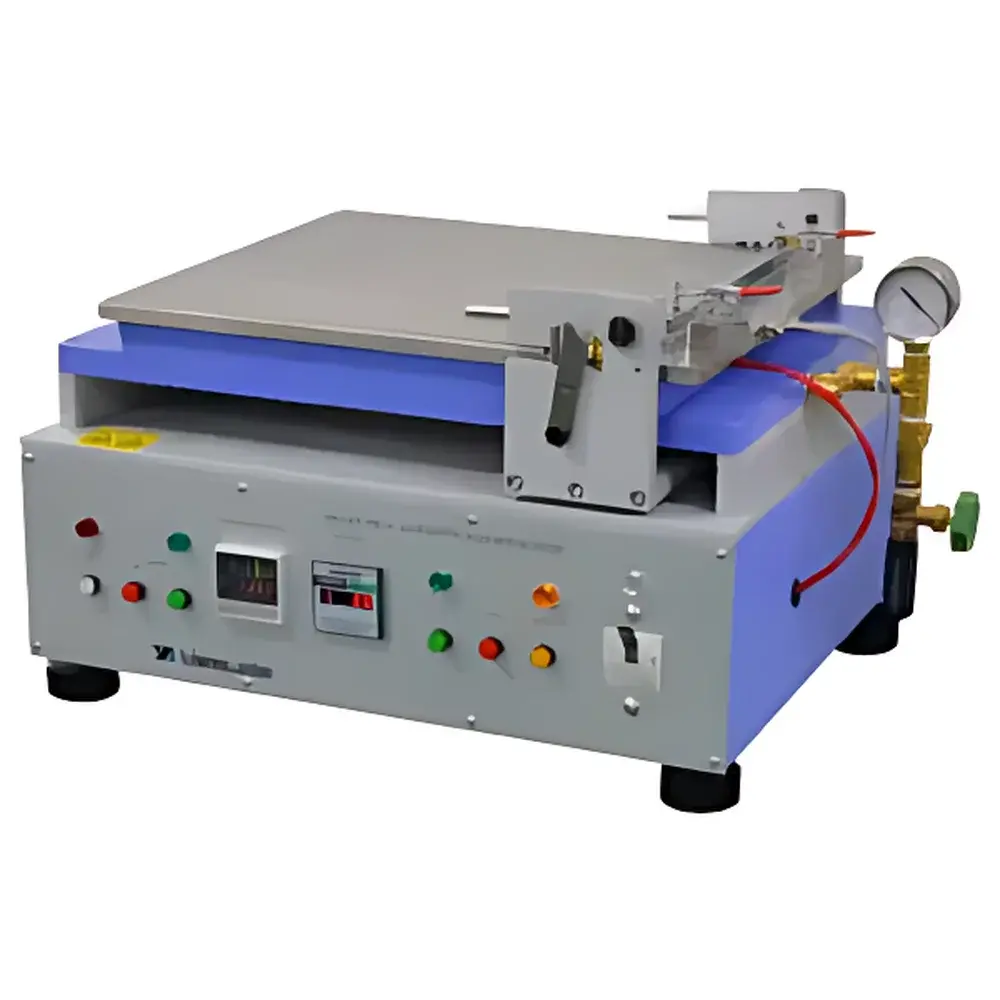

Yasuda No.542-AB-H Automatic Film Applicator (Heating Plate Type)
| Brand | Yasuda |
|---|---|
| Origin | Japan |
| Model | No.542-AB-H |
| Compliance Standards | JIS K5101, JIS K5400, ASTM D823 |
| Heating Plate Function | Yes |
| Vacuum-Assisted Substrate Fixation | Yes |
| Substrate Compatibility | Coated paper, plastic films, foils |
| Application Method | Adjustable-speed draw-down bar coating |
| Supplier Type | Authorized Distributor (Imported Equipment) |
Overview
The Yasuda No.542-AB-H Automatic Film Applicator (Heating Plate Type) is a precision-engineered laboratory instrument designed for the reproducible preparation of uniform thin films of coatings, paints, inks, and pigment dispersions on flat substrates. It operates on the draw-down bar principle—where a calibrated applicator bar traverses a substrate at a controlled linear speed, depositing a consistent wet film thickness determined by the bar’s wire-wound geometry and gap setting. The integrated heating plate enables temperature-controlled film formation, facilitating solvent evaporation kinetics studies, thermal curing pre-evaluation, and accelerated drying condition simulation—critical for R&D labs developing heat-sensitive formulations or high-solids systems. Unlike manual applicators, this system eliminates operator-induced variability in film thickness, edge defects, and streaking, delivering high inter- and intra-batch reproducibility required for ASTM D823 and JIS K5101/K5400 compliant testing.
Key Features
- Temperature-regulated heating plate (adjustable range: ambient to 120 °C, ±1 °C stability) for controlled thermal conditioning during and after film deposition
- Vacuum-assisted substrate fixation via perforated platform (vacuum pressure adjustable up to −80 kPa), ensuring dimensional stability of flexible substrates including coated paper, PET films, and aluminum foils
- Precision stepper motor-driven carriage with programmable draw-down speed (10–100 mm/s, resolution: 0.1 mm/s), synchronized with bar lowering/lifting sequence
- Interchangeable draw-down bars (standard set includes 10, 20, 50, and 100 µm gap bars; custom bars available per ISO 2808 specifications)
- Modular design compatible with optional accessories: humidity-controlled chamber enclosure, solvent recovery hood, and digital thickness verification module (non-contact laser micrometer interface)
- CE-marked electrical architecture with overtemperature cut-off, emergency stop, and grounded chassis for laboratory safety compliance
Sample Compatibility & Compliance
The No.542-AB-H accommodates substrates up to 300 × 400 mm in dimension and thicknesses from 0.05 mm (thin PET) to 1.2 mm (rigid board). Its vacuum platform ensures flatness retention across low-stiffness materials without curling or slippage—essential for accurate gloss, adhesion, and pencil hardness measurements post-drying. The system fully supports test protocols defined in JIS K5101 (general testing methods for paints), JIS K5400 (testing methods for architectural paints), and ASTM D823 (standard practice for producing films of uniform thickness of organic coatings on test panels). Data traceability meets GLP documentation requirements when paired with optional timestamped log export.
Software & Data Management
While the base unit operates via intuitive front-panel controls, optional PC connectivity (RS-232/USB) enables integration with Yasuda’s FilmApp Control Suite v3.2. This software provides recipe-based method storage (speed, temperature, dwell time, vacuum level), real-time parameter logging, and CSV export for LIMS ingestion. Audit trail functionality complies with FDA 21 CFR Part 11 requirements when configured with user authentication and electronic signature modules. All operational parameters—including actual heater temperature deviation, carriage positional error, and vacuum decay rate—are recorded per run for QA/QC review and regulatory submissions.
Applications
- Routine QC film preparation for colorimetry (ASTM D2244), opacity (ASTM D2805), and dry film thickness (ISO 2808) analysis
- Formulation development of UV-curable inks, waterborne architectural coatings, and automotive basecoats requiring thermal profile optimization
- Accelerated weathering sample conditioning where controlled pre-drying reduces test cycle time without compromising film integrity
- Substrate adhesion screening (cross-hatch, tape test per ASTM D3359) using thermally stabilized films on flexible packaging laminates
- Research into rheo-optical behavior—correlating real-time film leveling (via optical interferometry add-on) with thermal history
FAQ
What substrates are compatible with the vacuum platform?
Coated paper, PVC and PET films, aluminum foil, and thin fiberboards—provided surface smoothness exceeds Ra < 1.6 µm and tensile modulus exceeds 100 MPa.
Can the heating plate be used independently of the draw-down process?
Yes—the plate operates in standalone mode for pre-heating substrates or post-application thermal conditioning without actuating the carriage.
Is calibration certification included with shipment?
A factory-verified calibration report (traceable to JCSS-accredited standards) is supplied; annual recalibration services are available under Yasuda’s global service network.
Does the system support multi-layer film deposition?
Sequential single-layer application is supported; precise inter-layer timing requires external timer integration or manual intervention between cycles.
What maintenance is required for long-term vacuum performance?
Monthly inspection of silicone gasket integrity and quarterly cleaning of vacuum manifold ports with isopropyl alcohol is recommended to prevent polymer residue buildup.
