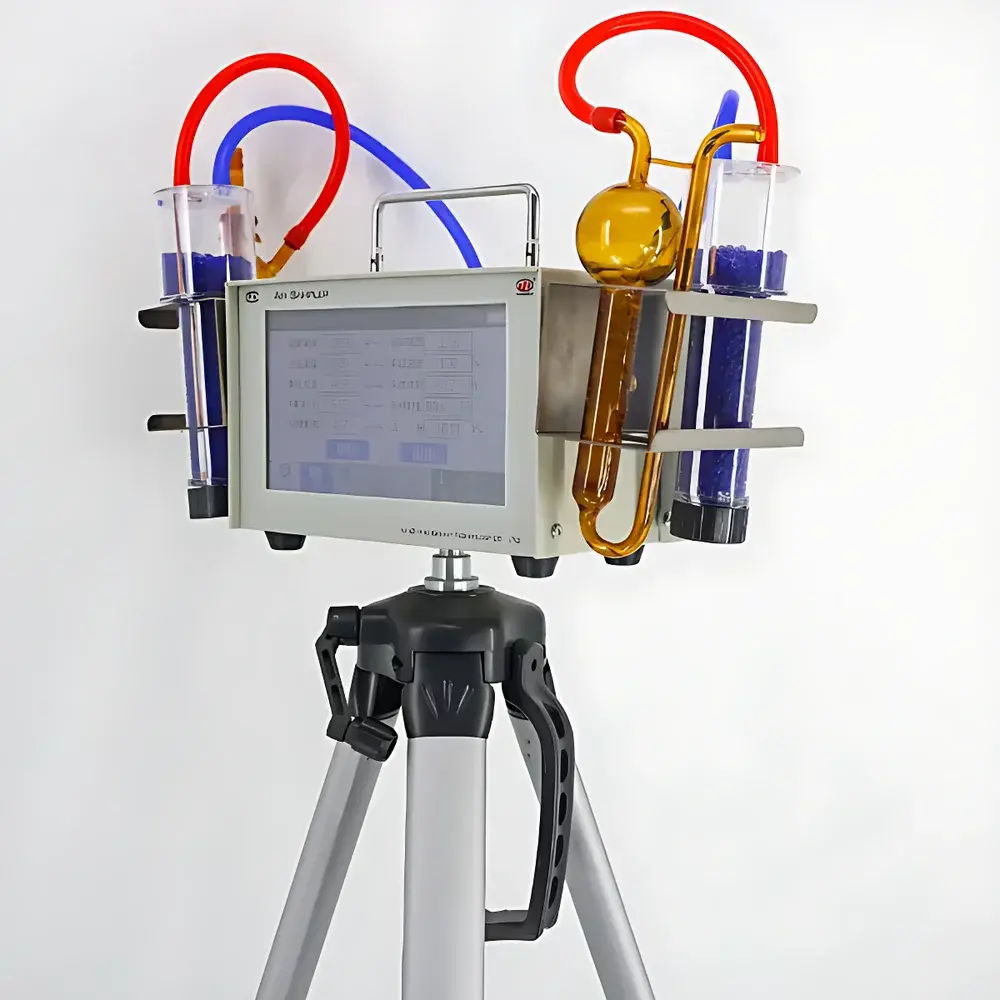

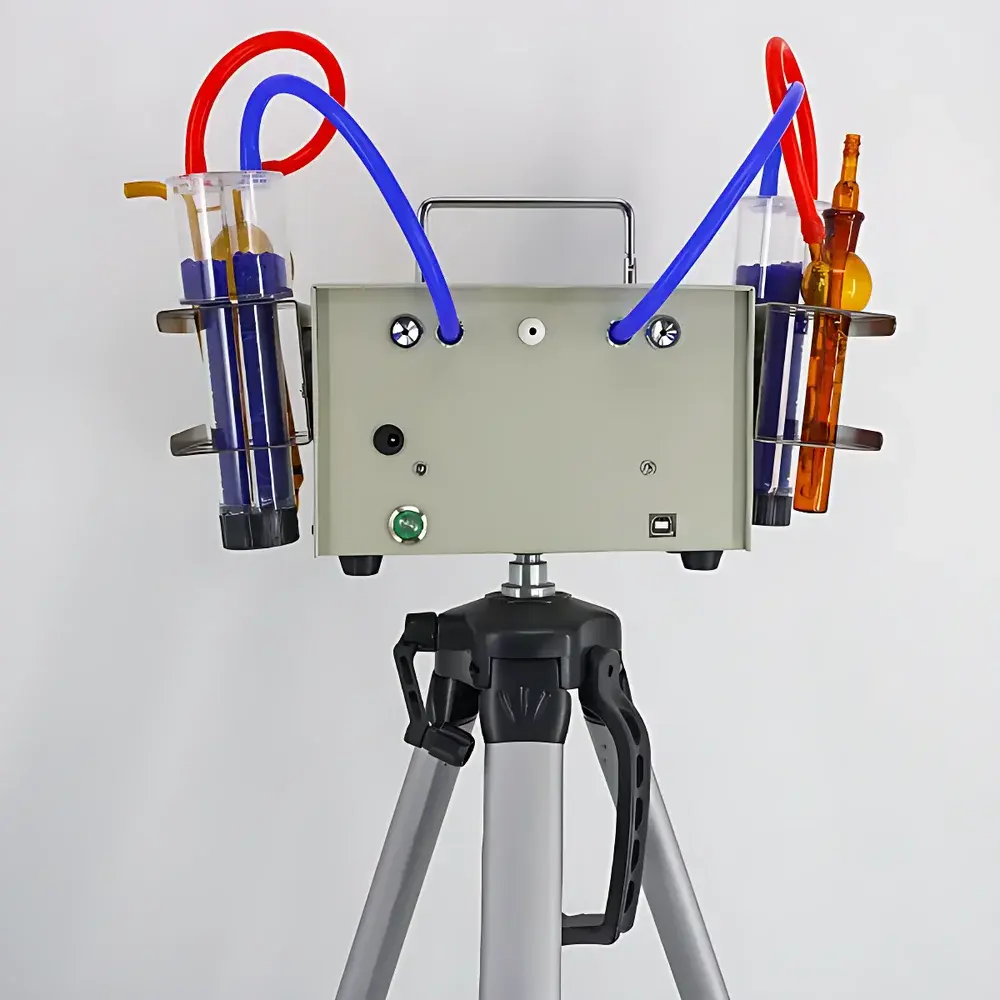

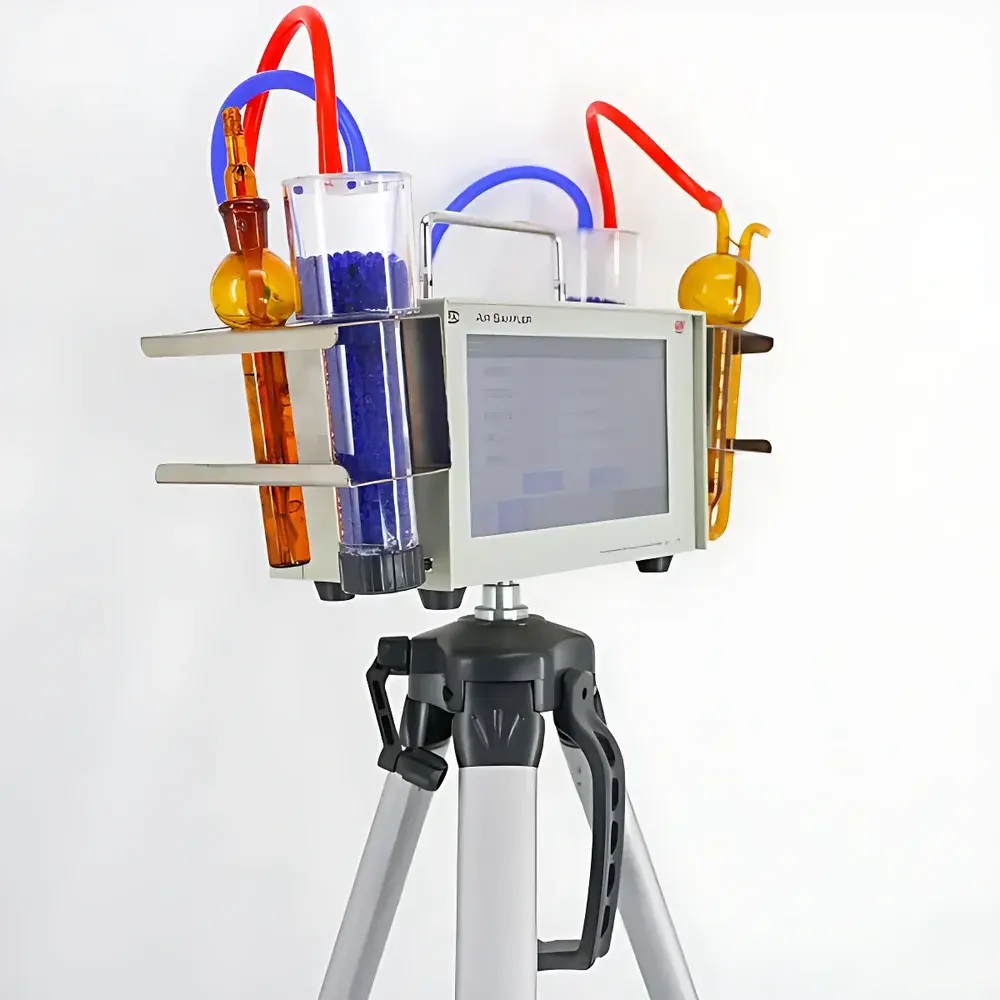

YINHEKEJI QCS-3000A Dual-Channel Constant-Flow Air Sampler

Overview

The YINHEKEJI QCS-3000A Dual-Channel Constant-Flow Air Sampler is an engineered solution for precision atmospheric sampling in occupational health, environmental monitoring, and indoor air quality (IAQ) assessment. Designed around digital closed-loop constant-flow control architecture, the instrument maintains stable volumetric flow rates across variable inlet resistance—critical when sampling through high-backpressure media such as activated carbon tubes, Tenax® sorbent tubes, or impingers. Unlike open-loop analog systems susceptible to voltage fluctuations and filter loading effects, the QCS-3000A continuously monitors and dynamically adjusts motor speed via real-time feedback from integrated mass flow sensors, ensuring adherence to regulatory flow tolerances throughout the sampling event. Its dual independent channels support parallel or staggered sampling protocols required for method validation, duplicate analysis, and QA/QC compliance per ISO 16000-2, ASTM D5197, and EPA TO-17.

Key Features

• Dual-channel architecture with fully independent flow control—each channel programmable with distinct flow rate, duration, and mode
• Digital closed-loop flow regulation delivering ≤5% flow stability under load variations up to 35,000 Pa backpressure

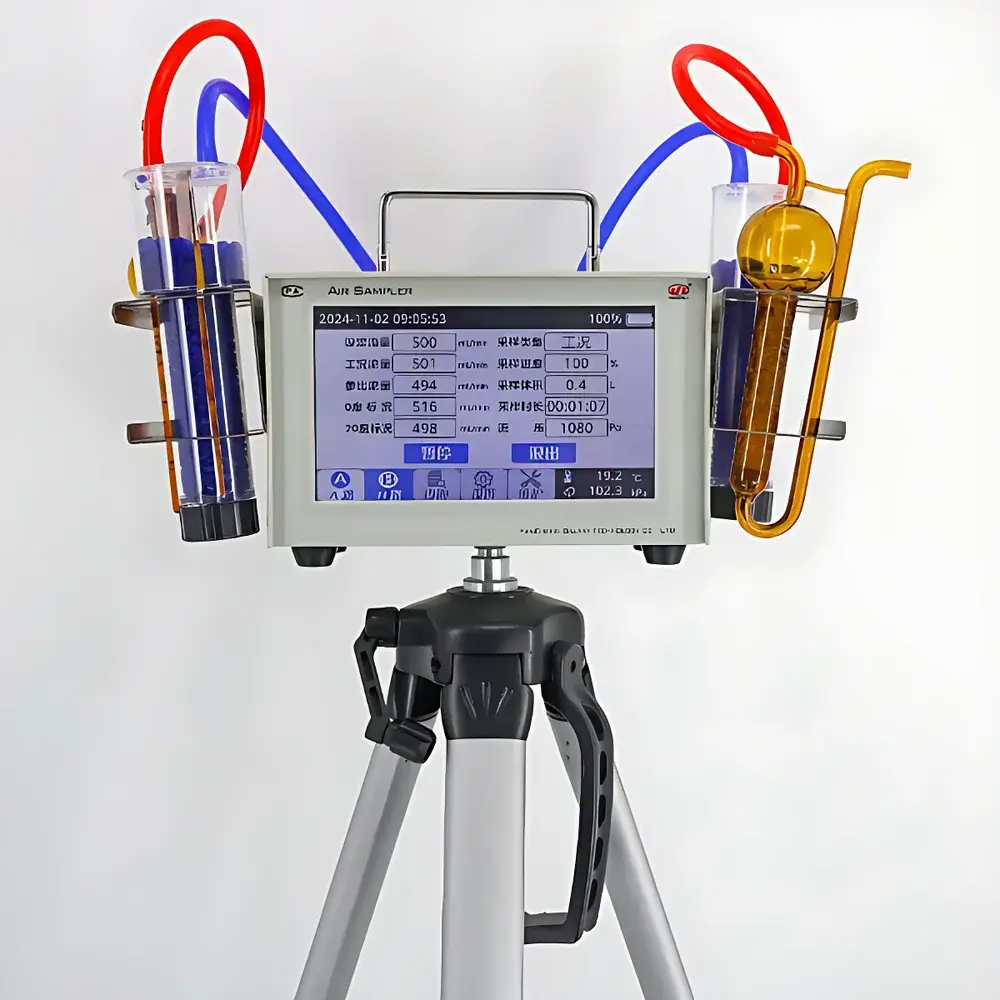

• Seven preconfigured flow ranges (10–300 mL/min to 100–2000 mL/min), selectable via intuitive 7-inch resistive touchscreen interface
• Onboard environmental compensation: automatic calculation of standard-condition volume (STP: 0 °C, 101.325 kPa) using real-time temperature and barometric pressure inputs
• Integrated battery management system supporting ≥20 hours of continuous operation on a single charge under typical field conditions
• Configurable sampling modes including timed, cyclic, intermittent, manual, and delayed-start—enabling flexible deployment in routine surveillance and emergency response scenarios
• Open-access calibration interface allowing user-performed flow verification and adjustment without proprietary software or service technician intervention
• Lock-screen function prevents accidental parameter modification during active sampling

Sample Compatibility & Compliance

The QCS-3000A is validated for use with standardized sorbent tube formats (e.g., 3.5 cm × 0.5 cm activated carbon, 6 cm × 0.5 cm Tenax TA), impinger solutions (e.g., silica gel in water, oxalic acid), and filter cassettes for particulate-phase co-sampling. It meets mechanical and metrological requirements outlined in JJG 956–2013 (Verification Regulation for Air Samplers), GB 50325–2020 (Control Standard for Indoor Environmental Pollution in Civil Building Engineering), and HJ 194–2017 (Technical Specification for Manual Ambient Air Monitoring). While not certified to IEC 61000-6-3 or ATEX, its design conforms to general-purpose field instrumentation safety practices for non-hazardous area deployment. All firmware and data logging functions support audit-ready traceability in GLP-compliant laboratories.

Software & Data Management

Sampling metadata—including start/stop timestamps, real-time flow profiles, accumulated actual and standard volumes, ambient temperature and pressure, battery status, and operator ID—is stored locally in non-volatile memory. The device retains up to 200 complete sampling records with full parameter context. Data export is performed via USB connection to Windows-based PCs using vendor-provided CSV-compatible utility software. No cloud connectivity or remote telemetry is implemented, preserving data sovereignty and simplifying IT security compliance in regulated environments. Calibration logs, including date, reference standard used, and deviation values, are embedded within each record to satisfy internal QA documentation requirements.

Applications

• Occupational hygiene monitoring per OSHA Method 05 and NIOSH methods 1501, 2541, and 5515 for volatile organic compounds (VOCs), aldehydes, and inorganic gases
• Indoor air quality surveys in residential, educational, and healthcare facilities aligned with GB/T 18883–2022 and WHO IAQ guidelines
• Ambient air monitoring networks performing manual grab sampling for benzene, toluene, ethylbenzene, xylenes (BTEX), formaldehyde, and ozone precursors
• Method validation studies requiring paired-channel sampling for precision estimation and bias assessment
• Emergency response deployments where rapid setup, extended runtime, and resistance to field power instability are operational imperatives

FAQ

Does the QCS-3000A support automatic temperature and pressure correction for standard-volume calculation?
Yes. The instrument integrates onboard temperature and barometric pressure sensors to compute standard-condition volume (0 °C, 101.325 kPa) in real time, per ISO 5725 and EPA guidance.
Can both channels operate at different flow rates simultaneously?
Yes. Each channel is independently configurable for flow rate, duration, and sampling mode, enabling asymmetric protocol execution.
Is external calibration equipment required for routine verification?
No. The unit includes a user-accessible calibration menu permitting flow verification and offset adjustment using a NIST-traceable primary standard (e.g., bubble meter or electronic calibrator).
What types of sampling media are compatible with the QCS-3000A’s 35,000 Pa load capacity?
Activated carbon tubes (e.g., SKC #226-01), Tenax® TA tubes (e.g., Supelco #2-2125), silica gel cartridges, and glass impingers loaded with aqueous or organic solvents.
Does the device comply with FDA 21 CFR Part 11 requirements?
No. The QCS-3000A does not implement electronic signature, audit trail, or role-based access control features required for Part 11 compliance; it is intended for field and laboratory applications governed by ISO/IEC 17025 or GLP frameworks where paper-based or manually verified electronic records are acceptable.
