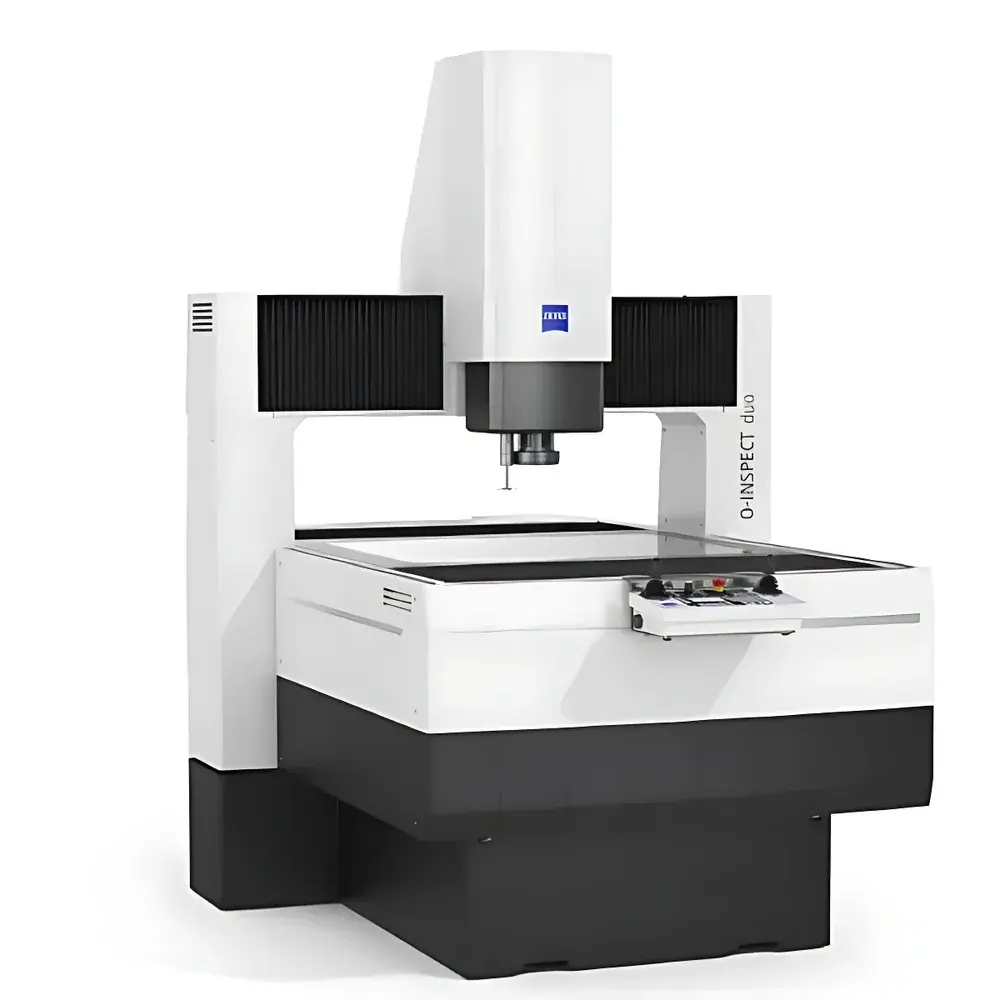

ZEISS O-INSPECT duo Hybrid Metrology System Combining Optical Microscopy and Coordinate Measuring Machine Functionality

Overview

The ZEISS O-INSPECT duo is a purpose-engineered hybrid metrology platform that unifies high-magnification optical microscopy with coordinate measuring machine (CMM)-grade geometric metrology in a single, integrated system. Unlike conventional standalone vision measuring machines (VMMs) or inverted metallurgical microscopes, the O-INSPECT duo employs synchronized multi-sensor architecture—combining telecentric optical imaging, tactile probing (optional), laser line scanning, and high-resolution color imaging—to deliver traceable dimensional measurement and surface topography analysis under one mechanical frame and unified software environment. Its design addresses a critical workflow gap in quality assurance laboratories: eliminating the need to transfer parts between separate microscopy and CMM stations, thereby reducing thermal drift, handling-induced errors, and operator-dependent repositioning uncertainty. The system operates within an environmentally stabilized granite base and air-bearing motion system, ensuring sub-micron repeatability across measurement volumes up to 600 × 600 × 200 mm (X/Y/Z), with optical magnification ranging from 5× to 1000× depending on objective configuration.

Key Features

• Fully automated operation with programmable measurement routines and macro-based inspection sequences, supporting batch processing of multiple parts per cycle.
• Integrated ZEISS Discovery.V12 Scout 160 c imaging module: 5-megapixel progressive-scan CMOS sensor with 2646 × 2056 native resolution, real-time color fidelity optimized for material contrast analysis, defect classification, and surface finish evaluation.
• Multi-modal image acquisition: supports stitched panoramic imaging (automated mosaic generation), dynamic focus stacking, edge-enhanced segmentation, and grayscale thresholding for feature extraction in heterogeneous materials (e.g., PCB traces, sintered metal pores, composite fiber alignment).
• Modular sensor integration: compatible with optional tactile probe heads (for GD&T verification per ASME Y14.5), laser line scanners (for non-contact profile capture), and white-light interferometry modules (for nanoscale roughness quantification).
• Thermally compensated granite structure with active vibration isolation and precision linear motor drives, enabling ≤ 0.5 µm volumetric measurement uncertainty (as validated per ISO 10360-2).

Sample Compatibility & Compliance

The O-INSPECT duo accommodates samples ranging from miniature electronic components (e.g., 0201 SMD resistors, MEMS packages) to large castings and machined housings up to 30 kg. Its open-top design and programmable Z-axis travel (up to 200 mm) allow direct placement of irregularly shaped parts without fixture redesign. All measurement data and image metadata are timestamped, user-logged, and stored with full audit trail capability—ensuring compliance with ISO/IEC 17025 accreditation requirements for testing laboratories. Software workflows support IQ/OQ/PQ documentation templates aligned with FDA 21 CFR Part 11 electronic record and signature controls, including role-based access, electronic signatures, and change history logging for calibration parameters and measurement programs.

Software & Data Management

Powered by ZEISS CALYPSO metrology software v7.10+, the system delivers unified control of both optical and tactile measurement tasks. Image-based measurements leverage ZEISS INSPECT Vision algorithms—including sub-pixel edge detection (0.1 pixel resolution), adaptive thresholding, and morphological filtering—for precise contour extraction. CALYPSO integrates natively with ZEISS PiWeb reporting suite, enabling automated generation of ASME Y14.5-compliant GD&T reports, statistical process control (SPC) charts, and cross-instrument comparison dashboards. Raw image datasets (TIFF, PNG, ZVI) and calibrated point clouds are archived in vendor-neutral formats compliant with ASTM E2928–22 for digital microscopy data exchange.

Applications

• Aerospace: Verification of turbine blade root geometry, coating thickness uniformity, and thermal barrier crack mapping using color-contrast segmentation.
• Medical device manufacturing: Dimensional validation of microfluidic channel widths (±0.8 µm expanded uncertainty), surface defect detection on nitinol stents, and biocompatibility surface texture analysis per ISO 10993-22.
• Electronics: Solder paste volume estimation, BGA ball coplanarity assessment, and flex circuit trace width/spacing verification at 50× magnification.
• Automotive powertrain: Cylinder head port geometry inspection, valve seat concentricity, and casting porosity quantification via binary image analysis with ISO 4406 particle counting methodology.

FAQ

Does the O-INSPECT duo meet ISO 10360 calibration standards for CMM functionality?
Yes—the system undergoes factory verification per ISO 10360-2 (length measurement error) and ISO 10360-8 (scanning performance), with certificate-of-conformance provided for each delivered unit.
Can third-party tactile probes be integrated into the system?
No—only ZEISS-certified probe systems (e.g., ZEISS VAST XXT, RDS) are supported to maintain traceability and ensure synchronized kinematic compensation during multi-sensor measurement cycles.
Is image stitching accuracy traceable and documented?
Yes—stitching positional uncertainty is characterized during system qualification using NIST-traceable grid targets and reported in the system’s Performance Verification Report (PVR).
What file formats are supported for exporting measurement results?
CALYPSO exports XML, CSV, PDF, DXF, STEP AP214, and ZEISS-native ZCP files; image exports include TIFF (with embedded scale bar and metadata), PNG, and ZVI (ZEISS proprietary format with full optical parameter retention).
