| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | GSP-45 |
| Temperature Range | RT+5–65°C |
| Temperature Resolution | 0.1°C |
| Temperature Uniformity (Stability) | ±0.2°C |
| Heating Method | Water-jacketed |
| Power Consumption | 0.4 kW |
| Timer Range | 0–999.9 min/h |
| Chamber Dimensions (W×D×H) | 350×300×400 mm |
| External Dimensions (W×D×H) | 500×520×710 mm |
| Standard Shelving | 2 shelves, 15 kg/shelf |
| Net Weight | 43 kg |
| Gross Weight | 50 kg |
| Power Supply | 220 V / 50 Hz |
| Brand | Labotery |
|---|---|
| Model | MJL-80 / MJL-150 / MJL-250 / MJL-350 / MJL-450 |
| Temperature Range | 0–65 °C (without humidity), 10–65 °C (with humidity) |
| Humidity Range | 40–90 %RH |
| Humidity Accuracy | ±5–8 %RH |
| Temperature Resolution | 0.1 °C |
| Temperature Uniformity | ±0.3 °C |
| Working Chamber Volume | 80–450 L |
| Power Supply | 220 V, 50 Hz |
| Refrigerant | R134a |
| Heating Power | 0.3–1.5 kW |
| Chamber Dimensions (W×D×H, mm) | 500×350×500 to 600×710×1000 |
| External Dimensions (W×D×H, mm) | 640×610×970 to 740×965×1470 |
| Net Weight | 70–140 kg |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQPZ-228A |
| Timer Range | 0–999 h 59 min |
| Oscillation Frequency | 10–300 rpm |
| Frequency Accuracy | ±1 rpm |
| Orbit Diameter | Ø26 mm / 50 mm |
| Temperature Range | 4–65 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Uniformity | ±0.5 °C (at 37 °C) |
| Control Method | PID Microprocessor |
| Shelf Dimensions | 850 × 530 mm |
| Single-Shelf Capacity | 100 mL × 95, 250 mL × 56, 500 mL × 38, 1000 mL × 22, or 2000 mL × 12 |
| Standard Shelf Load | 100 mL × 45, 250 mL × 28, 500 mL × 28, 1000 mL × 14, or 2000 mL × 9 |
| Power per Shelf | 1.5 kW |
| Voltage | AC 220 V ±10%, 50–60 Hz |
| Single-Shelf External Dimensions | 1368 × 900 × 600 mm |
| Net Weight per Shelf | 220 kg |
| Environmental Operating Range | 5–25 °C |
| Display | 7-inch 16-bit true-color touchscreen |
| Data Storage | 1-year history retention |
| Connectivity | USB data export, optional remote monitoring via mobile app |
| Safety Features | Door-safety interlock, over-temperature alarm & cutoff, self-diagnostic system, encrypted operation lock, condensate drainage port, IPX4-rated motor, double-layer waterproof baffle, UV sterilization lamp, integrated LED illumination |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | YPJ-300S |
| Instrument Type | Orbital Shaker (Dual-Layer) |
| Timing Range | 0–999.9 min/h |
| Oscillation Frequency | 30–300 rpm |
| Frequency Accuracy | ±1 rpm |
| Orbit Diameter | 35 mm |
| Tray Dimensions | 800 × 600 mm |
| Power Supply | AC 220 V ±10%, 50–60 Hz |
| Power Consumption | 0.3 kW |
| External Dimensions (L×W×H) | 900 × 780 × 725 mm |
| Net Weight | 400 kg |
| Operating Ambient Temperature | 5–25 °C |
| Storage Temperature | –10–50 °C |
| Relative Humidity | ≤80% RH (non-condensing) |
| Compliance | CE-marked per IEC 61000-6-3 (EMI) and IEC 61000-6-2 (Immunity) |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | CPY-180 |
| Instrument Type | Gas-Jacketed CO₂ Incubator |
| CO₂ Detection | Infrared (IR) Sensor |
| Temperature Control Range & Accuracy | Ambient +5°C to 60°C |
| Temperature Uniformity | ±0.1°C |
| CO₂ Concentration Control Range & Accuracy | 0–20% (±0.1% with IR sensor) |
| Humidity Control Method | Natural Evaporation (>95% RH at 37°C) |
| Chamber Capacity | 180 L |
| External Dimensions (W×D×H) | 580 × 650 × 775 mm |
| Sterilization Method | 140°C Dry-Heat Sterilization |
| Standard Configuration | High-Temperature Sterilization Cycle |
| Power Supply | AC 220 V / 50 Hz |
| Input Power | 700 W |
| Heating Method | Gas-Jacketed |
| Control Interface | Full-Color Touchscreen with PID Algorithm |
| CO₂ Recovery Time (after 30-sec door opening, to 5%) | ≤5 min |
| Temperature Recovery Time (to 37°C) | ≤8 min |
| Internal Chamber Material | 304 Mirror-Finish Stainless Steel |
| Air Filtration | Integrated HEPA Filter (≥99.99% @ 0.3 µm) |
| CO₂ Inlet Filtration | 0.3 µm Microbial Filter |
| Door Heating | Yes (prevents condensation on inner glass) |

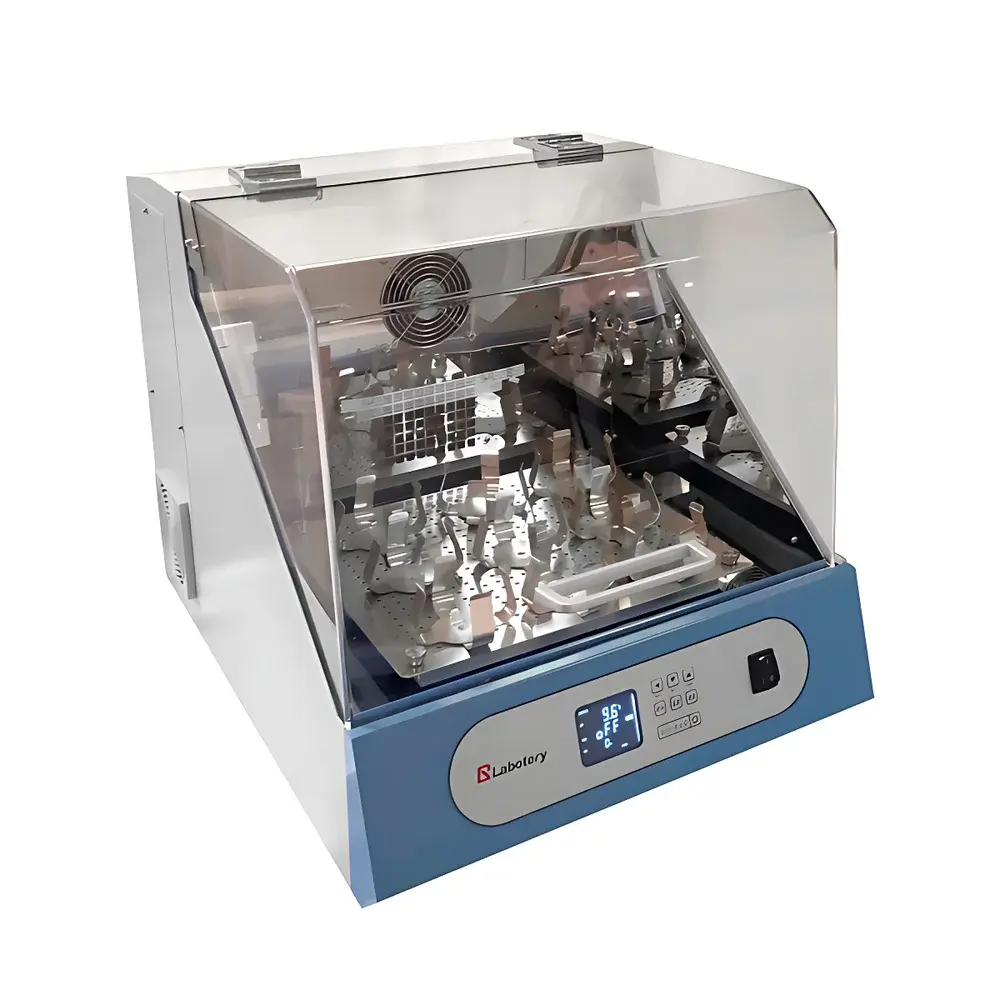

| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZHP-100G |
| Temperature Range | Ambient +5°C to 60°C |
| Temperature Uniformity | ±0.3°C (at 37°C) |
| Humidity Range | 20–50% RH |
| Chamber Capacity | 100 L |
| Orbital Speed | 30–400 rpm |
| Speed Accuracy | ±1 rpm |
| Orbit Diameter | Φ0–50 mm (continuously adjustable) |
| Shelf Dimensions | 400 × 370 mm |
| Max Load Capacity | 100 mL × 23 or 250 mL × 16 or 500 mL × 9 or 1000 mL × 5 or 2000 mL × 4 |
| Timer Range | 0–999.9 min |
| Power Consumption | 0.8 kW |
| Input Voltage | AC 220 V ±10%, 50–60 Hz |
| External Dimensions | 550 × 780 × 640 mm |
| Temperature Resolution | 0.1°C |
| Temperature Stability | ±0.3°C (at 37°C) |
| Safety Features | Door-activated stop, over-temperature alarm & auto cut-off, motor over-current protection, power failure memory, self-diagnostic system |
| Control Interface | Full-color LCD touchscreen with navigational soft keys |
| Drive System | Brushless DC servo motor with reversible programmable operation (forward/reverse/stop cycles) |
| Air Circulation | Forced convection via optimized ducted airflow path |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | GPL-450A |
| Temperature Range (with lighting) | 10–60 °C |
| (without lighting) | 0–60 °C |
| Temperature Uniformity | ±1 °C |
| Humidity Range | 30–95 %RH |
| Chamber Volume | 450 L |
| Control System | PID-based microcomputer controller with multi-segment programmable logic |
| Lighting Source | Adjustable LED cold-light array (0–25,000 lx) |
| Construction | Mirror-finish 304 stainless steel interior |
| Power Supply | AC 220 V, 50 Hz |
| Input Power | 2100 W |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQP-100G |
| Instrument Type | Full-Temperature Orbital Shaker Incubator |
| Timer Range | 0–9999 min |
| Oscillation Frequency | 30–600 rpm |
| Orbit Diameter (Amplitude) | Φ0–50 mm (infinitely adjustable) |
| Temperature Range | Ambient +5°C to 60°C |
| Shelf Quantity | 1 platform |
| Platform Dimensions | 400 × 370 mm |
| Chamber Volume | 100 L |
| Power Supply | AC 220 V ±10%, 50–60 Hz |
| Power Consumption | 0.8 kW |
| External Dimensions (W×D×H) | 550 × 780 × 640 mm |
| Temperature Uniformity | ±0.3°C (at 37°C) |
| Temperature Stability | ±0.3°C (at 37°C) |
| Temperature Resolution | 0.1°C |
| Display | LCD touchscreen interface |
| Drive System | Brushless DC servo motor with bidirectional programmable control |
| Safety Features | Door-activated stop, over-temperature alarm & auto-shutoff, current overload protection, power failure memory, self-diagnostic system |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQPW-70 |
| Shaker Type | Full-Temperature Orbital Incubator Shaker |
| Timer Range | 0–9999 min (configurable in minutes or hours) |
| Oscillation Speed | 10–400 rpm |
| Speed Accuracy | ±1 rpm |
| Orbit Diameter | 26 mm |
| Temperature Range | 4–65°C |
| Temperature Resolution | 0.1°C |
| Temp. Uniformity | ±0.5°C (at 37°C) |
| Temp. Stability | ±0.3°C (at 37°C) |
| Shelf Dimensions | 520 × 430 mm |
| Standard Capacity | 100 mL × 25 |
| Standard Fixture | Universal Spring Clamps |
| Power Consumption | 0.7 kW |
| Input Voltage | AC 220 V ±10%, 50–60 Hz |
| External Dimensions (W×D×H) | 860 × 680 × 570 mm |
| Display | LCD with PID Microprocessor Control |
| Motor Type | Brushless DC Motor |
| Drive Mechanism | Multi-axis Integrated Eccentric Cam Drive |
| Safety Features | Door-Interlock Stop, Over-Temp Audio-Visual Alarm + Auto Cut-off, Self-Diagnostic System, Power-Fail Data Retention |
| Operating Ambient | 5–25°C |
| Cooling System | Imported CFC-Free Compressor with Optimized Heat Dissipation Architecture |
| Air Circulation | Forced Convection via Centrifugal Air Duct |
| Illumination | Built-in White LED Light |
| UV Sterilization Lamp | Integrated (254 nm) |
| Viewing Window | Tempered Double-Layer Hollow Glass Door with Ø30 mm Access Port |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | SYWF-60 |
| Instrument Type | Water Bath Orbital Shaker |
| Timer Range | 0–9999 min |
| Oscillation Frequency | 20–200 rpm |
| Frequency Accuracy | ±1 rpm |
| Orbit Diameter | 20 mm |
| Temperature Range | Ambient to 99.9 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Uniformity | ±0.2 °C (at 37 °C, 100 rpm) |
| Control System | Fuzzy PID Microprocessor Control |
| Tray Dimensions | 340 × 470 mm |
| Tray Quantity | 1 |
| Max Capacity | 100 mL × 24 / 250 mL × 15 / 500 mL × 11 / 1000 mL × 6 |
| Water Bath Tank Dimensions (W×D×H) | 600 × 420 × 260 mm |
| Power Supply | AC 220 V ±10%, 50–60 Hz |
| Rated Power | 2.3 kW |
| Construction | 304 Stainless Steel Bath & Tray |
| Safety Features | Low-water cutoff, Overtemperature alarm, Isolated heating system, Drain valve, Quick-release tray mechanism |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQPL-200R |
| Temperature Range | 4–65 °C (CO₂ mode: 4–60 °C) |
| CO₂ Range | 0–20% |
| CO₂ Uniformity | ±0.1% |
| CO₂ Control Accuracy | ±0.1% |
| Oscillation Frequency | 30–300 rpm (±1 rpm) |
| Amplitude | 26 mm (Ø) |
| Timer Range | 0–999 h 59 min |
| Shelf Quantity | 2 |
| Shelf Dimensions | 439 × 528 mm |
| Temp. Uniformity | ±0.5 °C at 37 °C |
| Temp. Resolution | 0.1 °C |
| Power Supply | AC 220 V ±10%, 50–60 Hz |
| Power Consumption | 1.3 kW |
| Net Weight | 170 kg |
| External Dimensions (W×D×H) | 740 × 780 × 1260 mm |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQPL-500A |
| Shaker Type | Full-Temperature Orbital Incubator Shaker |
| Timer Range | 0–999 h 59 min |
| Oscillation Frequency | 10–300 rpm |
| Oscillation Amplitude | Ø26 mm (standard), 50 mm (optional) |
| Temperature Range | 4–65 °C |
| Number of Shaking Platforms | 2 |
| Platform Dimensions | 830 × 500 mm each |
| Temperature Uniformity | ±0.5 °C at 37 °C |
| Temperature Resolution | ±0.1 °C |
| Frequency Accuracy | ±1 rpm |
| Power Consumption | 2.1 kW |
| Input Voltage | AC 220 V ±10%, 50–60 Hz |
| External Dimensions (W×D×H) | 1080 × 850 × 1440 mm |
| Net Weight | 300 kg |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQPL-500 |
| Instrument Type | Full-Temperature Orbital Shaker / Incubator Shaker |
| Timer Range | 0–9999 min (up to 166.6 h) |
| Oscillation Frequency | 10–300 rpm |
| Frequency Accuracy | ±1 rpm |
| Orbit Diameter | 26 mm / 50 mm |
| Temperature Range | 4–65 °C |
| Temperature Uniformity | ±0.5 °C (at 37 °C) |
| Temperature Fluctuation | ±0.3 °C (at 37 °C) |
| Temperature Resolution | 0.1 °C |
| Control Method | PID Microprocessor-Based Control |
| Shelf Quantity | 2 adjustable platforms |
| Platform Dimensions | 830 × 508 mm per shelf |
| Power Consumption | 2.1 kW |
| Input Voltage | AC 220 V ±10%, 50–60 Hz |
| External Dimensions (W×D×H) | 1080 × 850 × 1440 mm |
| Net Weight | 300 kg |
| Compliance | Designed for GLP-compliant laboratories |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZHPL-200 (Heating-only), ZQPL-200 (Heating & Refrigeration) |
| Temperature Range | 4–65°C |
| Oscillation Frequency | 10–300 rpm ±1 rpm |
| Amplitude | Ø26 mm |
| Timer Range | 0–9999 minutes/hours |
| Shelf Quantity | 2 |
| Shelf Dimensions | 439 × 528 mm |
| Power Consumption | 11.3 kW |
| Input Voltage | AC 220 V ±10%, 50–60 Hz |
| External Dimensions (W×D×H) | 740 × 730 × 1235 mm |
| Temperature Uniformity | ±0.5°C at 37°C |
| Temperature Stability | ±0.3°C at 37°C |
| Control System | PID microcomputer with LCD or color touchscreen interface |
| Cooling System | R134a-free compressor with dust-filtered airflow and cross-flow air duct design |
| Drive Mechanism | Brushless servo motor with eccentric triple-wheel drive |
| Safety Features | Door interlock stop, over-temperature audiovisual alarm + auto power cutoff, motor overcurrent protection, self-diagnostic fault reporting, power-loss memory |
| Sterilization | Built-in UV lamp |
| Optional Interfaces | RS-485 remote control, USB data export, thermal printer module |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PYL-230 |
| Price Range | USD 950–1,090 (FOB) |
| Temperature Range | RT + 5°C to 65°C |
| Temperature Uniformity | ±0.3°C |
| Humidity | Ambient (50% RH typical during performance validation) |
| Chamber Capacity | 230 L |
| Power Supply | 220 V / 50 Hz |
| Heating Power | 0.8 kW |
| Internal Dimensions (W×D×H) | 600 × 500 × 750 mm |
| External Dimensions (W×D×H) | 730 × 750 × 1100 mm |
| Net Weight | 81 kg |
| Gross Weight | 112 kg |
| Display | Full-color LCD with real-time multi-parameter view |
| Control System | PID-based microprocessor controller with temperature offset correction, programmable timer (1–9999 min), auto-start/stop scheduling, and over-temperature alarm |
| Airflow | Rear-mounted horizontal forced convection with infinitely adjustable fan speed and dedicated air damper knob |
| Construction | Mirror-finish stainless steel interior with seamless arc-transition corners |
| Shelving | Removable stainless steel rod shelves (2 included, load capacity ≥15 kg per shelf) |
| Viewing Window | Dual-pane tempered glass |
| Door Lock | Concealed tactile latch with adjustable tension |
| Optional Accessories | Independent safety thermostat (dual-limit protection), RS485 communication interface, thermal printer module, multi-stage programmable ramp-soak temperature profiling |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | HWS-150A |
| Temperature Range (with Humidification) | 0–60 °C |
| Temperature Uniformity | ±1 °C |
| Humidity Range | 30–95 %RH |
| Chamber Capacity | 150 L |
| Temperature Resolution | 0.1 °C |
| Humidity Accuracy | ±3 %RH |
| Power Supply | AC 220 V, 50 Hz |
| Input Power | 1000 W |
| Operating Ambient | +5 to +35 °C |
| Standard Shelving | 3 stainless steel trays (304 grade) |
| Control Method | PID microcomputer-based digital control |
| Programmable Stages | Up to 30 segments, up to 99 cycles |
| Data Interface Options | RS485/USB (optional) |
| Compliance | Designed for GLP/GMP-aligned workflows |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | SPL-80 / SPL-150 / SPL-250 / SPL-350 / SPL-450 |
| Temperature Range | 0–65 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Uniformity | ±0.3 °C |
| Refrigerant | R-134a |
| Power Supply | 220 V, 50 Hz |
| Working Chamber Dimensions (W×D×H, mm) | 500×350×500 to 600×710×1000 |
| External Dimensions (W×D×H, mm) | 640×610×970 to 740×965×1470 |
| Shelving | 2–3 stainless steel shelves, 15 kg max load per shelf |
| Net Weight | 68–140 kg |
| Gross Weight | 83–185 kg |
| Ambient Operating Temperature | 5–40 °C |
| Humidity Range for Performance Testing | 50% RH at 20 °C |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQPW-90 |
| Temperature Range | 4–65 °C |
| Temperature Uniformity | ±0.5 °C (at 37 °C) |
| Temperature Resolution | 0.1 °C |
| Oscillation Frequency | 10–400 rpm |
| Frequency Accuracy | ±1 rpm |
| Orbit Diameter | 26 mm |
| Timer Range | 0–9999 min |
| Platform Dimensions | 520 × 430 mm |
| Standard Capacity | 100 mL × 25 |
| Power Consumption | 0.7 kW |
| Input Voltage | AC 220 V ±10%, 50–60 Hz |
| External Dimensions (W×D×H) | 900 × 730 × 640 mm |
| Control System | 16-bit true-color touchscreen with PID algorithm |
| Data Storage | 1-year local history |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQPL-200A |
| Instrument Type | Full-Temperature Orbital Shaker Incubator |
| Timer Range | 0–999 h 59 min |
| Oscillation Frequency | 10–300 rpm |
| Frequency Accuracy | ±1 rpm |
| Orbit Diameter | Ø26 mm |
| Temperature Range | 4–65 °C |
| Temperature Resolution | ±0.1 °C |
| Temperature Uniformity | ±0.5 °C (at 37 °C) |
| Control Method | PID Microprocessor |
| Shelving | Dual-tier platform (2 shelves) |
| Shelf Dimensions | 439 × 528 mm each |
| Capacity per Shelf | 100 mL × 25 / 250 mL × 20 / 500 mL × 12 / 1000 mL × 6 / 2000 mL × 4 |
| Standard Fixture Configuration | Lower shelf with fixed 500 mL clamps (×12), upper shelf with universal spring clamps |
| Power Consumption | 1.3 kW |
| Input Voltage | AC 220 V ±10%, 50–60 Hz |
| External Dimensions (W×D×H) | 740 × 780 × 1260 mm |
| Net Weight | 170 kg |
| Display | 7-inch 16-bit true-color touchscreen interface |
| Data Logging | Internal storage (1-year history), USB export (CSV/PDF), optional thermal printer output |
| Safety Features | Door-activated motor stop, overtemperature audiovisual alarm + auto cut-off, self-diagnostic system, keypad lock, power-fail memory |
| Optional Upgrades | Remote monitoring via mobile app (iOS/Android), external environmental temperature probe, UV sterilization module, interior LED illumination |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZHPW-70 (Heating-only), ZQPW-70 (Heating & Refrigeration) |
| Timer Range | 0–9999 min |
| Oscillation Frequency | 10–400 rpm |
| Amplitude | 26 mm |
| Temperature Range | 4–65 °C (ZQPW-70), RT+5–65 °C (ZHPW-70) |
| Platform Quantity | 1 |
| Uniformity | ±0.8 °C at 37 °C |
| Stability | ±0.3 °C at 37 °C |
| Platform Size | 520 × 430 mm |
| Max Load Capacity | 100 mL × 42 / 250 mL × 30 / 500 mL × 20 / 1000 mL × 9 |
| Power | 0.4 kW (ZHPW-70), 0.71 kW (ZQPW-70) |
| Input | AC 220 V ±10%, 50–60 Hz |
| Dimensions (W×D×H) | 860 × 680 × 570 mm |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQPZ-228A |
| Temperature Range | 4–65°C |
| Temperature Uniformity | ±0.5°C at 37°C |
| Temperature Resolution | 0.1°C |
| Oscillation Frequency | 10–300 rpm |
| Frequency Accuracy | ±1 rpm |
| Orbit Diameter | 26 mm / 50 mm |
| Timer Range | 0–999 h 59 min |
| Shelf Capacity (per layer) | 100 mL × 60, 250 mL × 28, 500 mL × 28, 1000 mL × 14, 2000 mL × 9, or 3000 mL × 8 |
| Shelf Dimensions | 930 × 530 mm |
| Power Consumption (per layer) | 1.5 kW |
| Display | 7-inch 16-bit true-color touchscreen |
| Control Modes | Constant-value & programmable operation |
| Data Storage | 1-year history with USB export & real-time curve printing |
| Safety Features | Door-interlocked stop, over-temperature alarm & auto-shutdown, waterproof motor, triple liquid containment system, environmental temperature monitoring, PID control, UV sterilization & internal lighting |
| Optional Upgrades | CO₂ integration, remote mobile APP monitoring, external thermal printer |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | GPL-250 / GPL-350 / GPL-450 |
| Temperature Control Range | 10–60 °C (with light), 0–60 °C (without light) |
| Chamber Volume | 250 L / 350 L / 450 L |
| Temperature Uniformity | ±1 °C |
| Temperature Fluctuation | ±0.5 °C (intermittent mode), ±0.2 °C (equilibrium mode) |
| Temperature Resolution | 0.1 °C |
| Power Input | 1200 W / 1700 W / 2200 W |
| Voltage | AC 220 V, 50 Hz |
| Operating Ambient | +5–35 °C |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model Variants | BOD-80 / BOD-150 / BOD-250 / BOD-350 / BOD-450 |
| Temperature Range | 0–65 °C |
| Temperature Uniformity | ±0.3 °C |
| Humidity Control | None (0% RH) |
| Chamber Capacity | 80 L – 450 L |
| Power Supply | 220 V, 50 Hz |
| Refrigerant | R134a |
| Heating Power | 0.3–1.5 kW |
| Temperature Resolution | 0.1 °C |
| Temperature Fluctuation | ±0.3 °C |
| Internal Dimensions (W×D×H, mm) | 500×350×500 to 600×710×1000 |
| External Dimensions (W×D×H, mm) | 640×610×970 to 740×965×1470 |
| Standard Features | Mirror-finish stainless steel chamber with radius corners, centrifugal fan-based air circulation, UV germicidal lamp, adjustable-speed internal airflow, external power socket, magnetic door seal, LED illumination, 30 mm test port on left side, dust-filtered refrigeration system, fuzzy PID temperature control with over-temperature alarm and parameter memory |
| Optional Accessories | Programmable multi-segment controller (30-step), USB data export, RS-485 remote monitoring interface, thermal printer module |
| Brand | Labotery |
|---|---|
| Origin | Tianjin, China |
| Model | ZQPL-200 |
| Instrument Type | Full-Temperature Orbital Shaker Incubator |
| Timer Range | 0–9999 h |
| Oscillation Speed | 10–300 rpm |
| Speed Accuracy | ±1 rpm |
| Orbit Diameter | 26 mm |
| Temperature Range | 4–65 °C |
| Temperature Resolution | ±0.1 °C |
| Temperature Uniformity | ±0.5 °C (at 37 °C) |
| Temperature Stability | ±0.3 °C (at 37 °C) |
| Control Method | PID Microprocessor-Based |
| Chamber Material | Stainless Steel Mirror Finish |
| Viewing Window | Tempered Double-Glass Door with Side Ø30 mm Access Port |
| Lighting | Integrated LED Illumination |
| Cooling System | R134a-Free Compressor with Thermal Protection Circuitry |
| Air Circulation | Centrifugal Forced-Air Duct System |
| Drive Mechanism | Brushless Servo Motor with Three-Eccentric-Cam Transmission |
| Safety Features | Door-Interlocked Stop, Over-Temperature Audiovisual Alarm + Auto-Cutout, Motor Overcurrent Protection, Self-Diagnostic Fault Detection |
| Programming | Bidirectional Rotation (Forward/Reverse/Stop), Multi-Stage Time-Programmable Speed & Temp Profiles |
| Display Options | LCD or True-Color Touchscreen Controller |
| Memory Function | Power-Failure Resume with Data Retention |
| Shelf Configuration | Dual-Deck Platform (Upper: Universal Spring Clamp |
| Lower | Fixed 500 mL × 12 Fixture) |
| Platform Dimensions | 439 × 528 mm per deck |
| Max Load Capacity per Deck | 100 mL × 42 / 250 mL × 25 / 500 mL × 16 / 1000 mL × 9 / 2000 mL × 6 |
| Rated Power | 11.3 kW |
| Input Voltage | AC 220 V ±10%, 50–60 Hz |
| External Dimensions (W×D×H) | 740 × 730 × 1235 mm |
| Net Weight | 170 kg |
| Operating Ambient | 5–25 °C, 50% RH (20 °C baseline test condition) |
Show next
