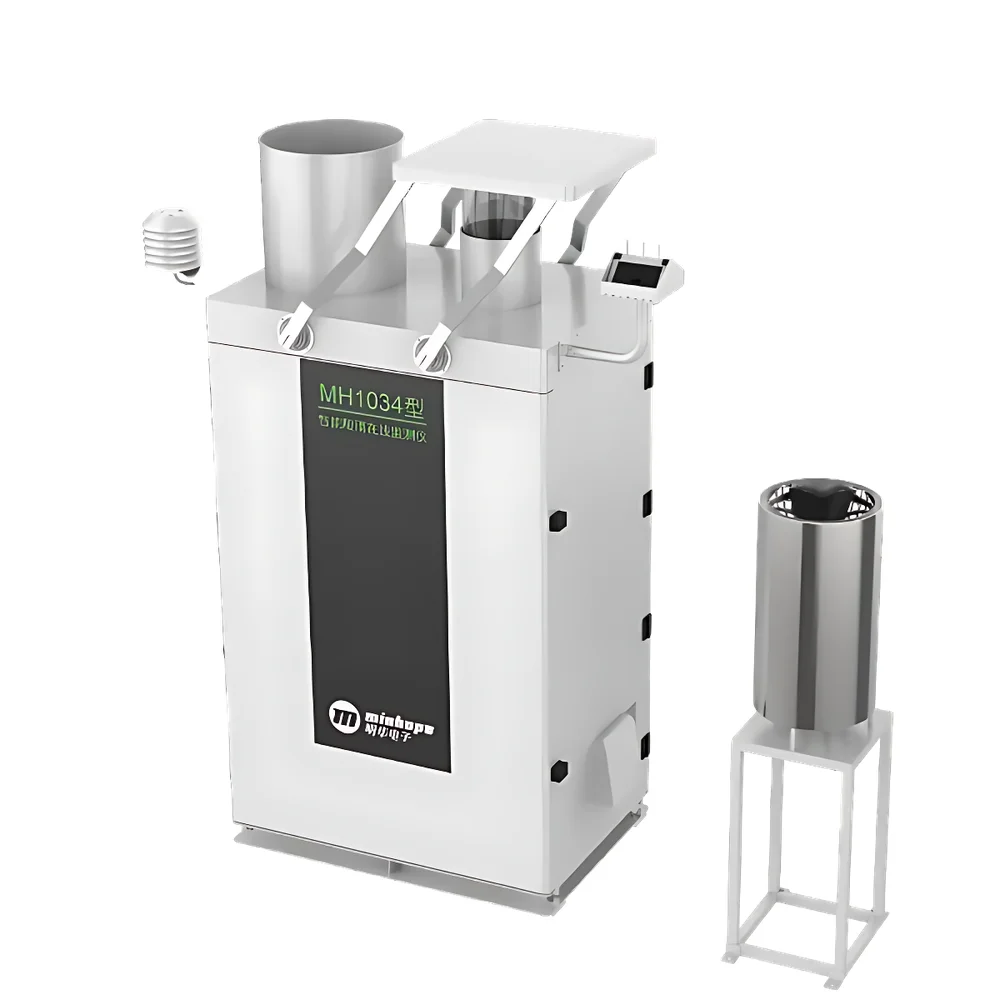

Minhope MH1034 Intelligent Acid Rain Online Monitoring System

Overview

The Minhope MH1034 Intelligent Acid Rain Online Monitoring System is a fully automated, field-deployable environmental monitoring instrument engineered for long-term, unattended operation in atmospheric deposition research and regulatory compliance programs. It implements a dual-mode sampling architecture—capable of sequential or concurrent collection of wet deposition (rain, snow, fog drip) and dry deposition (aerosol-bound particulates and settled dust)—enabling integrated assessment of total acid deposition flux. The system operates on standardized gravimetric and electrochemical measurement principles: pH is determined via temperature-compensated glass electrode potentiometry per ISO 10523; electrical conductivity is measured using a calibrated platinum-cell sensor conforming to ISO 7888; and precipitation volume is quantified via a heated tipping-bucket rain gauge with ice-melt capability. Designed for deployment at national air quality monitoring stations, ecological observation networks, and transboundary pollution tracking sites, the MH1034 delivers traceable, auditable data aligned with GLP-aligned operational workflows.

Key Features

• Heated sampling funnel and tipping-bucket rain gauge—operates continuously down to −20 °C, enabling reliable snowmelt and liquid-phase capture without manual intervention
• Climate-controlled cabinet with active heating and desiccant-assisted dehumidification—prevents condensation, ice formation, and corrosion in sample transfer tubing and electromechanical actuators
• Integrated refrigerated sample storage compartment—maintains collected precipitation at 3–5 °C with ±0.3 °C thermal stability over 72-hour retention periods
• Patented motorized lid actuation mechanism—features backlash-free gear reduction and position feedback, ensuring repeatable sealing integrity and contamination control across >10,000 operational cycles
• Multi-criteria sampling logic—supports time-based (e.g., hourly), event-triggered (e.g., ≥0.5 mm rainfall), episode-defined (first flush vs. bulk), and volume-threshold modes
• Onboard electrochemical metrology module—performs automatic pH and conductivity measurements, three-point electrode calibration, and post-measurement sensor rinsing with deionized water

Sample Compatibility & Compliance

The MH1034 is validated for use with natural precipitation matrices—including acidic rain (pH 3.2–6.8), snowmelt containing dissolved sulfate/nitrate species, and dry-deposited particulate matter resuspended in ultrapure water leachates. All wet chemistry modules comply with GB/T 19117–2017 (Acid Rain Observation Specifications) and HJ/T 175–2005 (Technical Requirements for Automatic Rainfall Monitors). Electrical safety and EMC performance meet GB 4793.1–2007 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use). Data acquisition firmware supports audit-trail logging in accordance with GLP principles, including timestamped operator actions, calibration records, and sensor diagnostic flags.

Software & Data Management

The MH1034 integrates with Minhope’s CloudLink Environmental Data Platform—a secure, role-based SaaS interface accessible via TLS 1.2-encrypted web browser or RESTful API. Raw sensor outputs (pH, EC, volume, temperature, lid status, heater duty cycle) are transmitted at user-configurable intervals (1 min to 24 h) using MQTT over cellular (LTE-M/NB-IoT) or Ethernet. The platform provides real-time dashboard visualization, automated QC flagging (e.g., pH drift >0.1 unit/24 h), CSV/NetCDF export, and scheduled report generation. Firmware updates are delivered OTA with cryptographic signature verification. All data transactions adhere to ISO/IEC 27001-aligned access controls; audit logs retain full traceability for regulatory inspections under EPA Method IO-3.1 or EU Directive 2008/50/EC Annex IX requirements.

Applications

• Long-term trend analysis of regional acid deposition in national environmental monitoring networks
• Source apportionment studies linking precipitation chemistry to upwind industrial emissions or agricultural NH₃ volatilization
• Validation of chemical transport models (e.g., CMAQ, EMEP) through high-temporal-resolution observational constraints
• Compliance monitoring for transboundary air pollution agreements (e.g., UNECE CLRTAP) requiring standardized deposition flux reporting
• Ecological impact assessment in sensitive receptor zones—forests, alpine lakes, and carbonate bedrock regions vulnerable to acidification

FAQ

Does the MH1034 support co-location with other atmospheric instruments (e.g., aerosol samplers or gas analyzers)?
Yes—the system features RS-485 Modbus RTU and dry-contact I/O interfaces for hardware synchronization with co-located PM₂.₅ samplers, SO₂/NOₓ analyzers, or meteorological towers.
Can the refrigerated sample chamber accommodate multiple sequential events without manual intervention?
Yes—it holds up to eight 1-L polyethylene collection bottles, each assigned to a discrete sampling event; bottle indexing and valve sequencing are fully automated.
Is the pH measurement compliant with ISO 10523 and USP ?
The electrode system meets ISO 10523 accuracy requirements (±0.05 pH units at 25 °C); while not certified for pharmaceutical use, its calibration traceability aligns with NIST SRM 186, suitable for environmental QA/QC.
How is data integrity ensured during extended network outages?
Onboard 8 GB industrial-grade eMMC storage retains ≥30 days of raw sensor data with cyclic overwrite protection; transmission resumes automatically upon connection restoration.
What maintenance schedule is recommended for field deployment?
Bi-monthly visual inspection of funnel mesh and tubing; quarterly electrode cleaning/calibration; annual replacement of desiccant cartridge and rain gauge oil—documented in the included GLP-compliant maintenance log template.
