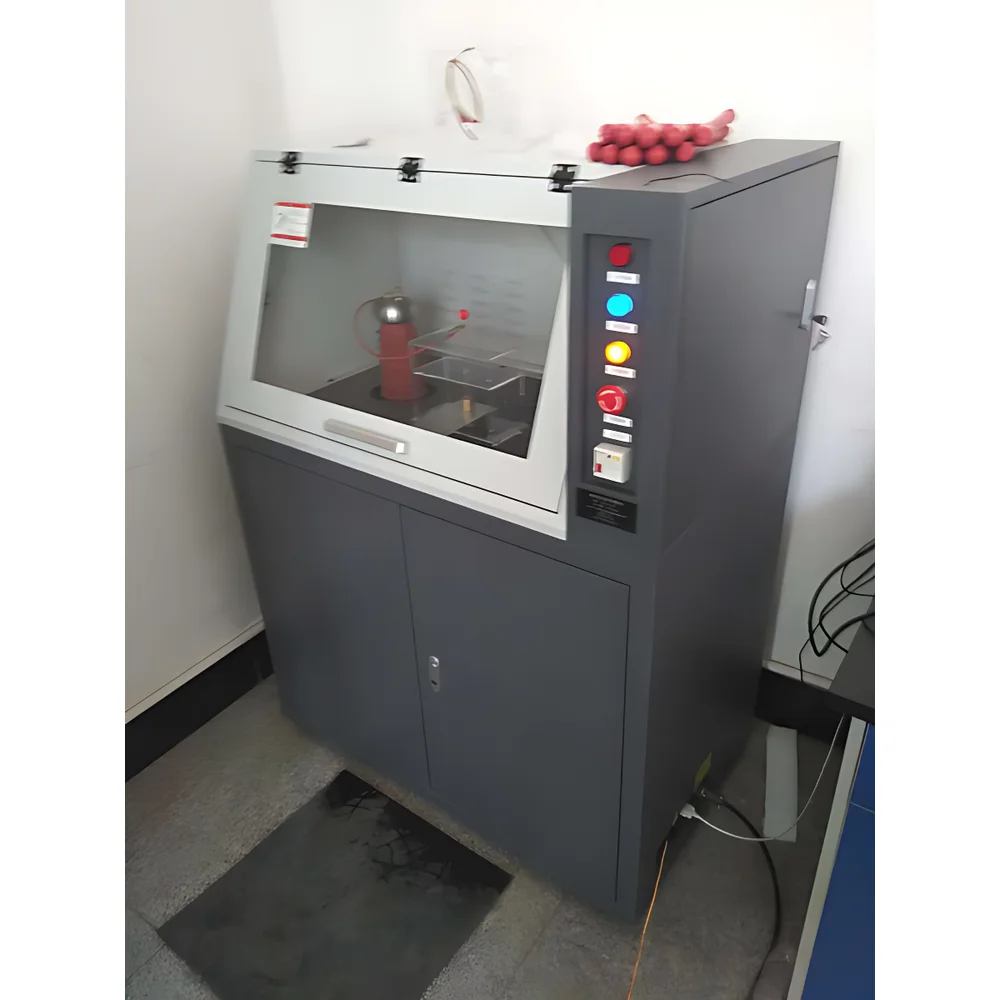

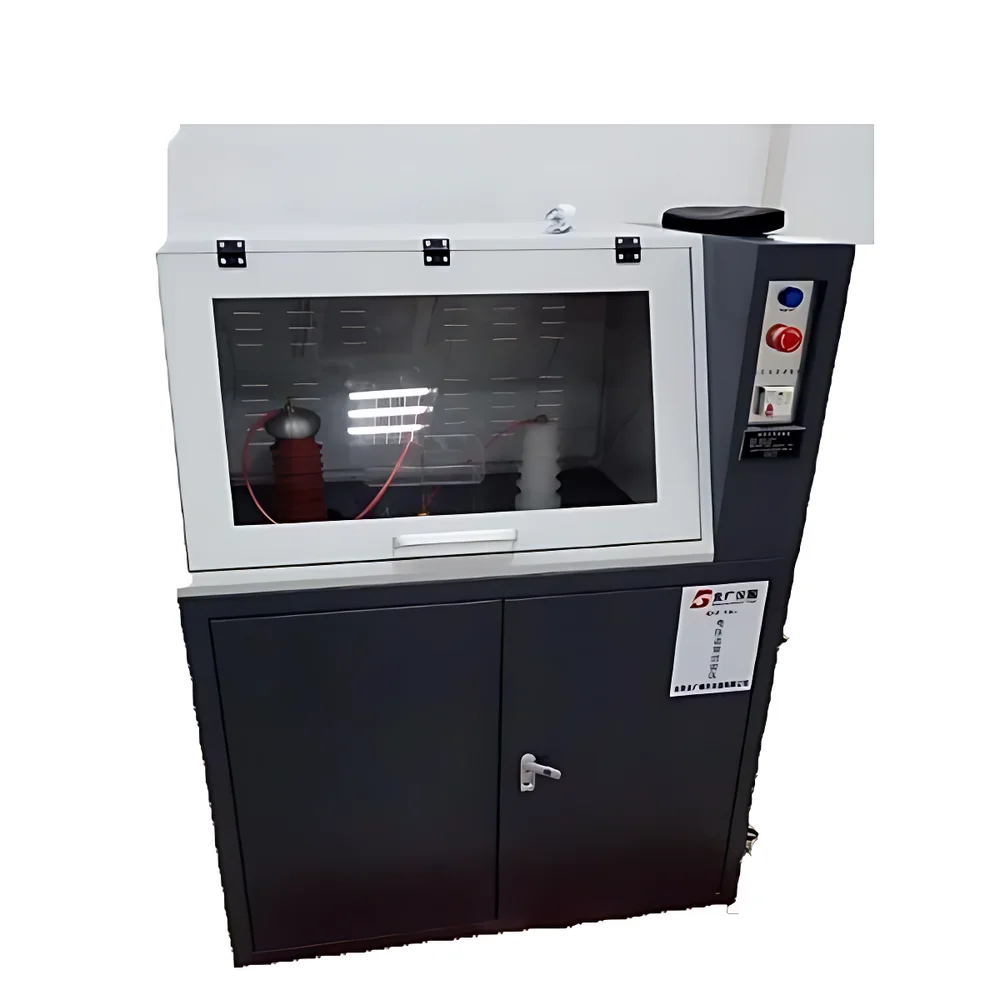

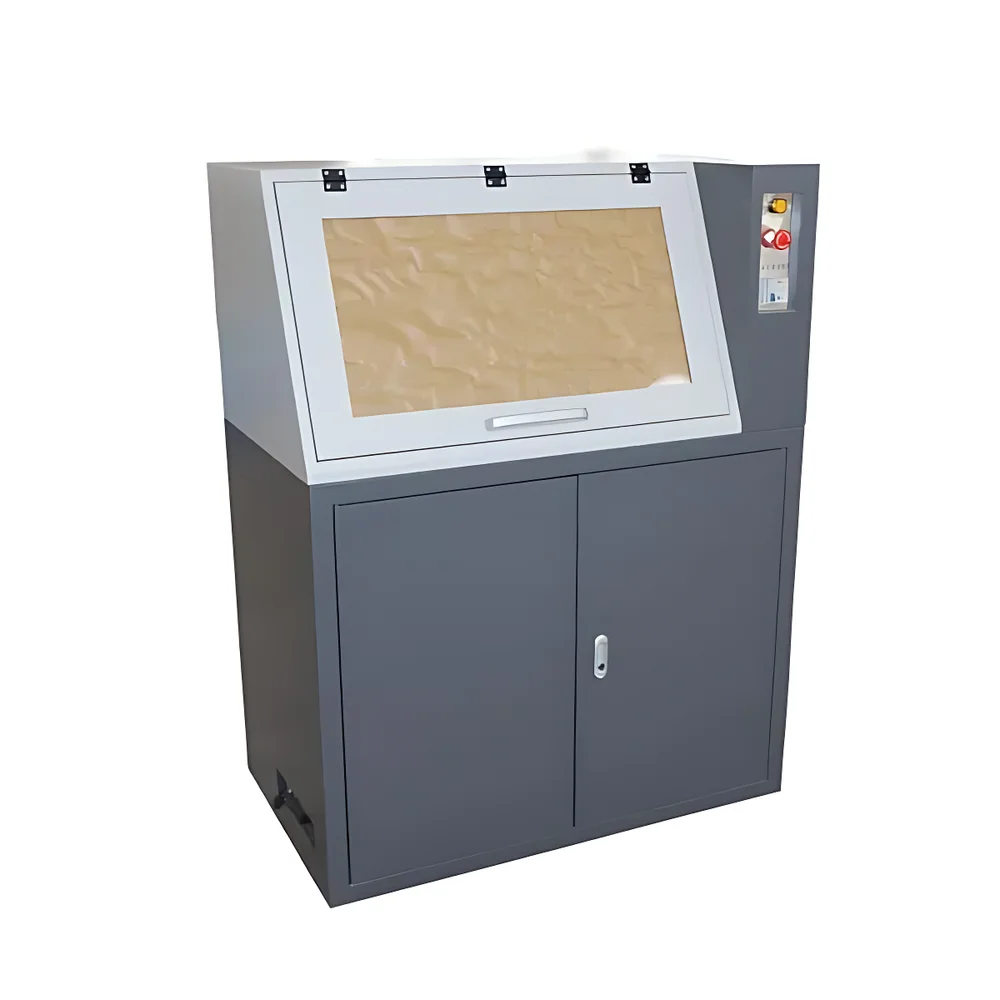

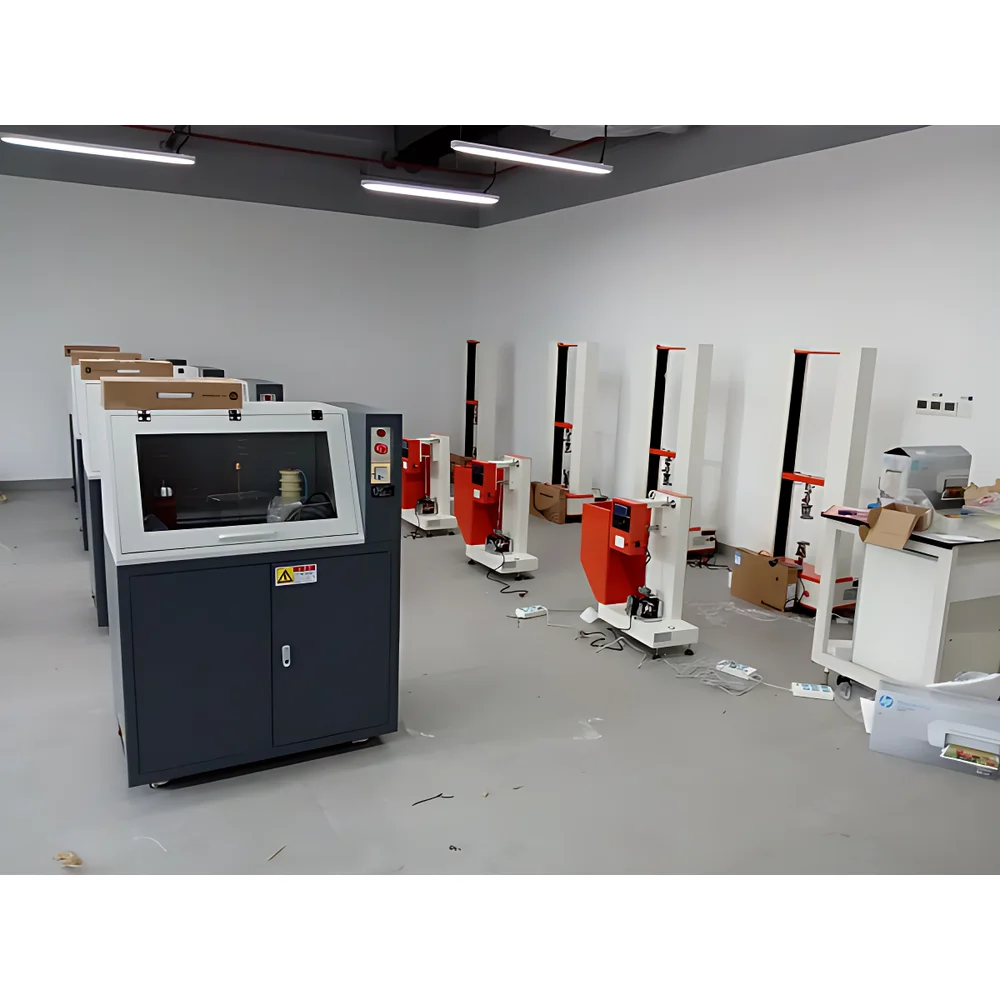

Beiguang Jingyi BDJC Series Rubber Dielectric Breakdown Tester

Overview

The Beiguang Jingyi BDJC Series Rubber Dielectric Breakdown Tester is a precision high-voltage testing system engineered for determining the dielectric strength and electrical breakdown behavior of elastomeric materials—primarily vulcanized rubber compounds, silicone elastomers, and other insulating polymers—under standardized AC/DC voltage stress conditions. It operates on the principle of controlled voltage ramping across a defined electrode geometry (per ASTM D149, IEC 60243-1, and GB/T 1408.1), measuring the critical electric field intensity (kV/mm) at which catastrophic insulation failure occurs via puncture, tracking, or surface flashover. Designed for compliance-driven laboratories in R&D, quality assurance, and regulatory validation, the system supports both short-time (10–20 s), stepwise (20 s or 60 s per step), and slow-ramp (120–600 s) test protocols to accommodate material dispersion, thermal aging effects, and comparative benchmarking against international standards including IEC 60296:2003 for insulating oils.

Key Features

• Wide output range: 0–50 kV AC/DC, continuously adjustable with ≤1% voltage accuracy (traceable to national metrology institutes)
• Programmable ramp rates from 0.01 kV/s to 5 kV/s—fully compliant with ASTM D149 Annex A1 and IEC 60243-1 Clause 10 test modes
• Dual-mode breakdown detection: simultaneous high-voltage threshold triggering and real-time leakage current monitoring (0.01–20 mA resolution)
• Integrated safety architecture: automatic 0.05 s power cutoff upon breakdown, interlocked test chamber door, zero-voltage start-up, and redundant overcurrent/loss-of-voltage/ground-fault protection

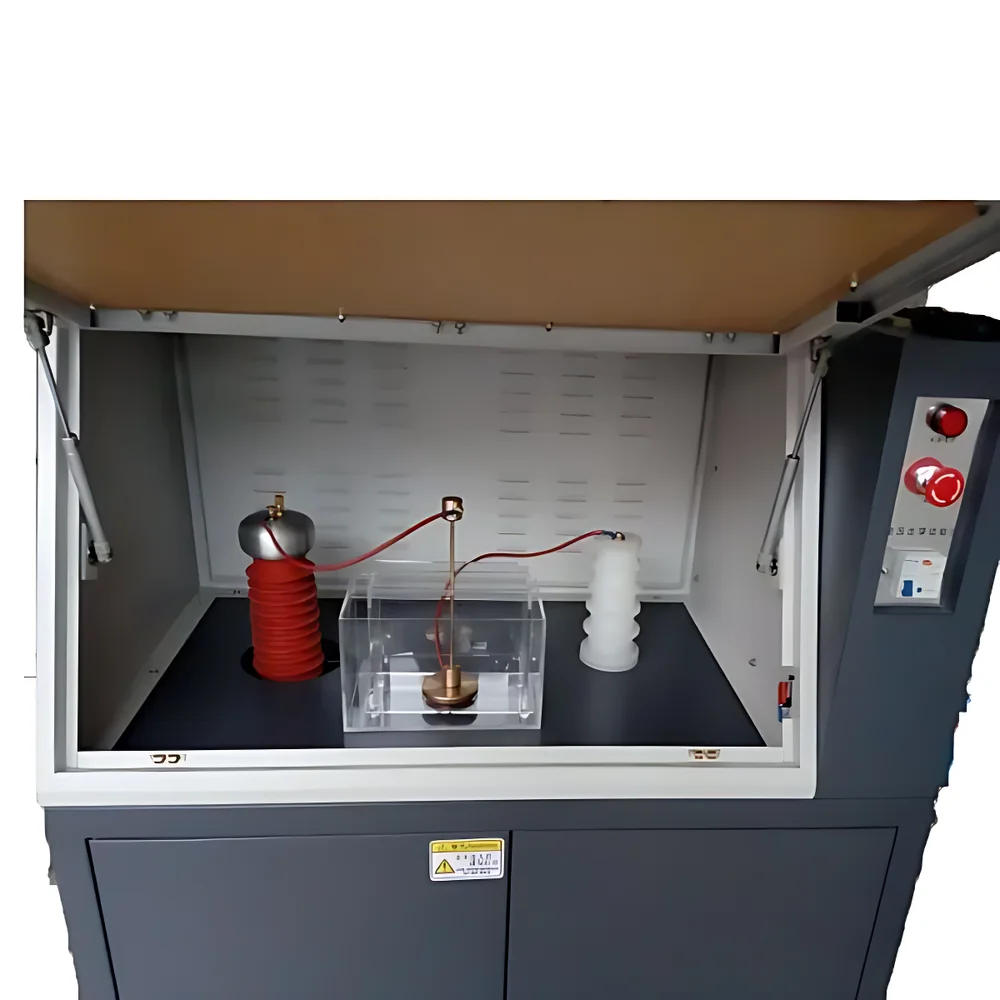

• Modular electrode configuration: conforms to GB/T 1408.1 standard electrodes (25 mm diameter brass disc, 6 mm radius edge); optional oil bath (transformer oil or overheated cylinder oil) for elevated-temperature testing up to 300 °C
• Wireless Bluetooth control (IEEE 802.15.1) with dual-layer software interface—enabling operator separation up to 15 m, remote start/stop, and real-time parameter adjustment without physical proximity to HV enclosure
• Full data acquisition: synchronized logging of applied voltage (kV), leakage current (mA), elapsed time (s), and breakdown event timestamp; exportable to Excel-compatible CSV format

Sample Compatibility & Compliance

The BDJC tester accommodates solid elastomer specimens (e.g., sheet, molded disc, extruded strip) per ASTM D149 Section 7 and GB/T 1408.1 Clause 6, with thickness ranging from 0.5 mm to 6.0 mm. Liquid dielectrics—including transformer oil (≤90 °C) and overheated cylinder oil (90–300 °C)—are supported via detachable oil bath assembly. Environmental preconditioning follows standardized protocols: ambient testing at 23 ± 2 °C / 50 ± 5 % RH; humid conditioning at 20 ± 5 °C / 65 ± 5 % RH ≥24 h; or elevated-temperature/humidity per product-specific annexes. The system meets electromagnetic compatibility (EMC) requirements per GB/T 18268.1 and incorporates dedicated grounding terminals to minimize interference during breakdown events—critical for GLP/GMP-aligned QC labs requiring audit-ready traceability.

Software & Data Management

The embedded Windows-based control software provides full IEC 60243-1 test sequence automation, including preset templates for short-time, stepwise, slow-ramp, and withstand voltage tests. All test parameters—including voltage ramp profile, dwell time, pass/fail thresholds, and electrode gap—are digitally configurable and stored with user-defined metadata (sample ID, thickness, batch number). Each test session generates a timestamped report containing raw voltage/current curves, calculated dielectric strength (E = U/d), statistical summary (median of ≥5 specimens), and deviation analysis (outlier rejection per ASTM D149 Section 12.2). Audit trails comply with FDA 21 CFR Part 11 requirements when paired with optional electronic signature modules. Data export supports CSV, PDF, and Excel formats; curve overlay functionality enables cross-sample comparative analysis.

Applications

This instrument serves critical roles in rubber formulation development (e.g., filler dispersion optimization, antioxidant efficacy screening), production lot release testing (ASTM D149 Class A/B/C qualification), and regulatory dossier preparation for medical-grade elastomers (ISO 10993-12), aerospace seals (SAE AMS3675), and automotive HV cable insulation (LV 124). It supports accelerated aging studies by integrating with environmental chambers, validates dielectric performance after thermal cycling (IEC 60502-2), and verifies compliance of recycled rubber compounds with IEC 62271-201 insulation coordination limits. In academic research, it facilitates structure-property correlation of nanocomposite elastomers under variable ramp rates—revealing time-dependent breakdown mechanisms such as electromechanical treeing or thermal runaway initiation.

FAQ

What standards does the BDJC Series comply with?

It fully supports ASTM D149, IEC 60243-1, GB/T 1408.1, and ISO 2313 for dielectric strength testing of solid insulating materials.

Can the system perform both AC and DC breakdown tests?

Yes—dual-mode high-voltage generator delivers 0–50 kV AC (50 Hz) and 0–50 kV DC with independent ramp control and breakdown detection logic for each mode.

Is calibration certification available?

Calibration reports traceable to China Academy of Metrology (CAM) or customer-designated accredited labs (e.g., NIST, UKAS) are optionally provided upon request.

How is operator safety ensured during high-voltage operation?

Mechanical interlocks prevent HV activation when the test chamber door is open; all HV components maintain ≥200 mm clearance from enclosure walls; grounding terminals and insulated gloves/foot mats are included in standard configuration.

Does the software support multi-user access with role-based permissions?

The base software includes password-protected administrator/operator profiles; enterprise-level deployment with LDAP integration and audit log archiving is available under custom configuration.
