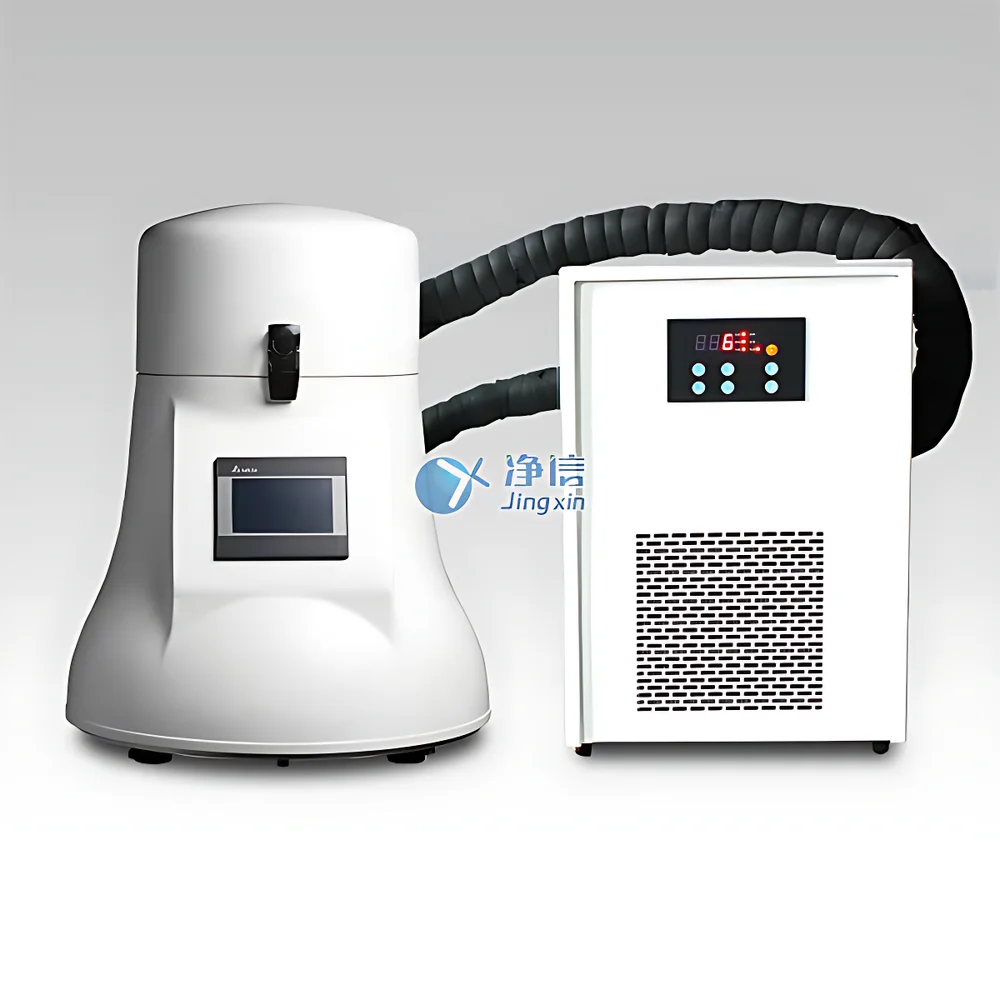

Jingxin JXFSTPRP-I Cryogenic Tissue Grinder with Integrated Air-Cooling System

Overview

The Jingxin JXFSTPRP-I Cryogenic Tissue Grinder is a high-throughput, microprocessor-controlled benchtop homogenizer engineered for reproducible, low-temperature mechanical disruption of biological and soft-to-medium-hard materials. It operates on the principle of cryo-assisted bead-beating — combining rapid vertical oscillation (DIN-compliant motion profile), controlled thermal management via integrated air-cooling, and high-energy impact between grinding beads and sample matrices. Unlike conventional room-temperature grinders, the JXFSTPRP-I maintains sample integrity by suppressing enzymatic degradation, nucleic acid shearing, and protein denaturation during lysis. Its design conforms to ISO 17025-aligned laboratory instrumentation standards and supports GLP-compliant workflows where thermal stability and batch-to-batch consistency are critical — particularly in genomics, proteomics, and pharmacological sample preparation.

Key Features

• Integrated air-cooling system enabling continuous operation at 0 °C–ambient range; eliminates reliance on external liquid nitrogen handling while ensuring uniform thermal control across all sample positions
• Dual-mode operation: dry grinding, wet grinding, and cryogenic grinding — configurable per protocol requirements without hardware modification
• Vertical oscillation architecture (Schleifen-1 damping principle) delivering precise, repeatable kinetic energy transfer with minimal cross-contamination risk
• Modular adapter system compatible with standard microcentrifuge tubes (0.2–50 mL), including PTFE-, stainless steel-, and zirconia-fabricated holders optimized for nucleic acid or protein preservation
• Microcontroller-based timing and frequency control (0–70 Hz, resolution 0.1 Hz); programmable run duration from 0 seconds to 9999 minutes with automatic ramp-up/ramp-down (≤2 s acceleration/deceleration)
• LCD touchscreen interface with real-time parameter monitoring, user-defined method storage, and audit-trail-capable operation logging (supports FDA 21 CFR Part 11–compliant data export when paired with validated software)
• Acoustic enclosure design achieving <55 dB(A) noise emission under load — compliant with ISO 7779 and EN ISO 11201 laboratory noise guidelines

Sample Compatibility & Compliance

The JXFSTPRP-I accommodates diverse sample classes requiring cold preservation: mammalian tissues (liver, brain, muscle), plant organs (roots, leaves, seeds), microbial cultures (yeast, E. coli), fibrous materials (textiles, PCB substrates), and thermolabile compounds (pharmaceutical excipients, waxes, polymers). All grinding vessels meet USP Class VI biocompatibility standards; PTFE adapters comply with ASTM D471 for chemical resistance. The system supports ASTM D3418 (thermal transitions of polymers) and ISO 13320 (laser diffraction particle sizing) pre-processing protocols. For regulated environments, the instrument’s mechanical locking mechanism, auto-centering clamp, and lid-interrupt safety circuit fulfill IEC 61000-4-2 ESD protection and EN 61010-1 electrical safety requirements.

Software & Data Management

While the base unit features embedded firmware with non-volatile method memory (up to 99 protocols), optional Jingxin LabLink™ software enables remote scheduling, multi-instrument synchronization, and CSV-formatted output of time-stamped operational logs (frequency, duration, temperature history). When deployed in GMP-regulated labs, the system supports electronic signature integration and 21 CFR Part 11–compliant audit trails — including user authentication, parameter change tracking, and tamper-proof export encryption. Raw data files retain metadata on adapter type, bead material (stainless steel, zirconia, tungsten carbide), and batch-specific calibration offsets.

Applications

This grinder is routinely employed in: nucleic acid extraction (DNA/RNA isolation from recalcitrant plant tissues or lipid-rich animal organs); protein solubilization prior to LC-MS analysis; homogenization of frozen soil or sediment cores for metagenomic sequencing; dispersion of polymer nanocomposites; and comminution of pharmaceutical tablets for dissolution testing. Its ability to process 32 samples simultaneously within 15 seconds — while maintaining sub-5 µm median particle size distribution — makes it suitable for high-volume biobanking, clinical trial sample preprocessing, and QC release testing in contract research organizations.

FAQ

Can the JXFSTPRP-I be used for RNA extraction without RNase contamination?
Yes — when equipped with RNase-free PTFE adapters and ceramic/zirconia beads, and operated under sterile laminar flow conditions, the system achieves >95% RNA integrity (RIN ≥8.5) for mammalian liver and leaf tissue.

Is liquid nitrogen compatibility factory-installed or retrofittable?
The unit ships with air-cooling as standard; liquid nitrogen-ready adapters (LN₂-immersion rated to −196 °C) are available as certified accessories with validated thermal soak protocols.

What regulatory documentation is provided for IQ/OQ validation?
Jingxin supplies a complete validation toolkit: Factory Acceptance Test (FAT) report, Installation Qualification (IQ) checklist, Operational Qualification (OQ) test scripts aligned with ASTM E2500, and calibration certificates traceable to NIST standards.

Does the system support Good Manufacturing Practice (GMP) audit requirements?
Yes — with optional LabLink™ software, the instrument generates ALCOA+ compliant data (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) meeting MHRA and EMA expectations for analytical instrument qualification.

How is cross-contamination prevented between runs?
Each adapter is designed for single-use or validated cleaning cycles (autoclavable up to 121 °C/20 min); the vertical oscillation path minimizes lateral bead migration, and the sealed grinding chamber prevents aerosol escape.
