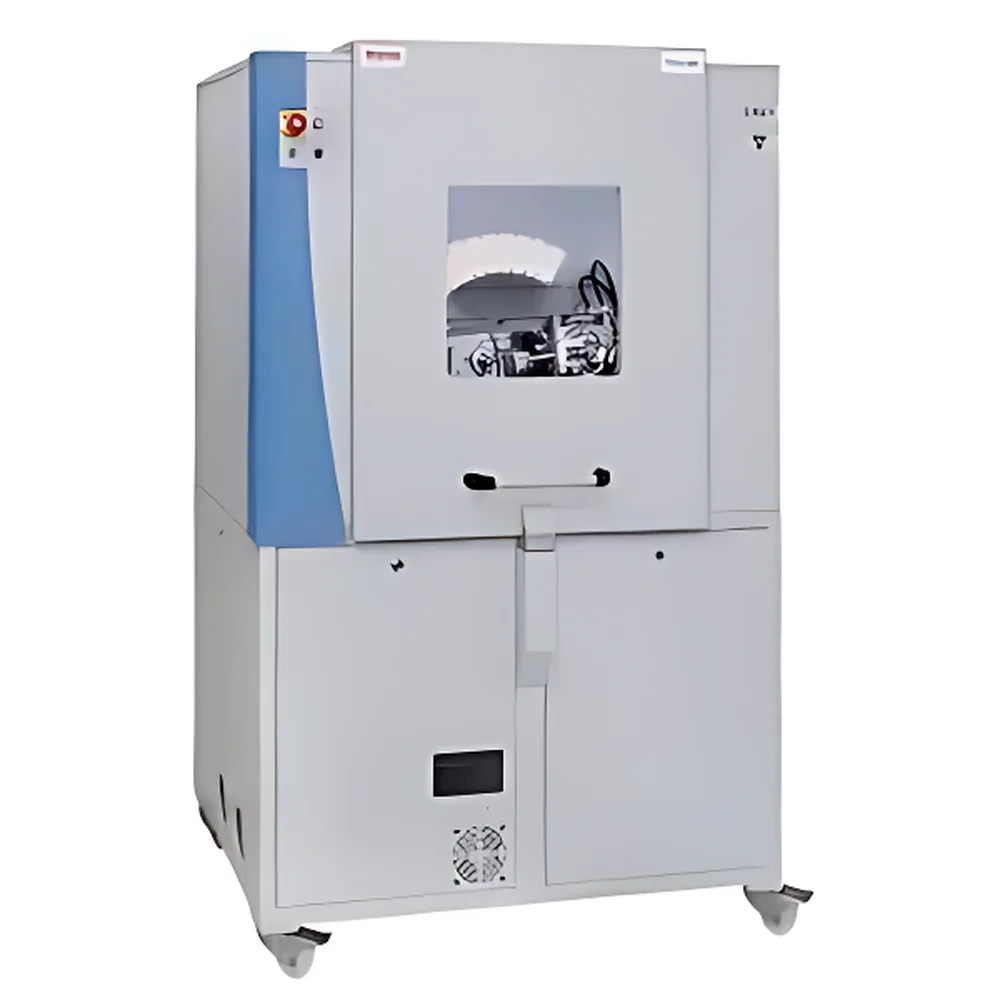

Thermo Scientific ARL EQUINOX 3000 Powder X-ray Diffractometer

Overview

The Thermo Scientific ARL EQUINOX 3000 is a high-performance, research-grade powder X-ray diffractometer engineered for rapid, high-resolution phase identification, quantitative analysis, and in situ/operando structural characterization. Unlike conventional θ–2θ scanning systems that rely on sequential angular detection, the EQUINOX 3000 employs a fixed-geometry design with a curved position-sensitive detector (PSD) that captures the full diffraction pattern—typically spanning 2θ = 2° to 120°—in a single exposure. This real-time, simultaneous acquisition principle is grounded in Bragg’s law and leverages the intrinsic energy-dispersive capability of the curved PSD, eliminating mechanical goniometer movement and associated calibration drift. As a result, data collection times are reduced by up to two orders of magnitude compared to step-scanning instruments, enabling time-resolved studies of crystallization kinetics, thermal phase transitions, gas–solid reactions, and electrochemical processes under controlled environmental conditions.

Key Features

• Curved position-sensitive detector (PSD) enabling zero-movement, real-time full-pattern acquisition without goniometer rotation
• High angular resolution (<0.02° 2θ FWHM at Cu Kα) supported by optimized X-ray optics and low-divergence incident beam geometry
• Large sample chamber (internal dimensions: Ø 200 mm × H 180 mm) accommodating diverse accessories including HT/VT stages, humidity cells, electrochemical cells, and automated sample changers
• Modular X-ray source compatibility: configurable with sealed-tube Cu, Co, Fe, or Cr anodes; optional microfocus source for microdiffraction applications
• Robust, maintenance-free architecture with no moving parts in the detection path and solid-state cooling for long-term detector stability
• Integrated safety interlocks compliant with IEC 61010-1 and CE marking for laboratory use in regulated environments

Sample Compatibility & Compliance

The EQUINOX 3000 supports a broad range of powdered, polycrystalline, thin-film, and bulk solid samples—including air-sensitive, hygroscopic, or thermally unstable materials—when used with appropriate sample holders and environmental chambers. Its open-access sample stage facilitates custom mounting solutions for non-standard geometries. The system complies with international standards for analytical instrumentation, including ISO/IEC 17025 requirements for testing laboratories, ASTM E975 (Standard Practice for X-ray Diffraction Crystallographic Analysis), and EU Directive 2014/30/EU (EMC Directive). For GLP/GMP-regulated workflows, optional audit-trail-enabled software modules support 21 CFR Part 11 compliance through electronic signatures, user access controls, and immutable data logging.

Software & Data Management

Data acquisition and analysis are managed via Thermo Scientific’s proprietary EQUINOX Suite software, which provides real-time pattern visualization, automatic peak search and indexing, Rietveld refinement (via integrated TOPAS engine), and quantitative phase analysis using reference intensity ratio (RIR) or full-pattern methods. Raw and processed data are stored in vendor-neutral formats (e.g., CIF, XYE, HDF5) and support metadata tagging per ISO 11146 and IUPAC recommendations. The software architecture allows integration with LIMS platforms via OPC UA or RESTful API interfaces, and supports batch processing for high-throughput screening protocols. All processing algorithms are traceable, version-controlled, and documented in accordance with ISO/IEC 17025 clause 7.2.2 (Method Validation).

Applications

• Phase identification and quantification in pharmaceutical polymorph screening and excipient compatibility studies
• In situ monitoring of solid-state reactions during thermal treatment (e.g., calcination, dehydration, polymorphic transformation)
• Residual stress and texture analysis in metallurgical and additive manufacturing powders
• Crystallinity assessment of battery cathode/anode materials under electrochemical cycling
• Geological mineralogical profiling and cement hydration kinetics
• Quality control of industrial catalysts, pigments, and ceramic precursors per ASTM C1365 or ISO 13320

FAQ

Does the EQUINOX 3000 require routine goniometer calibration?
No. The fixed-geometry design with curved PSD eliminates mechanical scanning components, rendering angular calibration unnecessary after initial factory alignment.
Can the instrument be upgraded for microdiffraction or grazing-incidence measurements?
Yes. Optional attachments—including parallel-beam optics, XYZ motorized stages, and incidence angle control modules—enable GIXRD and micro-XRD configurations without hardware replacement.
Is remote operation supported for unattended data collection?
Yes. The system supports secure SSH and VNC-based remote access, scheduled acquisitions, and email/SNMP alerts for run completion or error conditions.
What X-ray tube power options are available?
Standard configuration uses a 2.2 kW sealed-tube source; high-power variants up to 3.5 kW are available for enhanced signal-to-noise in low-intensity applications.
How is data integrity ensured in regulated environments?
With optional 21 CFR Part 11-compliant software, the system provides role-based access, electronic signatures, audit trails, and cryptographic hashing of raw datasets to meet FDA and EMA requirements.
