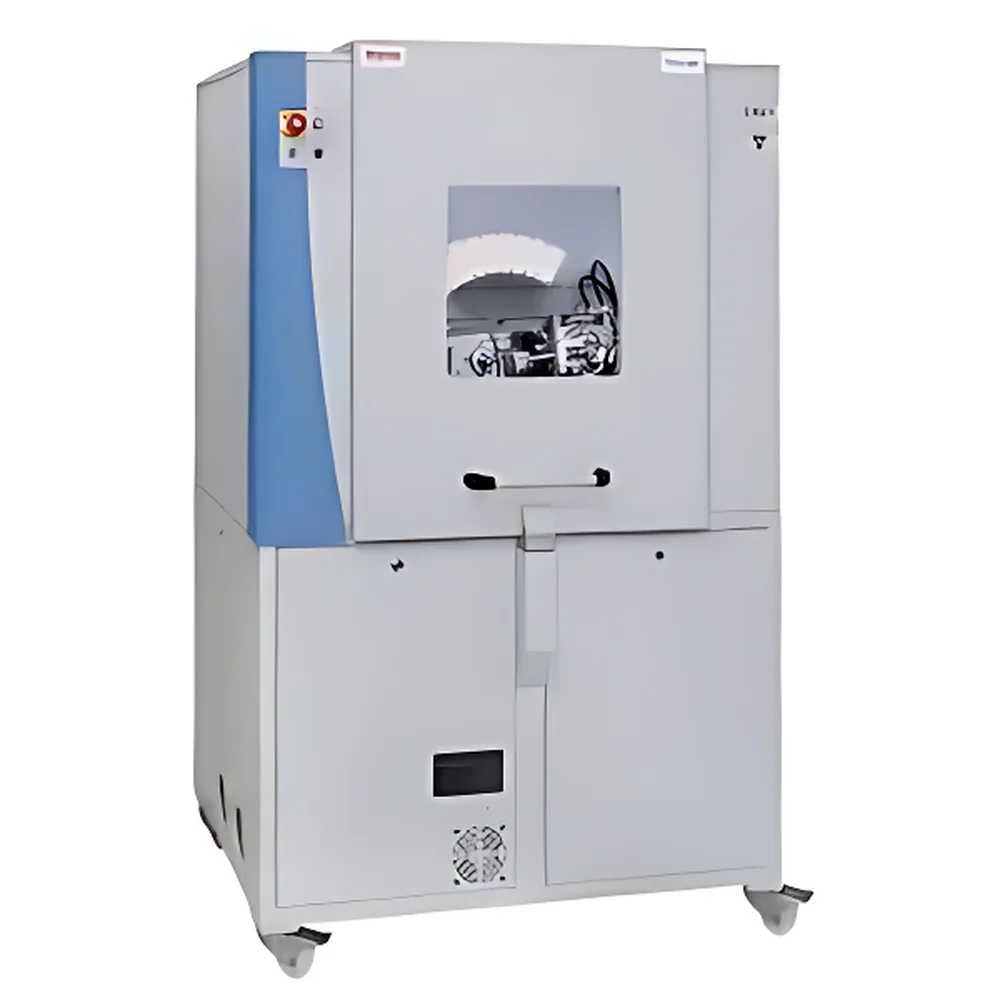

Thermo Scientific ARL EQUINOX 3000 Powder X-ray Diffractometer

Overview

The Thermo Scientific ARL EQUINOX 3000 is a high-performance, research-grade powder X-ray diffractometer engineered for rapid, high-resolution phase identification, quantitative analysis, and in situ/operando structural characterization. Unlike conventional step-scanning diffractometers that rely on sequential angular detection, the ARL EQUINOX 3000 employs a fixed-geometry design with a curved position-sensitive detector (PSD), enabling true simultaneous acquisition across the full 2θ range—typically spanning up to 120°—without mechanical movement of the detector or goniometer. This architecture is grounded in Bragg’s law and leverages Cu Kα (or optional Co/Fe/Mo Kα) radiation to deliver real-time diffraction patterns with intrinsically high signal-to-noise ratio and exceptional angular fidelity. Its fixed optics configuration eliminates goniometric calibration drift and mechanical hysteresis, resulting in long-term measurement stability and reproducibility essential for longitudinal studies and regulatory-compliant material qualification.

Key Features

• Curved PSD architecture enabling zero-movement, real-time full-pattern acquisition — no scanning delays, no peak misregistration due to stage inertia or encoder error
• Large-volume sample chamber (≥300 mm diameter × 200 mm height) accommodating high-temperature furnaces (up to 1600 °C), cryostats, humidity cells, stress rigs, and multi-position autosamplers
• Modular X-ray source platform supporting sealed-tube anodes (Cu, Co, Fe, Mo) and optional microfocus sources for improved spatial resolution in heterogeneous samples
• Integrated beam conditioning: programmable divergence slits, automatic anti-scatter collimation, and incident-beam monochromators for enhanced peak shape fidelity and reduced background
• Robust industrial-grade frame with vibration-damped optical bench and temperature-stabilized detector housing to maintain alignment under variable lab conditions
• No routine optical recalibration required — geometric stability certified per ISO 17873 for angular accuracy ≤ ±0.01° 2θ over 12-month intervals

Sample Compatibility & Compliance

The ARL EQUINOX 3000 supports a broad spectrum of solid-state materials including crystalline powders, thin films, ceramics, pharmaceutical APIs and excipients, catalysts, battery electrode composites, geological specimens, and metallurgical alloys. Its open-access chamber design permits direct integration with third-party in situ stages compliant with ASTM E975 (XRD phase analysis), ISO 13126 (powder diffraction data quality), and USP (pharmaceutical polymorph screening). Data acquisition and processing workflows are structured to support 21 CFR Part 11 compliance when deployed with Thermo Scientific OMNIC Paradigm software—including electronic signatures, audit trails, role-based access control, and immutable raw-data archiving. System validation documentation aligns with ICH Q5E and Q7 requirements for GMP environments.

Software & Data Management

Control and analysis are executed via Thermo Scientific OMNIC Paradigm — a modular, scriptable platform supporting automated batch processing, Rietveld refinement (using GSAS-II or TOPAS engines), whole-pattern fitting, and crystallite size/strain analysis via Williamson-Hall or Warren-Averbach methods. Raw .raw and .xrdml files are stored in vendor-neutral formats compliant with the IUCr CIF 1.1 standard. The software includes built-in libraries (ICDD PDF-4+ 2024, Crystallography Open Database) and supports custom phase modeling for amorphous content quantification (e.g., using the Modified Rietveld method). All processing parameters, instrument configurations, and user actions are logged in timestamped, tamper-evident audit trails meeting GLP audit readiness criteria.

Applications

• Polymorph screening and stability testing of active pharmaceutical ingredients under thermal/humid stress
• In situ monitoring of solid-state reactions: crystallization kinetics, phase transitions during heating/cooling cycles, redox-driven structural evolution in cathode materials
• Quantitative phase analysis (QPA) of complex multiphase systems such as clinker, slag blends, or composite electrodes using internal standard or reference intensity ratio (RIR) methods
• Nanocrystallite size and microstrain determination in catalyst supports and nanocomposites via line-broadening analysis
• Thin-film texture analysis and residual stress mapping using sin²ψ methodology with motorized χ-tilt stage (optional)
• Forensic mineral identification and provenance analysis in cultural heritage and geoscience applications

FAQ

Does the ARL EQUINOX 3000 require routine goniometer recalibration?

No — its fixed-geometry optical layout eliminates mechanical scanning components; angular accuracy is maintained by design and verified annually per ISO 17873.
Can it perform Rietveld refinement out of the box?

Yes — OMNIC Paradigm includes integrated Rietveld modules and supports export to external refinement packages (GSAS-II, FullProf) with full metadata preservation.
Is the system compatible with automated sample changers?

Yes — the large chamber accommodates commercial XYZ autosamplers with programmable tray indexing and barcode recognition.
What X-ray tube options are available beyond standard Cu Kα?

Co, Fe, and Mo sealed-tube sources are factory-integrated options; microfocus tubes (5–50 µm spot size) are available for microdiffraction applications.
How is data integrity ensured for regulated environments?

Through 21 CFR Part 11–compliant user authentication, electronic signatures, version-controlled method templates, and write-once-read-many (WORM) raw data archiving.
