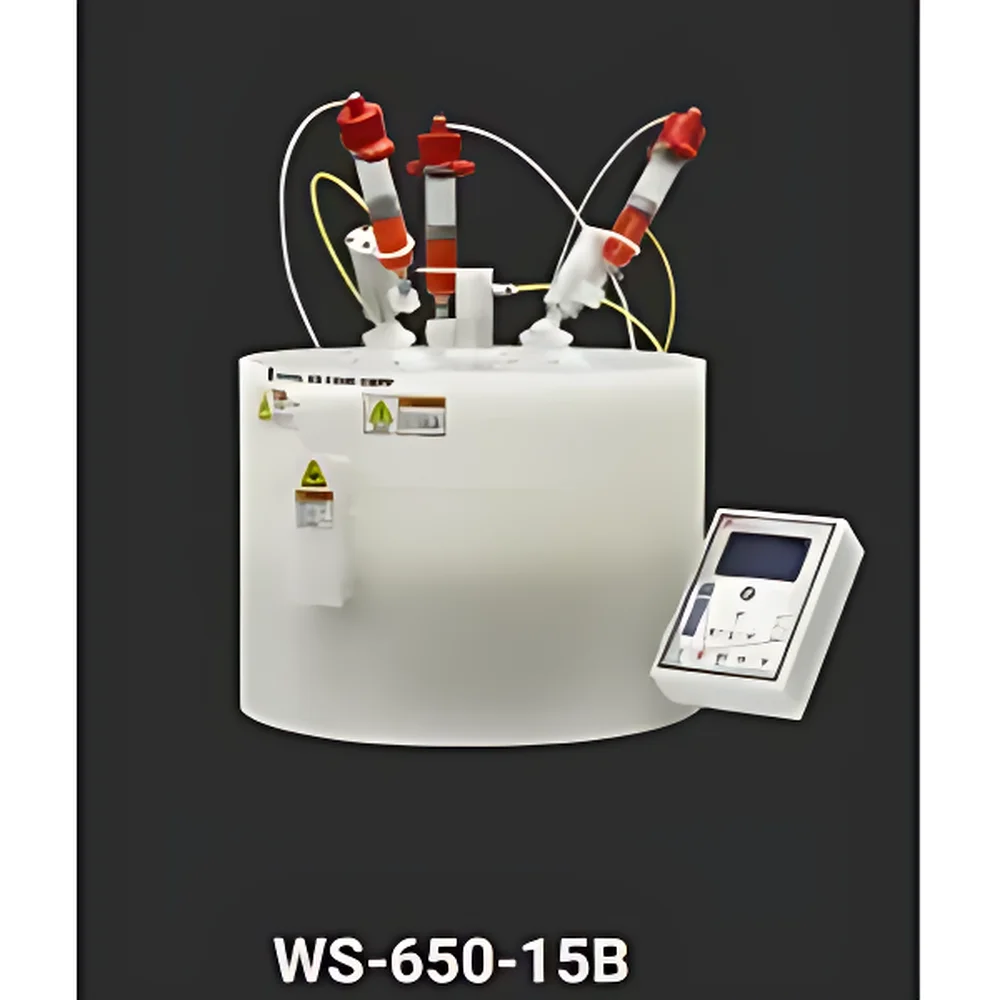

Laurell WS-650 Series Spin Coater

Overview

The Laurell WS-650 Series Spin Coater is a precision-engineered semiconductor process tool designed for reproducible, contamination-controlled thin-film deposition via rotational coating. Operating on the principle of centrifugal force-driven fluid dispersion, the system uniformly spreads liquid photoresists, spin-on glasses (SOG), anti-reflective coatings (ARC), polyimides, and other functional solutions onto flat substrates—ranging from silicon wafers and compound semiconductors to glass, quartz, and flexible polymer foils. Its closed-chamber architecture, integrated labyrinth seal, and nitrogen-purged motor housing collectively suppress particle generation to sub-micron levels (<0.1 µm), meeting stringent requirements for photolithography in R&D, pilot-line fabrication, and low-volume high-mix production environments. The system is fully compatible with Class 100 cleanroom installations and supports integration into glovebox workflows for air/moisture-sensitive chemistries.

Key Features

• Microprocessor-based 650 Series Process Controller with real-time interactive operation—enabling pause, resume, and step-by-step intervention during active spin cycles.
• Spin3000 software suite (included at no cost): enables virtual process simulation, remote monitoring/control over LAN or Internet, full audit trail logging, and exportable CSV/TXT data files compliant with GLP/GMP documentation standards.
• Proprietary internal drum design eliminates splatter—no external splash ring required—reducing maintenance and enhancing repeatability.
• Chemically resistant ECTFE-coated 316 stainless steel fasteners and solvent-rated lid materials ensure long-term compatibility with aggressive developers (e.g., TMAH), etchants (SC-1, SC-2), and organic solvents (PGMEA, acetone, IPA).
• Double-seal architecture: upper pneumatic chamber provides overlapping gasket closure; internal drain channel directs residual fluid away from substrate toward rear-mounted removable collection tank.
• Labyrinth motor seal actively purged with dry nitrogen (or CDA), isolating drive electronics from process vapors—validated for <1 particle/cm² @ 0.1 µm in field testing.
• Full electrical isolation and interlocked safety system: rotation disabled unless vacuum is engaged and lid is fully sealed; certified to UL 61010-1, CSA C22.2 No. 61010-1, and ETL standards.

Sample Compatibility & Compliance

The WS-650 accommodates substrates up to 300 mm (12″) square or circular—supporting standard wafer formats (100 mm, 150 mm, 200 mm, 300 mm) as well as non-standard geometries including rectangular masks, MEMS carriers, and display substrates. It complies with CE Directive 2014/30/EU (EMC), 2014/35/EU (LVD), and RoHS 2011/65/EU. All units ship with full conformity documentation, including Declaration of Conformity, test reports, and traceable calibration records. Optional EDC™ (Electronic Data Capture) variants provide 21 CFR Part 11-compliant electronic signatures, user-level access control, and immutable process logs for regulated environments.

Software & Data Management

Spin3000 is a native Windows application built using object-oriented architecture, enabling hierarchical process definition (up to 999 steps per recipe, unlimited recipes). Each step stores speed, acceleration, dispense timing, dwell duration, and vacuum/N₂ valve states. Real-time graphs display actual vs. target RPM, torque load, and chamber pressure. Data export supports CSV, XML, and PDF report generation with embedded metadata (operator ID, timestamp, instrument SN, environmental log). Firmware updates are delivered via secure HTTPS download and installed locally without factory return—modular plug-in architecture allows field upgrades to new hardware options (e.g., automated dispense modules, temperature-controlled chucks).

Applications

The WS-650 Series serves critical unit operations across microfabrication and advanced packaging: photoresist coating for optical and EUV lithography; dielectric spin-on films (SiO₂, SiNₓ analogs); conductive polymer layers for flexible electronics; hydrophobic/hydrophilic surface modification; and solvent-based nanomaterial deposition (quantum dots, perovskites, graphene dispersions). It is routinely deployed in university cleanrooms, government labs (e.g., NIST, IMEC-affiliated facilities), and Tier-1 semiconductor equipment OEMs for process development, DOE studies, and qualification of novel resist formulations under ISO 9001 and IATF 16949 quality systems.

FAQ

What substrate sizes does the WS-650 support?
Standard configurations cover 150 mm (6″), 200 mm (8″), and 300 mm (12″) substrates; custom chucks are available for non-circular or irregular geometries.
Is nitrogen purge mandatory?
Yes—for motor protection and chamber inerting. A regulated supply of dry N₂ or CDA at 60–70 PSIG is required; consumption ranges from 3 ft³/hr (standard motor) to 20 ft³/hr (high-torque variant).
Can the system operate inside a nitrogen glovebox?
Yes—fully compatible with inert-atmosphere enclosures; optional feedthroughs accommodate power, vacuum, gas, and Ethernet lines.
Does Spin3000 meet FDA 21 CFR Part 11 requirements?
EDC™-equipped models include electronic signature capability, role-based permissions, and tamper-evident audit trails—validated for use in pharmaceutical and medical device manufacturing environments.
What maintenance intervals are recommended?
No scheduled preventive maintenance is required for the core spin mechanism. Annual verification of vacuum integrity, seal condition, and firmware version is advised; consumables include O-rings and collection tank liners.
