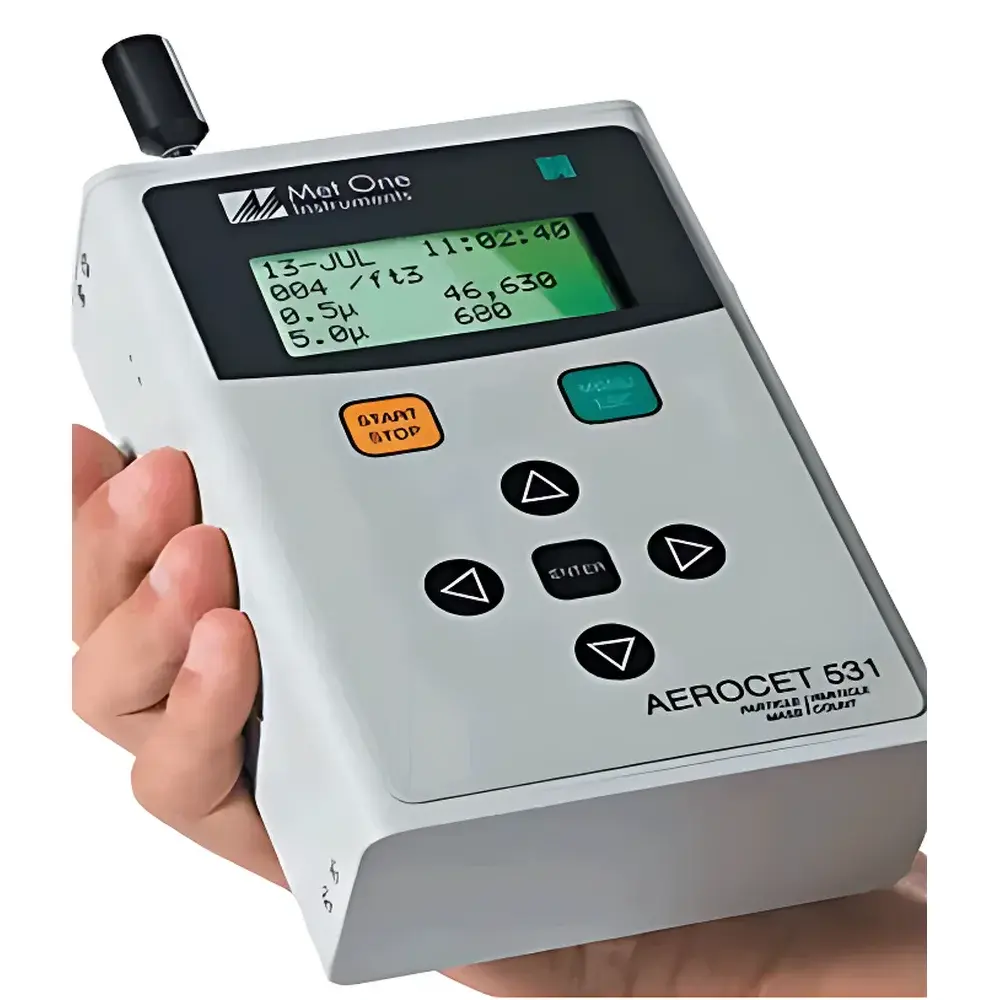

METONE Aerocet-531 Handheld PM2.5 Particulate Monitor

Overview

The METONE Aerocet-531 is a portable, real-time particulate matter (PM) monitoring instrument engineered for field-deployable environmental and occupational air quality assessment. It operates on the principle of laser light scattering—where airborne particles passing through a focused 650 nm diode laser beam generate scattered photons proportional to their size and concentration. The detector array captures this scatter signal and converts it into quantitative particle number concentrations (per cubic foot) and mass-based PM metrics (mg/m³), including PM₁, PM₂.₅, PM₇, PM₁₀, and total suspended particulates (TSP). Unlike passive samplers or gravimetric methods requiring post-processing, the Aerocet-531 delivers immediate, on-site data with dual operational modes: aerosol mass concentration (dust monitor mode) and discrete particle counting (particle counter mode). Its compact form factor, integrated rechargeable power system, and robust industrial housing make it suitable for indoor air quality (IAQ) surveys, construction site compliance checks, HVAC performance verification, and preliminary exposure assessments in industrial hygiene applications.

Key Features

• Laser scattering detection with calibrated optical path optimized for 0.5–10 µm particle sizing range
• Dual-mode operation: simultaneous switching between dust monitor mode (0–1 mg/m³, 2-min sampling) and particle counter mode (0–3,000,000 particles/ft³, 1-min sampling)
• Real-time measurement of PM₁, PM₂.₅, PM₇, PM₁₀, and TSP per ISO 7708 and EPA reference methods
• Two independent display channels showing concurrent parameters (e.g., PM₂.₅ mass + 0.5 µm count)
• Integrated 6 V NiCd rechargeable battery supporting >8 hours of continuous operation
• 16×4 character LCD with backlight for low-illumination environments
• RS-232 serial interface (9600 baud) for direct PC communication and firmware updates
• Optional temperature/humidity probe (METONE RH-Temp Probe) enabling concurrent environmental parameter logging
• Internal memory storing up to 1,000 sample records with timestamp, location tag (manual entry), and mode configuration

Sample Compatibility & Compliance

The Aerocet-531 is designed for ambient, indoor, and workplace air matrices containing non-volatile, non-cohesive solid or liquid aerosols—including dust, smoke, pollen, mold spores, and combustion byproducts. It complies with fundamental performance expectations outlined in ISO 21501-4 (calibration of airborne particle counters) and aligns with sampling protocols referenced in EPA Method PS-1 and ASTM D6245 for indoor air particulate characterization. While not certified as a regulatory-grade reference monitor under 40 CFR Part 53, its traceable calibration certificate (NIST-traceable reference aerosols) supports use in Tier 2 screening, engineering controls validation, and GLP-aligned preliminary monitoring. Device firmware and data output formats are compatible with audit-ready workflows, including manual record retention per OSHA 1910.120 and AIHA RP-1 guidance.

Software & Data Management

Data retrieval and analysis are supported via METONE’s proprietary Aerocet Desktop Software (Windows-compatible), which enables download of stored measurements, time-series visualization, export to CSV/Excel, and customizable reporting templates. All data files include embedded metadata: sampling mode, duration, flow rate, temperature/humidity (if probed), and operator ID. The software supports basic statistical summaries (mean, min/max, standard deviation) across user-defined intervals and permits annotation of events (e.g., “HVAC off”, “drilling initiated”). For laboratories operating under FDA 21 CFR Part 11 requirements, optional audit trail add-ons and electronic signature modules may be deployed in conjunction with validated IT infrastructure—though native software does not include built-in electronic signatures or role-based access control.

Applications

• Indoor Air Quality (IAQ) baseline studies and post-remediation verification in schools, hospitals, and office buildings
• Construction and demolition site dust monitoring to ensure compliance with local PM₁₀ emission thresholds
• Occupational hygiene assessments for respirable dust exposure in mining, woodworking, and pharmaceutical manufacturing
• Educational demonstrations of aerosol behavior, filtration efficiency testing, and ventilation effectiveness evaluation
• Field validation of low-cost sensor networks where higher-fidelity spot-checking is required
• Pre-screening prior to deployment of gravimetric or beta-attenuation reference monitors

FAQ

Does the Aerocet-531 meet EPA or EU regulatory requirements for official PM₂.₅ compliance monitoring?

No—it is a screening-grade instrument intended for indicative measurements and process-level assessment, not regulatory enforcement.
Can the device measure ultrafine particles below 0.5 µm?

No; its lower detection limit is 0.5 µm, per ISO 21501-4 calibration standards.
Is the internal battery replaceable by the end user?

Yes—the 6 V NiCd pack is field-replaceable using standard service tools and METONE-specified replacement part #BATT-531.
What is the recommended calibration interval?

Annual calibration is advised; METONE recommends recalibration using polystyrene latex (PSL) spheres at 0.5 µm and 5.0 µm, traceable to NIST SRM 1963.
Does the RS-232 interface support real-time streaming during sampling?

No—data transmission occurs only after sampling completion and memory readout; no live telemetry protocol is implemented.
