| Brand | Ruishenbao |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | MFM-01 |
| Dimensions (L×W×H) | 1020×650×1300 mm |
| Temperature Range | Ambient to 1700 °C (long-term operation) |
| Temperature Control Accuracy | ±1 °C (with optional temperature control module) |
| Sample Throughput | 5–10 min per batch |
| Heating Method | High-Frequency Induction |
| Power Supply | AC 380 V / 50 Hz |
| Rated Power | 20 kW |
| Cooling Water Pressure | 0.15–0.2 MPa |
| Programmable Profiles | 10 stored methods |
| Tilting Angle | 0–90° adjustable |
| Tilting Speed | 0–30 rpm adjustable |
| Rotation Speed | 0–30 rpm adjustable |
| Sample Positions | 2 or 4 (customizable) |
| Operating Atmosphere | Air (vacuum and inert gas options available) |

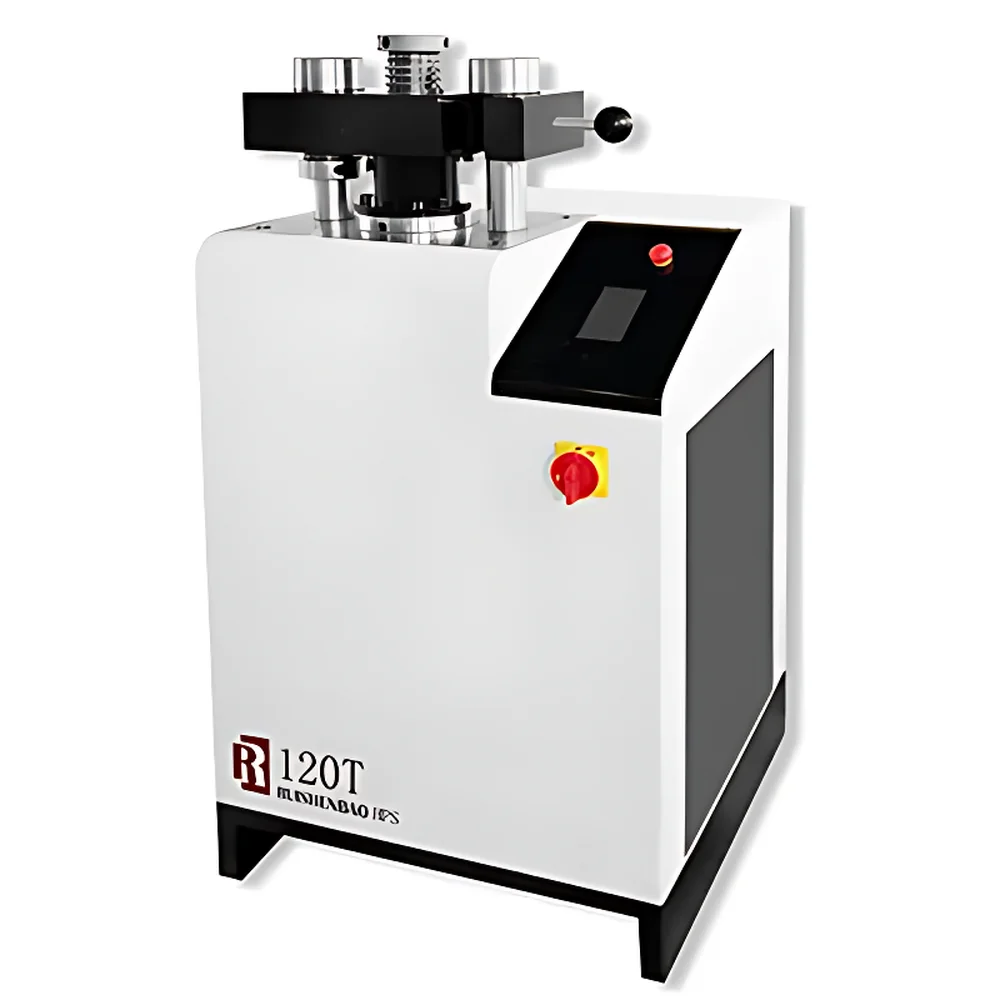

| Brand | Ruishenbao |
|---|---|
| Origin | Shanghai, China |
| Model | HPS 120T |
| Type | Fully Automated Pellet Press |
| Max. Pressure | 120 Ton (1,177 kN) |
| Operating Temp. | 0–40 °C |
| Control System | Industrial PLC with Color Touchscreen HMI |
| Hydraulic Fluid | ISO VG 46 Anti-Wear Hydraulic Oil |
| Power Supply | AC 380 V ±10%, 50 Hz, 3-phase 5-wire, 10 A |
| Rated Power | 1.5 kW |
| Sample Diameter | 40 mm (customizable) |
| Dimensions (L×W×H) | 610 × 500 × 920 mm |
| Net Weight | 410 kg |
| Compliance | Designed for ISO/IEC 17025-compliant XRF sample preparation workflows |
| Brand | Ruishenbao |
|---|---|
| Origin | Shanghai, China |

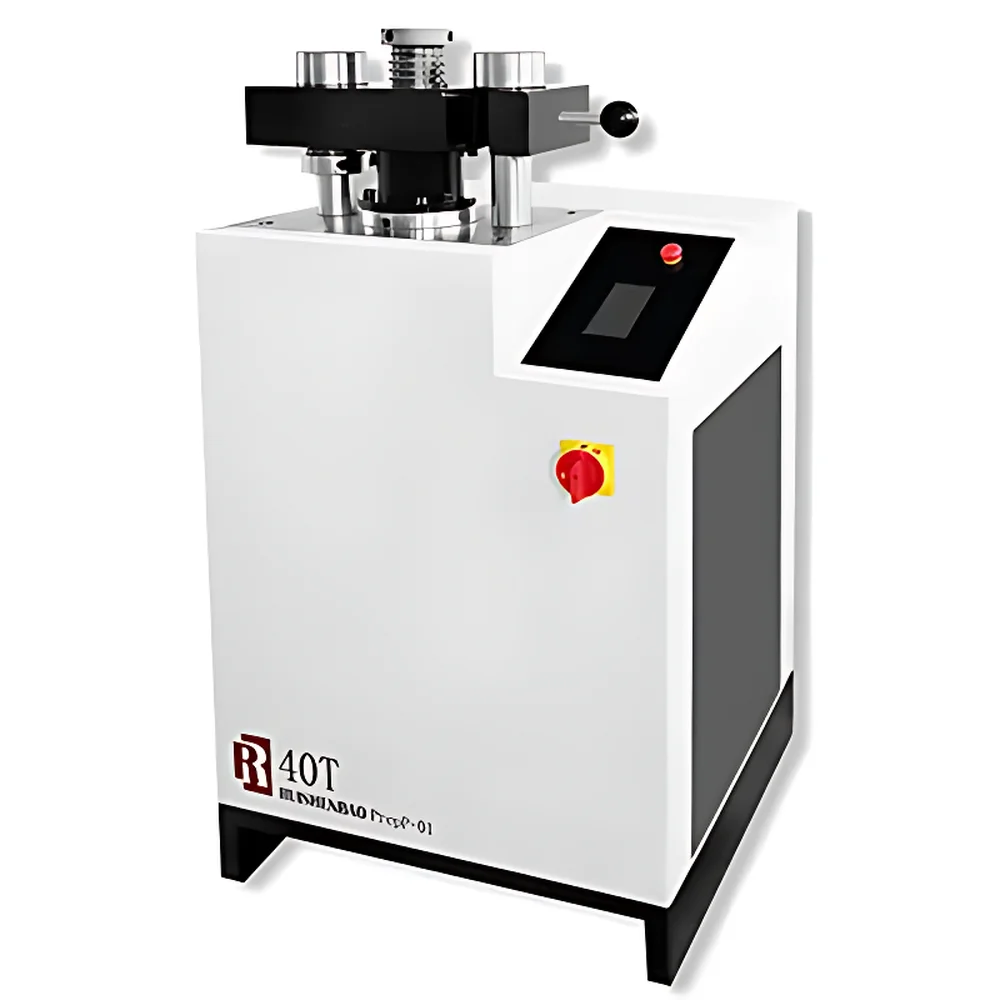

| Model | PrepP-01 40T |
| Maximum Force | 40 Ton (392 kN) |
| Pressure Control | Gradual Compression & Controlled Decompression |
| Hydraulic Sealing | Specialized Oil-Resistant Sealing System |
| Die Material | Hardened Corrosion-Resistant Steel |
| Operating Voltage | 380 V AC, 10 A |
| Ambient Temperature Range | 0–40 °C |
| Relative Humidity | 0–85% RH (non-condensing) |
| Application | XRF Powder Pelletization |
| Brand | Ruishenbao |
|---|---|
| Origin | Beijing, China |
| Model | FGC-00 |
| Dimensions (L×W×H) | 470×470×260 mm |
| Operating Temperature Range | 800–1600 °C |
| Number of Fusion Heads | 4 |
| Fuel Type | LPG (Propane/Butane) |
| Gas Pressure | 50 mbar ±5 mbar |
| Air Pressure | 6–10 bar (dual-stage regulator) |
| Oxygen Pressure | 2.0 bar ±0.1 bar (dual-stage regulator) |
| Power Supply | 220 V AC, 50/60 Hz, 200 W |
| Safety Features | Gas leak detection, overtemperature cutoff, flame monitoring lockout, thermal sensor–based flame control |
| Control System | PLC-based with PID temperature regulation, LED status display |
| Fusion Cycle Stages | Preheating → Oxidation → Melting → Cooling (time-adjustable per stage) |
| Sample Handling | Independent head control, programmable rocking angle/frequency, automatic mold pouring |
| Compliance | Designed for GLP-compliant XRF sample preparation workflows per ISO 29581-2, ASTM E1936, and USP <731> guidance on fused bead methodology |
| Brand | Ruishenbao |
|---|---|
| Origin | Tianjin, China |
| Model | PrepP-01FS |
| Type | Fully Automatic Pellet Press |
| Max. Force | 400 kN |
| Platen Diameter | 23 mm & 23.5 mm (customizable) |
| Adjustable Platen Spacing | 200 mm |
| Power Supply | 220 V AC, 50/60 Hz, 750 W, 10 A |
| Hydraulic Fluid | Anti-wear Hydraulic Oil No. 46 |
| Pressure Accuracy | ±1% (fluctuation) |
| Host Dimensions (L×W×H) | 590 × 650 × 470 mm |
| Control Cabinet Dimensions (L×W×H) | 630 × 480 × 1048 mm |
| Host Weight | 208 kg |
| Control Cabinet Weight | 50 kg |
| Radiation Tolerance | ≤0.1 mSv/h (verified) |

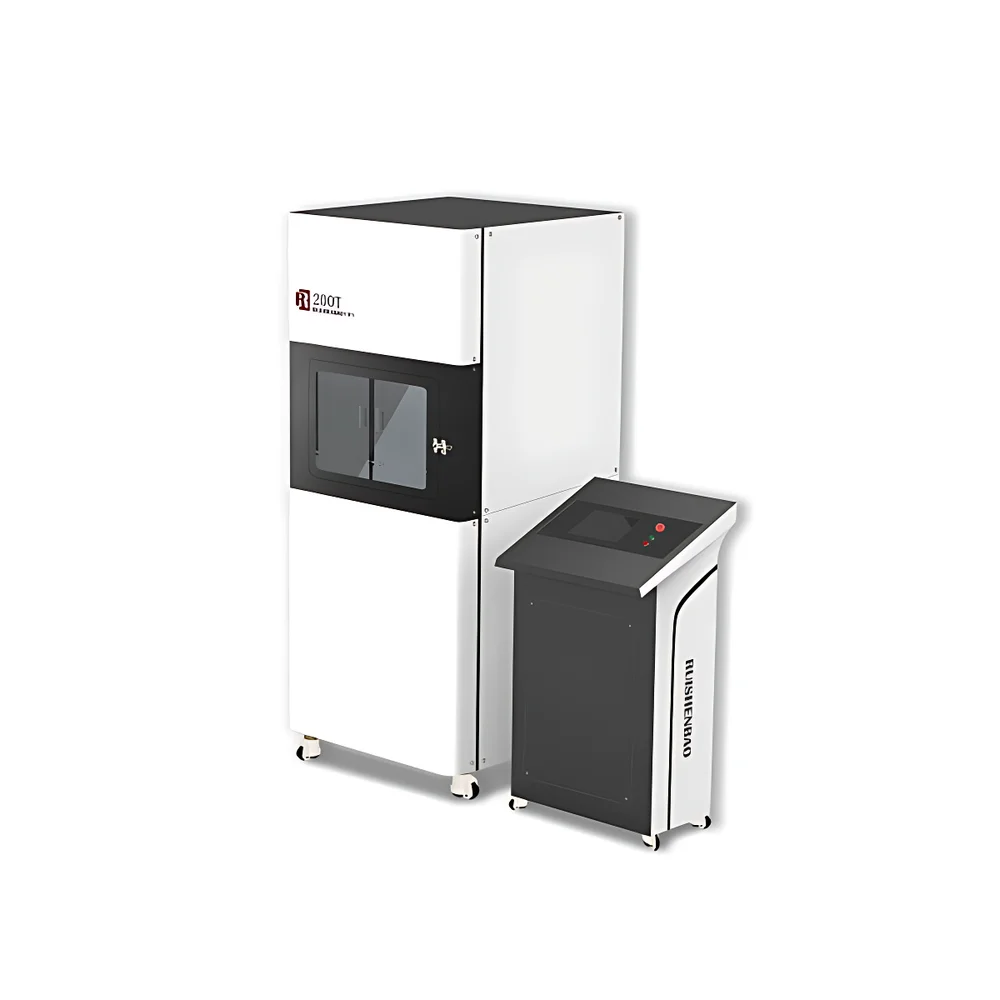

| Brand | Ruishenbao |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | UHPS |
| Instrument Type | Fully Automated Pellet Press |
| Maximum Pressure | 320 metric tons (t) |
| Adjustable Pressure Range | 0–320 t |
| Pressure Control Accuracy | ±0.1 t |
| Operating Temperature | 0–40 °C |
| Hydraulic Fluid | Anti-wear Hydraulic Oil ISO VG 46 |
| Power Supply | AC 380 V ±10%, 50 Hz, 32 A, 3-phase 5-wire |
| Rated Power | 9.5 kW |
| Pellet Diameter | Φ40 mm |
| Dimensions (Main Unit) | 800 × 800 × 1900 mm |
| Dimensions (Hydraulic Power Unit) | 550 × 650 × 1100 mm |
| Net Weight | 1.6 t |
| Safety Features | Tungsten carbide tooling with high-toughness alloy explosion-proof collars, reinforced steel passive shielding, dual-layer bullet-resistant polycarbonate viewing window, interlocked safety door with electromagnetic lock |

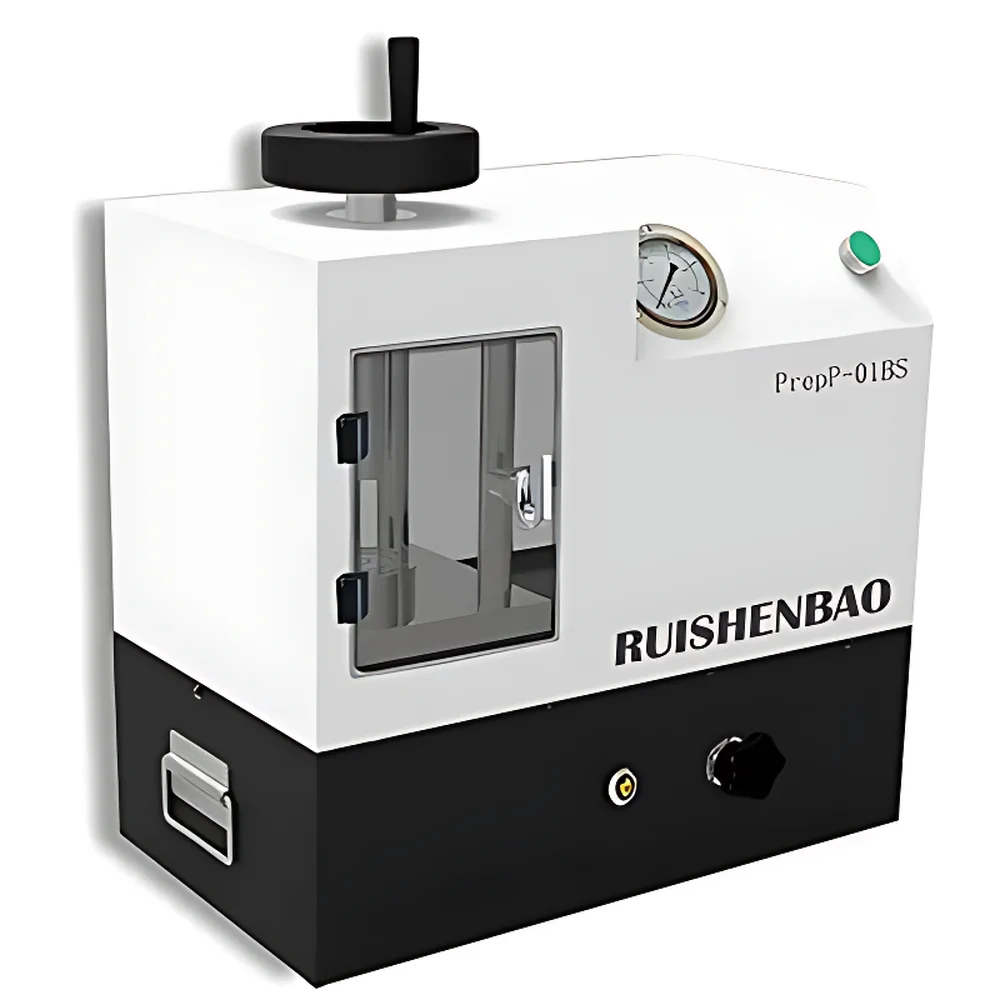

| Brand | Ruishenbao |
|---|---|
| Origin | Shanghai, China |
| Model | PrepP-01BS |
| Type | Fully Automatic Hydraulic Pellet Press |
| Maximum Pressure | 40 Ton (392 kN) |
| Power Supply | 220 V AC |
| Cycle Time | ≤ 60 s per sample |
| Footprint | Desktop-mounted, Compact Design |
| Compliance | Designed for ISO/IEC 17025-compliant labs |
| Application Focus | XRF, FTIR, and elemental analysis sample preparation |

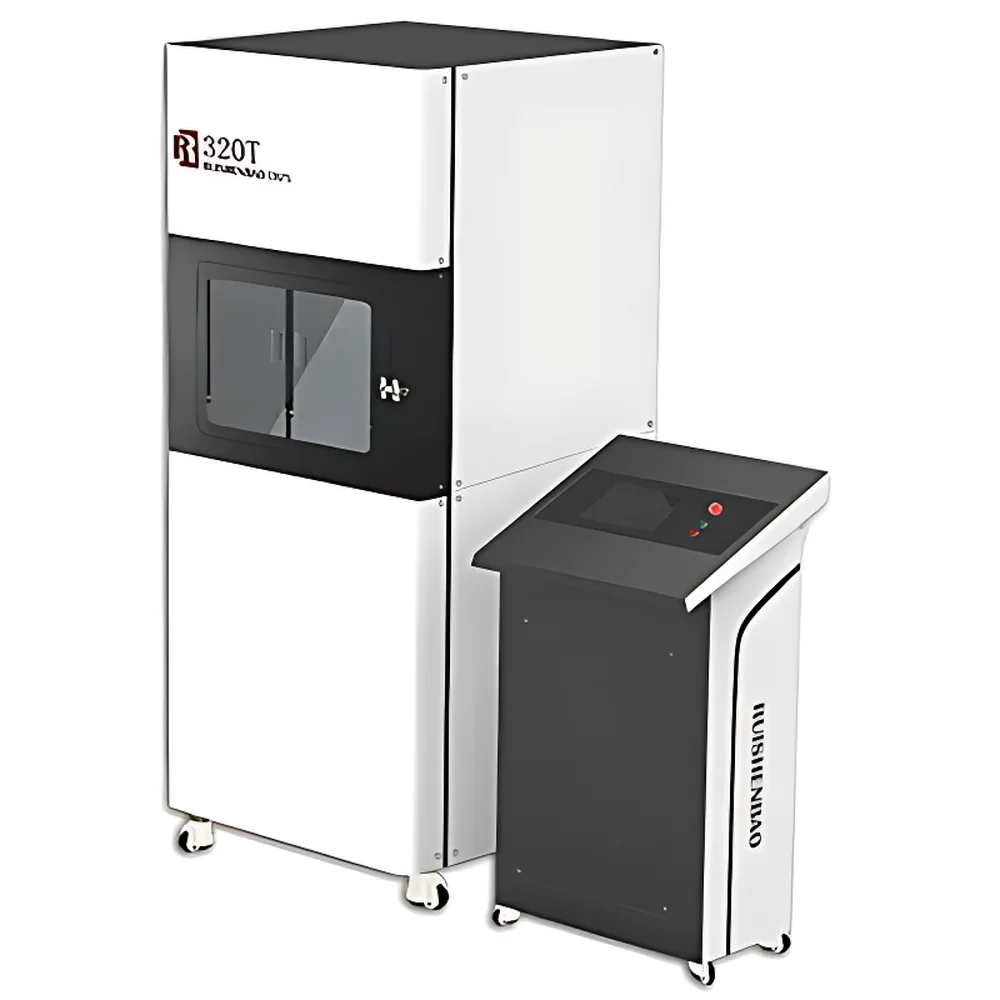

| Brand | Ruishenbao |
|---|---|
| Origin | Shanghai, China |
| Model | UHPS 320T |
| Max. Pressure | 320 tonnes |
| Pressure Adjustment Range | 0–320 T |
| Pressure Control Accuracy | ±0.1 T |
| Operating Temperature | 0–40 °C |
| Power Supply | AC 380 V ±10 %, 50 Hz, 3-phase 5-wire, 32 A |
| Power Consumption | 9.5 kW |
| Hydraulic Fluid | Anti-wear Hydraulic Oil ISO VG 46 |
| Pellet Diameter | Ø40 mm |
| Dimensions (L×W×H) | 800×800×1900 mm (main unit) + 550×650×1100 mm (control cabinet) |
| Net Weight | 1.6 tonnes |
| Automation Level | Fully Automated |
| Instrument Type | Fully Automated Pellet Press |
| Brand | Ruishenbao |
|---|---|
| Origin | Tianjin, China |
| Model | VGIRM-01 |
| Dimensions (L×W×H) | 1100 × 550 × 1500 mm |
| Temperature Range | Up to 1700 °C (standard), 2100 °C (with optional thermal insulation jacket) |
| Temperature Control Accuracy | ±5 °C |
| Sample Capacity | 20–200 g |
| Crucible Rotation Speed | 4–12 rpm |
| Tilting Angle | 20–40° (adjustable) |
| Tilting Frequency | 4–12 cycles/min |
| Vacuum System | Direct-drive rotary vane pump + automated vacuum valve |
| Atmosphere Control | Pressure-sensor-regulated inert gas (Ar, N₂) purging and backfilling |
| Cooling Water Inlet | ID 25 mm / OD 30 mm, pressure 0.15–0.2 MPa |
| Power Supply | 3-phase 5-wire 380 V, 50 Hz |
| Total Rated Power | 25 kW |
| Net Weight | 180 kg |
| Temperature Monitoring | Non-contact infrared pyrometry |
| Pre-stored Programs | 10 user-definable fusion protocols |
| Brand | Ruishenbao |
|---|---|
| Origin | Shanghai, China |
| Model | HPS 100T |
| Max. Pressure | 100 T (980 kN) |
| Operating Temperature | 0–40 °C |
| Control System | PLC-based Programmable Controller |
| Hydraulic Fluid | Anti-wear Hydraulic Oil ISO VG 46 |
| Power Supply | 3-phase 5-wire AC 380 V ±10%, 50 Hz, 10 A |
| Rated Power | 1.5 kW |
| Standard Pellet Diameter | 40 mm (custom diameters available) |
| Dimensions (W×D×H) | 610 × 500 × 920 mm |
| Net Weight | 410 kg |
| Brand | Ruishenbao |
|---|---|
| Origin | Shanghai, China |
| Model | FSC-01 |
| Dimensions (L×W×H) | 680×650×560 mm |
| Temperature Control Accuracy | ±0.1 °C (at holding stage) |
| Maximum Operating Temperature | 1250 °C |
| Sample Capacity | 4 or 6 samples per cycle |

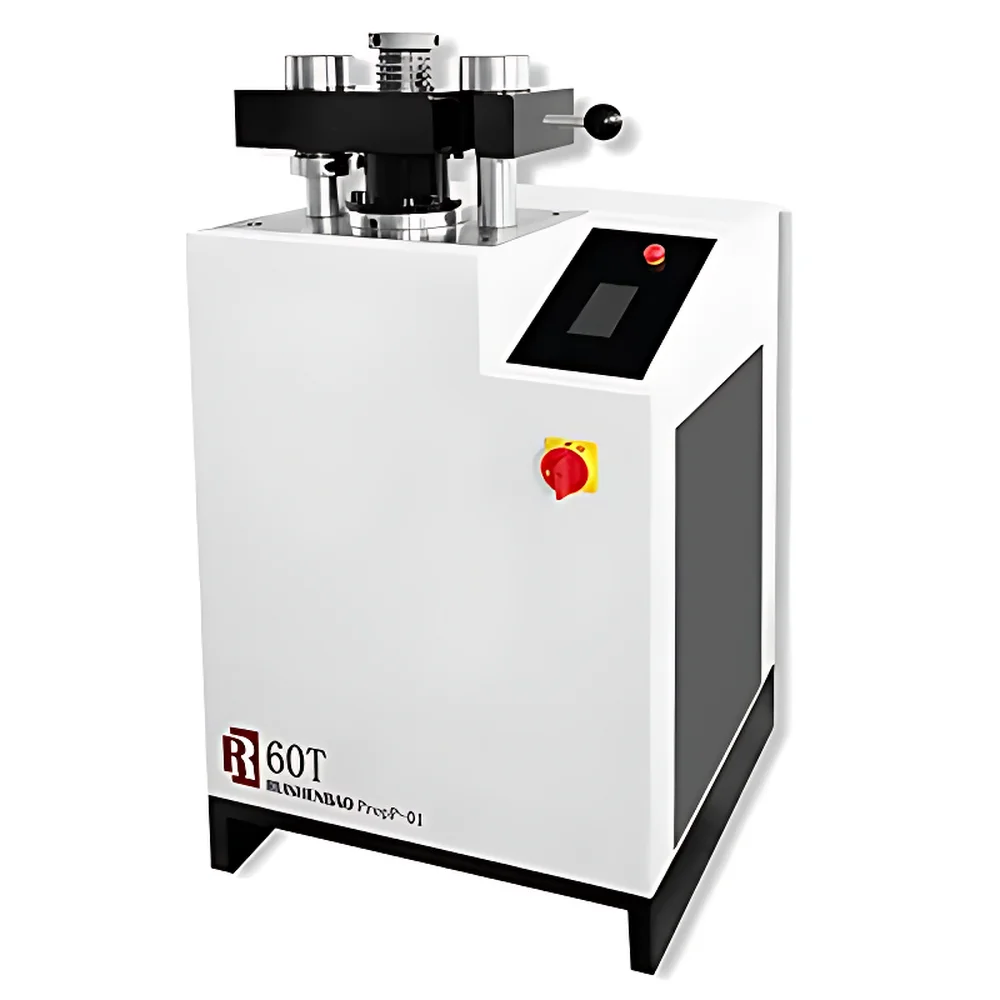

| Brand | Ruishenbao |
|---|---|
| Origin | Beijing, China |
| Model | PrepP-01 60T |
| Max. Working Pressure | 60 Ton (588 kN) |
| Pressure Range | 0–60 Ton (0–588 kN) |
| Sample Diameter | Φ40 mm (customizable) |
| Operating Temperature | 0–40 °C |
| Control System | Imported PLC |
| Power Supply | AC 380 V ±10%, 50 Hz, 3-phase 5-wire, 10 A |
| Power Consumption | 1.5 kW |
| Hydraulic Oil | Anti-wear Hydraulic Oil ISO VG 46 |
| Dimensions (L×W×H) | 610 × 500 × 920 mm |
| Net Weight | 410 kg |
| Automation Level | Fully Automatic |
| Compliance | Designed for ISO/IEC 17025-compliant XRF sample preparation environments |

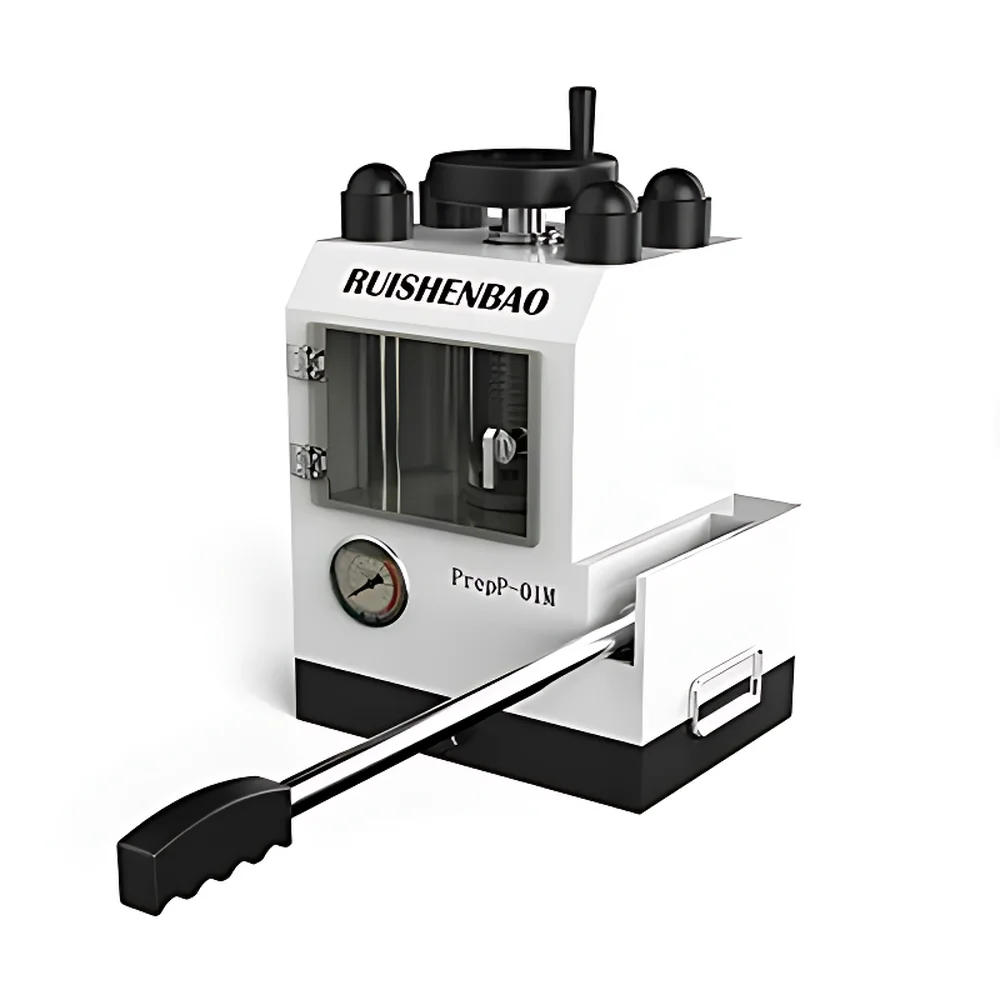

| Brand | Ruishenbao |
|---|---|
| Origin | Shanghai, China |
| Model | PrepP-01M |
| Type | Manual Pellet Press |
| Max. Pressure | 20 T |
| Operating Temperature Range | 0–40 °C |
| Pressure Resolution | 0.1 T |
| Hydraulic Fluid | Anti-wear Hydraulic Oil ISO VG 46 |
| Dimensions (L×W×H) | 300 × 250 × 600 mm |
| Net Weight | 25 kg |
| Sample Compatibility | Powdered solids for XRF and FTIR pelletization |
| Mold Material | High-hardness special alloy steel, surface finish Ra ≤ 0.4 µm |
| Brand | Ruishenbao |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Region of Origin | Domestic (China) |
| Model | CCRM-01 |
| Dimensions (L×W×D) | 1000 × 850 × 1150 mm |
| Temperature Range | Ambient to 1700 °C (long-term operation) |
| Temperature Control Accuracy | ±1 °C (with optional temperature control module) |
| Sample Capacity | ~50 g |
| Rated Power | 23 kW |
| Heating Method | High-Frequency Induction Heating |
| Oscillation Frequency | 40–260 kHz |
| Rotation Speed | 100–960 rpm |
| Rotation Radius | 220 mm |
| Vacuum & Atmosphere Options | Air, vacuum, or argon (with optional gas/vacuum modules) |
| Cooling Water Pressure | 0.15–0.2 MPa |
| Programmable Steps | Up to 10 independent thermal-mechanical profiles |
| Time Adjustment Range | 0–999 s per step |
| Brand | Ruishenbao |
|---|---|
| Origin | Beijing, China |
| Model | PrepP-01 80T |
| Maximum Working Pressure | 80 metric tons (800 kN) |
| Adjustable Pressure Range | 0–80 T |
| Control System | Imported PLC with Fully Automatic Electric Operation |
| Sample Diameter | Φ40 mm (customizable) |
| Operating Temperature | 0–40 °C |
| Hydraulic Fluid | Anti-wear Hydraulic Oil ISO VG 46 |
| Power Supply | AC 380 V ±10%, 50 Hz, 3-phase 5-wire, 10 A |
| Rated Power | 1.5 kW |
| Dimensions (L×W×H) | 610 × 500 × 920 mm |
| Net Weight | 350 kg |
| Frame Construction | Reinforced Thick-Section Steel Beam |
| Die Material | High-Hardness Wear-Resistant Alloy Steel (Surface Roughness Ra ≤ 0.4 µm) |
| Hydraulic Cylinder | Large-Bore Design for Rapid Pressure Buildup |
| Pressure Profile | Programmable Gradual Pressurization & Depressurization |
| Enclosure | Sealed Oil Reservoir with Dedicated Air Bleed Port |
| Compliance | Designed for ASTM E1361, ISO 20073, and USP <701> pellet preparation protocols |
| Brand | Ruishenbao |
|---|---|
| Origin | Tianjin, China |
| Model | FMC-01 |
| Temperature Range | Ambient to 1800 °C |
| Heating Method | Silicon Molybdenum (MoSi₂) Rod |
| Control Accuracy | ±0.1 °C (Dual Thermocouple Measurement) |
| Sample Capacity | 4 Positions (Customizable to 6) |
| Power Rating | 7.5 kW / 45 A, Single-Phase 220 V, 50/60 Hz |
| Crucible Type | Pt/Au (95/5) Alloy |
| Swinging Angle | ±75° (6 Adjustable Levels) |
| Swinging Frequency | Up to 1 Hz (6 Adjustable Levels) |
| Fusion Cycle Time | 12–18 min per 4 Samples |
| Safety Protections | Overtemperature, Thermocouple/Open-Heater Fault, Mechanical Motion Limit, Cooling Interlock |
| Dimensions (L×W×H) | Main Unit: 680×650×560 mm |
| Controller | 630×260×420 mm |
| Weight | 150 kg (Main Unit + Controller) |

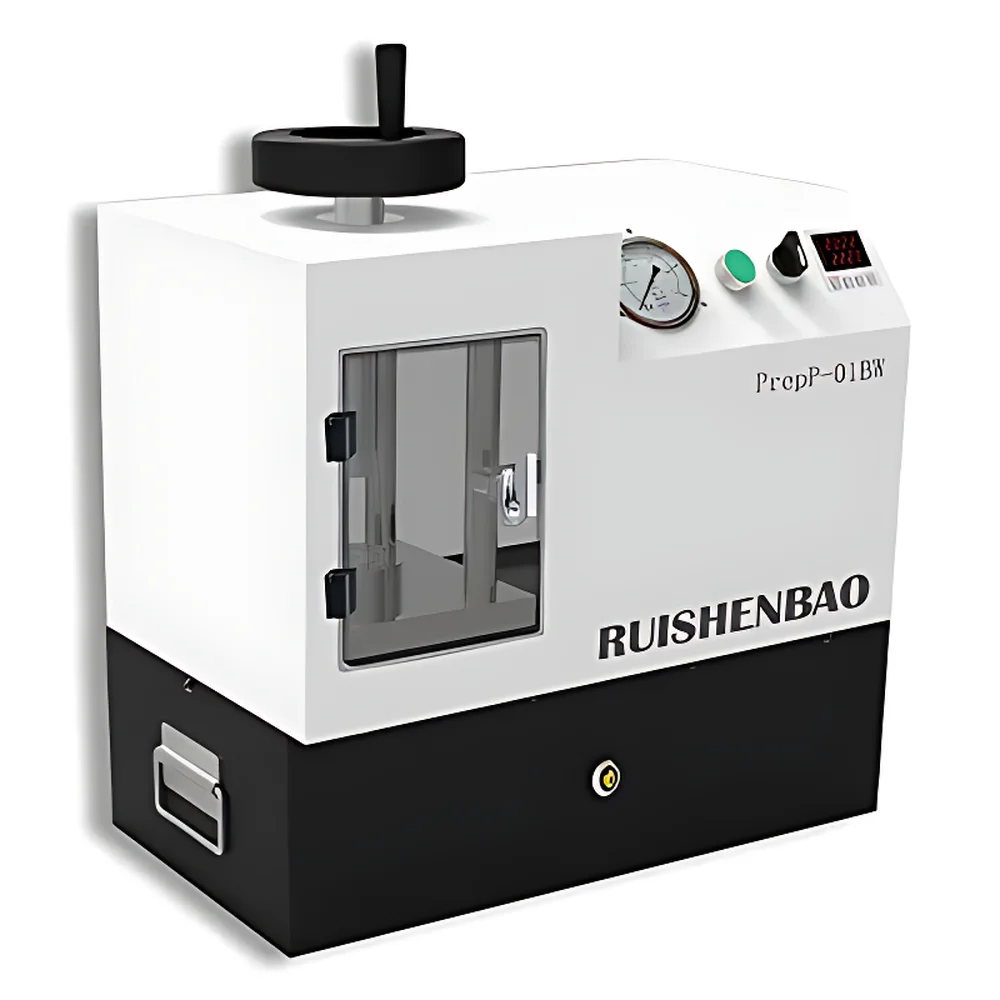

| Brand | Ruishenbao |
|---|---|
| Origin | Shanghai, China |
| Model | PrepP-01BW |
| Maximum Pressure | 40 Ton (392 kN) |
| Operating Pressure Range | 0–40 Ton |
| Pressure Control Accuracy | ±0.1 Ton |
| Sample Diameter | Φ40 mm (customizable) |
| Dimensions (L×W×H) | 420 × 215 × 400 mm |
| Net Weight | 62 kg |
| Power Supply | AC 220 V ±10%, 50/60 Hz, 10 A |
| Rated Power | 1.0 kW |
| Hydraulic Fluid | Anti-wear Hydraulic Oil ISO VG 46 |
| Operating Temperature | 0–40 °C |
| Cycle Time | ≤60 s per sample |
| Automation Mode | Motor-driven pressurization, programmable hold time, automatic pressure release |
| Compliance | Designed for ISO/IEC 17025-compliant sample preparation workflows |
| Brand | Ruishenbao |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | FMC-01 |
| Price | USD 35,000 (FOB Tianjin) |
| Dimensions (L×W×D) | 680 × 650 × 560 mm (main unit) |
| Temperature Control Accuracy | ±0.1°C (dual thermocouple measurement) |
| Operating Temperature Range | Ambient to 1800°C |
| Sample Capacity | 4 positions (customizable to 6) |
| Max Heating Rate | 45°C/min (fusion stage) |
| Heating Element | SiMo rod |
| Control System | PLC + PID temperature regulation + color TFT touchscreen interface |
| Crucible Swing Angle | ±75° (6 adjustable levels) |
| Swing Frequency | up to 1 Hz (6 selectable levels) |
| Fusion Cycle Time | 12–18 min per batch of 4 samples |
| Safety Protections | Thermocouple failure detection, heating element open-circuit protection, overtemperature cutoff, mechanical swing limit switches |
| Power Supply | Single-phase 220 VAC, 50/60 Hz, 7.5 kW, 45 A, grounded |
| Crucible Requirement | Pt/Au (95/5) fusion crucibles (sold separately) |
| Net Weight | 150 kg (unit + controller) |
| Brand | Ruishenbao |
|---|---|
| Origin | Tianjin, China |
| Model | UHPS |
| Max. Pressure | 320 Ton (3.14 MN) |
| Adjustable Pressure Range | 0–320 Ton |
| Pressure Control Accuracy | ±0.1 Ton |
| Pellet Diameter | Ø40 mm |
| Operating Temperature | 0–40 °C |
| Power Supply | AC 380 V ±10 %, 50 Hz, 3-phase 5-wire, 32 A |
| Rated Power | 9.5 kW |
| Dimensions (Press Unit + Control Cabinet) | 800 × 800 × 1900 mm + 550 × 650 × 1100 mm |
| Net Weight | 1600 kg |
| Hydraulic Fluid | Anti-wear Hydraulic Oil ISO VG 46 |
| Automation Level | Fully Automated, PC-Controlled with Digital PID Pressure Regulation |
| Safety Certification | Dual-layer bulletproof-grade polycarbonate viewport, tungsten carbide tooling with high-toughness alloy anti-explosion collar, reinforced steel passive shielding, interlocked safety door with fail-safe locking mechanism |
| Compliance | Designed to support GLP/GMP-aligned XRF sample preparation workflows |
| Brand | Ruishenbao |
|---|---|
| Origin | Tianjin, China |
| Model | CIRF-01 |
| Dimensions (L×W×H) | 500 × 860 × 1100 mm |
| Maximum Operating Temperature | 1700 °C |
| Temperature Range | 0–1700 °C |
| Sample Capacity | 20–200 g |
| Power Supply | 3-phase 380 V, 50 Hz |
| Total Power | 20 kW |
| Cooling Water Inlet | φ10 mm |
| Inlet Water Pressure | 0.15–0.2 MPa |
| Net Weight | 100 kg |
| Compliance | Designed for GLP-compliant sample preparation workflows in metallurgical laboratories |
| Brand | Ruishenbao |
|---|---|
| Origin | Shanghai, China |

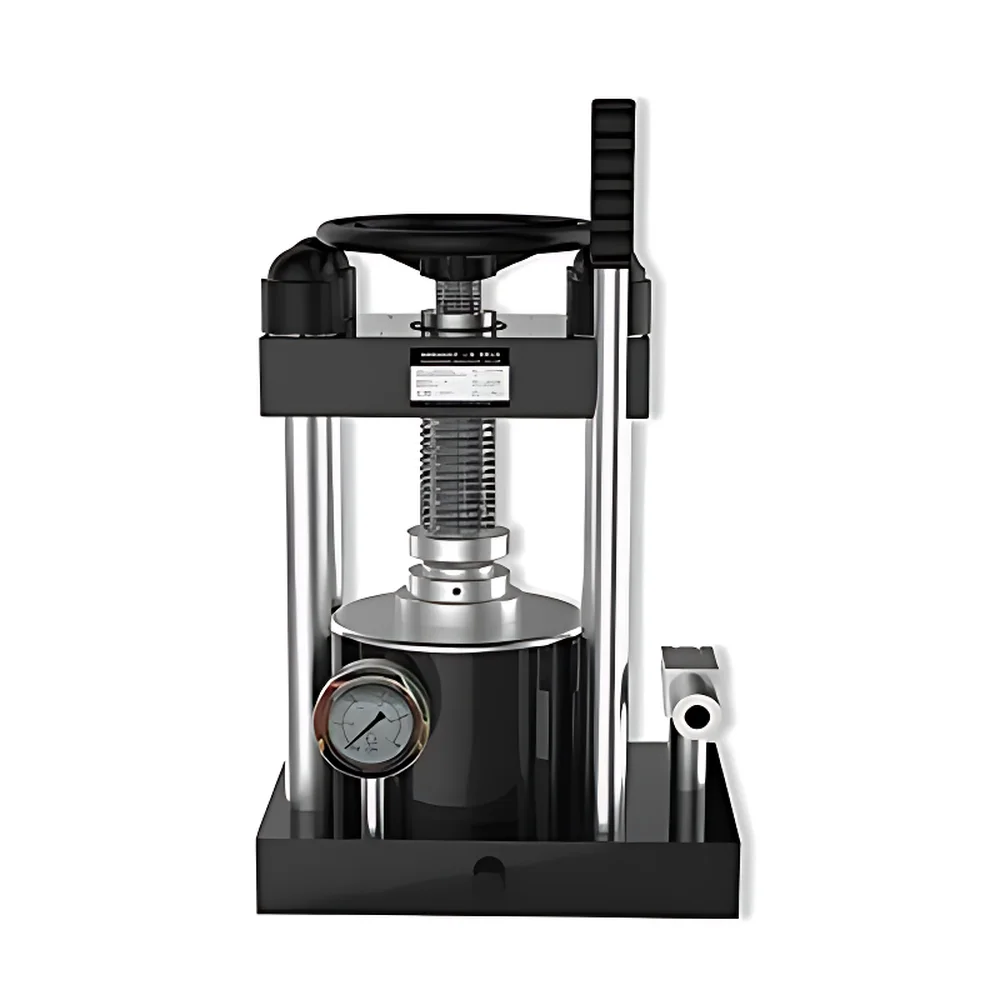

| Model | PrepP-01L |
| Type | Manual Hydraulic Pellet Press |
| Weight | 25 kg |
| Construction | Anodized Aerospace-Grade Aluminum Alloy Frame |
| Pressure Monitoring | Analog Dial Pressure Gauge (0–20 MPa) |
| Die Compatibility | Standard 13 mm, 20 mm, 32 mm, and 40 mm Diameter Dies |
| Surface Finish | Critical Components Ra ≤ 0.4 µm |
| Compliance | Designed for ISO/IEC 17025-compliant XRF sample preparation workflows |
| Brand | Ruishenbao |
|---|---|
| Origin | Beijing, China |
| Model | FHC-00 |
| Dimensions (L×W×D) | 580×414×425 mm (single-position configuration) |
| Temperature Range | Ambient to 1600 °C |
| Temperature Control Accuracy | ±1 °C |
| Heating Method | High-frequency induction (50–100 kHz) |
| Power Rating | 5–15 kW (configurable) |
| Sample Capacity | 1, 2, or 4 crucibles (user-selectable) |
| Crucible Type | Pt/Au (95/5) |
| Tilting Angle for Casting | 30°–110° (adjustable) |
| Rocking Angle | ±30° max |
| Rocking Frequency | 0–1 Hz (adjustable) |
| Cooling | External chiller required (≥3 L/min flow, ≤0.2 MPa pressure) |
| Safety Protections | Overvoltage, overcurrent, overtemperature, dry-run, water-flow failure, and thermal runaway interlocks |
| Pre-stored Programs | 5 user-definable fusion protocols |
| Operating Interface | Integrated color LCD touchscreen with PLC-based control architecture |
| Typical Fusion Cycle Time | 5–10 min per batch (sample-dependent) |
Show next
