| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | CNRY-02A |
| Price Range | USD 14,000–28,000 |
| Dimensions (L×W×D) | 1120 mm × 620 mm × 1050 mm |
| Temperature Control Accuracy | ±2 °C (at holding temperature) |
| Maximum Operating Temperature | 1250 °C (up to 1300 °C short-term) |
| Sample Capacity | 4 positions |
| Heating Rate | ~30 °C/min (average) |
| Furnace Oscillation Angle | 0–40° adjustable |
| Crucible Holder Rotation Speed | 0–25 rpm (variable-frequency, bidirectional) |
| Pre-/Post-Hold Time Range | 0–160 min each |
| Oscillation Duration | 0–160 min |
| Total Cycle Runtime Limit | 165 h |
| Power Supply | Heating circuit — single-phase 380 V AC |
| Rated Frequency | 50 Hz |
| Rated Current | 30 A |
| Rated Power | 8 kW (typical operating power: 2–5 kW) |
| Net Weight | 380 kg |
| Thermocouple Type | S-type Pt/Rh (Platinum-Rhodium) |
| Heating Element | Silicon Carbide (SiC) Rods |
| Control System | PLC + AI-based PID algorithm with touchscreen HMI |
| Safety Protections | Dual hardware/software safeguards against thermocouple failure, overtemperature, and mechanical overtravel |
| Predefined Fusion Curves | 9 programmable temperature-time profiles |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | CNBDRL-04 |
| Price Range | USD 14,000 – 28,000 |
| Dimensions (L×W×D) | 730 mm × 600 mm × 650 mm |
| Temperature Control Accuracy | ±1 °C |
| Maximum Operating Temperature | 1100 °C |
| Sample Capacity | 4 positions |
| Heating Rate | 30 °C/min (average) |
| Tilting Angle Range | ±40° (adjustable) |
| Tilting Frequency | 1 Hz (adjustable) |
| Rated Power | 7.5 kW |
| Rated Voltage | 220 V AC, single-phase |
| Rated Frequency | 50 Hz |
| Net Weight | 150 kg |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | CNRY-02C |
| Price Range | USD 14,000–28,000 |
| Dimensions (L×W×D) | 1120 mm × 620 mm × 1050 mm |
| Temperature Control Accuracy | ±2 °C (at holding temperature) |
| Maximum Operating Temperature | 1250 °C (up to 1300 °C short-term) |
| Sample Capacity | 4 positions |
| Heating Rate | ~30 °C/min (average) |
| Furnace Oscillation Angle | 0–40° adjustable |
| Crucible Holder Rotation Speed | 0–25 rpm (variable-frequency, bidirectional) |
| Pre-/Post-Hold Time Range | 0–160 min each |
| Oscillation Duration | 0–160 min |
| Total Cycle Runtime Limit | 165 h |
| Power Supply | Heating circuit — single-phase 380 V AC |
| Rated Frequency | 50 Hz |
| Rated Current | 30 A |
| Rated Power | 8 kW (typical operating power: 2–5 kW) |
| Net Weight | 380 kg |
| Thermocouple Type | S-type Pt/Rh (Platinum-Rhodium) |
| Heating Element | Silicon Carbide (SiC) Rods |
| Control System | AI-enhanced PLC with touch-screen HMI |
| Safety Protections | Dual hardware/software overtemperature cutoff, thermocouple break detection, mechanical limit switch interlock |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | CNBDRL-02 |
| Price Range | USD 14,000–28,000 |
| Dimensions (L×W×D) | 550 mm × 600 mm × 800 mm |
| Temperature Control Accuracy | ±2 °C |
| Maximum Operating Temperature | 1100 °C |
| Sample Capacity | 4 positions |
| Heating Rate | 50 °C/min (avg.) |
| Crucible Rotation Angle | ±40° |
| Rotation Frequency | 15 rpm |
| Power Rating | 4.5 kW |
| Voltage | 220 V AC, 50 Hz |
| Weight | 100 kg |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | CNGWL-01A-1600 |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Temperature | 1650 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 16 kW |
| Heating Rate (to Max Temp) | 0–15 °C/min |
| Heating Method | Electrical Resistance Heating |
| Internal Chamber Dimensions | 320 × 240 × 190 mm |
| Rated Voltage | 380 V (3-phase) |
| Rated Current | 43 A (per phase) |
| External Dimensions | 800 × 700 × 1700 mm |
| Net Weight | 600 kg |
| Insulation Material | High-Density Ceramic Fiber |
| Control System | AI-Based Programmable Temperature Controller with Multi-Curve Capability (up to 5 independent ramp/soak profiles) |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | CNZHL-01-1300 |
| Quotation | Available Upon Request |
| Rated Temperature | 1300 °C |
| Average Heating Rate | 20 °C/min |
| Chamber Dimensions | 560 mm × 500 mm × 400 mm |
| External Dimensions | 1080 mm × 890 mm × 1700 mm |
| Rated Power | 35 kW |
| Supply Voltage | 380 V (Heating Circuit), 220 V (Control Circuit) |
| Rated Current | 93 A |
| Frequency | 50 Hz |
| Rated Temperature | 800 °C |
|---|---|
| Heating Rate | 5 °C/min (avg.) |
| Chamber Dimensions | 300 × 500 × 300 mm (W × D × H) |
| External Dimensions | 690 × 1010 × 1560 mm (W × D × H) |
| Rated Power | 12 kW |
| Voltage | 220 V AC, 50 Hz |
| Current | 55 A |
| Programmable Profiles | 5 curves × 10 segments each |
| Control System | SCR phase-angle fired heating circuit with PID temperature regulation |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | CNRY-01A |
| Price Range | USD 14,000 – 28,000 |
| Dimensions (L×W×D) | 1120 mm × 620 mm × 1050 mm |
| Temperature Control Accuracy | ±2 °C (at holding temperature) |
| Maximum Operating Temperature | 1250 °C (up to 1300 °C short-term) |
| Sample Capacity | 4 positions |
| Heating Rate | ~30 °C/min (average) |
| Furnace Oscillation Angle | 0–40° adjustable |
| Crucible Holder Rotation Speed | 0–25 rpm (variable-frequency, bidirectional) |
| Pre-heating / Oscillation / Post-holding Time | 0–160 min each |
| Max Continuous Operation Time | 165 h |
| Total Weight | 380 kg |
| Power Supply | Heating circuit — single-phase 380 V AC |
| Rated Power | 8 kW (typical operating power: 2–5 kW) |
| Rated Current | 30 A |
| Frequency | 50 Hz |
| Thermocouple Type | S-type Platinum-Rhodium |
| Heating Element | Silicon Carbide Rods |
| Control System | PLC + AI-based PID controller with touchscreen HMI |
| Safety Protections | Dual hardware/software overtemperature cutoff, thermocouple break detection, mechanical limit switch protection |
| Predefined Fusion Curves | 9 programmable profiles |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | CNRY-01C |
| Price Range | USD 14,000 – 28,000 |
| Dimensions (L×W×D) | 1120 mm × 620 mm × 1050 mm |
| Temperature Control Accuracy | ±2 °C (at holding stage) |
| Maximum Operating Temperature | 1250 °C (up to 1300 °C peak) |
| Sample Capacity | 4 positions |
| Heating Rate | 30 °C/min (average) |
| Furnace Oscillation Angle | 0–40° adjustable |
| Crucible Holder Rotation Speed | 0–25 rpm (variable-frequency, bidirectional) |
| Pre-/Post-Hold Time Range | 0–160 min each |
| Oscillation Duration | 0–160 min |
| Total Cycle Time Limit | 165 h |
| Net Weight | 380 kg |
| Rated Power | 8 kW (typical operating power: 2–5 kW) |
| Electrical Supply | Heating circuit — single-phase 380 V AC |
| Rated Current | 30 A |
| Frequency | 50 Hz |
| Thermocouple Type | S-type Pt/Rh (Platinum–10% Rhodium vs. Platinum–6% Rhodium) |
| Heating Element | Silicon Carbide (SiC) rods |
| Control System | PLC + AI-based PID algorithm with touchscreen HMI |
| Safety Features | Dual hardware/software protection against thermocouple failure, overtemperature, and mechanical limit overrun |
| Preloaded Fusion Curves | 9 programmable temperature–time profiles |
| Origin | Henan, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

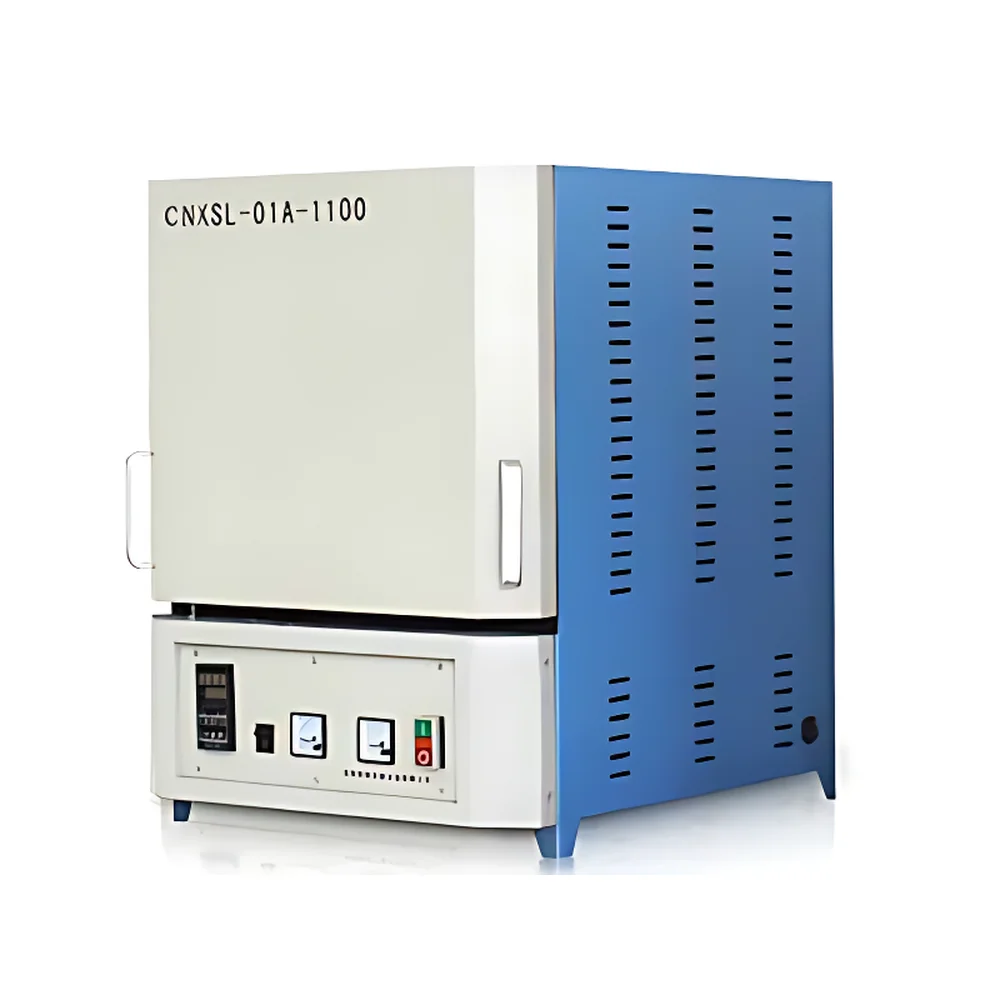

| Model | CNXSL Series |
| Price Range | USD 2,800 – 7,000 |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Operating Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 2.75 kW |
| Heating Rate (to Max Temp) | 0–30 °C/min (average) |
| Heating Method | Electric (Silicon Carbide Rods) |
| Internal Chamber Dimensions | 200 × 200 × 340 mm |
| Compliance | ASTM E1142, ISO 8573-1 (thermal stability class), GLP-compliant operation support |
