| Brand | Czitek |
|---|---|
| Origin | USA |
| Model | MicromATR |
| ATR Crystal Material | Single-Crystal Diamond |
| Reflection Modes | 1×, 3×, and 9× Internal Reflection |
| Spectral Range | Down to 10 cm⁻¹ |
| Compatibility | Fully Interchangeable with SensIR and Smiths Detection ATR Holders |
| Optional Accessories | Integrated Sample Pressure Indicator, Heated Sample Stage |
| Brand | PIKE |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | 10Spec |
| Price Range | USD 7,000 – 14,000 |
| Brand | Pike |
|---|---|
| Origin | USA |
| Model | HATR |
| Crystal Options | ZnSe, KRS-5, Ge, AMTIR, Si |
| Configurable Crystal Mounts | Grooved or Flat Plate |
| Maximum Internal Reflections | 20 |
| Optional Accessories | Flow Cell, Heated Stage |
| Brand | S.T. Japan |
|---|---|
| Origin | Japan |
| Model | S-100R |
| Temperature Range | Ambient to 600 °C |
| Optical Modes | Reflectance and Transmission |
| Vacuum Port | Integrated (1 × 10⁻³ Torr base pressure) |
| Pressure Rating | 0.5 MPa (with BaF₂, CaF₂, ZnSe, or SiO₂ windows) |
| Cooling Interface | Standard recirculating chiller port |
| Mounting Compatibility | Standard microscope stage adapters (e.g., Nikon, Olympus, Zeiss) |
| Brand | Pike |
|---|---|
| Origin | USA |
| Model | VeeMax III |
| Angle Range | 30°–80° |
| Compatible Modes | Specular Reflection, Attenuated Total Reflection (ATR) |
| Polarizer Mounting | Integrated slot for linear polarizers |
| Electrochemical Compatibility | Designed for integration with IR-compatible electrochemical cells |
| Brand | S.T. Japan |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | LT-190 |
| Price Range | USD 14,000 – 28,000 |
| Temperature Range | −190 °C to +150 °C |
| Cooling Method | Liquid Nitrogen Cryogenic System |
| Optical Path Length | Standard 10 mm (customizable upon request) |
| Window Material | Fused Silica (UV–Vis–NIR transparent, 185–2500 nm) |
| Sealing | Metal–glass hermetic seal with Viton O-rings (low-temperature compatible) |
| Compatibility | Standard 1/4″–28 UNF threaded ports for integration with commercial spectrophotometers and FTIR systems |
| Brand | S.T. Japan |
|---|---|
| Origin | Japan |
| Model | Micro Vice |
| Type | Precision Microscopy Sample Holder & Rotational Stage Accessory |
| Mounting Compatibility | Standard Microscope Stage (e.g., Nikon, Olympus, Zeiss, Leica) |
| Angular Adjustment | 0° (horizontal), 15°, and 30° fixed-angle positions |
| Material | Stainless Steel (AISI 304) with Hard-Anodized Aluminum Base |
| Clamping Force Range | 0.2–5 N (adjustable via micrometer screw) |
| Minimum Sample Thickness | 10 µm |
| Maximum Sample Width | 25 mm |
| Repeatability | ±0.5° rotational alignment |
| Weight | 85 g |
| Brand | PIKE |
|---|---|
| Origin | USA |
| Model | Diffus |
| Temperature Range | Ambient to 1000 °C |
| Temperature Accuracy | ±0.5% of setpoint |
| Heating Rate | 120 °C/min |
| Vacuum Capability | 1.3×10⁻⁴ Pa (with vacuum cell) |
| Pressure Rating | 1500 psi (with high-pressure cell) |
| Compatible FTIR Platforms | Thermo Scientific, Bruker, Shimadzu, JASCO, Agilent |
| Brand | S.T. Japan |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Mini Plane |
| Price Range | USD 1,400 – 2,800 |
| Brand | PIKE |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

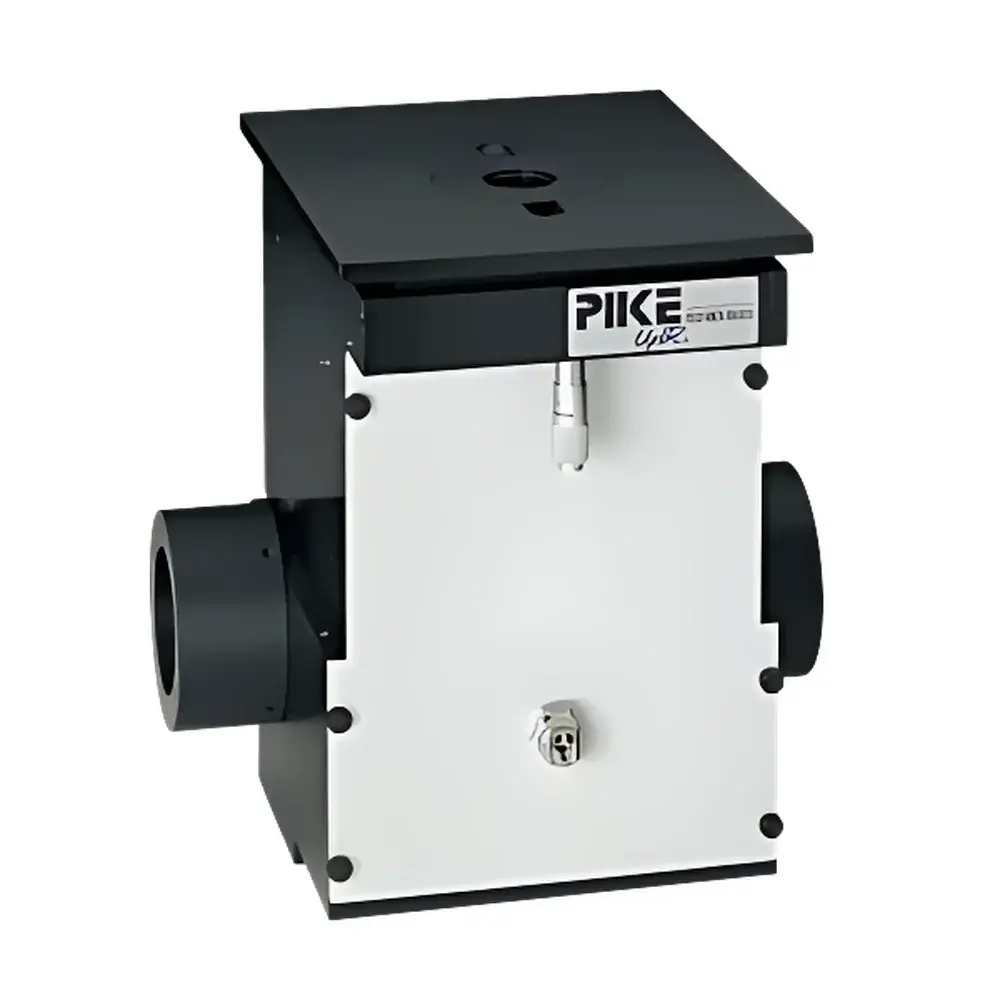

| Model | UpIR |
| Price Range | USD 7,000 – 14,000 |
