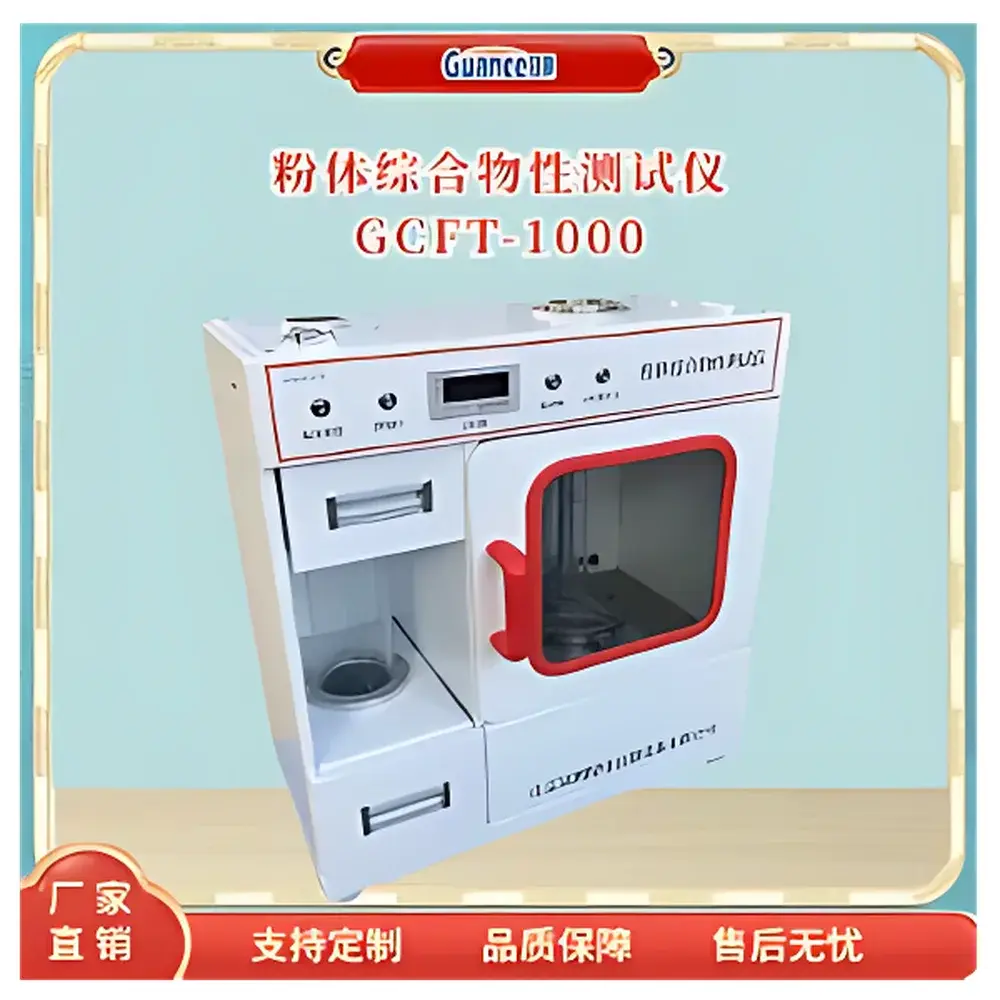

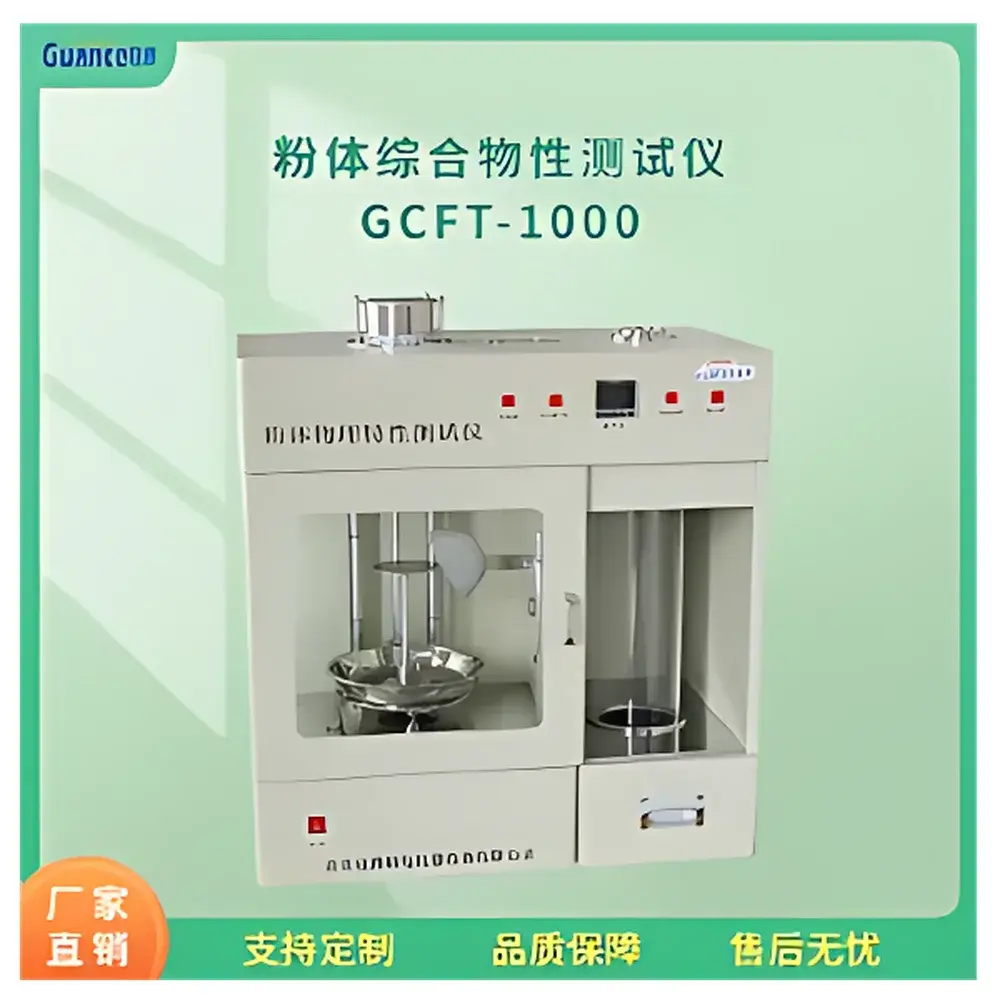

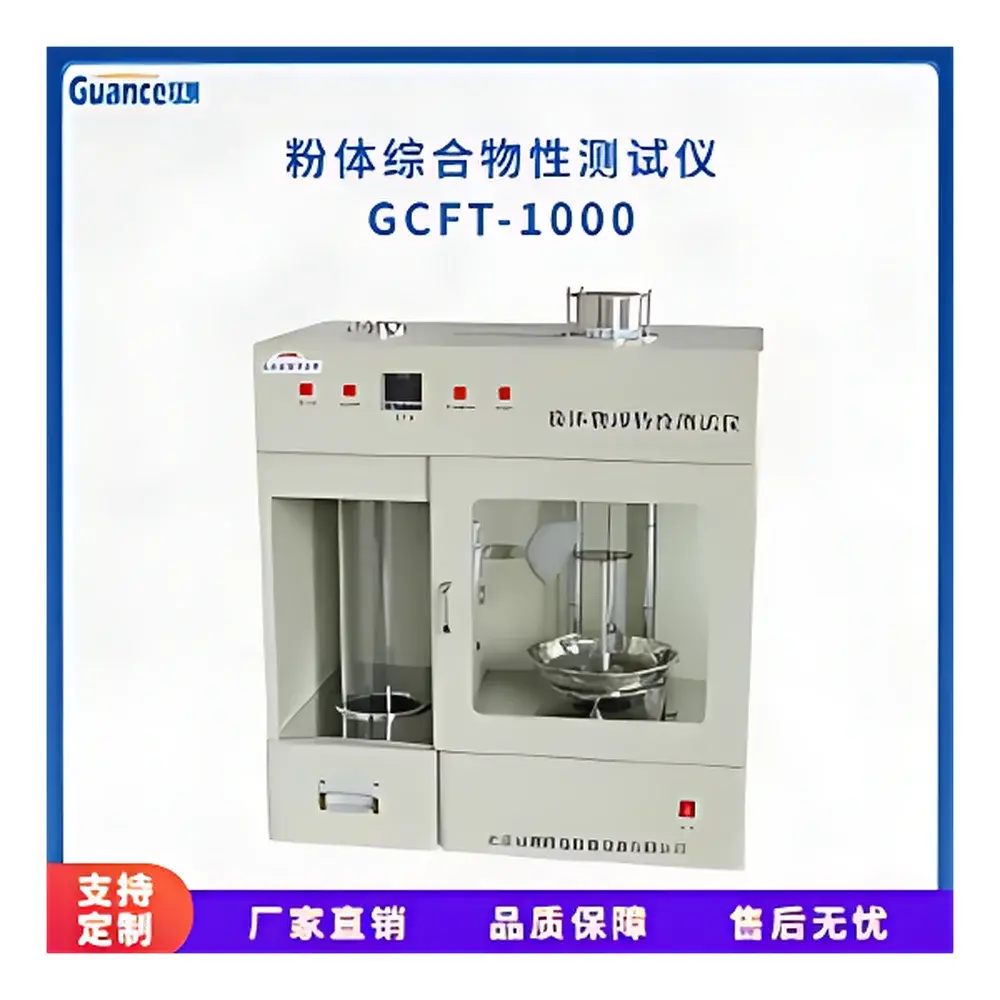

GuanCe GCFT-1000 Powder Flowability Tester

Overview

The GuanCe GCFT-1000 Powder Flowability Tester is an engineered benchtop instrument designed for standardized bulk solids characterization in R&D laboratories, quality control environments, and pharmaceutical manufacturing facilities. It operates on the principle of controlled mechanical vibration and gravitational flow to quantify fundamental powder flow indices—including tap density, bulk density, compressibility ratio, Hausner ratio, and Carr flow index—per internationally recognized test protocols. Unlike single-parameter analyzers, the GCFT-1000 implements a unified hardware platform calibrated to replicate the reproducible tapping motion defined in ASTM D6393 and GB/T 31057.2, enabling direct comparison of flow behavior across material batches and formulation variants. Its architecture integrates a precision electromechanical tapper, stainless-steel sample cups conforming to ISO/USP dimensional tolerances, and a microprocessor-controlled timing circuit that maintains ±0.2% frequency stability at 300 taps per minute—critical for minimizing inter-operator variability in regulatory submissions.

Key Features

• Stainless-steel sample cup assembly (316L grade), CNC-machined to exact dimensional specifications per ASTM D6393 Annex A1 and USP requirements
• Digital timer with 0.01 s resolution and auto-reset functionality, eliminating manual stopwatch dependency
• Fixed-frequency tapping mechanism (300 ± 2 taps/min) driven by a brushless DC motor with thermal overload protection
• Electrostatically coated steel enclosure (RAL 7035 finish) providing corrosion resistance and compliance with ISO 14644-1 Class 8 cleanroom-compatible surface properties
• Modular cup holder design supporting interchangeable volumes (25 mL, 50 mL, 100 mL) for granular, cohesive, and nanostructured powders
• No external calibration weights or auxiliary sensors required—system validation performed via traceable tap-count verification and cup volume certification

Sample Compatibility & Compliance

The GCFT-1000 accommodates free-flowing, slightly cohesive, and moderately adhesive powders ranging from 10 µm to 2 mm median particle size. It supports both dry and conditioned (e.g., 40% RH preconditioned) samples in accordance with ICH Q5C stability guidelines. All test procedures align with Good Manufacturing Practice (GMP) documentation standards: audit trails for operator ID, date/time stamp, cup ID, and tap count are retained in non-volatile memory for FDA 21 CFR Part 11–compliant review. The instrument satisfies method suitability criteria outlined in USP for flow function classification (FF = 1–4), EP 20934 for pharmaceutical excipient qualification, and ISO 4762 for fastener-grade metal powder acceptance testing.

Software & Data Management

While the GCFT-1000 operates as a standalone hardware system, it generates ASCII-formatted output files (.csv) via optional RS-232/USB interface for integration into LIMS or electronic lab notebooks (ELN). Calculated parameters—including Carr Index (CI), Hausner Ratio (HR), compressibility (%), and flow function coefficient (ffc)—are computed using embedded algorithms validated against NIST-traceable reference powders (e.g., lactose monohydrate SRM 1970). Raw tap counts and time-stamped density values are exportable for statistical process control (SPC) charting in JMP or Minitab. All firmware revisions undergo IQ/OQ protocol verification per ASTM E2500 and are documented in the instrument’s Device Master Record (DMR).

Applications

• Pharmaceutical solid dosage development: excipient screening, blend uniformity assessment, capsule fill weight prediction
• Food ingredient processing: starch, sugar, and dairy powder flow optimization for pneumatic conveying systems
• Battery cathode/anode material evaluation: LiCoO₂, NMC, and graphite powder handling behavior under low-humidity conditions
• 3D printing metal powder qualification: adherence to ASTM F3049–16 specifications for additive manufacturing feedstocks
• Ceramic and catalyst pellet production: correlation of flow index with die-fill consistency and green body density variation
• Regulatory filing support: generation of data packages compliant with ANDA, CTD Module 3, and EU Annex 15 validation requirements

FAQ

Does the GCFT-1000 require annual recalibration by a third-party metrology lab?
No. The instrument relies on mechanical and temporal constants (tap frequency, cup geometry, gravity) rather than force transducers or load cells; periodic verification using certified reference powders and tap-count auditing fulfills ISO/IEC 17025 requirements.
Can it measure powders with high moisture sensitivity?
Yes—when used inside a glovebox or desiccator chamber, provided ambient humidity remains below 15% RH during testing per USP conditioning guidance.
Is the sample cup volume customizable beyond standard sizes?
Custom cup fabrication is available upon request for specialized applications (e.g., 5 mL micro-cups for expensive API powders), subject to dimensional validation against ASTM D6393 Annex A2.
How does the GCFT-1000 handle electrostatically charged powders?
The stainless-steel cup and grounded chassis dissipate static charge; optional ionizing air nozzles (not included) may be integrated upstream of sample loading per IEC 61340-5-1 recommendations.
What documentation is supplied for GMP audits?
Factory calibration certificate, IQ/OQ templates, traceable cup volume report, and firmware validation summary—all provided in English and compliant with Annex 11 and ALCOA+ data integrity principles.
