Polarizing Microscopes
Filter
Showing 1–30 of 59 results
| Brand | Betop Scientific |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | XPL-1 |
| Pricing | Upon Request |
| Brand | Betop Scientific |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | XPL-3230 |
| Optical System | Infinity-Corrected |
| Objective Lenses | Strain-Free Plan Achromatic Polarizing Objectives (5X, 10X, 40X, 60X) |
| Eyepieces | Widefield WF10X (Φ22 mm), Divided Eyepiece 10X (0.1 mm/div) |
| Rotating Stage | 360° Graduated, Vernier Resolution 6′, Center-Adjustable with Lock |
| Focusing Mechanism | Coaxial Coarse/Fine Focus, Fine Adjustment Graduation 2 µm, Limit & Lock Function |
| Illumination | 6V/30W Halogen Lamp (Transmitted & Reflected), Brightness Adjustable |
| Polarizers | Rotatable Polarizer & Analyzer (0–360°), Graduated Scale with Vernier |
| Condenser | Abbe Condenser NA=1.25 with Iris Diaphragm |
| Compensation Plates | λ, λ/4, and Quartz Wedge |
| Trinocular Tube | 30° Inclined, 100% Light Path for Imaging |
| Power Supply | 85–265 V AC, 50/60 Hz |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China-made) |
| Model | BK-POL |
| Price | USD 2,100 (FOB Guangdong) |
| Optical System | Infinity-Corrected |
| Eyepieces | Wide-Field 10× (FN 22 mm), Graticule 10× (0.10 mm/div) |
| Objectives | PL 4×/0.10 (W.D. 19.8 mm), PL 10×/0.25 (W.D. 5.0 mm), PL 40×/0.65 (spring-loaded, W.D. 0.66 mm), PL 60×/0.80 (spring-loaded, W.D. 0.45 mm) |
| Transmitted Illumination | 6 V / 30 W halogen lamp with continuous brightness control and 360° rotatable polarizer (calibrated at 0°, 90°, 180°, 270°) |
| Condenser | Abbe type, NA 1.25, adjustable iris diaphragm |
| Stage | Rotating mechanical stage, Ø150 mm, 360° vernier scale (6′ resolution), center-adjustable & lockable |
| Nosepiece | Quadruple, centering-adjustable |
| Analyzer | Built-in, switchable between brightfield and polarized modes, 90° rotation (12′ vernier scale) |
| Bertrand Lens | Push-in type, center-adjustable |
| Compensators | λ (full-wave), λ/4 (quarter-wave), and quartz wedge |
| Tube | Trinocular, 30° inclination, 100% light path to camera port |
| Focus | Coaxial coarse/fine focus with tension adjustment, locking mechanism, and limit stop |
| fine focus graduation | 2 µm |
| Optional Accessories | 20× and 100× oil immersion objectives (coverslip thickness 0.17 mm), mechanical stage with 30 × 25 mm travel, C-mount adapters (0.5×, 1×), USB digital cameras (1.3 / 2.0 / 3.0 MP), analog video output (380 / 520 TV lines), Canon EF & Nikon F lens mounts |
| Brand | Caikon |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Region Classification | Domestic (China) |
| Model | CK400CM |
| Power Input | AC 220 V ±10%, 45–60 Hz |
| Heating Supply | DC 24 V / 3 A |
| Max. Power Consumption | 260 W |
| Temperature Range | Ambient to 400 °C (tested at 25 °C ambient, natural convection cooling) |
| Stage Surface Temp. Limit | ≤70 °C at housing (when hot zone = 400 °C) |
| Max. Sample Load | 200 g |
| Heating Zone Diameter | φ41 mm |
| Stage Disc Diameter | φ99 mm × 11 mm thick |
| Optical Aperture | φ3.8 mm |
| Display | Industrial capacitive full-color touchscreen, 800 × 480 resolution |
| Control Core | 32-bit ARM processor with proprietary fuzzy PID adaptive algorithm |
| Heating Element | Ceramic PTC heater with uniform thermal distribution |
| Temp. Accuracy | ≤±0.5% of full scale |
| Temp. Stability (Drift) | ±0.5 °C |
| Response Time (Setpoint Hold) | ≤0.01 s |
| Ramp Rates | 5, 10, 20, 40, or 80 °C/min (user-selectable) |
| Ramp Time | ≤100 s (RT → 100 °C), ≤190 s (RT → 200 °C), ~17 min (RT → 400 °C, dependent on ambient & ramp rate) |
| Dimensions (Control Unit) | 280 × 220 × 150 mm |
| Brand | CNOPTEC |
|---|---|
| Origin | Chongqing, China |
| Model | BK-POL |
| Optical System | OTICS Infinity-Corrected Achromatic Polarizing System |
| Eyepieces | 10× Widefield High-Eye-Point Plan Eyepieces (Field Number Φ22 mm / Φ20 mm) |
| Objectives | Infinity-Corrected Stress-Free Plan Objectives — Transmitted Light: 4× / 10× / 20×(S) / 40×(S) / 60×(S) |
| Reflected Light | 5× / 10× / 20× / 50×(S) |
| Observation Tube | Hinged Binocular or Trinocular Tube, 30° Inclination, Interpupillary Adjustment 48–76 mm, Right Eyepiece Tube Coupled |
| Nosepiece | Five-Position Inclined, Center-Adjustable Revolving Nosepiece |
| Analyzer Assembly | 360° Rotatable, Lockable, Removable Analyzer Module with Focus-Adjustable Bertrand Lens |
| Polarizer | 360° Rotatable, Graduated, Lockable Polarizer |
| Compensators | λ (First-Order Red), λ/4, and Quartz Wedge (I–IV Order) Insertion Plates |
| Focusing Mechanism | Coaxial Coarse/Fine Focus — Coarse Travel 25 mm, Fine Focus 0.2 mm per Revolution, Graduation 2 µm, Upper Limit Stop, Tension Adjustment |
| Stage | 360° Rotatable Polarizing Stage with Centering Adjustment, Scale Division 1°, Vernier Division 6′, Diameter Φ174 mm |
| Condenser | N.A. 0.9 / 0.13 Swing-Out Condenser |
| Illumination | Transmitted — 6 V / 30 W Halogen or 5 W LED (100–240 V AC Input) |
| Mechanical Stage | Polarization-Specific Translation Stage |
| C-Mount Photo Adapters | 0.5× / 0.75× / 1× |
| Optional Heating Stage | Temperature Range RT–400 °C, Accuracy ≤ ±0.5 °C Full Scale, Touchscreen Control & Data Logging, Response Time ≤ 0.01 s, Max Load 200 g, Working Surface Φ31.5 mm, Compatible with Both Transmission and Reflection Modes |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | LK-530P |
| Price | Upon Request |
| Optical System | Infinity-Corrected Dual-Achromatic (UISC) |
| Illumination | High-Stability White LED (CCT 3700–5000 K) |
| Total Magnification | 40×–400× (with 4×, 10×, 40×s objectives) |
| Eyepieces | Widefield Plan Eyepieces PL10×/20 |
| Tube | Trinocular, 30° Inclined, 360° Rotatable, Diopter Adjustment (±5), Interpupillary Distance 54–76 mm |
| Nosepiece | Internal-Positioning Quadruple Objective Turret with Centering Wrench |
| Stage | Precision Metal Rotary Stage (Ø160 mm), 360° Rotation (1° Graduation, ±6′ Accuracy), Lockable, Graphite-Coated Surface, Equipped with Mechanical Slide Holder & 0.01 mm Vernier Scale |
| Condenser | Stress-Free Abbe Condenser (NA 1.25), Center-Adjustable, Rack-and-Pinion Height Control |
| Focus Mechanism | Coaxial Coarse/Fine Drive, 28 mm Coarse Travel, 0.002 mm Fine Step Resolution, Upper Limit Stop, Tension Adjustment |
| Polarizing System | Rotatable Polarizer (0°/90°/180°/270° Indexed Stops with Lock), Bertrand Lens (Manual Lever-Actuated, Center & Focus Adjustable), Optional Full-Wave (551 nm), Quarter-Wave (147.3 nm), and Quartz Wedge Retardation Plates |
| Objectives | Strain-Free Plan Achromatic Objectives (4×, 10×, 40×s), Anti-Fungal Coating |
| Imaging Module | 20 MP CMOS Sensor (5440 × 3648 Effective Pixels) |
| Power Supply | Universal Input 100–240 V AC, 50/60 Hz |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | LK-530P-S |
| Pricing | Upon Request |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Manufacture | China |
| Model | LK-53P-S |
| Pricing | Available Upon Request |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | OEM Manufacturer |
| Model | LK-LRT-53P-600 |
| Optical System | Infinity-Corrected UISC (Universal Infinity Space Correction) |
| Total Magnification | 50×–500× |
| Eyepiece | PL10×/22 mm (with reticle) |
| Objective Turret | Quintuple, center-adjustable |
| Polarizer & Analyzer | Rotatable 360° (2° scale, ±6′ accuracy), lockable |
| Compensators | λ plate (551 nm), λ/4 plate (147.3 nm), quartz wedge (I–IV order) |
| Temperature Range | −196 °C to +600 °C (liquid nitrogen cooling optional) |
| Temp. Stability & Accuracy | ±0.05 °C |
| Max. Heating Rate | ≥60 °C/min |
| Max. Cooling Rate | 40 °C/min |
| Aperture Diameter | 2.4 mm |
| Imaging Sensor | 20 MP (5440 × 3648) |
| Illumination | Dual-path halogen (transmitted Köhler + reflected epi-illumination), LBD filter set, adjustable field & aperture diaphragms |
| Software Functions | Real-time thermal-video sync, multi-step programmable temperature profiling, EFI (Extended Focus Imaging), MIA (Multi-Image Alignment) stitching, quantitative measurement suite |
| Key | Brand: LEI-TECH |
|---|---|
| Model | LK53P |
| Origin | Tianjin, China |
| Manufacturer Type | OEM Manufacturer |
| Optical System | Infinity-Corrected (UISC) |
| Total Magnification | 50×–500× |
| Eyepieces | PL10×/22 mm with reticle |
| Objectives | 5×, 10×, 20×, 50× (achromat, polarized-light optimized) |
| Illumination | Dual-mode (transmitted Köhler + reflected halogen, 12 V/50 W, pre-centered) |
| Polarization Components | Rotatable analyzer (0–360°, 2° scale, ±6′ accuracy), removable λ-plate (551 nm), λ/4-plate (147.3 nm), quartz wedge (I–IV order), built-in Bertrand lens |
| Stage | 360° rotatable metal stage with graphite coating |
| Condenser | Swing-out achromatic condenser (NA 1.2), integrated polarizer with 0°/90°/180°/270° indexing |
| Focus Mechanism | Coaxial coarse/fine focus with tension adjustment and upper limit stop |
| Camera Interface | C-mount, 20 MP sensor (5440 × 3648 effective pixels) |
| Software Features | Real-time Extended Focus Imaging (EFI), Multi-Field Image Assembly (MIA), quantitative measurement, image annotation & calibration |
| Compliance | Designed per ISO 8578 (microscope mechanical standards), compatible with GLP documentation workflows and ASTM E112 / E1181 for grain/phase analysis |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Model | LK53P-LRT600 |
| Optical System | Infinity-Corrected Universal Imaging System (UISC) |
| Total Magnification | 50×–500× (with 5×, 10×, 20×, 50× objectives) |
| Eyepieces | Widefield PL10×/22 mm (with micrometer scale) |
| Observation Modes | Brightfield, Polarized Light |
| Illumination | Dual-path (transmitted Köhler + reflected halogen, 12 V/100 W, pre-centered) |
| Condenser | Achromatic swing-out, NA 1.2, with rotatable polarizer (0°/90°/180°/270° positions) |
| Analyzer | Rotatable 360°, graduation 2°, accuracy ±6′, lockable |
| Compensators | λ plate (551 nm), λ/4 plate (147.3 nm), quartz wedge (I–IV order) |
| Stage | Precision XY mechanical stage (±6 mm each axis), 360° rotatable metal platform with graphite coating |
| Focus Mechanism | Coaxial coarse/fine focus, tension-adjustable, upper limit stop |
| Temperature Control Stage | Integrated cryo-heating stage (–196 °C to +600 °C), sample area Ø16 mm, optical aperture Ø2 mm, heating rate up to 50 °C/min, cooling rate down to –25 °C/min, temperature resolution 0.1 °C, control stability ±0.1 °C |
| Minimum Working Distance | 4.5 mm (objective), 11 mm (condenser) |
| Imaging System | 20 MP CMOS sensor (5440 × 3648), liquid-nitrogen-cooled for low-noise acquisition |
| Software Functions | Real-time Extended Focus Imaging (EFI), Multi-Image Alignment (MIA), quantitative birefringence measurement, grain orientation mapping, phase transition tracking |
| Brand | LEI-TECH |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Producer |
| Country of Origin | China |
| Model | SMBY |
| Price | USD 145 (FOB Tianjin) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM2500P |
| Optical Configuration | Transmitted & Reflected Light |
| Illumination | 12 V / 100 W Halogen |
| Focus System | Dual-Height-Adjustable Manual Coarse/Fine Focus |
| Objective Turret | 5-position, Centerable |
| Field of View | 25 mm |
| Observation Modes | Brightfield, Darkfield, Phase Contrast, DIC, Fluorescence (reflected), Orthogonal Polarization, Conoscopy |
| Polarization System | Standard or Advanced Bertrand Lens Module with Centering & Focusing Adjustment |
| Condenser | Manual or CDA-assisted, Polarization-optimized |
| Stage Options | 45°-click Rotation Stage, Optional Heating Stage |
| Objective Types Supported | Achromatic, Plan-Achromatic, Plan-Fluor, Oil Immersion |
| Software Compatibility | Leica Application Suite (LAS) X with Image Acquisition, Measurement & Analysis Modules |
| Compliance | Designed for ISO/IEC 17025-compliant laboratories |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM2700 P |
| Illumination | Integrated LED (transmitted & reflected) |
| Field of View | 25 mm |
| Rotating Stage | 360° precision polarizing stage with optional 45° click stops |
| Objective Turret | 5-position, encoded, stress-free optics compatible |
| Observation Modes | Transmitted light — brightfield, darkfield, polarized, interference, conoscopy |
| Accessories Support | Motorized stage interface, heating/cooling stages, cathodoluminescence units, photometers, fluorescence modules, digital cameras (C-mount), analysis software integration |
| Compliance | Designed for ISO 9001 manufacturing |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM2700P |
| Illumination | High-power white LED (4500 K, transmission & incident light) |
| Objective Turret | 5-position centerable revolver |
| Conoscopy Options | Centerable Bertrand lens with integrated pinhole, pre-focused Bertrand lens cube with built-in analyzer |
| Compliance | Designed for ISO/IEC 17025-compliant routine testing environments |
| Software Compatibility | Leica Application Suite (LAS) X for documentation and analysis |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM4 P |
| Illumination | LED (transmitted and/or incident) |
| Objective Turret | 6-position encoded |
| Field of View | 25 mm |
| Rotating Stage | 360° with optional 45° click stops |
| Polarization Components | Stress-free optics, polarizer/analyzer, Bertrand lens for conoscopic observation, fixed and variable compensators per DIN 58879 |
| Compliance | Designed for ISO/IEC 17025-compliant laboratories, supports GLP/GMP documentation workflows via encoded parameter tracking |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | Leica DM4 P |
| Illumination | High-efficiency white LED (transmitted & reflected) |
| Objective Turret | 6-position encoded, centerable |
| Condenser | Motorized, auto-recognizing 1.25×–100× objectives |
| Analyzer & Polarizer | Motorized, precise rotation control |
| Bertrand Lens | Integrated, focus-adjustable, centerable |
| Viewing Modes | Orthoscopic (plane-polarized), conoscopic (conoscopic), DIC, brightfield, oblique illumination |
| Software Integration | Leica Application Suite (LAS X), compliant with FDA 21 CFR Part 11 audit trail requirements |
| Compliance | ISO 9001 certified manufacturing |
| Ergonomics | Height-adjustable focus knobs, color-coded aperture controls, LCD status display with full parameter feedback (objective, condenser position, aperture setting, light intensity, mode) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM4 P |
| Configuration | Semi-Automatic Upright Polarizing Microscope |
| Field of View | 25 mm |
| Objective Turret | Encoded 6-Position |
| Standard Objectives | 2.5×, 5×, 10×, 20×, 40×, 63×, 100× (oil) |
| Illumination Control | Motorized Intensity & Aperture Adjustment |
| Image Calibration | Automatic via Encoded Turret and Components |
| Compliance | CE, ISO 9001, IEC 61000-6-3 |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM4500 P LED |
| Illumination | High-stability white LED (CCT ≈ 5700 K) |
| Lifetime | ≥50,000 h |
| Objective Turret | 6-position encoded and centerable |
| Condenser | Adjustable and centerable polarizing condenser with built-in 1.6× magnification changer |
| Software Integration | Fully compatible with Leica Application Suite (LAS) X |
| Compliance | Conforms to DIN 58879 for polarizing components |
| Focus Drive | Motorized coarse/fine mechanical Z-drive |
| Illumination Management | Intelligent Light & Contrast Management (ILCM) system |
| Encoding | Full module encoding (objectives, condenser, polarizers, analyzers, illumination mode) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM4500P |
| Weight | ~25 kg |
| Optical System | HC Infinity-Corrected & APO-Corrected |
| Illumination | Transmitted & Reflected LED (30,000 h lifetime) |
| Observation Modes | Brightfield, Polarized Light (transmitted & reflected), Conoscopic |
| Eyepiece Field Number | 22 mm |
| Objective Lenses | 5×/0.12, 10×/0.25, 20×/0.40, 40×/0.75, 50×/0.75, 100×/0.85 (all polarized-grade) |
| Analyzer | 360° calibrated rotation stage with vernier scale |
| Polarizer | Professional reflected-light polarizer with λ-plate (gypsum), λ/4-plate (mica), quartz wedge, and variable magnification Bertrand lens |
| Focus Mechanism | Coaxial coarse/fine focusing with upper limit stop and harmonic drive |
| Stage | 360° rotating mechanical stage with 45° detent, ceramic-coated surface |
| Software | Leica Application Suite (LAS) X with quantitative morphometry, particle analysis, focus stacking, tiling, and 3D rendering modules |
| Compliance | Designed for ISO 9001 manufacturing |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM750 P |
| Field of View | 20 mm |
| Portability | Integrated Handle |
| Cable Management | Internal Routing |
| Intended Use | Educational & Routine Polarized Light Microscopy |
| Regulatory Status | CE-compliant, ISO 9001-manufactured instrumentation |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM750 P |
| Optical Path | 20 mm Field of View |
| Rotating Stage | 360° Precision Mechanical Stage |
| Observation Modes | Brightfield, Crossed Polarized Light (XPL), Conoscopic Imaging |
| Objective Turret | 4-Position, Individual Centering per Objective |
| Illumination | LED Transmitted & Reflected Light Source |
| Eyepiece Tube | 360° Rotatable Binocular Tube |
| Polarization Components | Strain-Free Optics, Rotatable Analyzer, Bertrand Lens, λ/4 and λ Compensators |
| Imaging Options | Integrated ICC50 Digital Camera Module (Built-in) or External C-Mount Camera Interface |
| Compliance | Designed for ISO 9001–certified manufacturing |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM750P |
| Illumination | 35 W halogen lamp (2000 h lifetime) |
| Eyepiece | Widefield 10×, 20 mm field number, crosshair reticle with 90°/45° orientation marks |
| Objective Turret | 4-position, centerable, compatible with polarized objectives from 2.5× to 100× |
| Stage | 178 mm diameter circular stage with laser-etched scale |
| Camera Port | Trinocular head (50/50 beam splitter), C-mount standard |
| Optional Modules | Reflected-light illumination unit, Bertrand lens, fluorescence filter cubes |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMLP |
| Optical System | Infinity-Corrected |
| Illumination | 12 V / 100 W Halogen (Transmitted & Reflected) |
| Eyepiece | 10×, FOV 22–25 mm |
| Observation Modes | Brightfield, Polarized Light, Optional DIC |
| Objective Turret | 5-Position, Centerable |
| Polarization Components | Rotatable Polarizer & Analyzer, Bertrand Lens, Conoscopic Viewing, λ/4 & λ/2 Retardation Plates, Adjustable Wedge Compensator |
| Objective Compatibility | Plan Achromat, Plan Semi-Apochromat, and Plan Apochromat Polarizing Objectives |
| Tube Configuration | Trinocular (Simultaneous Visual Observation & Imaging) |
| Software Compatibility | Leica Application Suite (LAS), Third-Party Image Analysis Platforms |
| Compliance | Designed for ISO 9001–certified manufacturing |
| Brand | Leica |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Visoria P |
| Pricing | Upon Request |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | Visoria P |
| Category | Imported Instrument |
| Distribution Type | Authorized Distributor |
| Pricing | Available Upon Request |
| Brand | Linkam |
|---|---|
| Origin | United Kingdom |
| Model | MDSG600 |
| Temperature Range | −196 °C to +600 °C |
| Heating/Cooling Rate Control | 0.01–150 °C/min |
| Position Resolution | 0.05 µm |
| Position Repeatability | <3 µm |
| XY Travel Range | 15 mm × 15 mm |
| Stored Coordinates | 150 (X,Y) |
| Aperture Diameter | 1.3 mm |
| Objective Working Distance Compatibility | 0.1–4.9 mm |
| Condenser Minimum Working Distance | 12.7 mm |
| Sample Holders | 7 mm, 10 mm, or 16 mm diameter |
| Brand | Linkam |
|---|---|
| Origin | United Kingdom |
| Model | RH95 |
| Compatible Stages | THMSG600, MFS, LTS420, HFS600 |
| Max Controlled Volume | 2000 cm³ |
| RH Range | 5–90% RH |
| RH Stability | ±0.5% RH at setpoint |
| RH Ramp Rate | ~7% RH/min |
| Sensor Response Time | ~8 s |
| Sensor Type | Integrated Digital Capacitive T/RH Sensor |
| Inert Gas Input | Up to 5 bar (optional regulator module) |
| Brand | Linkam |
|---|---|
| Origin | United Kingdom |
| Model | THMSG600 |
| Temperature Range | −196 °C to +600 °C |
| Temperature Stability | < 0.01 °C |
| Temperature Resolution | 0.01 °C |
| Heating/Cooling Rate | 0.01–150 °C/min |
| Optical Aperture Diameter | 1.3 mm |
| Sample X/Y Translation Range | 16 mm |
| Heating Zone Diameter | 22 mm |
| Window Thickness (Cover Slip) | 0.17 mm |
| Minimum Objective/Condenser Working Distance | 4.5 mm / 12.5 mm |
| Dimensions | 137 × 92 × 22 mm |
| Brand | MingHui |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |

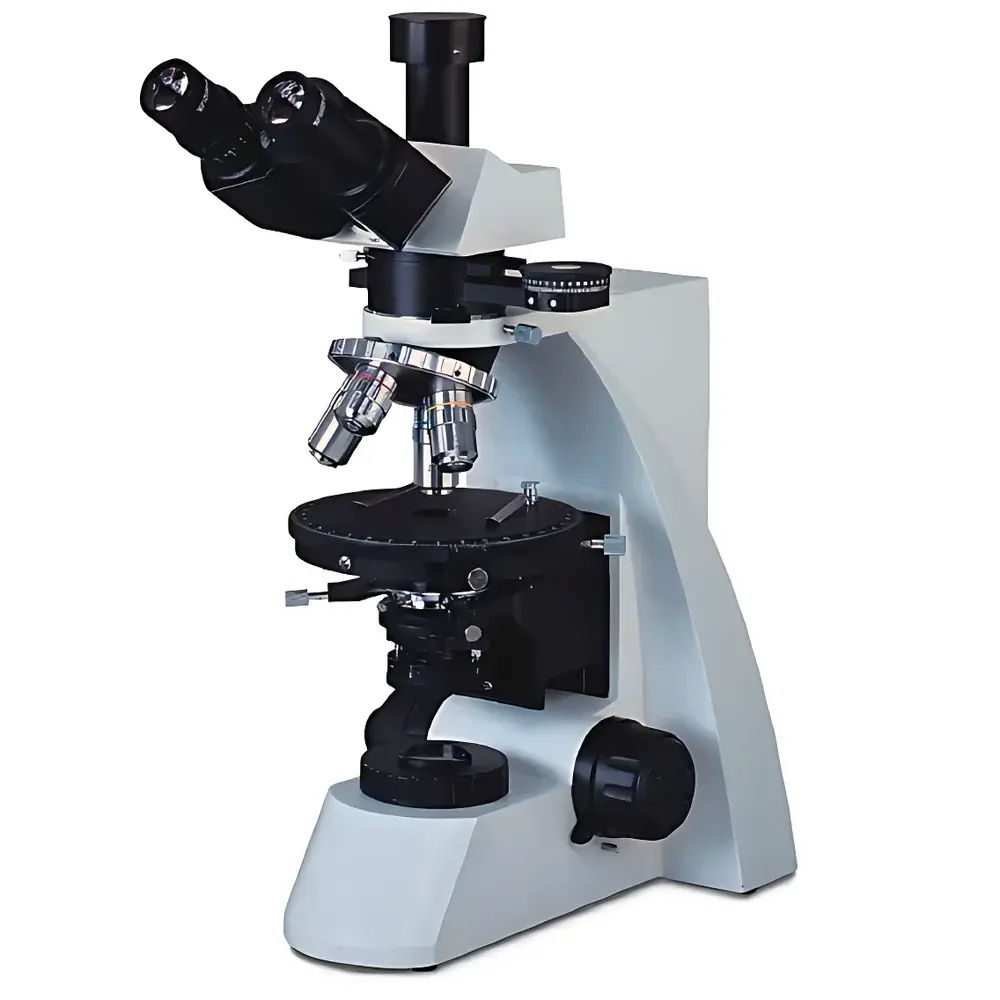

| Model | MHPL1500 |
| Illumination | Transmitted Halogen (6V/20W) |
| Objective Lenses | PL 4×/0.10, PL 10×/0.25, PL 40×/0.65 (spring), PL 60×/0.85 (spring) |
| Eyepieces | Wide-field WF10× (Φ18 mm), Divided 10× (0.10 mm/div) |
