Liquid Liquid Extractor
Filter
Showing all 21 results

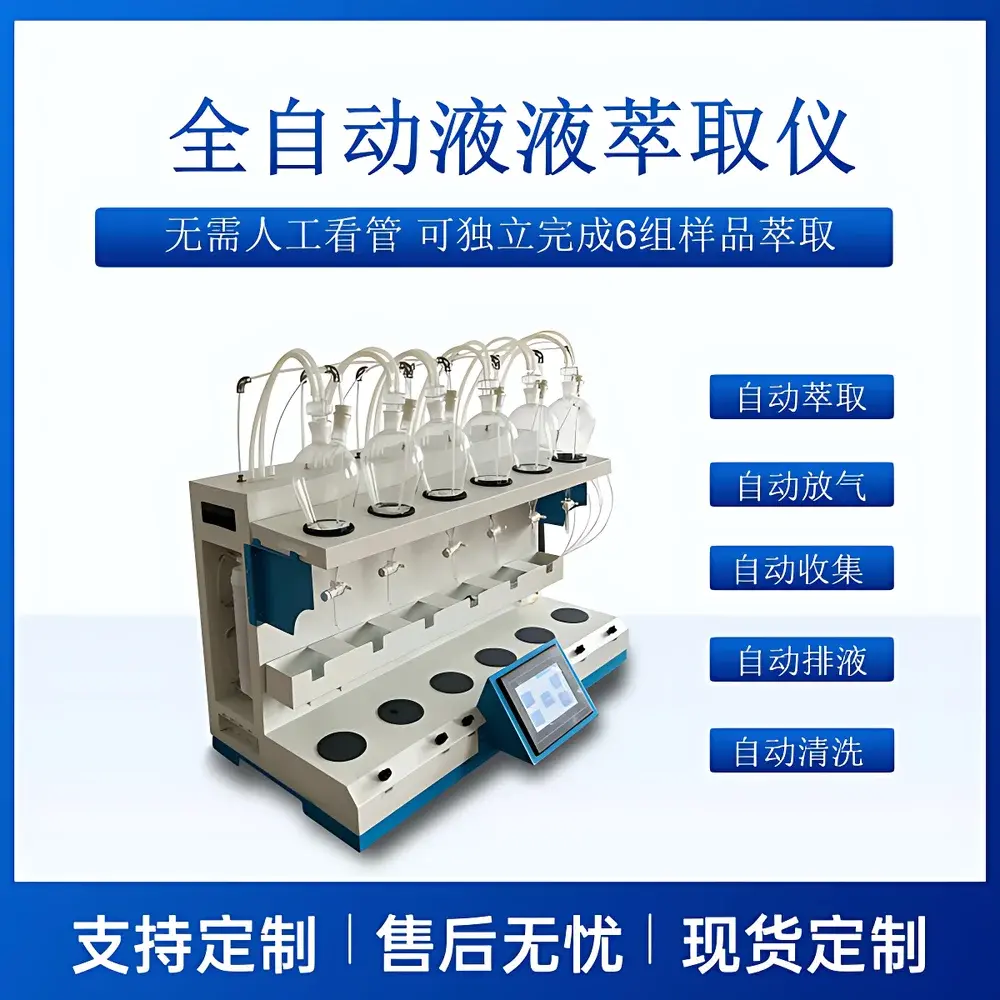

| Brand | ANYAN |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | CYZDCQ-6 |
| Price | USD 5,600 (FOB) |
| Extraction Efficiency Range | 0–999% (dimensionless performance index) |
| Extraction Time Range | 0–999 s |
| Oscillation Mode | Vertical reciprocating oscillation |
| Simultaneous Extraction Capacity | 6 positions |

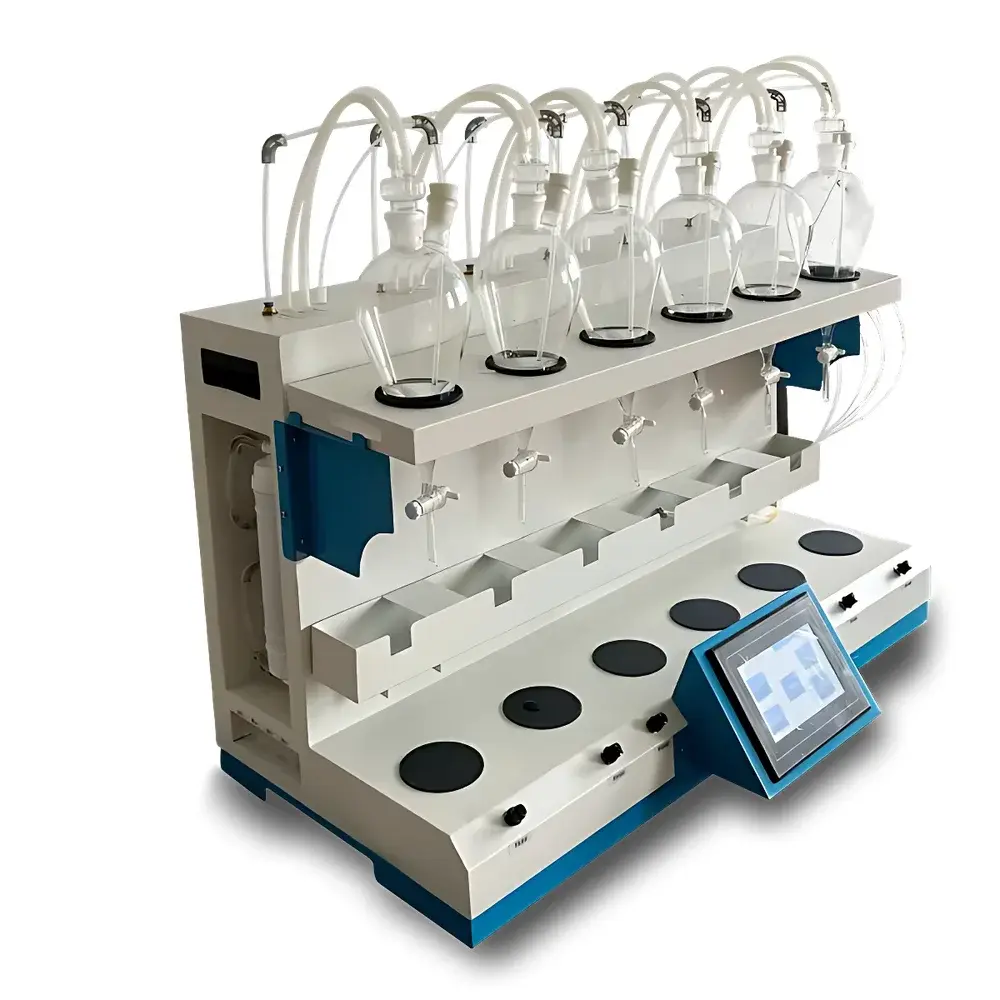

| Brand | Chuanyi Instruments (Hangzhou Chuanyi Electronics) |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM Manufacturer |
| Model | CYZDCQ-6 |
| Price Range | USD 2,100 – 3,800 |
| Extraction Efficiency | 0–99 cycles |
| Extraction Time | 0–999 s |
| Oscillation Method | Pneumatic Air-Driven Agitation |
| Simultaneous Extraction Capacity | 6 samples |
| Power Rating | 400 W |
| Voltage | 220 V ± 10% AC, 50/60 Hz |
| Touch Interface | 7-inch Color TFT LCD with Capacitive Touch |
| Standard Vessel Capacity | 1000 mL (optional 250/500/2000 mL) |
| Cleaning Mode | Wide-Angle Pressurized Spray |
| Waste Liquid Handling | Activated Carbon Adsorption + Centralized Collection |
| Exhaust Treatment | Filtered Exhaust with Charcoal Adsorption Cartridge |
| Layer Separation | Automated Agitation + Static Phase Separation (Manual Drainage) |
| Extraction Intensity | Continuously Adjustable |
| Inter-Extraction Interval | 0–999 s |
| Wash Duration & Cycles | 0–999 s / 0–99 cycles |

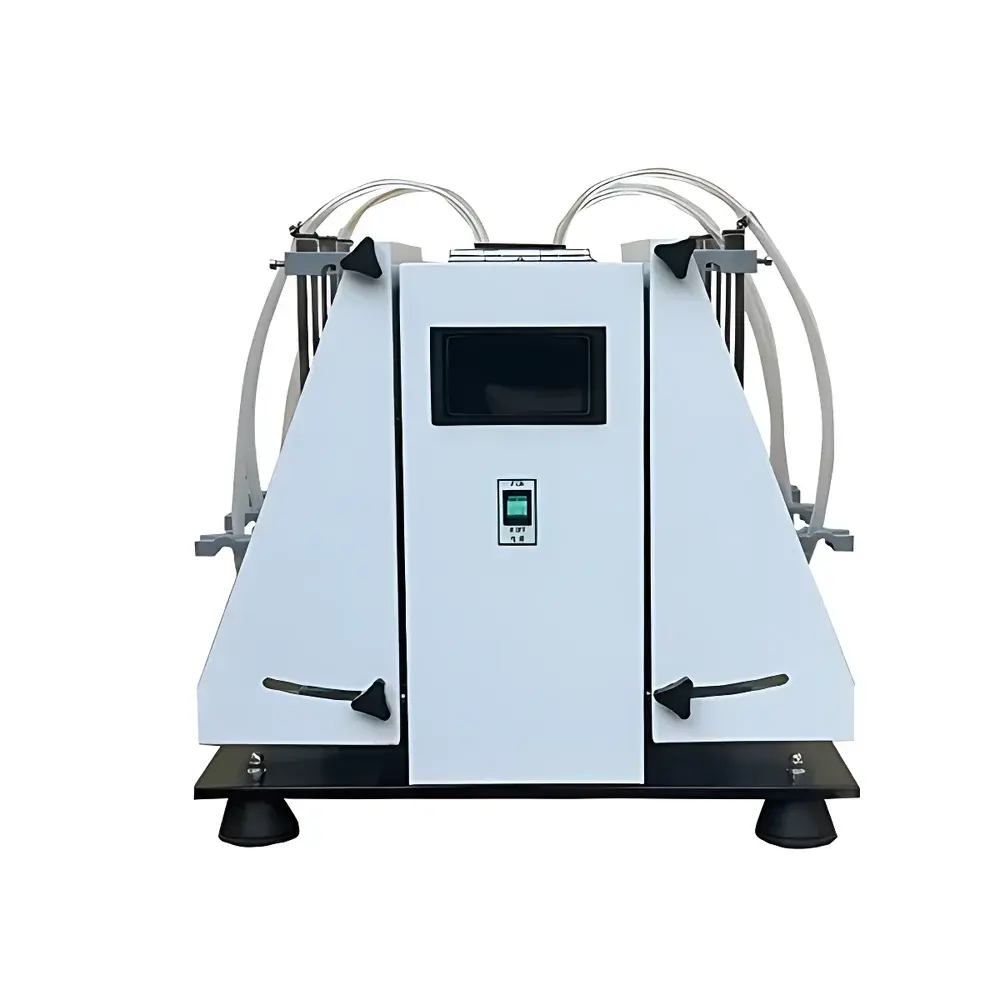

| Brand | Chuanyu Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | CHZD-6Z |
| Price | USD 2,800 (FOB Shanghai) |
| Extraction Efficiency | 0–100% |
| Extraction Duration | Programmable in 1-minute increments |
| Oscillation Mode | Vertical or Adjustable-Angle Vertical (0–20°) |
| Simultaneous Extraction Capacity | 6 separatory funnels |
| Oscillation Frequency Range | 50–350 cycles/min |
| Frequency Accuracy | ±1 cycle/min |
| Load Capacity | Up to 40 kg |
| Funnel Compatibility | 125 mL to 2000 mL (standard fixture: 1000 mL × 6 |
| Venting System | Integrated centralized exhaust with pressure-relief valve and fume duct interface |
| Power Supply | 220 V AC, 50 Hz |
| Safety Features | Soft-start/soft-stop ramping, auto-resume after power interruption, end-of-cycle audible alarm, real-time LCD touchscreen interface (time, interval, delay scheduling) |
| Brand | Hanuo |
|---|---|
| Origin | Shanghai, China |
| Model | HN-LZ6 |
| Extraction Efficiency | 0–99% |
| Extraction Time Range | 0–999 min |
| Oscillation Modes | Vertical or Adjustable Tilt (0–22°) |
| Simultaneous Extraction Capacity | 6 separatory funnels |
| Oscillation Frequency Range | 10–300 rpm (vertical), 20–250 rpm (tilt) |
| Amplitude | 45 mm |
| Max Load per Side | ~7 kg (including fixtures) |
| Noise Level | ≤55 dB(A) |
| Drive System | Brushless DC Motor |
| Fixture Compatibility | 50–3000 mL (standard & large fixtures included) |
| Timer Function | Digital, memory-retentive, supports timed & continuous operation |
| Safety Features | Soft-start & soft-stop acceleration/deceleration profiles |
| Brand | HUANKONG |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | 3000 Series |
| Oscillation Mode | Vertical or Tilted |
| Simultaneous Extraction Positions | 6 or 8 |
| Extraction Frequency Range | 0–400 cycles/min |
| Extraction Time Setting Range | 0–6000 min |
| Sample Vessel Capacity Compatibility | 50–1000 mL |
| Exhaust Handling | Centralized collection + activated carbon adsorption |
| Cleaning Mode | Automated solvent/water rinse |
| Power Supply | 220 V / 50 Hz, 300 W |
| Brand | Jing Rong Yuan |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JRY-P10 |
| Extraction Time Range | 0–99 h |
| Oscillation Mode | Vertical |
| Simultaneous Extraction Capacity | 10 separatory funnels |
| Oscillation Amplitude | 50 mm |
| Speed Range | 0–350 rpm |
| Voltage | 220 V, 50 Hz |
| Motor Power | 180 W |
| Noise Level | <60 dB(A) |
| Compatible Funnel Sizes | 125–1000 mL |
| Housing Material | Powder-coated steel chassis |
| Brand | Jingrongyuan |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JRY-L10 |
| Extraction Time Range | 0–9999 min |
| Oscillation Mode | Vertical |
| Simultaneous Extraction Capacity | 10 separatory funnels |
| Oscillation Frequency | 0–350 rpm (infinitely adjustable) |
| Noise Level | <60 dB(A) |
| Oscillation Amplitude | 50 mm |
| Rated Voltage | 220 V, 50 Hz |
| Motor Power | 180 W |
| Net Weight | <30 kg |
| Construction Material | Cold-rolled steel with anti-corrosive epoxy powder coating |
| Compatible Funnel Sizes | 125 mL, 250 mL, 500 mL, 1000 mL |
| Brand | JRY |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Direct Manufacturer |
| Model | JRY-L6 / JRY-L10 / JRY-L12 |
| Extraction Time Range | 0–9999 min (adjustable in 0.01-min increments) |
| Oscillation Mode | Vertical reciprocating + 360° sample rack rotation |
| Simultaneous Extraction Capacity | 6 / 10 / 12 separatory funnels |
| Funnel Capacity | 1000 mL / 500 mL / 250 mL per position |
| Rated Voltage | 220 V, 50 Hz |
| Motor Power | 180 W |
| Oscillation Amplitude | 50 mm |
| Speed Range | 0–350 rpm (stepless adjustment) |
| Noise Level | <60 dB(A) |
| Net Weight | <30 kg |
| Construction Material | Cold-rolled steel with anti-corrosive epoxy powder coating |
| Compliance | Designed for ISO/IEC 17025-aligned laboratory workflows and GLP-compliant sample preparation |
| Brand | Oerl |
|---|---|
| Origin | Jilin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | CQ2000-I |
| Price Range | USD 0–1,450 (FOB) |
| Extraction Efficiency | >95% |
| Extraction Time | 3 min per sample |
| Agitation Mode | Bidirectional Rotational Oscillation |
| Sample Capacity | 1 × 1000 mL |
| Power Consumption | 10 W |
| Input Voltage | 220 V AC, 50 Hz |
| Dimensions (W×D×H) | 300 × 255 × 650 mm |
| Net Weight | 6 kg |
| Brand | Safe |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | AT-AE06 |
| Price Range | USD 1,400 – 4,200 |
| Extraction Efficiency | 0–100% |
| Extraction Time | 0–999 s |
| Oscillation Method | Sealed, Clean Air Internal Circulation Agitation |
| Simultaneous Extraction Positions | 6 |
| Brand | Safe |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | AT-AE06-Z |
| Extraction Efficiency | 0–99% |
| Extraction Time | 0–999 s |
| Agitation Method | Closed-loop Clean Air Oscillation |
| Simultaneous Extraction Capacity | 6 positions |
| Reagent Dispensing Range | 0–50 mL |
| Dispensing Accuracy | ≥2% |
| Sample Vessel Options | 250 / 500 / 1000 / 2000 mL (standard: 1000 mL) |
| Power Rating | 400 W |
| Voltage | 220 V ± 10% |
| Control Interface | 7-inch Color TFT Touchscreen |
| Waste Handling | Integrated Activated Carbon Filtration for Liquid & Gaseous Effluents |
| Cleaning Mode | Wide-angle Pressurized Spray Rinse |
| Brand | Saprete |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | LLE-4R |
| Extraction Efficiency | 100% |
| Extraction Duration | Programmable |
| Oscillation Mode | Rotary Inversion |
| Simultaneous Extraction Capacity | 4–6 separatory funnels |
| Brand | Saprete |
|---|---|
| Model | LLE-6R |
| Origin | Beijing, China |
| Manufacturer | Saprete Instruments Co., Ltd. |
| Type | Flip-type oscillation extractor |
| Sample Capacity | 6 positions |
| Compatible Vessels | 50 mL or 100 mL colorimetric tubes |
| Control Interface | Touchscreen |
| Drive Mechanism | Balanced flip-motion actuator |
| Speed Control | Stepless (0–60 rpm typical range) |
| Operating Modes | Pre-programmed extraction protocols (e.g., “Fast Mix”, “Gentle Phase Separation”, “Hold & Settle”) |
| Compliance | Designed for GLP-compliant lab environments |
| Software Integration | Standalone operation |
| Brand | Saprete |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | ZQ-4A |
| Extraction Efficiency | 100% |
| Extraction Time | Adjustable |
| Agitation Method | Pneumatic |
| Simultaneous Extraction Channels | 4 |
| Brand | Saprete |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | ZQ-6A |
| Price Range | USD 4,200 – 7,000 |
| Extraction Efficiency | 100% |
| Extraction Cycle Time | Programmable & Auto-Terminated |
| Agitation Method | Pneumatic Oscillation |
| Simultaneous Extraction Capacity | 6 Samples |
| Brand | Sentte |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | STC-302 |
| Price Range | USD 1,400 – 7,000 (FOB) |
| Extraction Efficiency | 0–100% |
| Extraction Duration | 0–200 min |
| Agitation Method | Closed-loop Pneumatic Gas-Liquid Mixing |
| Simultaneous Extraction Capacity | 4 Samples |
| Brand | Sentte |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Region Classification | Domestic (China) |
| Model | STC-302B |
| Price Range | USD 7,000 – 14,000 |
| Extraction Efficiency | 0–100% |
| Extraction Duration | 0–200 min |
| Agitation Method | Closed-loop Pneumatic Gas-Liquid Mixing |
| Simultaneous Samples | 6 |
| Brand | Spectra Invent |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AE-03 |
| Extraction Efficiency | 95% |
| Extraction Cycle Time | 2–4 min per sample (adjustable range: 1–30 min) |
| Agitation Method | Pneumatic Oscillation |
| Simultaneous Extraction Capacity | 3 samples |
| Brand | Spectra Invent |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AE600 |
| Extraction Efficiency | ≥95% |
| Extraction Time | 2–4 min per sample (adjustable) |
| Agitation Method | Recirculating Pneumatic Agitation |
| Simultaneous Extraction Capacity | 6 samples |
| Brand | Spectra Invent / Chinainvent |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HX100 |
| Quotation | Upon Request |
| Extraction Efficiency | ≥95% |
| Extraction Cycle Time | 3 min per sample (adjustable from 1–1000 s) |
| Agitation Method | Pneumatic Oscillation |
| Simultaneous Extraction Positions | 3 |
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Thermo Fisher Dionex ASE 350 |
| Quotation | Upon Request |
| Sample Capacity | 1–100 g |
| Throughput | Up to 24 unattended extractions |
| Operating Temperature | Up to 200 °C |
| Maximum Pressure | 1500 psi (10 MPa) |
| Pump Flow Rate | 70 mL/min |
| Solvent Compatibility | Organic and aqueous solvents |
| Extraction Cell Volumes | 1, 5, 10, 22, 34, 66, and 100 mL |
| Collection Vial Options | 60 mL and 250 mL |
| Dimensions (W × D × H) | 67.3 × 69.3 × 61.7 cm |
| Weight | 65 kg |
| Power Supply | 240 V, 50/60 Hz, ≤500 VA |
| Pneumatic Requirements | Air at 400–827 kPa (60–120 psi) |
