ChemInstruments
Filter
Showing all 2 results
| Brand | ChemInstruments |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor (Yuelian/Yuelian Instruments Co., Ltd.) |
| Country of Origin | Imported |

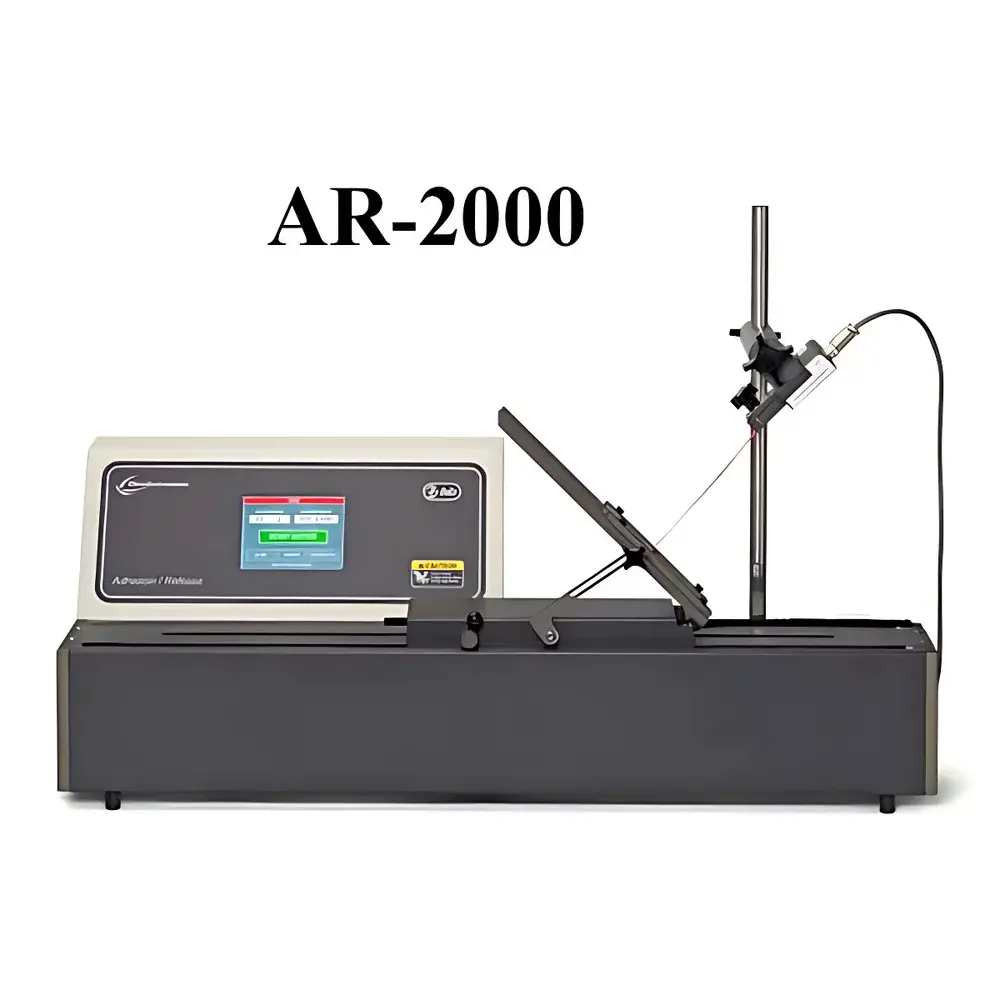

| Model | AR-2000 |
| Price | Upon Request |
| Display | 5.7" Full-Color Touchscreen |
| Speed Range | 1–1200 ipm (3–3048 cpm) |
| Peel Angle Options | 90°, 180° |
| Load Cell Options | 2, 5, 10, or 25 lbf |
| Sample Length | 0.5"–12" (12.7–305 mm) |
| Operating Temperature | 32–150 °F (0–70 °C) |
| Accuracy | ±0.1% of full-scale load cell |
| Power Input | 220 VAC, 50/60 Hz |
| Dimensions (H×W×D) | 61 × 91 × 33 cm |
| Weight | 42 kg |
| Compliance Standards | PSTC-101 (A–F), PSTC-4, PSTC-15, PSTC-55, ASTM D3330, TLMI L-IA1/L-IA2/L-IA3, AFERA 4001 R11, FINAT FTM 1–6, FTM 10, FTM 11 |
| Data Interface | USB 2.0 |
| Software Integration | EZ-Date™ Data Management Suite |
| Control System | Digital speed control with encoder feedback |
| Enclosure Rating | Industrial-grade robust chassis for production-floor deployment |
| Brand | ChemInstruments |
|---|---|
| Origin | USA |
| Model | BP-2000 |
| Load Cell Capacity | 25 lbf (standard), optional 2, 5, 10, and 50 lbf |
| Force Resolution | 0.1% of full scale |
| Maximum Test Force | 50 lbf (222.4 N) |
| Test Speed Range | 0.5–25 IPM (1–64 CPM), adjustable in 0.5 IPM increments |
| Data Acquisition Rate | 1,000–5,000 points/second |
| Test Length Range | 0.25–1.5 in (0.5–3.5 cm), adjustable in 0.25 in (0.5 cm) increments |
| Operating Temperature | 0–70 °C (32–150 °F) |
| Power Input | 85–265 VAC, 50/60 Hz |
| Dimensions (H×W×D) | 63 × 46 × 25 cm |
| Weight | 20 kg |
| Display | 5.7-inch integrated touchscreen interface |
| Data Export | USB to EZ Data software |
| Compliance | Designed for TLMI-1G and PSTC test methods |
| Load Cell Options | 2, 5, 10, 25, and 50 lbf capacities available |
