Equitec
Filter
Showing all 2 results
| Brand | Equitec |
|---|---|
| Origin | Spain |
| Model | EGCHS |
| Temperature Range | 4–60 °C |
| Humidity Control (HR models) | 20–90 % RH (±3 % RH) |
| Temperature Uniformity | ±1.5 °C at 27 °C, ±1.0 °C at 45 °C |
| Temperature Stability | ±0.75 °C at 27 °C, ±0.5 °C at 40 °C |
| Illumination | Programmable photoperiod with sunrise/sunset simulation (380–720 nm LED options available) |
| Controller | 4.3″ or 7″ TFT color touchscreen (4000-series), with integrated data logger (1-year storage @ 30-s intervals), MODBUS RS485, Ethernet/WiFi, GSM alarm interface (optional), USB/SD card export, GLP-compliant audit trail |

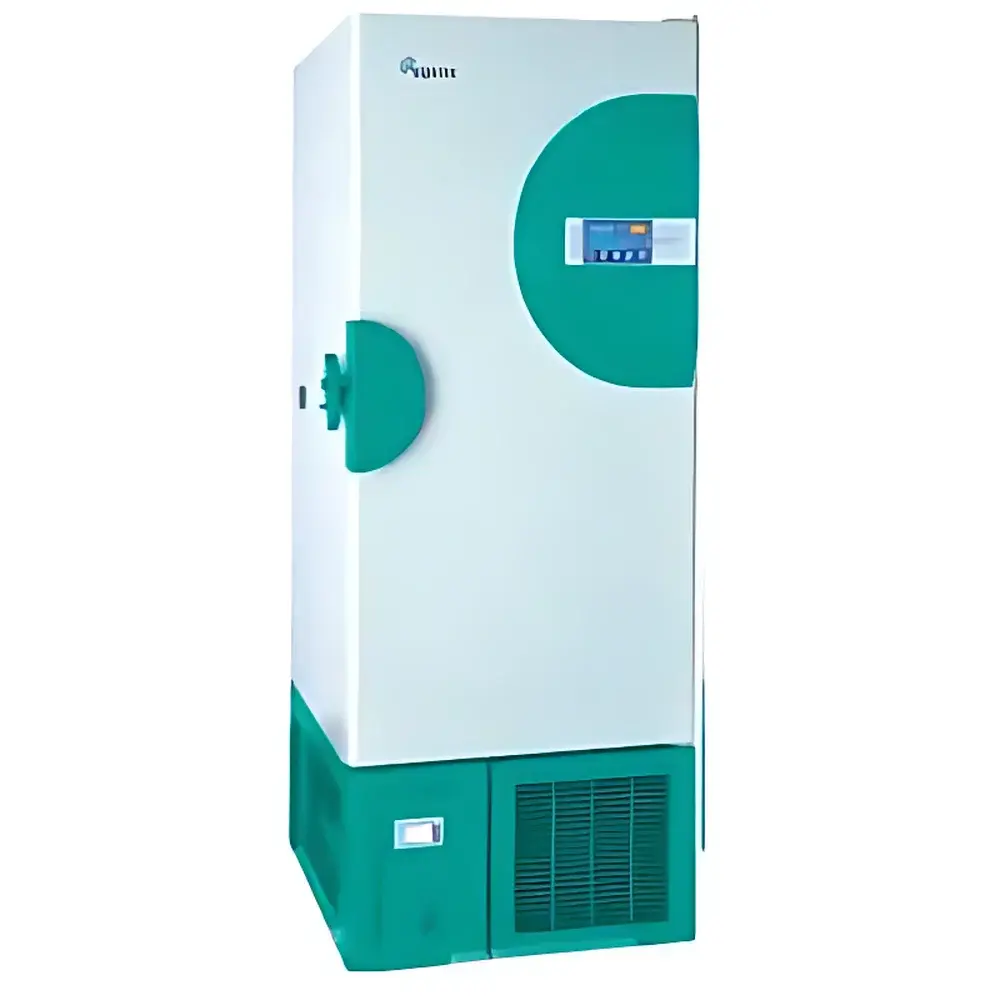

| Key | Brand: Equitec |
|---|---|
| Origin | Spain |
| Models | EVFS 220, EVFS 535, EVFS 665, EVFS 765 |
| Effective Volume | 765 L (EVFS 765 model) |
| Internal Dimensions (W×D×H) | 930 × 665 × 1200 mm |
| External Dimensions (W×D×H) | 1190 × 996 × 1999 mm |
| Power Supply | 220 V / 50 Hz |
| Rated Compressor Power | 2.25 HP |
| Temperature Range | −86 °C to −40 °C |
| Temperature Uniformity | ±1.5 °C (at −80 °C, steady state) |
| Control Sensor | Pt100 platinum resistance thermometer |
| Temperature Resolution | 0.1 °C |
| Alarm Backup Battery | Ni–Cd, 48 h standard (72 h optional) |
