Hegewald & Peschke
Filter
Showing all 3 results
| Brand | Hegewald & Peschke |
|---|---|
| Origin | Germany |

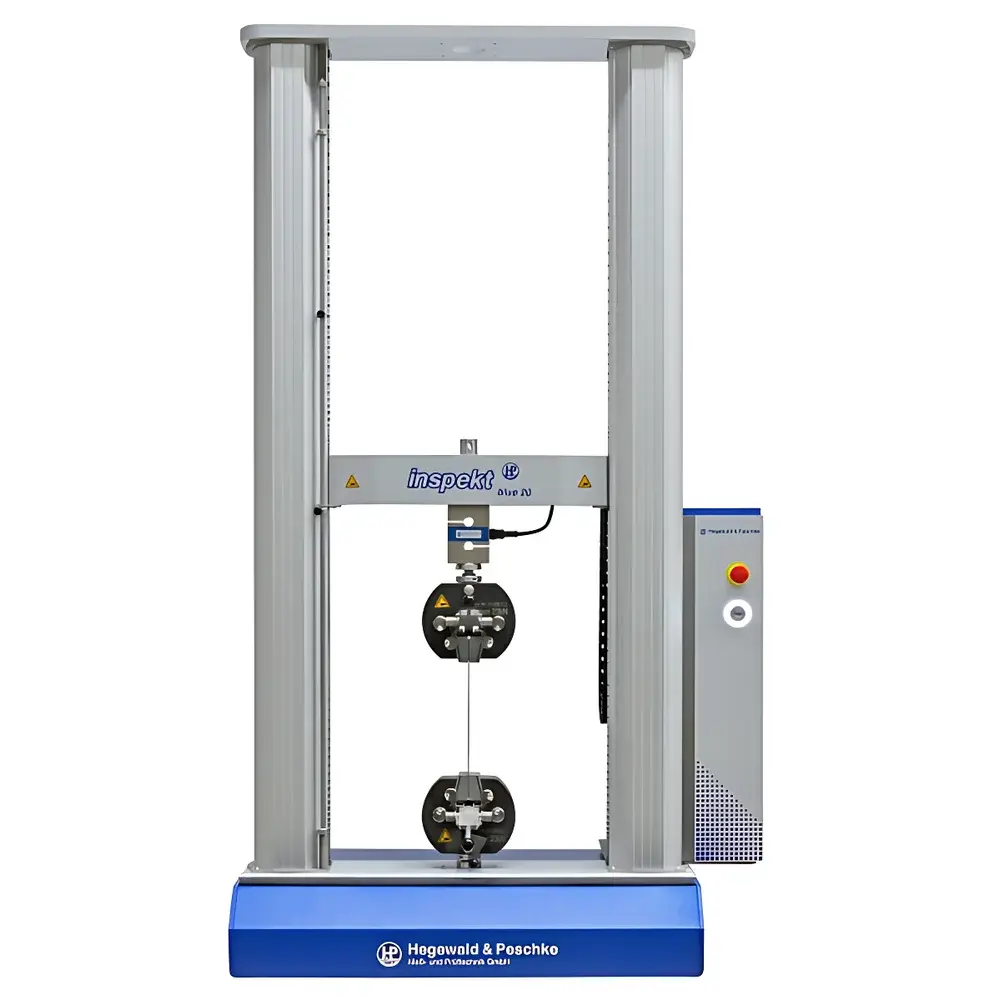

| Model | Inspekt Blue |
| Load Capacity | 20 kN or 30 kN |
| Frame Type | Dual-column, benchtop |
| Test Height | 1100 mm |
| Test Width | 420 mm |
| Load Measurement Range | 0.4%–100% of rated capacity |
| Compliance | EN ISO 7500-1, ASTM E4, EN 10002-2 |
| Drive System | Brushless motor, gearless transmission |
| Control Options | Integrated control panel + optional PC-based LABMASTER software |
| Standard Safety Features | Overload protection, automatic calibration, fracture detection, return-to-start |
| Instrument Type | Electromechanical universal testing machine |
| Brand | Hegewald & Peschke |
|---|---|
| Origin | Germany |

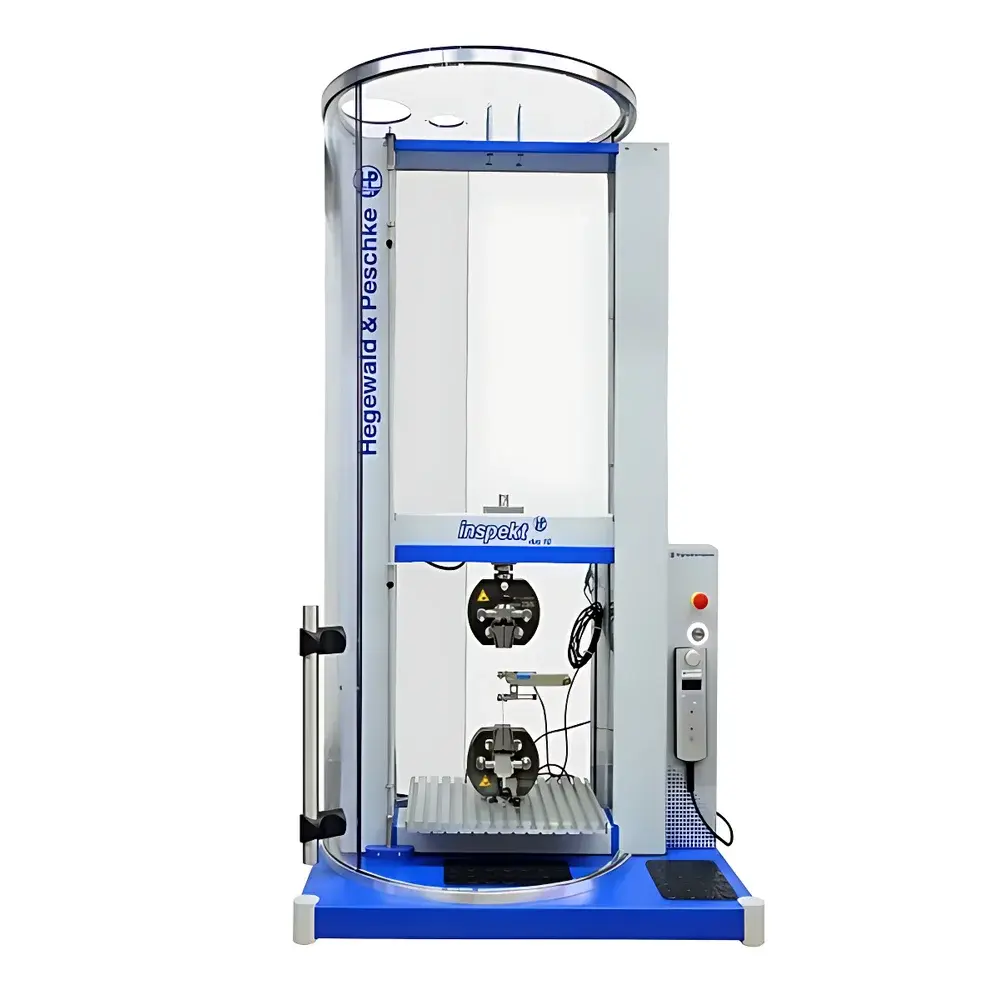

| Model | Inspekt Duo |
| Load Capacity | 5 kN / 10 kN |
| Frame Type | Dual-column, benchtop |
| Test Space Height | 1025 mm or 1325 mm |
| Test Space Width | 420 mm |
| Load Measurement Range | 0.4–100% of rated load |
| Compliance | EN 10002-2, ASTM E4, DIN EN ISO 7500-1 |
| Noise Level | ≤ 65 dB(A) |
| Drive System | Brushless motor, gearless transmission |
| Control Interface | Touch-enabled control panel and PC-based operation |
| Standard Functions | Overload protection, automatic calibration, fracture detection, auto-return |
| Software (optional) | LABMASTER |
| Brand | Hegewald & Peschke |
|---|---|
| Origin | Germany |
| Model | Inspekt Solo S / M / L |
| Max Load Capacity | 2.5 kN |
| Frame Type | Single-column |
| Crosshead Travel | 475 mm / 1075 mm / 1375 mm |
| Load Measurement Range | 0.2–100% of rated capacity (Class 1 accuracy, optional Class 0.5) |
| Load Cell Technology | Strain-gauge-based |
| Control Interface | USB 2.0 or LAN |
| Software | LABMASTER |
| Overload Protection | Yes |
| Automatic Sample Break Detection | Yes |
| Auto-return Function | Yes |
| Calibration | Automated |
| Weight | 48–60 kg (S–L variants) |
| Compliance Standards | ASTM E4, ASTM D638, ISO 527, ISO 178, DIN 53455, JIS K7113 |
