Kaige
Filter
Showing all 3 results
| Brand | Kaige |
|---|---|
| Origin | Germany |

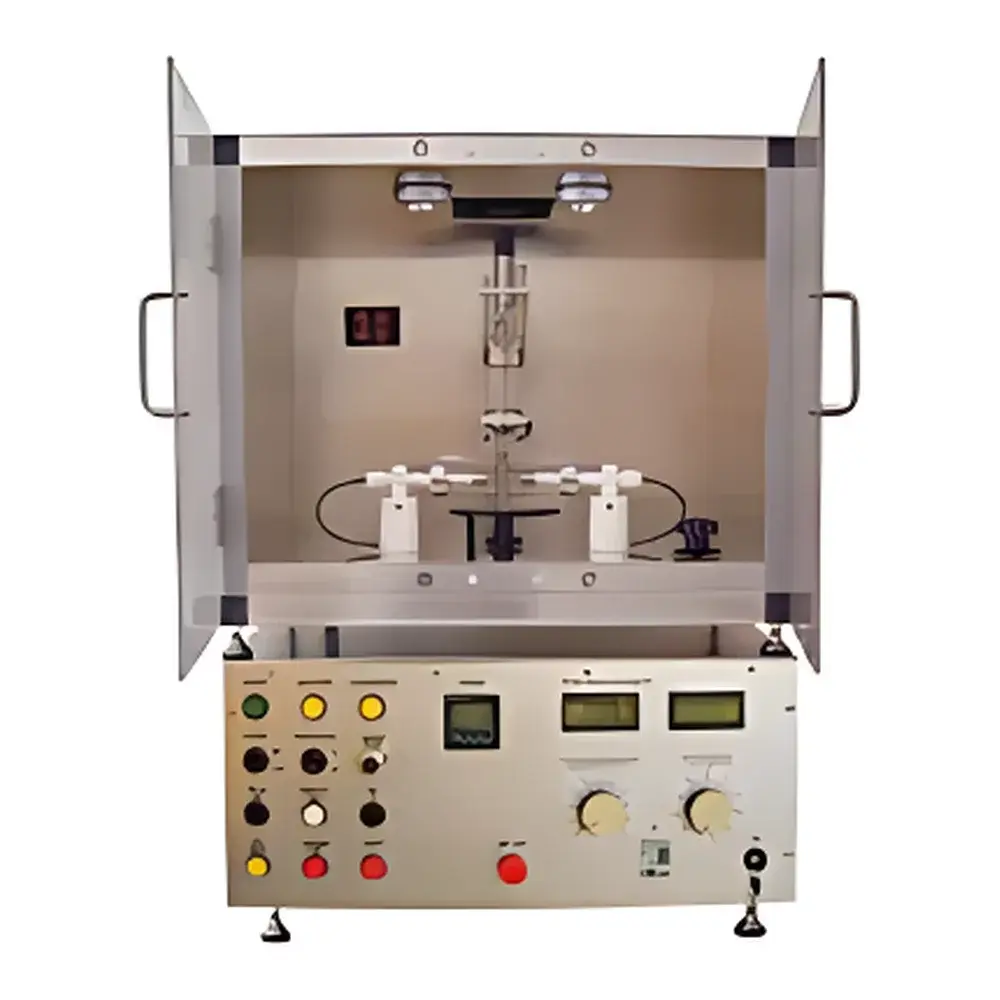

| Model | CTI-4 |
| Test Voltage Range | Up to 600 V |
| Droplet Volume | Standardized per IEC 60112 (0.1% NH₄Cl solution) |
| Droplet Height | 35 mm |
| Electrode Dimensions | 2 mm × 5 mm Pt |
| Timing Interval | 30 s per droplet |
| Compliance | IEC 60112:2003, UL 746A, ASTM D3638-92, DIN EN 60112, VDE 0303-1 |
| Automation Level | Fully Automated |
| Measurement Outputs | CTI (Comparative Tracking Index), PTI (Proof Tracking Index) |
| Brand | KaiGe |
|---|---|
| Origin | Germany |
| Model | MAK / MOK |
| Type | Manual/Electric Linear Notching Machine for Charpy/Izod Impact Test Specimens |
| Compliance | ASTM E23, ISO 148-1, ISO 180, DIN 53438, EN ISO 179-1 |
| Max Specimen Height | 30 mm |
| Tool Positioning Tolerance | < 0.01 mm |
| Feed Resolution | 0.001 mm (selectable) |
| MAK Cutting Speed | ~0.3 m/s |
| MOK Cutting Speed | up to 20 m/min |
| Power Supply | 230 V / 50 Hz |
| MOK Power Consumption | 0.4 kVA |
| Dimensions (W×H×D, mm) | MAK: 470 × 215 × 220 |
| MOK | 470 × 540 × 470 |
| Weight | MAK: 16 kg |
| MOK | 43 kg |
| Max Simultaneous Specimens | 7 |
| Safety | Integrated Polycarbonate Shield with Interlocked Safety Switch (MOK only) |
| Tool System | Interchangeable Carbide-Tipped Notching Cutters (V-notch: 45° ± 0.5°, root radius 0.25 mm ± 0.025 mm |
| U-notch | 1 mm ± 0.05 mm radius) |
| Brand | Kaige |
|---|---|
| Origin | Germany |
| Model | MeltFloW |
| Temperature Range | Up to 400 °C (optional 450 °C) |
| Load Capacity | Up to 21.6 kg |
| Compliance | DIN EN ISO 1133, ASTM D 1238, BS 2782 Method A |
| Output Unit | g/10 min |
| Control System | Microprocessor-based PID temperature controller |
| Optional Features | Inert gas purge, pneumatic nozzle cleaning, mechanical piston lift, linear column displacement sensor (50-point resolution), k-BASA/k-BASE software suite |
