Cryogenic Constant Temperature Circulator
Filter
Showing all 6 results
| Brand | DRETOP |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | ADC-05-N20 |
| Temperature Range | −20 °C to 100 °C |
| Bath Volume | 5 L |
| Temperature Stability | ±1 °C |
| Flow Rate | 20 L/min |
| Max. Head | 10–12 m |
| Circulation Port | φ10 mm stainless steel metal hose with bayonet fitting |
| Control Mode | 99-segment programmable linear ramp/soak |
| Power Supply | 220 V, 50 Hz |
| IP Rating | IP54 |
| Brand | GengYu |
|---|---|
| Origin | Zhejiang, China |
| Model | DLSB-5/80 |
| Bath Volume | 5 L |
| Bath Dimensions (mm) | Ø220 × 180 |
| Coil Inner Diameter (mm) | Ø200 |
| Opening Diameter (mm) | Ø195 |
| Temperature Range | Ambient to −80 °C |
| Minimum No-Load Temperature | −82 °C |
| Optimal Ambient Temperature | 5–25 °C |
| Relative Humidity | 60–80% RH |
| Power Supply | 220 V / 380 V ±10%, 50 Hz |
| Refrigeration Capacity | 1956–180 W (at varying setpoints) |
| Temperature Control Range (Instrument Display) | −150 to 100 °C |
| Temperature Stability | ±0.5 °C |
| Sensor Type | PT100 |
| Circulation Pump Power | 100 W |
| Head | 4–6 m |
| Flow Rate | 20 L/min |
| Max. System Pressure | 2 MPa |
| Compressor | Danfoss hermetic refrigeration compressor |
| Refrigerant | R22 |
| Circulation Loop Material | SUS304 stainless steel |
| Cabinet Finish | Epoxy-coated corrosion-resistant spray paint |
| Unit Dimensions (W×D×H, mm) | 510 × 345 × 650 |
| Net Weight | 63 kg |
| Safety Protections | Leakage protection, overcurrent circuit breaker, overload relay, compressor high-pressure switch, pump thermal protector, compressor timer, self-diagnostic temperature control system |
| Brand | Hanuo |
|---|---|
| Origin | Shanghai, China |
| Model | HX-2010 |
| Temperature Range | −20 to 105 °C |
| Temperature Stability | ±0.05 °C |
| Bath Volume | 10 L |
| Display Resolution | 0.01 °C |
| Circulation Flow Rate | 16 L/min |
| External Dimensions | 320 × 370 × 670 mm |
| Cooling Method | Air-cooled, hermetically sealed refrigeration compressor |
| Safety Protections | Over-temperature cutoff, refrigeration system overheat & overcurrent protection |
| Calibration Offset Adjustment | Yes |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

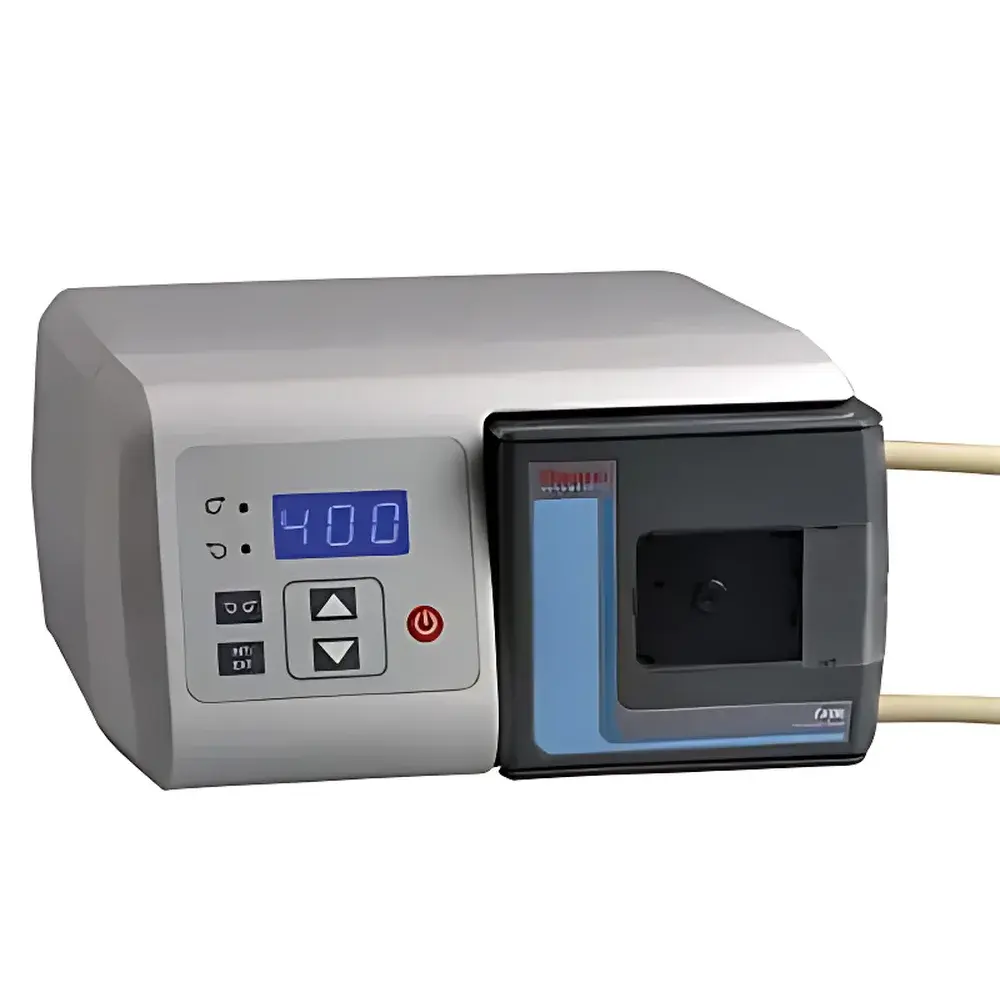

| Model | FH100DX |
| Flow Rate | 14–4000 mL/min |
| Speed Range | 4–400 RPM |
| Reversible | Yes |
| Flow Accuracy | ±0.25% (with calibrated flow system) |
| Speed Resolution | 0.1 RPM |
| Speed Regulation Accuracy | ±0.25% of full scale |
| Control Inputs | 0–20 mA, 4–20 mA, or 0–10 V analog |
| Control Outputs | 4–20 mA or 0–10 V analog |
| Motor | 1/10 HP (75 W), PMDC, phase-controlled |
| Operating Temperature | 0–40 °C |
| Storage Temperature | −25–65 °C |
| Enclosure Material | ABS housing |
| pump head options | glass-filled nylon, Delrin®, stainless steel, cold-rolled steel, nitrile rubber, polycarbonate |
| IP Rating | IP31 |
| Certifications | ETL, cETL, CE, RoHS |
| Dimensions (L×W×H) | 31.7 × 27.9 × 15.2 cm (12.5 × 11 × 6 in) |
| Net Weight | 7 kg (15 lbs) |
| Brand | ZOLLO |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | DL-4030 |
| Price | USD 3,650 (approx.) |
| Bath Volume | 30 L |
| Operating Temperature Range | −50 °C to +100 °C |
| Refrigeration Capacity at −40 °C | 4200 W |
| Temperature Stability | ±0.5 °C |
| Circulation Flow Rate | 42 L/min |
| Display Resolution | 0.1 °C |
| Pump Pressure | ≤0.8 bar |
| Internal Drain Valve | Yes |
| Microprocessor Control | Yes |
| Software Lock Function | Yes |
| Timer Shutdown | 0–100 h adjustable |
| Dual LED Display (Set/Actual) | Red/Green |
| Protection Features | Compressor Delay, Overheat, Overcurrent |
| Cooling Method | Air-Cooled Hermetic Scroll Compressor |
| Compliance | CE-marked design principles |
| Brand | ZOLLO |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | HX-030 |
| Price | USD 1,350 (approx.) |
| Temperature Range | −40 °C to +105 °C |
| Temperature Stability | ±0.05 °C |
| Display Resolution | 0.01 °C |
| Bath Volume | 30 L |
| External Circulation Flow Rate | 16–18 L/min |
| Internal Chamber Material | Stainless Steel (304) |
| Cooling Method | Air-Cooled Hermetic Refrigeration Compressor |
| Safety Protections | Over-Temperature Cut-off, Compressor Overheat/Overcurrent Protection, Drain Valve Integrated |
