Online Moisture Analyzer
Filter
Showing all 5 results

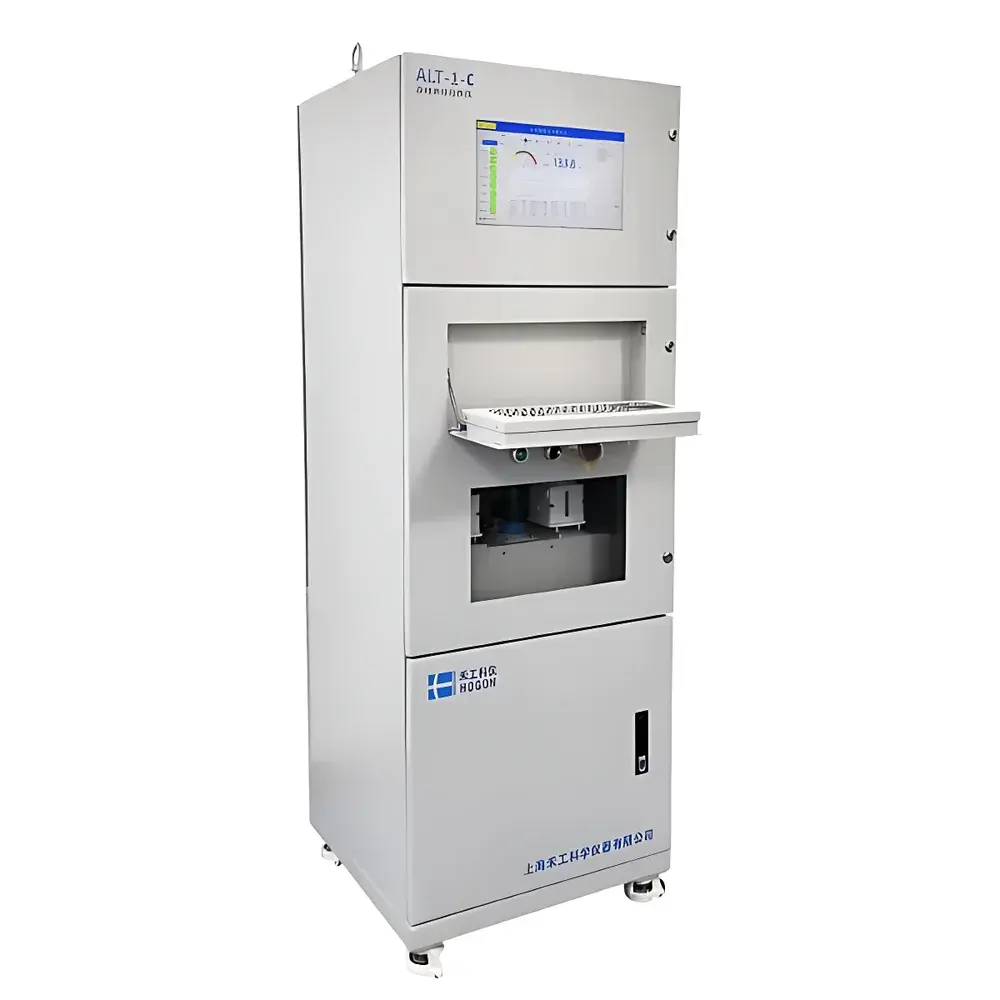

| Brand | HOGON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer | HOGON Scientific Instruments Co., Ltd. |
| Type | Domestic |
| Model | ALT-1-C Online |
| Pricing | Upon Request |
| Brand | Shanda |
|---|---|
| Model | SD-NIR-AC |
| Housing Material | 304 Stainless Steel |
| Measurement Principle | Near-Infrared Reflectance Spectroscopy (NIRS) at Water-Absorbing Wavelengths (e.g., 1450 nm, 1940 nm) |
| Moisture Range | 0–100% w/w |
| Accuracy | ±0.2% w/w (under stable composition conditions) |
| Temperature Compensation | Built-in, automatic |
| Optical Path | Non-contact, reflective configuration |
| Spot Diameter | 60–75 mm |
| Measurement Height | 350 mm ± 100 mm |
| Optical Window | High-borosilicate quartz glass |
| Light Source | Imported high-stability NIR LED/Laser |
| Signal Processing | Full digital signal processing with adaptive digital filtering |
| Output Interfaces | RS485, 4–20 mA, RS232, Ethernet (LAN), LoRa wireless |
| Power Supply | 220 VAC / 50 Hz |
| Power Consumption | 60 W |
| Operating Environment | −40 °C to +70 °C, 5–95% RH (non-condensing) |
| Ingress Protection | IP65 |
| Optional Features | Integrated temperature sensing (0–500 °C), multi-channel spectral acquisition (50 channels) |
| Brand | Tianyan |
|---|---|
| Origin | Shandong, China |
| Manufacturer | Tianyan Instrument Co., Ltd. |
| Model | TY-NIR-HT |
| Temperature Range | 0–500 °C |
| Moisture Range | 0–100 wt% |
| Moisture Accuracy | ±0.2 wt% (under stable composition conditions) |
| Temperature Accuracy | ±1% FS or ±1.5 °C |
| Optical Spot Diameter | 60–75 mm |
| Measurement Height Adjustment Range | 350 mm ± 100 mm |
| Filter Cycle | 1–60 s |
| Number of Calibration Channels | 50 |
| Optical Window | High-borosilicate quartz glass |
| Power Supply | 220 VAC / 50 Hz |
| Power Consumption | 60 W |
| Ingress Protection | IP65 |
| Curve Fitting | Supports >10 auto-calibration points per moisture calibration curve |
| Brand | Tianyan |
|---|---|
| Origin | Shandong, China |
| Model | TY-NIR-HT |
| Measurement Principle | Near-Infrared Reflectance Spectroscopy (NIRS) |
| Moisture Range | 0–100% w/w |
| Moisture Accuracy | ±0.2% (dependent on material composition stability) |
| Temperature Monitoring | Integrated infrared port, range 0–500 °C, accuracy ±1% FS or ±1.5 °C |
| Optical Spot Diameter | 60–75 mm |
| Installation Height Range | 350 mm ± 100 mm |
| Sampling Channels | 50 |
| Light Source | Imported high-efficiency NIR source |
| Filter Cycle | 1–60 s adjustable |
| Optical Window | High-borosilicate quartz glass |
| Power Supply | 220 VAC, 50 Hz |
| Power Consumption | 60 W |
| Enclosure Rating | IP65 |
| Calibration Support | Auto-calibration with ≥10 user-defined moisture calibration points |
| Operating Environment | High-temperature industrial settings |
| Brand | Tianyan |
|---|---|
| Origin | Shandong, China |
| Manufacturer | Tianyan Instrument Co., Ltd. |
| Model | TY-NIR-T |
| Measurement Principle | Near-Infrared Reflectance Spectroscopy (NIRS) |
| Measurement Range | 0–100% w/w (water content by weight) |
| Accuracy | ±0.2% w/w (dependent on material homogeneity and spectral stability) |
| Light Source | Imported high-stability NIR LED array |
| Optical Spot Diameter | 60–75 mm |
| Working Distance | 350 mm ± 100 mm |
| Spectral Channels | 50 discrete wavelength bands |
| Filter Integration Time | 1–60 s adjustable |
| Probe Window Material | High-borosilicate quartz glass |
| Operating Temperature | −40 °C to +70 °C |
| Relative Humidity | 5–95% RH (non-condensing) |
| Enclosure Rating | IP65 |
| Power Supply | 220 VAC, 50 Hz |
| Output Interfaces | RS485, 4–20 mA analog, RS232, Ethernet (LAN), LoRa wireless |
| Display | Integrated industrial-grade capacitive touchscreen |
| Probe Housing | Anodized aluminum alloy (ASTM B557-19 compliant) |
| Signal Processing | Full digital signal chain with adaptive noise filtering and baseline correction |
