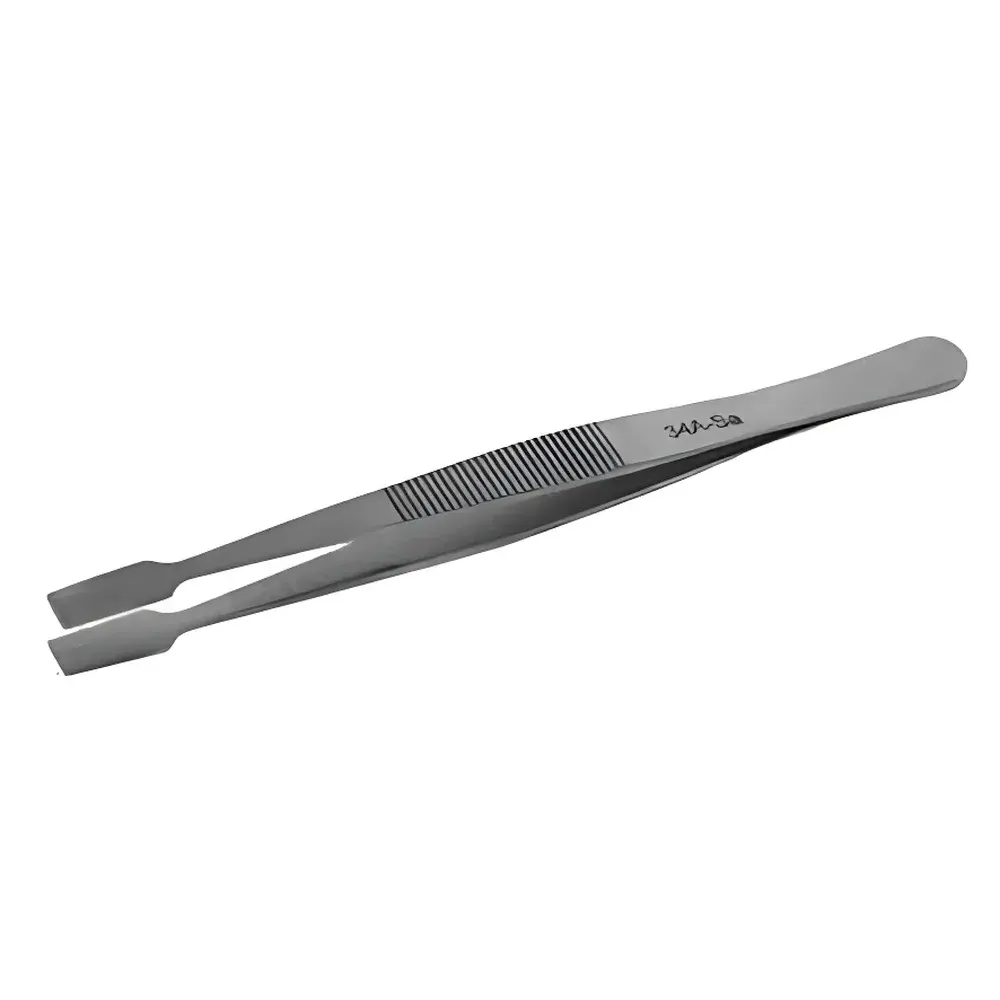

34A-SA Flat-Tip Tweezers for QCM Sensor Handling

Overview

The 34A-SA Flat-Tip Tweezers are precision-handling tools engineered specifically for the safe and contamination-free manipulation of quartz crystal microbalance (QCM) sensors, thin-film electrodes, piezoelectric wafers, and other fragile microelectromechanical components. Unlike standard laboratory tweezers, the 34A-SA features a fully flat, polished tip geometry—optimized to distribute mechanical load uniformly across the surface of delicate AT-cut quartz crystals (e.g., 5–10 MHz fundamental frequency discs), minimizing localized stress that could induce frequency drift or crystal fracture. Its design adheres to cleanroom-compatible handling protocols used in QCM-based mass-sensing applications, where even sub-micron particulate adhesion or surface scratching can compromise baseline stability and Sauerbrey-equation-derived mass resolution.

Key Features

• Precision-ground flat-tip profile (0.3 mm nominal contact width) ensures non-marring, low-pressure grip on gold-coated quartz resonators and sputtered electrode surfaces
• 120 mm overall length provides ergonomic reach and fine motor control during sensor mounting into QCM flow cells or vacuum deposition fixtures
• Stainless steel construction (AISI 304 equivalent) with passivated surface finish meets ISO 14644-1 Class 5 cleanroom compatibility requirements for particulate generation
• Tip hardness calibrated to ≤220 HV to prevent indentation on soft metal films (e.g., Au, Pt, Ag) while maintaining sufficient rigidity for repeatable positioning
• Static-dissipative handle coating (surface resistivity: 10⁶–10⁹ Ω/sq) mitigates electrostatic discharge (ESD) risk during handling of charge-sensitive QCM transducers

Sample Compatibility & Compliance

The 34A-SA is validated for use with standard QCM sensor formats including 14 mm diameter AT-cut crystals (e.g., QS14 series), 9 MHz high-frequency overtones, and custom-thin-film substrates down to 0.1 mm thickness. It is routinely employed in laboratories performing ASTM E2578-22 (Standard Practice for QCM Sensor Calibration) and ISO/IEC 17025-accredited thin-film mass deposition studies. The tool complies with general laboratory safety guidelines for non-powered instrumentation per IEC 61010-1 and supports GLP-compliant documentation when integrated into instrument logbooks for QCM system validation.

Software & Data Management

While the 34A-SA is a passive mechanical tool, its use is intrinsically linked to QCM data integrity workflows. In regulated environments (e.g., pharmaceutical thin-film coating QC per USP <1051>), documented use of calibrated handling tools—including traceable tool identification numbers and cleaning logs—is required for audit readiness. The 34A-SA supports integration into electronic lab notebook (ELN) systems via standardized metadata fields (e.g., “Tool ID”, “Last Sterilization Date”, “Calibration Due”). When used alongside QCM platforms such as Q-Sense E4 or Stanford Research Systems QCM200, consistent tweezer handling directly contributes to inter-run reproducibility (RSD < 0.8% in frequency shift measurements under controlled humidity).

Applications

• Mounting and alignment of QCM crystals in liquid-phase biosensing flow cells for real-time protein adsorption kinetics
• Transfer of evaporated metal electrodes onto quartz blanks prior to impedance characterization
• Positioning of polymer-coated resonators during solvent vapor exposure experiments
• Handling of QCM-D (dissipation monitoring) sensor arrays in multi-channel electrochemical cells
• Maintenance of QCM sensor inventory in nitrogen-purged storage cabinets to prevent oxide formation on reactive coatings

FAQ

What materials are compatible with the 34A-SA’s flat tips?
The flat tips are suitable for gold, platinum, silver, aluminum, and chromium thin films deposited on quartz, silicon, or glass substrates—provided film thickness exceeds 10 nm and substrate bending stiffness remains >0.5 N·m²/m.
Can the 34A-SA be autoclaved?
No. Autoclaving is not recommended due to potential thermal expansion mismatch between handle coating and stainless steel body; instead, clean with isopropanol followed by nitrogen blow-drying in Class 100 laminar flow hoods.
Is this tweezer certified for ISO 13485 medical device manufacturing environments?
The 34A-SA itself carries no ISO 13485 certification, but it is routinely qualified as a Class II accessory within QCM-based coating process validation packages under FDA 21 CFR Part 820.
How often should tip wear be inspected?
Visual inspection under 10× magnification is recommended after every 500 handling cycles; replacement is advised if tip edge radius exceeds 15 µm or visible micro-scratches appear.
Does the 34A-SA include calibration documentation?
As a mechanical handling tool, it does not require calibration—but a Certificate of Conformance (CoC) verifying material composition, dimensional tolerance (±0.15 mm), and surface roughness (Ra ≤ 0.4 µm) is supplied with each unit.
