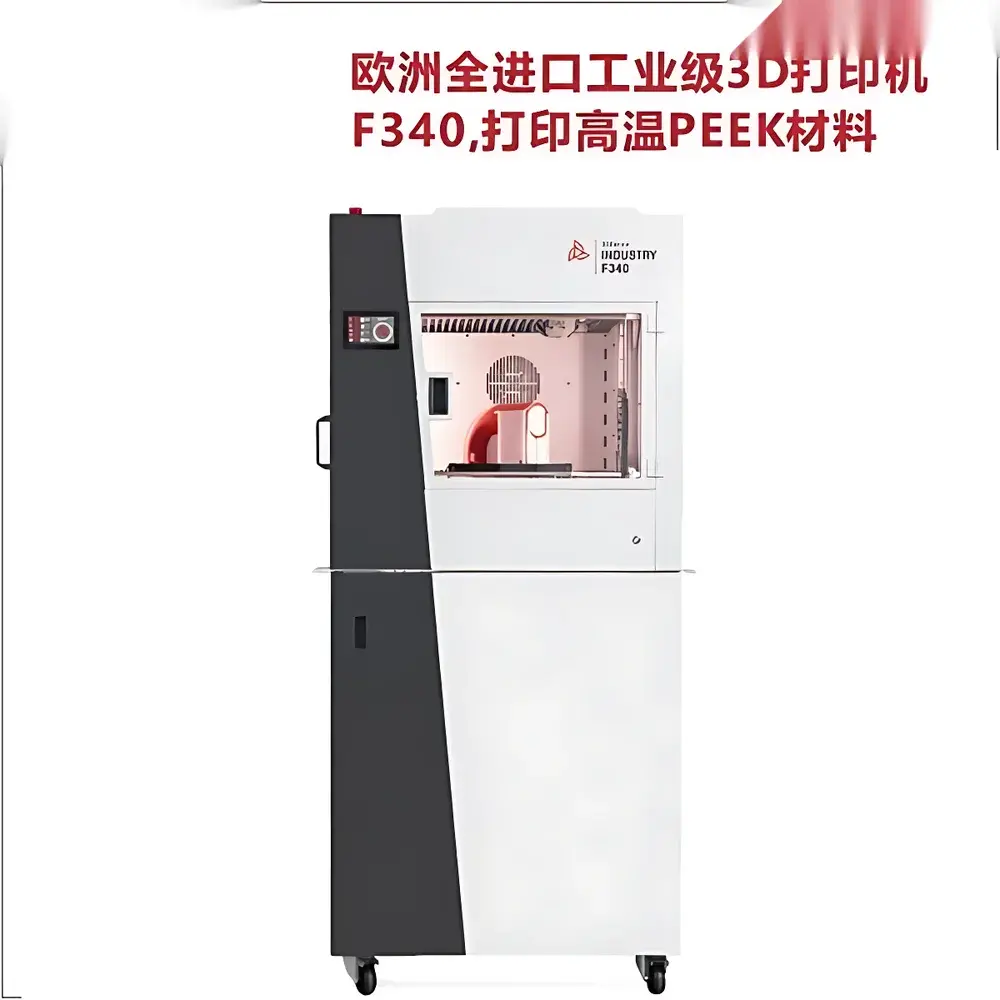

3DGENCE F340 Industrial-Grade Fused Deposition Modeling (FDM) 3D Printer
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Pricing | Available Upon Request |
Overview
The 3DGENCE F340 is an industrial-grade fused deposition modeling (FDM) 3D printer engineered for high-reliability prototyping, functional part production, and low-volume manufacturing in research laboratories, academic engineering departments, and quality control environments. Designed with a rigid steel frame, enclosed heated build chamber (up to 80 °C), and dual independent extruders supporting both standard and engineering thermoplastics, the F340 delivers dimensional stability and repeatability across extended print cycles. Its core architecture adheres to ISO/IEC 17025-aligned mechanical design principles—emphasizing thermal uniformity, motion system rigidity, and closed-loop filament monitoring—to support traceable, auditable fabrication workflows in GLP-compliant settings.
Key Features
- Build Volume: 340 × 340 × 340 mm — optimized for medium-scale functional prototypes and multi-part assemblies without sacrificing XY resolution.
- Heated Enclosure & Build Plate: Maintains chamber temperature up to 80 °C and bed temperature up to 120 °C, enabling stable printing of PEEK, PEKK, ULTEM™, and other high-performance polymers with minimal warping.
- Dual Independent Extrusion System (IDEX): Supports true mirror-mode or duplication-mode operation; each hotend features active temperature control (±0.5 °C) and automatic nozzle cleaning routines.
- Industrial Motion Control: CoreXY kinematics with reinforced linear rails, stepper motors with 1/256 microstepping, and real-time belt tension monitoring ensure positional accuracy within ±0.05 mm over full travel.
- Material Certification Support: Integrated filament RFID reader compatible with certified material spools (e.g., BASF Ultrafuse®, Solvay Ketaspire®); logs material batch ID, Tg, and recommended profile parameters into audit-ready print metadata.
Sample Compatibility & Compliance
The F340 accommodates a broad spectrum of thermoplastic materials—from commodity ABS and PETG to medical-grade PC-ISO (ISO 10993-5 compliant) and aerospace-qualified PEKK. All firmware and hardware configurations meet CE marking requirements under the EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. For regulated environments, optional firmware modules provide 21 CFR Part 11–compliant electronic signatures, user role-based access control (admin/operator/technician tiers), and immutable print log archiving—including timestamps, environmental sensor readings (chamber temp/humidity), and extrusion error events.
Software & Data Management
Controlled via 3DGENCE Studio—a Windows/macOS-native application built on Qt and integrated with OpenCASCADE geometry kernel—the platform supports native import of STEP, IGES, and STL files, automatic support generation with lattice optimization, and G-code simulation with collision detection. All print jobs generate structured JSON metadata bundles containing machine state, material traceability, and post-process calibration reports. Data export complies with ASTM E2913-22 (Standard Guide for Digital Recordkeeping in Additive Manufacturing) and can be ingested into LIMS or MES systems via RESTful API or SFTP push. Audit trails retain versioned configuration snapshots and are exportable as PDF/A-2b for regulatory submission.
Applications
- Rapid tooling for injection molding inserts and jigs/fixtures used in QC labs.
- On-demand fabrication of custom sample holders, flow cells, and mounting brackets compatible with spectroscopic, rheological, and thermal analysis instruments.
- Production of anatomical models from DICOM data for pre-surgical planning validation in biomedical research.
- Development and qualification of polymer formulations under ISO 527-2 tensile testing protocols using printed ASTM D638 Type I specimens.
- Iterative design validation of fluidic manifolds for microfluidics and lab-on-a-chip device integration.
FAQ
Is the F340 validated for use in ISO 13485-certified medical device development labs?
Yes—when configured with the Regulatory Package firmware option and operated under documented SOPs, the F340 supports Design History File (DHF) traceability per FDA Guidance on Technical Considerations for Additive Manufactured Medical Devices.
Does it support third-party filaments outside the certified material library?
Yes, though non-certified materials require manual parameter tuning; full material certification (including thermal degradation profiling and mechanical validation reports) is only available for vendor-validated spools.
Can print logs be exported in CSV format for integration with enterprise quality management systems (QMS)?
Yes—structured log exports include timestamped process variables, environmental data, and operator credentials, all conforming to ASME BPE-2021 Annex K digital record requirements.
