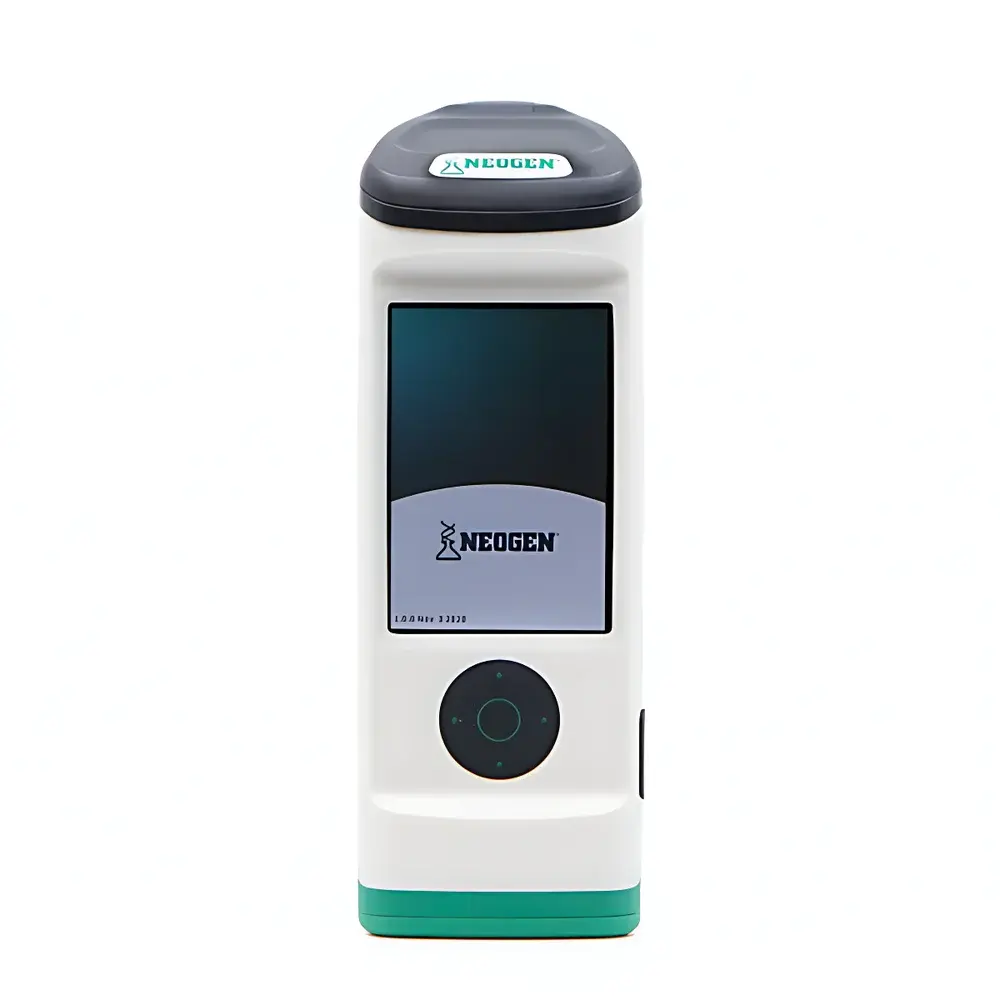

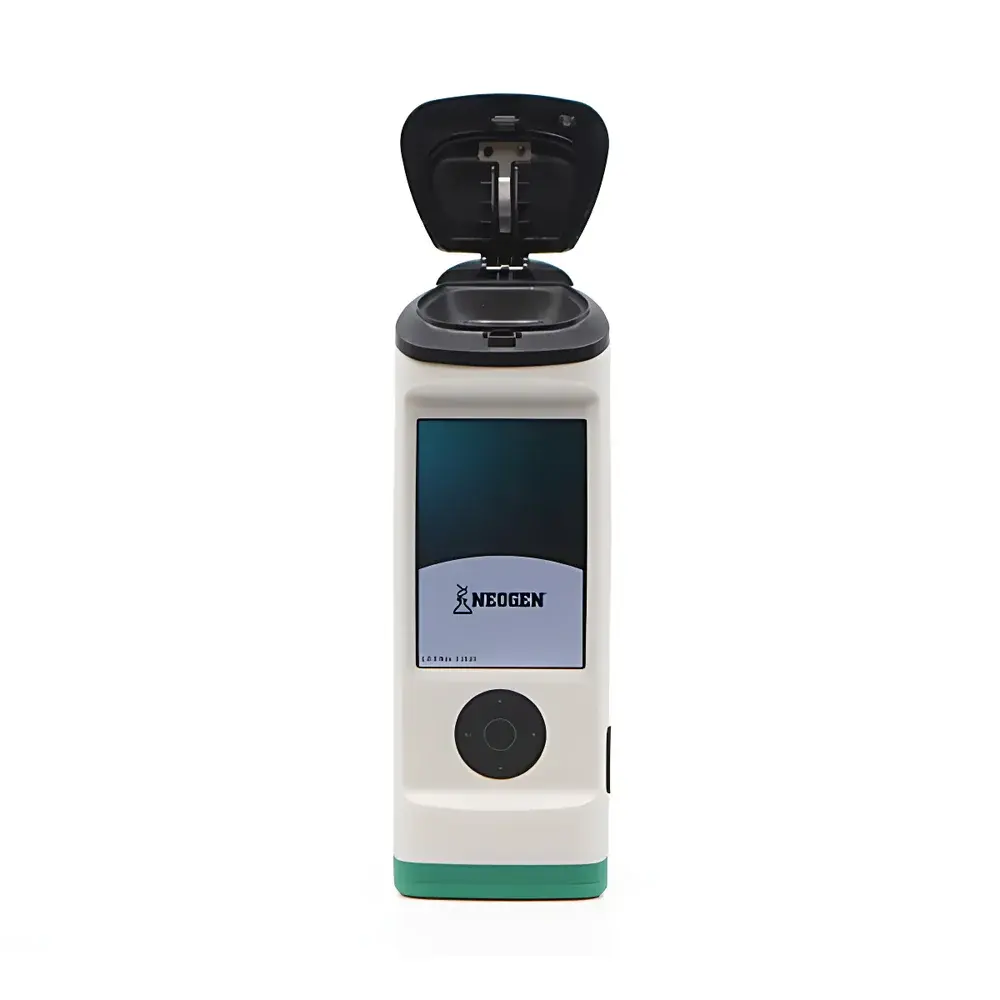

3M AccuPoint ATP Bioluminescence Detector

Overview

The 3M AccuPoint ATP Bioluminescence Detector is a handheld, field-deployable luminometer engineered for rapid, quantitative assessment of surface and liquid hygiene status via adenosine triphosphate (ATP) bioluminescence. It operates on the principle of firefly luciferase–mediated enzymatic reaction: ATP extracted from microorganisms or organic residues reacts with luciferin and oxygen in the presence of luciferase to emit visible light (peak ~560 nm), the intensity of which is directly proportional to ATP concentration. The instrument converts photon counts into Relative Light Units (RLUs), enabling objective, standardized evaluation of cleaning efficacy and microbial load. Designed for compliance with public health surveillance protocols—including China’s *Guiding Opinions on Construction of Health Supervision Institutions* and *Equipment Standards for On-site Rapid Detection Devices in Health Supervision*—the AccuPoint serves as a core tool for real-time hygienic verification across food production lines, healthcare environments, hospitality facilities, educational laboratories, and industrial sanitation programs.

Key Features

• Handheld ergonomic design: Compact dimensions (13.7 × 8.5 × 4.8 cm), weight ≈ 365 g—optimized for extended field use and one-handed operation.
• Ultra-rapid detection: Full measurement cycle completed within 15 seconds post-sampling.
• High analytical sensitivity: Capable of detecting ATP concentrations down to 10⁻¹⁷ mol per assay—equivalent to approximately two viable bacterial cells per RLU increment on screen.
• Dual power options: Rechargeable NiMH AA batteries (≥1000 charge cycles) or standard alkaline AA cells; integrated charging indicator and cradle enable simultaneous battery recharging and data transfer via RS-232.
• Robust environmental tolerance: Operational temperature range 5–40 °C; storage range −20–60 °C; relative humidity 20–80% (non-condensing).
• On-device data management: Stores up to 99 active measurements in volatile memory; retains up to 3000 records in non-volatile memory—even after power loss or shutdown.
• Intuitive user interface: Backlit color LCD display with direct RLU readout; parameter configuration via numeric keypad without specialized training.
• Minimal interference: Optical detection system exhibits <2% signal interference from common environmental contaminants (e.g., residual detergents, metal ions, pH shifts within physiological range).

Sample Compatibility & Compliance

The AccuPoint supports three certified, single-use, all-in-one sampling formats—each pre-loaded with stabilized luciferase/luciferin reagent and optimized for distinct matrices: (1) Surface Sampling Swabs (Cat. No. 9905), featuring hydrophilic foam tips for uniform recovery from flat or textured surfaces; (2) Liquid Sampling Swabs (Cat. No. 9906), designed for water, rinse solutions, and beverage samples; and (3) Interstitial/Conduit Swabs (Cat. No. 9907), with flexible, narrow-profile shafts for sampling pipelines, drains, and confined geometries. All swabs comply with ISO 22000, HACCP, and FDA Food Code Annex 3 guidance for environmental monitoring. Reagent shelf life: 12 months when stored at 2–8 °C; validated performance maintained across pH 5.5–8.5 and ambient lighting conditions. Instrument calibration is traceable to NIST-certified ATP standards.

Software & Data Management

Data export is supported via RS-232 serial interface to Windows-based desktop applications (e.g., 3M™ Clean-Trace™ Software), enabling automated report generation, trend analysis, and audit-ready documentation. Each record includes timestamp, operator ID (assignable), location tag, RLU value, pass/fail status against user-defined action limits, and optional annotation fields. System logs maintain full audit trail per GLP/GMP requirements—including date/time stamps for data upload, parameter changes, and firmware updates. No proprietary drivers required; standard COM port enumeration ensures compatibility with LIMS integration frameworks.

Applications

• Food & Beverage: Verification of CIP/SIP effectiveness, post-sanitation surface monitoring, raw material screening, and environmental pathogen risk mapping.
• Healthcare: Validation of disinfection protocols on medical devices, bedrails, OR surfaces, and endoscope reprocessing workflows.
• Pharmaceutical Manufacturing: Monitoring of Grade A/B cleanroom surfaces, isolator interiors, and equipment contact points per EU GMP Annex 1.
• Education & Research: Teaching microbiology fundamentals, hygiene behavior studies, and validation of novel antimicrobial interventions.
• Public Health Surveillance: Field deployment by municipal health departments for restaurant inspections, school cafeteria audits, and outbreak response triage.

FAQ

What does an RLU value represent?
An RLU (Relative Light Unit) is a dimensionless, instrument-specific photometric output reflecting total photon flux generated during the luciferase reaction. It is not a direct measure of CFU/mL but correlates empirically with microbial load under controlled sampling conditions.
Can the AccuPoint quantify specific pathogens?
No. The AccuPoint measures total ATP—originating from viable microbes, dead cells, and food residues—and is therefore a hygiene indicator, not a pathogen identification tool. Confirmatory culture or molecular testing is required for species-level identification.
Is the device compliant with FDA 21 CFR Part 11?
While the hardware itself is not electronically signed, its data export architecture supports Part 11–compliant software environments when paired with validated third-party platforms that enforce electronic signatures, audit trails, and role-based access control.
How often should the instrument be calibrated?
3M recommends annual verification using certified ATP reference standards; no routine user calibration is required due to factory-set optical gain stability and built-in dark-current compensation.
Are swab types interchangeable between models?
AccuPoint swabs (9905/9906/9907) are mechanically and chemically optimized for this platform and are not cross-compatible with other 3M luminometers (e.g., Hygiene Monitoring System or M-Spec) without performance validation.
